ZLP800 Suspended Work Platform vs. Traditional Scaffolding: Key Differences

When project managers look at different ways to get to work on the outside of tall buildings, selecting a ZLP800 suspended work platform over traditional scaffolding can have real effects on safety, cost, and schedule. The ZLP800, which is made by Hebei Xinjiuyi Construction Technology, can hold up to 800 kg, has two 1.8 kW motors, and can reach platform lengths of up to 7.5 meters. Traditional tube-and-coupler scaffolding, on the other hand, is made up of steel tubes that are anchored to the ground and put together floor by floor. So that procurement teams can make an informed choice, this article breaks down the technical, operational, and financial differences.

Understanding the Fundamentals of ZLP800 Suspended Work Platforms and Traditional Scaffolding

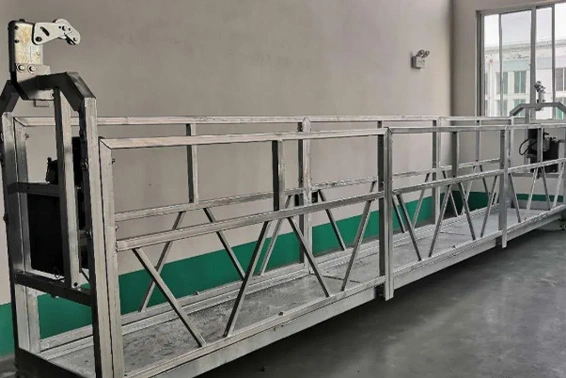

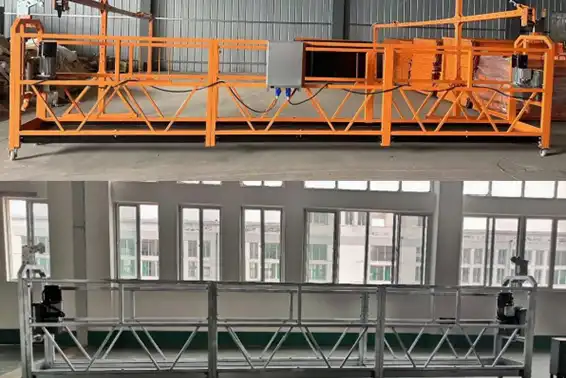

What Defines the ZLP800 Suspended Platform?

An electric ceiling cradle called the ZLP800 is hung from building tops with 9.1 mm high-strength wire ropes. The LTD80 lift system on this machine can move 8–10 m/min. The LSA30/LSA20 safety locks stop the fall if the rope speed gets too high. It's 7,500 mm long, 690 mm wide, and 1,180 mm tall. It can be made of galvanised metal (600 kg) or a T6 grade aluminium alloy. The CE mark means that it is safe and meets the requirements of EN 1808 and GB/T 19155-2017. It can be used for projects in the UK and other places now.

What Defines Traditional Scaffolding?

From the bottom up, tubes, couplers, boards, and base plates made of steel or aluminium are put together to make this kind of scaffolding. On the inside, stairs lead to a fixed work area with several floors that workers can reach. Ringlock structure, flexible frame, and tube-and-coupler are all used by a lot of people. The base must be supported by the ground for each type. This means that each floor of the building has to be put together and taken apart. OSHA says that scaffolding accidents hurt or kill about 4,500 people in the U.S. building industry every year.

Core Technical Comparison at a Glance

Both systems move load, but they do it in very different ways. A 1,000-kilogram balance system and wire lines connected to jibs on the roof make the ZLP800 lift weight. It doesn't hurt the ground. Normally, poles move the weight of the scaffolding down to the ground or building floor. That is, it should be simple to reach the base level, and the ground should be strong enough to support the weight. The ZLP800 is better than regular scaffolding boards for putting up curtain wall glass or stone panels because its platform can hold up to 800 kg. On regular scaffolding boards, each lift of material usually weighs more than 300 kg.

Comparing Performance and Safety Features

Load Capacity and Height Flexibility

When loads are spread out, the deck boards of standard scaffolds can handle them. But the ZLP800's single lift point is the best at handling big loads that are close together. Over 200 meters high, the ZLP800 can hold up to 800 kg. It can do this from ground level. For each floor, there is no need for extra support. How stable the base is and how often the ties are put in determine how high the scaffolding can go. OSHA rules say that tube-and-coupler systems need to have ties every 20 feet up and down. This makes tall buildings more difficult and takes more time.

Safety Lock Systems vs. Scaffolding Fall Arrest

There are LSA30 centrifugal safety locks on the ZLP800 suspended work platform that activate on their own if the platform leans more than 3° or falls faster than the set speed. With this two-lock system, you have a backup stop system that works even if the user doesn't do anything. For scaffolding to work, workers must wear their own fall protection and follow the toe boards and guardrails. The Bureau of Labor Statistics (BLS) says that a lot of people still die on the job in construction because they fall off of scaffolding. That is a lot more dangerous when safety is only based on obstacles and people's activities.

Maintenance and Durability Over the Equipment Life Cycle

The ZLP800 is made up of separate parts that can be taken apart and put back together again at set times. These parts include hoists, safety locks, wire ropes, and platform sections. Safety locks need to be re-calibrated by a factory worker every six to twelve months. Every day, the wire rope is checked. The platform stays in good shape because of this structure that lets it be fixed. Over time, the tubes on traditional scaffolding can bend, rust, or get broken that you don't notice if you rent it from a third-party pool whose inspection history isn't always clear.

Operational Efficiency and Application Suitability

Setup Time and Labor Requirements

To put up tube-and-coupler scaffolding on a 30-story building, you need a dedicated scaffold crew. The job can take weeks. It only takes hours to set up the ZLP800. You don't need any special tools to put the balance, hoists, platform, and suspension jib parts together. Two or three people can set up the system and start using it the same day. The faster speed cuts down on project lead times, which is important for curtain wall contracts where going over schedule costs money.

Application Scenarios Where Each System Excels

Picking the right tool depends on the job. When these things happen, it's clear which way is better:

• Curtain wall and stone cladding installation: The ZLP800's 7.5-meter deck lets multiple installers work simultaneously across wide facade sections, while its 800 kg capacity accommodates heavy glass panels and installation hardware in a single platform load.
• Bridge pylon and dam face maintenance: The adaptable suspension jib attaches to non-standard anchor points on pylons and dam crests, enabling anti-corrosion coating and structural inspection at heights where ground-based scaffolding is physically impossible.
• Chimney and industrial tower maintenance: Circular structures are difficult to scaffold economically. The ZLP800 circumnavigates them using rope guides, making chimney painting and silo cleaning far more practical.
• Low-rise interior fit-out or ground-adjacent work: Traditional scaffolding remains cost-effective for work below six floors where erection time is short and the structure provides a stable multi-level platform for simultaneous trades.

Setting up curtain walls and stone cladding: The ZLP800's 7.5-meter deck lets several workers work on large parts of the face at the same time, and it can hold up to 800 kg of heavy glass panels and installation tools on a single platform.

Bridge pylons and dam faces need maintenance. The flexible suspension jib can be connected to pin points on pylons and dam crests that aren't standard. This makes it possible to apply an anti-corrosion coating and check the structure from above, which would not be possible with scaffolding on the ground.

Weather Resilience and Operational Limits

The ZLP800 can't work if the wind speed is over 10.8 m/s (Beaufort Scale Level 6). This type of scaffolding can only hold so much wind, and it also has to deal with trash that piles up on the board levels. When there is light wind, the ZLP800's open-frame platform keeps the structure from moving. The 1,000-kilogram balance system also keeps the suspension jib safe. The general weather needs of both systems need to be known by site managers. The ZLP800 has a smaller footprint, which means it has less aerodynamic load on the building face.

Cost Analysis and Long-Term Value

Upfront Investment vs. Rental Expenditure

Scales usually cost a lot to rent each month for a 150-meter tall building and take a lot of work to set up and take down. The ZLP800 suspended work platform is an ongoing cost that turns into an item that loses value over time when you buy it all at once. If you rent ZLP800 units and use them regularly for several contracts, rental companies say that they usually pay for themselves in 12 to 24 months. Curtain wall contractors don't have to worry about renting equipment when they own their own. They know it will be there when they need it. This makes the bids they make stronger.

Lifecycle Cost and ROI Drivers

The aluminum platform choice for the ZLP800 weighs 440 kg instead of 600 kg. This saves money on shipping costs for projects that need to move from site to site a lot. A high-quality anti-corrosion finish is put on both types at the factory. This makes them last longer in coastal and chemically-rich areas. Costs keep going up because scaffolding tubes rust, especially in humid U.S. markets near the coast. The planned repair times for the ZLP800 also lower the costs of failures that come up out of the blue and cost a lot of money to fix.

Productivity Impact on Large-Scale Projects

A standard curtain wall bay has a 7.5-meter platform that goes across the whole width of the bay. This lets a four-person crew place panels without having to move the platform every two meters. When it comes to jobs that need to be done on the front of a building, studies have shown that motorized work platforms are 20–35% more productive than traditional scaffolds. The main reason for this is that they are easier to set up and move around during the shift.

Procurement and Supplier Considerations for ZLP800 Suspended Platforms

Verifying Manufacturer Credentials and Certifications

It is against the rules to buy a platform for delayed work without first checking that the certificates are real. Making sure the hoist (LTD80) and safety lock (LSA30/LSA20) have CE marking, EN 1808 test records, and factory inspection papers should be the job of the people who buy things. Certifications from ISO 9001, ISO 45001, and ISO 14001 have been given to Hebei Xinjiuyi Construction Technology. They offer full paperwork packages that include load test results and records of where materials came from.

Customization, OEM, and Bulk Order Options

Large sizes don't always work for projects. Xinjiuyi lets rental companies make their own brands by letting them add their own labels, change the size of the platforms, and pick the finish of the surfaces. It is easier to keep extra parts on hand when they are standardized, and the cost per unit goes down, which is good for buying in bulk. Hoist motors, safety lock cartridges, and wire rope assemblies can be used across the whole fleet because they are built in modules that can be swapped out. Maintenance downtime is cut down by this.

After-Sales Support and Spare Parts Supply

A platform that is suspended is only as safe as the supports that hold it all together. They should check how responsive the supplier is, how long it takes to get parts, and how good the technical documentation is before making a decision. Xinjiuyi helps with engineering from the start, all the way through putting the parts together on-site. Standardized parts are sent to other countries from Cangzhou, Hebei, in standard shipping loads.

Conclusion

There are four ways to measure whether the ZLP800 suspended work platform is better than traditional scaffolding for heavy-load facade projects: total ownership cost, rated capacity, deployment speed, and height flexibility. At low-rise, multi-trade places where a stable platform can do more than one thing at once, scaffolding is still useful. The ZLP800 is better, safer, and cheaper for large-scale work on the outside of buildings like curtain walls, bridges, chimneys, and high-rises. When procurement teams use these criteria to pick tools, there will be fewer safety issues, projects will be finished faster, and project margins will be bigger.

FAQ

What is the maximum safe operating height for the ZLP800?

The ZLP800 operates effectively on buildings from 30 meters to 200+ meters. There is no fixed height ceiling, but the wire rope length must be specified at order to match the building height. The suspension jib and counterweight system remain the same regardless of height.

Can the ZLP800 handle coastal or chemical plant environments?

Yes. The aluminum platform option provides superior corrosion resistance for salt-air and chemical-exposure sites. The factory anti-corrosion surface treatment on both steel and aluminum versions is engineered for demanding environments.

How often do safety locks need recalibration?

LSA30 and LSA20 safety locks require professional factory recalibration every 6 to 12 months, depending on local regulations and usage frequency. Daily visual inspection is also required before each shift.

What certifications should I request from a ZLP800 supplier?

Request CE certification, EN 1808 test reports, GB/T 19155-2017 compliance documentation, load test certificates, and material inspection records for wire ropes and structural welds.

Is OEM branding available for rental fleet operators?

Yes. Xinjiuyi supports OEM labeling and custom specifications for rental companies that want to build their own brand identity across their equipment fleet.

Get a Direct Quote from a Trusted ZLP800 Suspended Work Platform Manufacturer

The ZLP800 suspended work platform can be bought from Xinjiuyi by contractors and distributors in North America and other places. Full certification paperwork, OEM support, and quick service after the sale are all things that the company offers. They will make sure you get the right set-up for the job, whether you need one unit for a curtain wall project or a whole fleet. Email us at global@xjy8.com or go to xjy8.com right now to get a quote and a list of the specs.

References

1. Occupational Safety and Health Administration (OSHA). Scaffolding Safety Standards: 29 CFR 1926 Subpart Q. U.S. Department of Labor, 2022.

2. Bureau of Labor Statistics (BLS). Census of Fatal Occupational Injuries: Construction Industry. U.S. Department of Labor, 2023.

3. European Committee for Standardization (CEN). EN 1808: Safety Requirements for Suspended Access Equipment. CEN, 2015.

4. Standards Administration of China. GB/T 19155-2017: Suspended Access Equipment — General Safety Requirements. SAC, 2017.

5. International Labour Organization (ILO). Safety and Health in Construction: Code of Practice. ILO Publications, 2020.

6. Construction Industry Institute (CII). Productivity in Construction: Benchmarking Aerial Work Platforms vs. Conventional Scaffolding. University of Texas at Austin, 2021.
