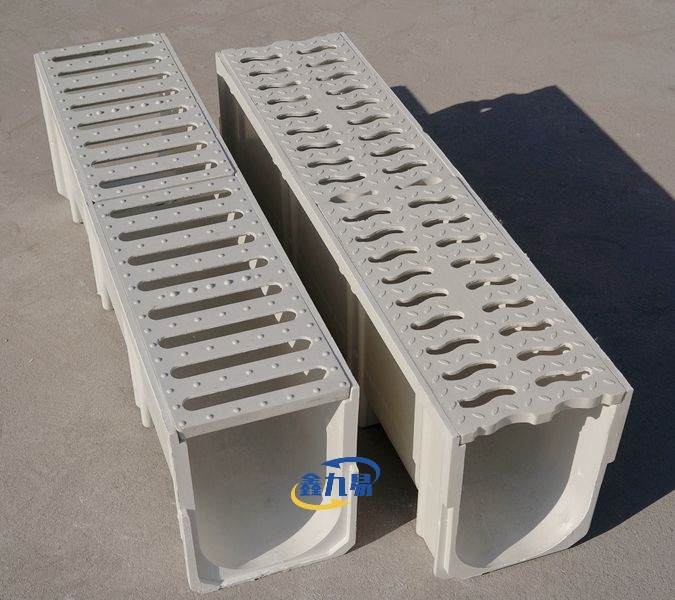

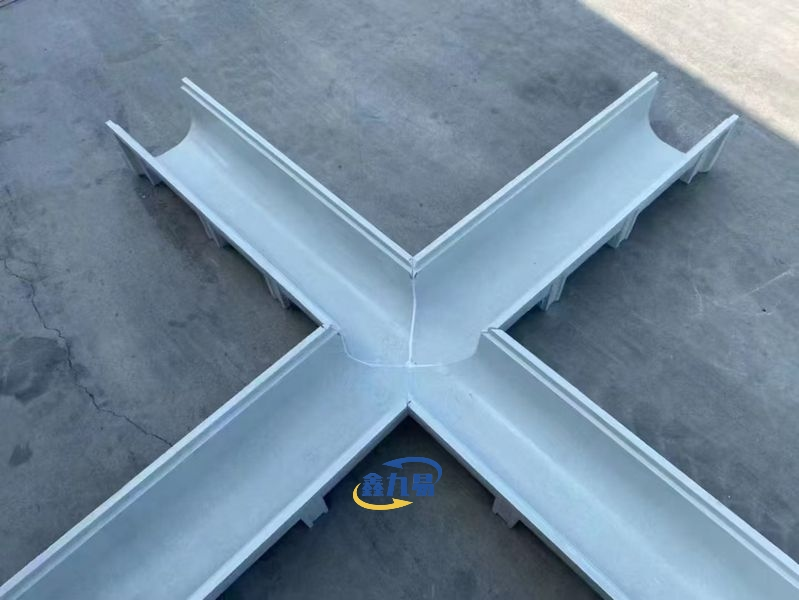

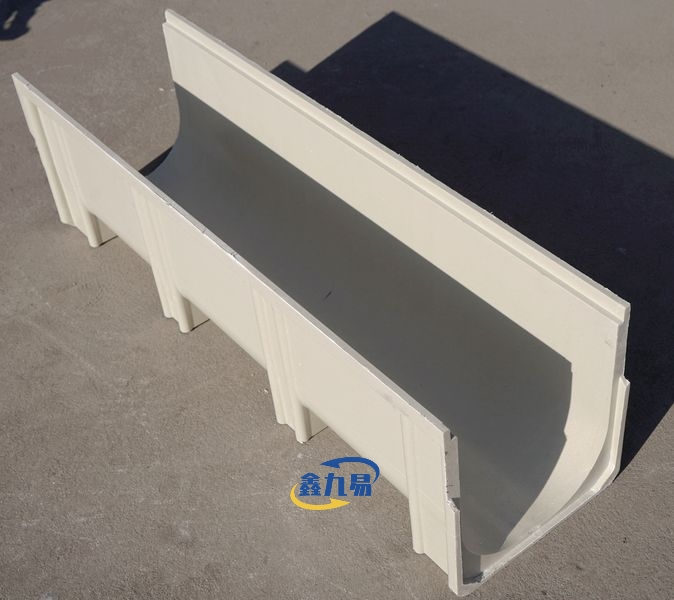

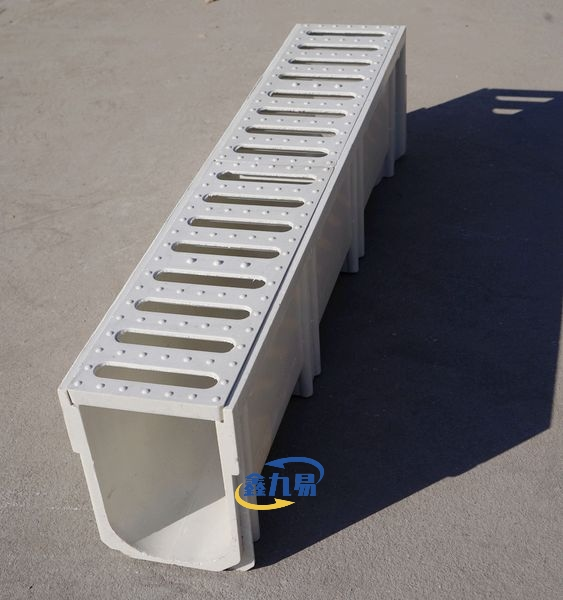

Composite Drainage Channel
Application Scenarios: Municipal landscape greening projects, residential supporting facilities, municipal roads and sidewalks, campuses, hospitals and public parks, green areas of factories and industrial parks, sponge city supporting projects, small landscapes and leisure places.
Material & Craftsmanship: Made of composite resin, featuring superior corrosion resistance and insulation safety. It possesses excellent toughness, anti-settlement and freeze-thaw resistance.
Composite Drainage Channel - High-Performance Drainage Solution
Hebei Xinjiuyi Construction Technology Co., Ltd. manufactures progressed Composite Drainage Channel frameworks outlined for requesting mechanical and civil applications. Our channels accomplish compressive quality up to 100 MPa whereas keeping up water assimilation rates underneath 0.1%, avoiding freeze-thaw harm and auxiliary failure.
Made from polymer-reinforced composite gum, each unit measures 1000 mm in length with customizable widths and statures beginning from 150 mm. The smooth inside profile conveys a Manning's harshness coefficient of around 0.010, empowering prevalent water powered productivity and self-cleaning performance.
Our item stands up to acids (pH 1-10), street salts, and petroleum items, making it perfect for chemical plants, control substations, and coastal situations. You'll advantage from 50% weight lessening compared to concrete options, permitting manual establishment without overwhelming machinery.
Why Choose Composite Resin Drainage Systems
Traditional concrete channels break beneath freeze-thaw cycles and erode in chemical situations. You confront tall upkeep costs and visit replacements.
Our composite gum innovation understands these issues forever. The non-porous lattice pieces water entrance completely, disposing of inner ice extension. You get decades of maintenance-free service.
The fabric actually protecting, making it idealize for electrical offices and substations. No current spillage dangers. No conductive pathways. Fair total security for your specialists and equipment.
Composite materials moreover offer characteristic anti-theft assurance. Not at all like metal frameworks, they have zero scrap esteem. Hoodlums disregard them totally, sparing you substitution migraines and protections claims.
Technical Specifications
| Parameter | Value |
|---|---|
| Standard Length | 1000 mm |
| Width Options | 150 mm – 500 mm (customizable) |
| Height Options | 150 mm – 400 mm (customizable) |
| Compressive Strength | Up to 100 MPa |
| Water Absorption Rate | < 0.1% |
| Manning's Coefficient | ≈ 0.010 |
| Chemical Resistance | pH 1-10 |
| Service Temperature | -40°C to +80°C |
| Load Class Compatibility | A15 to F900 (with proper installation) |
| Weight | 50% lighter than equivalent concrete |
Multi-Scenario Application Advantages
Industrial Environments: Your chemical plants and food processing facilities need drainage that withstands aggressive cleaning agents. Our Composite Drainage Channel resists acids, alkalis, and oil contamination without degradation. The sealed surface prevents bacterial growth in food-safe areas.
Power Infrastructure: Substations and electrical parks require complete insulation safety. Our channels provide full dielectric protection with zero conductivity. You eliminate electrical hazards while maintaining efficient water management around sensitive equipment.
Municipal & Landscape Projects: Residential communities and public parks demand both functionality and aesthetics. You can customize colors to match surrounding landscapes while meeting all drainage requirements. The smooth finish integrates beautifully with modern architectural designs.
Coastal & High-Salt Areas: Salt spray destroys metal and concrete systems within years. Our composite resin naturally resists corrosion from seawater and deicing salts. You get reliable performance in marinas, coastal roads, and winter maintenance zones.
Heavy-Duty Transport Zones: Airports, logistics hubs, and industrial yards generate massive loads. When properly installed with reinforced haunching, our channels meet F900 load classifications for the most demanding applications.
Installation & Service Benefits
You'll complete installation 40-60% faster than concrete systems. Two workers can manually handle and position each 1000 mm section without cranes or forklifts. This reduces labor costs dramatically.
The precision-molded interlocking joints create watertight connections without special sealants. You simply align and click sections together. No skilled masons required. No curing time delays.
Your construction schedule stays on track even in tight urban environments. Minimal noise and vibration mean you can work near occupied buildings without complaints. Equipment access restrictions don't stop your progress.
We offer full customization for non-standard applications. Send us your site drawings and load requirements. Our engineering team designs solutions matching your exact specifications, including custom colors for landscape integration.
Post-installation maintenance is minimal. The smooth inner walls shed sediment naturally during flow. Annual pressure washing removes any accumulation. You avoid the constant repairs that plague concrete systems.
Material Science & Durability
Our composite resin matrix bonds mineral aggregates at the molecular level. This creates a homogeneous structure without weak points or porosity. Water cannot penetrate to cause internal damage.
The material exhibits excellent toughness under impact. Dropped tools and equipment won't chip or crack the surface like brittle concrete. You maintain structural integrity throughout decades of service.
Freeze-thaw cycles that destroy concrete have zero effect on our channels. The near-zero water absorption prevents ice formation within the material. Testing confirms no surface scaling or delamination after 300+ freeze-thaw cycles.
UV stabilizers in the resin prevent surface degradation in high-exposure areas. Your Composite Drainage Channel maintain color and structural properties under constant sunlight. No brittleness develops over time.
The low thermal expansion coefficient matches asphalt and concrete pavements. This prevents gap formation at interfaces where water infiltration typically begins. You get permanent, sealed integration with surrounding surfaces.
Frequently Asked Questions
Q:Is the upfront cost higher than concrete?
A:Material costs are slightly higher, but total installed costs run 20-30% lower. You save on heavy equipment, labor hours, and construction time. The long-term maintenance savings add up significantly.
Q:Can these channels handle airport runway loads?
A:Yes, when installed to F900 specifications with proper reinforced concrete haunching. Our systems meet EN 1433 standards for the highest load classifications used in aviation infrastructure.
Q:How does the channel perform in extreme temperatures?
A:The composite material functions reliably from -40°C to +80°C. Thermal stability prevents expansion gaps and maintains tight joints across seasonal temperature swings.
Q:What maintenance schedule do you recommend?
A:Annual pressure washing is typically sufficient. The self-cleaning hydraulic profile minimizes sediment buildup. Inspect grating security and clean debris from outlets as part of routine site maintenance.
Q:Are custom sizes available for unique project requirements?
A:Absolutely. We manufacture channels to your exact dimensional specifications. Provide your width, depth, and length requirements along with load classifications. Our team delivers precision-engineered solutions for non-standard applications.
Q:How do I verify quality before installation?
A:Request load capacity test reports, dimensional tolerance certificates, and freeze-thaw resistance documentation. Inspect delivered units for surface homogeneity and check that interlocking joints fit smoothly without forcing.
