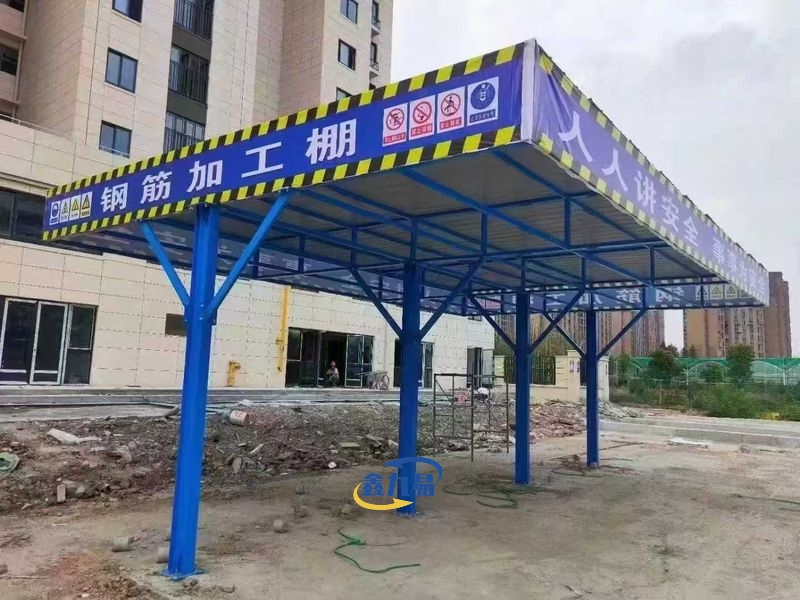

Rebar Processing Shed
Application Scenarios: Rebar processing areas on construction sites, centralized rebar cutting and forming work zones.
Material & Craftsmanship: The main frame is built with thickened galvanized rectangular tubes, I-beams/channel steel, with a sturdy structure suitable for heavy-duty rebar processing needs. The surface is treated with hot-dip galvanizing + electrostatic powder coating/warning baking paint, resisting harsh construction site conditions, with eye-catching markings compliant with civilized construction standards.
Rebar Processing Shed - Professional Steel Bar Protection Solution for Construction Sites
Hebei Xinjiuyi Construction Technology Co., Ltd. delivers enterprise-grade Rebar Processing Shed solutions engineered for demanding construction environments. Our sheds feature robust 18# I-beam steel column construction with standardized dimensions of 6 000 mm to 9 000 mm in length and 4 000 mm to 6 000 mm in width, standing 3 700 mm tall. Each unit utilizes thickened galvanized rectangular tubes with main beams of 50 mm × 50 mm × 2.0 mm thickness, ensuring superior load-bearing capacity. The surface treatment combines hot-dip galvanizing with electrostatic powder coating, providing exceptional rust resistance in harsh site conditions. This product protects your processing machinery from falling objects, rain, and UV exposure while creating a clearly marked safety zone that meets civilized construction standards.
What Is a Rebar Processing Shed?
A product serves as a specialized protective structure for steel bar fabrication zones on construction sites. You'll find it essential for centralizing cutting, bending, and welding operations in one controlled environment.
This standardized facility solves critical on-site challenges. It prevents weather-induced rust that weakens rebar-to-concrete bonding. It isolates high-risk activities from your general workforce, significantly reducing accident rates.
The structure also helps you minimize material waste through organized scrap management. Most importantly, it ensures your project meets occupational safety regulations for civilized construction sites.
Technical Specifications
Our Rebar Processing Shed is built with precision-engineered components to withstand heavy industrial use:
| Component | Specification | Details |
|---|---|---|
| Length | 6 000 mm / 9 000 mm | Fully customizable |
| Width | 4 000 mm / 6 000 mm | Adaptable to site needs |
| Height | 3 700 mm | Standard configuration |
| Column Material | 18# I-beam Steel | High load-bearing capacity |
| Main Beam Size | 50 mm × 50 mm | Thickness: 2.0 mm |
| Side Beam Size | 50 mm × 50 mm | Thickness: 1.5 mm |
| Purlin Size | 30 mm × 50 mm | Thickness: 1.5 mm |
| Frame Material | Q235B/Q345B Grade Steel | National standard quality |
| Surface Treatment | Hot-dip galvanizing + powder coating | Enhanced corrosion resistance |
| Top Protection | Double-layer mesh or rainproof boards | Multi-functional shielding |
The modular design uses bolt connections for rapid assembly. You can relocate the shed 3 to 5 times across different project phases without structural compromise.
Key Applications Across Project Types
Infrastructure and Bridge Construction
Your remote projects face extreme weather exposure. The shed protects CNC rebar processing equipment from UV radiation and heavy rainfall, maintaining the precision required for bridge pier reinforcements.
Urban High-Rise Development
In space-constrained city centers, you need vertical safety compliance. Our compact sheds prevent falling debris from affecting rebar fabrication while occupying minimal ground space.
Precast Concrete Manufacturing
For 24/7 production environments, the shed acts as a semi-permanent hub. It shields automated stirrup benders and mesh welding lines from dust and moisture, preventing electrical component failures in high-voltage systems.
Material Excellence and Construction Advantages
Premium Steel Framework
We weld each frame from national standard high-quality steel. The thickened galvanized rectangular tubes create exceptional structural integrity. The 18# I-beam columns handle heavy machinery loads without deflection.
Advanced Surface Protection
Your shed receives multi-stage treatment. Hot-dip galvanizing provides base corrosion resistance. High-temperature baking paint in bright warning colors ensures visibility and extends service life in harsh conditions.
Weather and Impact Resistance
The double-layer top protection combines protective mesh with rainproof boards. This configuration shields your equipment from falling tools, construction materials, and severe weather while maintaining proper ventilation.
Modular Assembly Design
You'll appreciate the quick installation process. Pre-fabricated components connect with high-strength bolts. This system allows convenient disassembly for relocation and multiple reuses across your projects.
Customization Capabilities for Your Site Requirements
Every construction site presents unique spatial and operational challenges. Xinjiuyi specializes in tailored protection solutions that match your exact specifications.
Dimension Flexibility
We customize length, width, and height based on your processing machinery footprint. Whether you operate compact bar cutters or large automated bending centers, we engineer the perfect fit.
Enhanced Features for Specialized Environments
For coastal projects, we apply C4 or C5-M category anti-corrosion paint systems. These heavy-duty coatings resist salt-spray degradation in high-salinity environments.
When you need overhead lifting capability, we design crane-load columns with corbels and rail beams. These support gantry systems from 3 tons to 10 tons capacity.
Safety Marking and Compliance
Each Rebar Processing Shed includes standardized warning slogans and safety signs. Dual-color safety kick plates in red/white or yellow/black configurations meet visibility requirements. Reflective warning strips enhance low-light awareness.
Quality Assurance and Professional Installation
Manufacturing Standards
Our Xian County facility maintains ISO 9001 quality management protocols. Advanced equipment ensures precise fabrication. Mature supply chain systems guarantee consistent material quality.
Structural Testing
All primary joints undergo thorough inspection. We verify weld integrity and coating thickness using professional gauges. Galvanized layers meet minimum 60 μm to 80 μm standards for long-term protection.
On-Site Support
Our technical team provides installation guidance to ensure proper assembly. We verify high-strength bolt torque specifications and test integrated grounding systems for electrical safety.
For standard 12 m × 18 m configurations, factory fabrication completes within 7 days. On-site assembly requires 3 to 5 additional days depending on your foundation readiness.
Frequently Asked Questions
Q:Can I relocate the shed between project phases?
A:Yes, the bolt-together design supports 3 to 5 relocation cycles without structural fatigue. Certified technicians should handle disassembly to maintain integrity.
Q:How does the structure handle machinery vibration?
A:Professional sheds incorporate independent foundation footings for equipment. The steel frame uses flexible connections that absorb secondary oscillations from heavy processing machinery.
Q:Is crane integration possible?
A:Absolutely. We specify crane-load capacity columns with appropriate corbels and rail beams. This supports lifting systems from 3 tons to 10 tons as needed.
Q:What about performance in coastal environments?
A:For high-salinity locations, we apply specialized C4 or C5-M anti-corrosion systems. Heavy-duty galvanization prevents salt-spray structural weakening over extended deployment.
Q:What is the typical delivery timeline?
A:Standard units require approximately 7 days for factory fabrication. On-site assembly takes 3 to 5 days once your foundation is prepared and ready.
