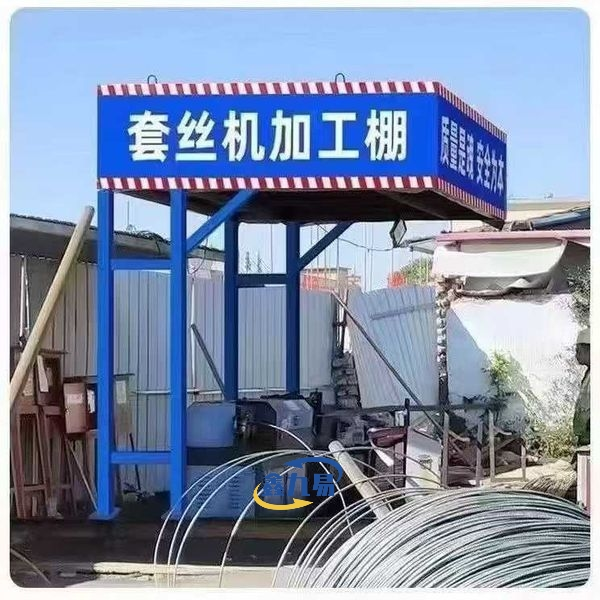

Thread Rolling Machine Protective Shed
Application Scenarios: Storage areas for small mechanical equipment, centralized operation areas for small machinery.
Material & Craftsmanship: The main frame is built with thickened galvanized rectangular tubes, I-beams/channel steel, with a sturdy structure suitable for storage and operation needs of small mechanical equipment. The surface is treated with hot-dip galvanizing + electrostatic powder coating/warning baking paint, resisting weathering and rust, with eye-catching markings compliant with civilized construction standards.
Thread Rolling Machine Protective Shed – Professional Equipment Protection for Construction Sites
Hebei Xinjiuyi Construction Technology Co., Ltd. manufactures the Thread Rolling Machine Protective Shed, a standardized safety enclosure engineered specifically for small machinery protection at construction sites. Designed in strict accordance with construction safety regulations, our protective shed provides essential defense against falling objects from high altitudes.
The structure features a high-strength frame welded from national standard steel with dimensions of 3000 mm × 3000 mm × 3700 mm (customizable). The double-layer protective top incorporates anti-smash boards offering superior impact resistance. Your equipment operators gain reliable protection while working with steel bar processing machinery, woodworking equipment, and concrete mixers.
Built with 80 mm × 80 mm × 2.0 mm columns and reinforced beams, this protective canopy serves as an indispensable safety facility for building and municipal engineering projects.
Why Your Construction Site Needs Equipment Protection
Construction sites present constant overhead hazards. Tools, materials, and debris can fall from multiple stories, causing equipment damage and threatening operator safety.
Our Thread Rolling Machine Protective Shed creates a secure workspace where your machinery operations continue uninterrupted. The robust steel framework withstands significant impact forces, while the modular design allows you to relocate protection as project phases change.
You'll meet safety compliance requirements while protecting valuable equipment investments. The bright warning colors and standard safety signage contribute to civilized construction site standards that inspectors recognize immediately.
Technical Specifications
| Parameter | Standard Specification | Customization Available |
|---|---|---|
| Length | 3000 mm | Yes |
| Width | 3000 mm | Yes |
| Height | 3700 mm | Yes |
| Column Size | 80 mm × 80 mm | - |
| Column Wall Thickness | 2.0 mm | - |
| Main Beam Size | 50 mm × 50 mm | - |
| Main Beam Thickness | 1.5 mm | - |
| Side Beam Size | 50 mm × 50 mm | - |
| Side Beam Thickness | 1.5 mm | - |
| Diagonal Brace Size | 50 mm × 50 mm | - |
| Diagonal Brace Thickness | 1.5 mm | - |
| Frame Material | Galvanized rectangular tubes + I-beams/channel steel | - |
| Surface Treatment | Hot-dip galvanizing + powder coating | Optional: warning baking paint |
Material Quality and Surface Treatment
Your protective shed starts with thickened galvanized rectangular tubes forming the primary structural framework. We incorporate I-beams and channel steel where load-bearing requirements demand extra strength.
The hot-dip galvanizing process creates a metallurgical bond that resists corrosion for years of outdoor exposure. Following galvanization, we apply electrostatic powder coating or warning baking paint in bright, attention-grabbing colors.
This dual-layer protection system—galvanizing plus powder coating—delivers superior weather resistance compared to single-treatment alternatives. The finish withstands rain, UV exposure, and temperature fluctuations without flaking or fading.
You get a professional appearance that maintains visibility throughout the project lifecycle. The treatment process costs more than basic galvanizing alone but provides significantly extended service life and rust prevention.
Key Advantages for Project Managers
Modular Assembly Design: Your crew assembles the structure quickly without specialized welding equipment. Bolt-together connections mean you can dismantle and relocate the shed as work zones shift.
Multiple Reuse Capability: The robust construction supports repeated assembly cycles across different projects. This economic practicality reduces your per-project safety equipment costs significantly.
Customization Support: We manufacture sheds matching your specific equipment dimensions and site layout requirements. Whether you need extended width for multiple machines or reduced height for confined spaces, we adapt specifications to your drawings.
Complete Safety Signage: Each unit includes standard warning slogans and safety signs appropriate for the protected equipment type. These markings help you maintain civilized construction site standards without additional procurement.
High Impact Resistance: The double-layer protective mesh or anti-smash board top absorbs falling object energy before it reaches your equipment. This design specifically addresses construction site overhead hazards.
Installation and Site Integration
Position the Thread Rolling Machine Protective Shed in your machinery concentration area where equipment operators require continuous protection. The modular components arrive ready for assembly with minimal tools.
Your site team connects the columns to the foundation points, then installs the beam framework and diagonal bracing. The top protective layer mounts last, securing the complete overhead shield.
The 3700 mm height provides adequate clearance for operator movement and equipment maintenance access. Standard 3000 mm × 3000 mm dimensions accommodate typical small machinery footprints, with custom sizing available for larger installations.
Clear labeling and bright surface colors ensure the structure remains visible from all site angles. This visibility helps prevent vehicle collisions and reminds workers of the protected zone status.
Frequently Asked Questions
Q: What equipment types does this protective shed accommodate?
A: The structure protects steel bar processing machinery, woodworking equipment, concrete mixers, and similar small construction machinery requiring overhead fall protection.
Q: Can the shed withstand impact from falling construction materials?
A: Yes, the double-layer top with anti-smash boards is specifically engineered to absorb and deflect falling object impacts, protecting both equipment and operators below.
Q: How many times can I reuse the protective shed?
A: The galvanized steel construction with powder coating supports multiple assembly and disassembly cycles across numerous projects. Proper handling during relocation ensures maximum reuse lifespan.
Q: Do you provide custom dimensions for unique site requirements?
A: Absolutely. We customize length, width, and height based on your equipment dimensions and site constraints. Provide your specifications, and we'll manufacture accordingly.
Q: How does the surface treatment prevent rust?
A: Hot-dip galvanizing creates a zinc coating that sacrificially protects the base steel. The additional powder coating layer seals the surface against moisture and environmental exposure, delivering dual-layer rust prevention.
Q: What installation support do you offer?
A: We provide detailed assembly instructions with each shipment. Our technical team is available for installation guidance to ensure proper setup and safety compliance.
Contact Us for Your Safety Protection Needs
Email us at global@xjy8.com for quotations and technical support for Thread Rolling Machine Protective Shed.
