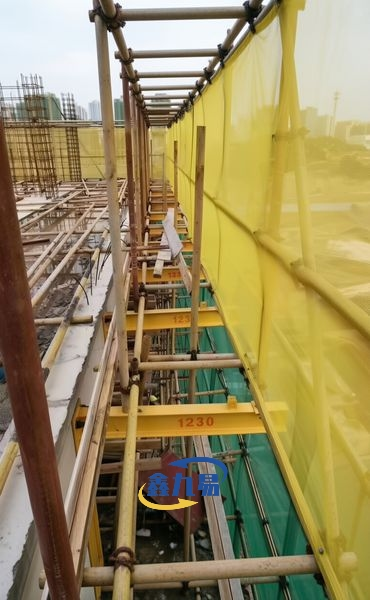

Side Cantilever Load-Bearing Beam
Application Scenarios：Specifically designed for high-rise building exterior wall construction, suitable for complex conditions like balconies, bay windows, and building corners without penetrating walls, protecting the main structure.
Material & Craftsmanship：Made of high-strength Q235B I-beam steel, welded to end plates with full penetration welds. Hot-dip galvanized for superior corrosion resistance and long-lasting durability.
Side Cantilever Load-Bearing Beam – Advanced External Scaffold Support System
Hebei Xinjiuyi Construction Technology Co., Ltd. manufactures premium Side Cantilever Load-Bearing Beams engineered for high-rise building exterior wall construction. Our system features adjustable turnbuckle tie-rods with a ±50 mm precision adjustment range, replacing outdated wire rope mechanisms. Built from national standard 16# I-beam using Q235B structural steel, each beam is secured via pre-embedded sleeves and high-strength bolts—eliminating wall penetrations entirely. Available in three configurations (Straight, Oblique, and Articulating/Corner Types), these beams accommodate standard flat walls, sloped facades, and complex corner structures. With 12 mm thick end plates featuring slotted holes for on-site positioning tolerance, and full hot-dip galvanizing for corrosion resistance, your cantilever scaffold system achieves balanced force distribution and multi-project reusability.
Why Choose Our Cantilever Load-Bearing System
Protects Your Building Integrity
Traditional methods require drilling through walls, creating permanent leakage risks. Our external wall-mounted design uses pre-embedded sleeve connections instead. You preserve the structural integrity of your main building while maintaining waterproof barriers. This approach is especially valuable for high-end residential towers and commercial complexes where post-construction repairs are costly.
Adjustable Precision for Real-World Tolerances
Construction sites rarely offer perfect measurements. Our M20 high-strength steel turnbuckles provide ±50 mm adjustment range, letting you fine-tune tension after installation. You achieve level scaffolding platforms even when pre-embedded tubes have minor positioning errors. This flexibility reduces rework time and prevents dangerous uneven load distribution.
Designed for Complex Building Geometries
Modern architecture includes balconies, bay windows, and irregular corners. We offer three specialized Side Cantilever Load-Bearing Beam types:
Straight Type installs quickly on standard flat exterior walls for efficient high-rise construction.
Oblique Type handles sloped or angled facade structures without compromising load capacity.

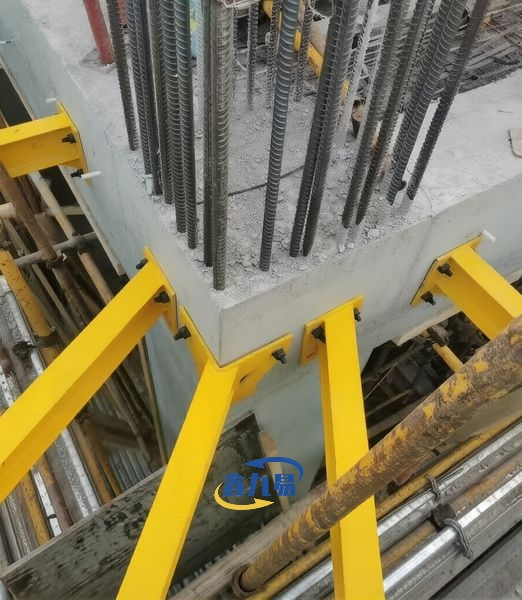

Articulating/Corner Type uses hinged connections or specially engineered corner beams for wide-spacing scenarios and building edges.
Your project team selects the right configuration for each building section, eliminating the "one-size-fits-all" compromises of conventional systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Lengths | 1300 mm / 1500 mm / 1800 mm / 2000 mm (custom lengths available) |
| Main Beam Material | 16# I-beam, Q235B structural steel |
| Tie-rod & Turnbuckle | M20 high-strength steel |
| Adjustment Range | ±50 mm |
| End Plate Thickness | 12 mm steel plate with slotted positioning holes |
| Welding Standard | Full penetration welds |
| Surface Treatment | Hot-dip galvanizing (entire assembly) |
| Load-Bearing Type | Straight / Oblique / Articulating (Corner) |
| Customization Options | Non-standard lengths, connection methods, enhanced anti-corrosion levels |
Material Engineering & Manufacturing Process
Q235B I-Beam Core Structure
We use national standard 16# I-beam made from Q235B structural steel. This material offers excellent plasticity and weldability, with high yield strength to withstand immense bending moments and shear forces. It's the most reliable load-bearing material in building steel structures, proven across thousands of high-rise projects.
High-Strength Tie-rod & Turnbuckle System
Both tie-rods and turnbuckles are manufactured from M20 high-strength steel. The turnbuckle mechanism allows precise tension adjustment by simple rotation. You replace traditional wire rope unloading methods—which loosen over time—with a rigid, adjustable connection that maintains force balance throughout the construction cycle.
Reinforced End Plate Connections
End plates are fabricated from 12 mm thick steel plates, connected to the I-beam with full penetration welds. These plates feature slotted holes that accommodate horizontal positioning errors of pre-embedded tubes during installation. Your installation crew achieves smooth assembly even when embedded sleeves aren't perfectly aligned.
Hot-Dip Galvanizing for Long Service Life
The entire product set (I-beams, tie-rods, and end plates) undergoes hot-dip galvanizing. The uniform zinc coating has strong adhesion, effectively resisting corrosion from harsh outdoor weather and the alkaline concrete environment. You maintain surface quality after multiple reuses, reducing your per-project equipment cost significantly.
Installation & Operational Benefits
Faster Setup and Dismantling
The bolt-connection system with adjustable turnbuckles significantly shortens installation cycles compared to traditional welded or wire-rope systems. Your crew completes scaffold erection in less time, accelerating overall project timelines. Dismantling is equally efficient—components separate cleanly for transport to the next building section or project site.
Clear Interior Spaces During Construction
No internal steel beams obstruct indoor spaces. This design facilitates debris removal, allows earlier start of flooring work, and improves site logistics. Your interior finishing teams can begin work sooner, compressing your construction schedule and reducing financing costs.
Component Reusability Reduces Project Costs
The robust galvanized finish and bolt-assembly design enable multiple reuse cycles. Unlike disposable scaffolding accessories, our Side Cantilever Load-Bearing Beam maintains structural performance across numerous projects. You amortize equipment investment over years rather than single-use, improving your project margins.
Comprehensive Customization & Technical Support
Tailored Engineering for Unique Projects
Every high-rise building presents unique challenges—varying floor heights, irregular facade angles, or special architectural features. We provide customization for non-standard lengths, alternative connection methods, and enhanced anti-corrosion levels based on your project requirements. Our engineering team reviews your drawings and site conditions to recommend optimal beam configurations.
Installation Guidance & On-Site Support
Beyond manufacturing, we offer installation guidance to ensure seamless integration with your scaffolding system. Our technical support team assists with load calculations, connection detailing, and quality inspection protocols. You receive the expertise needed to implement the cantilever system safely and efficiently, even if your crew is unfamiliar with this advanced method.
Frequently Asked Questions
Q: How does the adjustable turnbuckle system improve safety compared to wire rope unloading?
A: Wire ropes stretch and loosen over time, requiring frequent re-tensioning and inspection. Our turnbuckle system uses rigid threaded steel that maintains precise tension. You adjust force distribution by simply rotating the turnbuckle—no specialized tools required. This eliminates the sudden load shifts that occur when wire ropes fail.
Q: Can the slotted holes in end plates accommodate significant positioning errors?
A: The slotted hole design allows horizontal adjustment to compensate for pre-embedded sleeve positioning tolerances typically encountered on site (usually within ±30 mm). This ensures you can still achieve proper bolt alignment and load transfer even when embedded components aren't perfectly placed during concrete pouring.
Q: What's the expected service life for the hot-dip galvanized finish?
A: Under typical construction site conditions (exposure to concrete dust, rain, and moderate alkalinity), the galvanized coating provides 8–15 years of corrosion protection. For coastal or highly corrosive environments, we offer enhanced galvanizing thickness or additional powder coating as premium customization options.
Q: How do I choose between Straight, Oblique, and Articulating beam types?
A: Use Straight Type for standard vertical walls. Select Oblique Type when your building facade slopes or has angled architectural features. Choose Articulating/Corner Type for building edges, wide column spacing, or areas where the beam must adapt to multi-directional stress. Our technical team can review your building sections to recommend the optimal configuration.
Q: Is the system compatible with standard scaffolding components?
A: Yes. The beam interfaces with conventional scaffolding standards, tubes, and couplers. You don't need to replace your entire scaffolding inventory—just integrate our cantilever beams at exterior wall mounting points. We provide connection details to ensure compatibility with your existing equipment.
Contact Us for Your Next High-Rise Project
Our engineering team is available to discuss your specific building requirements for Side Cantilever Load-Bearing Beam.
