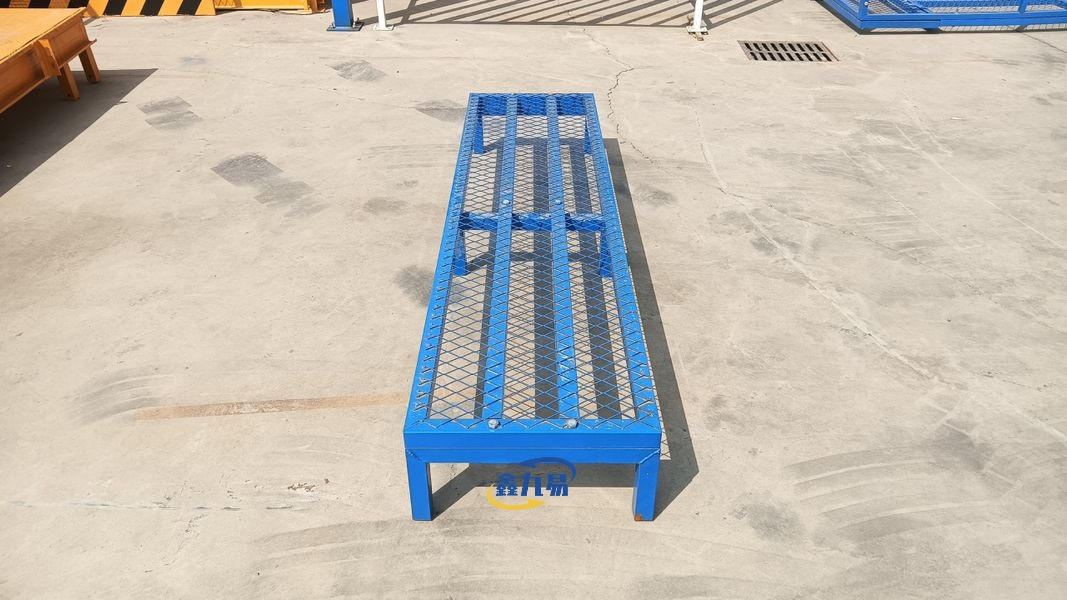

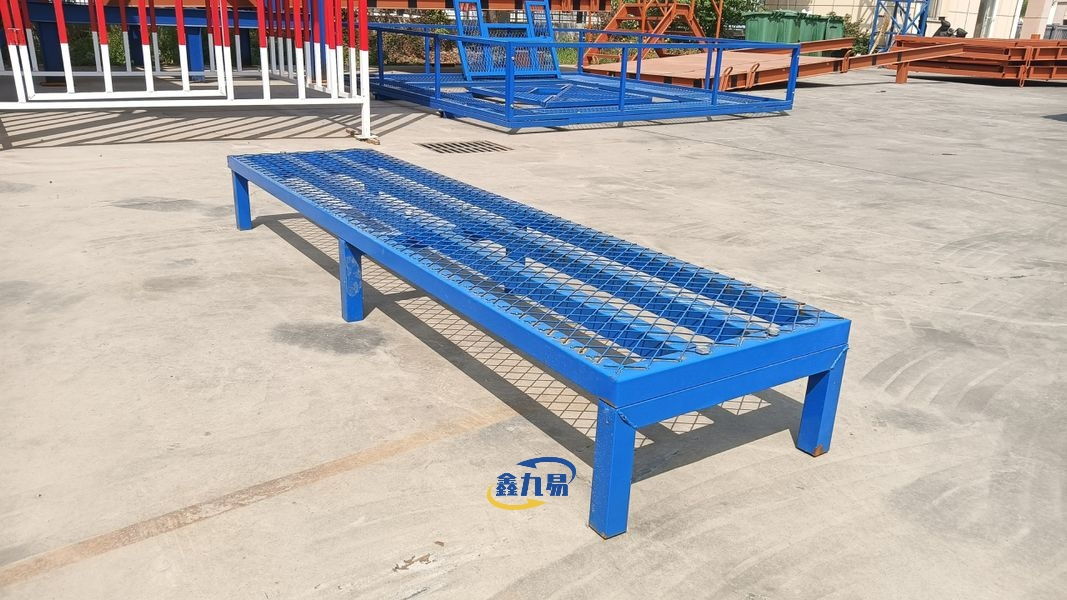

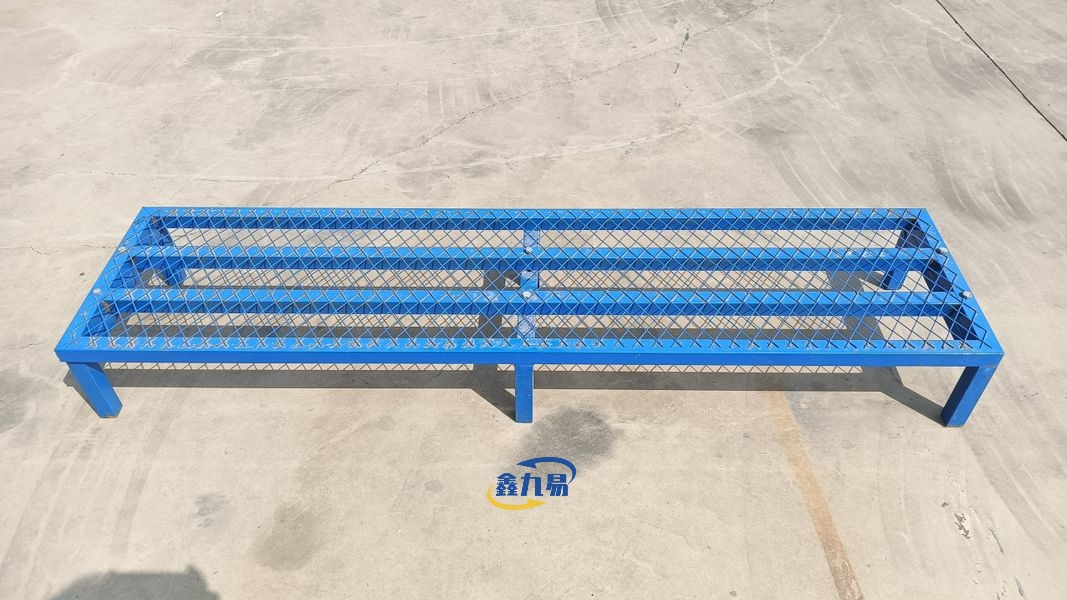

Steel Work-Mate Stand
Application Scenarios: Building construction sites, foundation pit and earthwork projects, bridge engineering, and large equipment installation and maintenance.
Material & Craftsmanship: The main body is a framework assembled using steel pipes, section steel, and scaffolding boards, featuring a stable structure with uniform load distribution for safe personnel passage and operation. Horizontal and vertical members are securely locked with couplers, and nodes are regularly reinforced; the overall bracing is firm, resisting swaying and overturning to prevent deformation.
Steel Work-Mate Stand – Professional Rebar Protection Walkway for Construction Sites
Hebei Xinjiuyi Construction Technology Co., Ltd. presents the Steel Work-Mate Stand, an enterprise-grade temporary access walkway engineered specifically for building construction sites with rebar mesh layouts. This all-steel structure is crafted from national standard steel, delivering stable load-bearing capacity with a standardized frame size of 40 mm × 40 mm square tube and 1.0 mm thickness. The walking surface features anti-slip checkered plates with 40 mm × 60 mm expanded metal mesh apertures, providing high-friction safety for workers during floor slab rebar tying operations. With a standard weight of approximately 15 kg and customizable dimensions (2000 mm length × 500 mm width × 300 mm height), this modular system prevents rebar deformation and displacement while improving construction efficiency across high-altitude work platforms.
Why Choose Our Rebar Protection Walkway System
When your construction crew works on floor slab installations, direct foot traffic on rebar grids causes costly deformation and alignment issues. Our walkway system solves this critical problem with precision-engineered steel construction.
The bolt-connection modular design allows rapid assembly and disassembly without specialized tools. You can deploy these units across multiple project phases, significantly reducing your material costs through repeated reuse. The anti-slip checkered surface adapts to wet or dusty conditions, maintaining worker safety in complex site environments.
Each unit distributes worker weight evenly across the framework, protecting rebar positioning while maintaining OSHA-compliant safe passage. Your project quality improves as reinforcement stays precisely where your engineers specified it.
Technical Specifications
| Parameter | Specification | Customization Available |
|---|---|---|
| Length | 2000 mm | Yes |
| Width | 500 mm | Yes |
| Height | 300 mm | Yes |
| Weight | Approx. 15 kg | - |
| Frame Material | Square Tube Steel | - |
| Frame Size | 40 mm × 40 mm | - |
| Frame Thickness | 1.0 mm | - |
| Surface Material | Anti-Slip Checkered Plate | - |
| Mesh Aperture | 40 mm × 60 mm | - |
| Connection Type | Bolt Assembly | - |
| Finish Options | Galvanized / Galvanized + Painted / Powder-Coated | Yes |
Material & Construction Technology
We manufacture each Steel Work-Mate Stand using national standard structural steel that meets rigorous B2B construction requirements. The base material receives galvanized coating as standard protection, suitable for most construction environments.
For projects requiring enhanced durability, you can upgrade to galvanized with painted finish at moderate additional cost. High-end commercial developments benefit from our powder-coated baking finish option, which provides superior corrosion resistance and extended service life.
The square tube framework creates exceptional structural integrity. Welded joints undergo strict quality inspection to ensure load distribution across the entire unit. This solid construction prevents flexing or wobbling when workers traverse the walkway, even under dynamic loading conditions.
The expanded metal mesh surface bonds securely to the frame, creating a unified load-bearing platform. The 40 mm × 60 mm aperture pattern balances strength with debris shedding, keeping the walking surface clear during active construction phases.
Flexible Application Scenarios
This temporary access system serves multiple construction stages and environments. During floor slab construction, position units directly over freshly tied rebar grids to create safe worker pathways without compromising reinforcement placement.
High-altitude work platforms benefit from the lightweight yet sturdy design. At approximately 15 kg per unit, two workers can easily position walkways on elevated decks. The standardized 500 mm width accommodates single-file passage while fitting between typical column spacings.
Foundation and basement waterproofing operations often require access across protected membrane surfaces. Our walkway distributes weight to prevent punctures while giving your crew stable footing on sloped or uneven substrates.
Bridge deck construction and large equipment installation projects utilize these platforms as temporary staging areas. The modular nature allows you to configure walkways in straight runs, L-shapes, or custom patterns matching your site layout requirements.
Cost-Effective Modular Design
The bolt-connection assembly system eliminates welding or cutting during installation. Your crew connects frame sections using standard hand tools, completing setup in minutes per unit without hot work permits or specialized equipment.
Disassembly proves equally efficient when you complete each construction phase. Units stack compactly for transport to your next project location. This reusability dramatically improves your equipment ROI compared to disposable plywood or one-time-use systems.
We offer custom sizing based on your actual rebar grid dimensions and spacing requirements. Submit your project drawings, and our engineering team configures walkway dimensions that optimize material usage while maintaining structural performance standards.
The standardized frame components mean replacement parts remain available throughout your project lifecycle. Damaged sections can be swapped without replacing entire Steel Work-Mate Stand, further extending service life and protecting your capital investment.
Frequently Asked Questions
Q:How much weight can each unit safely support?
A:Our standard configuration handles typical construction worker traffic with tools and materials. The all-steel frame and checkered plate surface distribute loads evenly across the structure. For specific load requirements exceeding 200 kg concentrated loads, contact our engineering team for custom reinforcement options.
Q:What surface treatments work best for coastal or high-humidity projects?
A:Standard galvanized coating suits most inland construction sites. For coastal environments with salt exposure, we recommend our galvanized with painted finish. Marine or chemical plant projects should specify powder-coated baking finish for maximum corrosion resistance.
Q:Can these walkways be used on sloped surfaces?
A:Yes, the flat base design adapts to slopes up to 15 degrees when properly secured. For steeper applications, our team can add integrated cleats or modify the frame geometry to prevent sliding during use.
Q:How do I clean and maintain the units between projects?
A:Simple pressure washing removes concrete splatter and construction debris. The expanded metal mesh design allows water and materials to pass through for easy cleaning. Inspect bolt connections before each deployment and apply anti-seize compound to threads for long-term hardware reliability.
Q:What lead time should I expect for custom sizes?
A:Standard dimensions ship within 5-7 business days from our Cangzhou facility. Custom configurations require 10-15 business days for fabrication, plus shipping time to your project location. Rush orders can be accommodated for projects with tight schedules.
Q:Are these walkways compatible with other scaffolding systems?
A:The modular design interfaces with standard construction scaffolding platforms. The 500 mm width matches common scaffold board dimensions, and the bolt-connection points accept standard coupling hardware for integration into larger access systems.

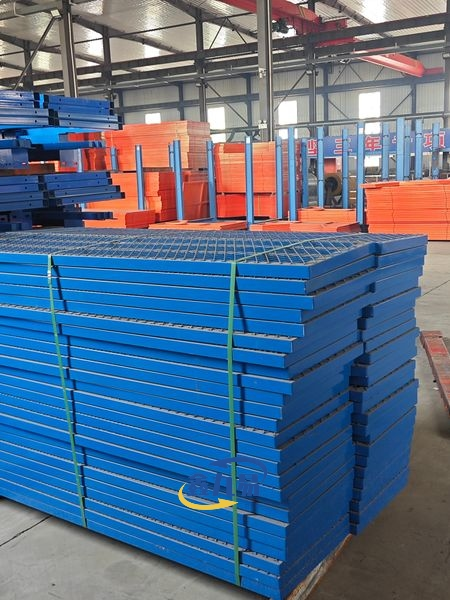

Packaging & Delivery
We bundle units in protective wrapping to prevent surface damage during transport. Standard palletized shipments accommodate 20-30 units depending on configuration. Custom crating is available for international shipping or projects requiring specific handling protocols.
Our logistics team coordinates delivery timing with your construction schedule. Direct job site delivery minimizes double-handling costs and gets equipment where you need it when you need it.
Contact Us
Our technical team stands ready to discuss your specific project requirements for Steel Work-Mate Stand. Reach us at global@xjy8.com.
