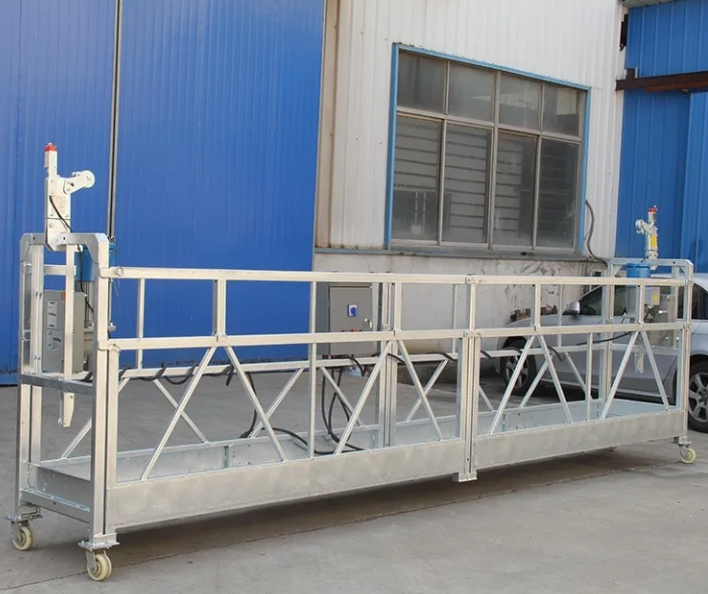

ZLP800 Suspended Work Platform
Application Scenarios: Ideal for heavy-duty high-altitude work such as large curtain wall projects, heavy exterior wall decoration, bridge maintenance, chimney painting, and high-rise building facade construction requiring large-area synchronous operations.
Material & Craftsmanship: The platform is available in steel or aluminum options, featuring a reinforced structure and high-standard anti-corrosion surface treatment. It features a dedicated suspension mechanism and counterweight, ensuring corrosion resistance and adaptability to complex working conditions.
ZLP800 Suspended Work Platform – Heavy-Duty Aerial Access Solution
When you require dependable heavy-duty high-altitude get to, the ZLP800 Suspended Work Platform from Hebei Xinjiuyi Construction Technology conveys enterprise-grade execution. This platform is built with an amazing 800 kg evaluated stack capacity and fueled by double 1.8 kW engines, supporting work stage lengths up to 7.5 meters. Whether you're handling large-scale window ornament divider establishments, bridge support, or high-rise exterior development, this gear offers the load-bearing quality and operational adaptability your venture requests. Suspended by means of high-strength steel wire ropes from the building best, it involves zero ground space and adjusts consistently to any working tallness. With lifting speeds of 8–10 m/min and secluded get together plan, you get quick arrangement and accuracy situating for complex development tasks.
Why Choose Our Heavy-Duty Suspended Platform?
You face real challenges on heavy-duty high-altitude projects. Traditional scaffolding is expensive and time-consuming to erect. Manual hoisting systems pose serious safety risks. Standard platforms can't handle the weight of heavy materials and multiple workers simultaneously.
Our ZLP800 Suspended Work Platform solves these pain points directly. The reinforced structure supports up to 800 kg, letting you bring tools, materials, and personnel up in one lift. This cuts down on trips and speeds up your workflow significantly.
The dual-motor system provides consistent, reliable lifting power. You get smooth ascent and descent even at maximum load. The stepless lifting mechanism allows precise positioning at any work point, improving accuracy and reducing wasted time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Load | 800 kg |
| Lifting Speed | 8–10 m/min |
| Rated Power | 1.8 kW × 2 |
| Hoist Model | LTD80 |
| Safety Lock Model | LSA30 / LSA20 |
| Platform Dimension (L × W × H) | 7500 mm × 690 mm × 1180 mm |
| Suspension Mechanism Weight | 250 kg |
| Counterweight | 1000 kg |
| Steel Platform Weight | 600 kg |
| Aluminum Platform Weight | 440 kg |
Material Options & Durability
You can choose between steel and aluminum construction based on your specific project requirements. Both options feature reinforced structural design built for demanding conditions.
Steel Platform: Offers maximum impact resistance and cost-effectiveness. The galvanized surface treatment provides solid corrosion protection. It's your best choice for harsh construction environments where equipment faces heavy wear.
Aluminum Platform: Delivers superior corrosion resistance with significantly reduced weight (440 kg vs 600 kg). This lighter design eases transportation and reduces suspension mechanism stress. It's ideal for projects requiring frequent relocation or work in coastal and chemical environments.
Both versions use high-strength materials in the suspension mechanism and counterweight system. This engineering approach balances strength with durability, ensuring stable performance under maximum load conditions.
The platform undergoes high-standard anti-corrosion surface treatment. This extends service life and maintains structural integrity across diverse working conditions.
Real-World Applications
Large-Scale Curtain Wall Projects: The ZLP800 Suspended Work Platform excels in glass facade installation where you need to lift heavy panels alongside installation crews. The 7.5-meter platform length enables multiple workers to operate simultaneously across wide building sections.
Bridge and Infrastructure Maintenance: Its adaptable suspension system installs easily on bridge pylons, dam faces, and other non-standard structures. You can conduct anti-corrosion painting, structural inspection, and repair work efficiently at any height.
Industrial Facility Maintenance: Perfect for chimney painting, silo cleaning, and wind turbine tower maintenance. The stable platform allows precision application of coatings and high-pressure cleaning in confined vertical spaces.
Heavy-Duty Exterior Decoration: When your project involves stone cladding, metal panel installation, or other heavy exterior materials, this platform handles the weight while providing safe working space for skilled crews.
Service & Customization Support
We understand that no two projects are identical. That's why we offer comprehensive customization options for platform dimensions, surface finishes, and color specifications.
The modular assembly design means no complex setup procedures. Your crew can deploy the equipment quickly without specialized training. Standardized components ensure fast disassembly when you need to relocate or store the platform.
Stepless lifting control gives you precise positioning capability. Move to exact work points without overshooting or making multiple adjustment attempts. This precision improves work quality and crew efficiency.
Our engineering team provides technical support from project planning through completion. We assist with custom solution design, rapid production scheduling, and on-site guidance when needed.
Frequently Asked Questions
Q: How does the 800 kg capacity benefit my project compared to standard platforms?
A: You can bring up more materials and personnel in a single lift. This reduces cycle time dramatically. For example, in curtain wall installation, you can lift glass panels, sealant, tools, and a three-person crew simultaneously.
Q: What maintenance schedule should I follow?
A: Perform daily visual inspections of wire ropes, safety locks, and electrical connections. Safety locks require professional recalibration every 6–12 months depending on usage intensity and local regulations.
Q: Can I operate this platform in windy conditions?
A: You must cease operations and lower the platform when wind speeds exceed 10.8 m/s (Level 6 wind). Always secure the platform properly when leaving it unattended.
Q: Why specify 9.1 mm wire rope?
A: The heavier rated load requires a higher safety factor. The 9.1 mm rope provides the necessary breaking strength and durability for safe operation with the LTD80 hoist system under maximum load.
Q: Which material should I choose – steel or aluminum?
A: Choose steel for cost-effectiveness and maximum impact resistance in heavy construction environments. Select aluminum when you need superior corrosion resistance, frequent transportation, or work in coastal areas.
Q: What is the maximum platform length you can supply?
A: While modular design allows flexibility, we recommend a maximum of 7.5 meters to maintain optimal structural rigidity and load distribution under the 800 kg capacity.
Contact Us for Your Project Needs
Contact us today at global@xjy8.com to discuss your specific project requirements for ZLP800 Suspended Work Platform and customization options.
