Rebar Storage Rack
Application Scenarios: Rebar raw material yards, near rebar processing sheds, semi-finished product yards, floor material storage points, beam and bridge prefabrication yards, and shield segment factories.

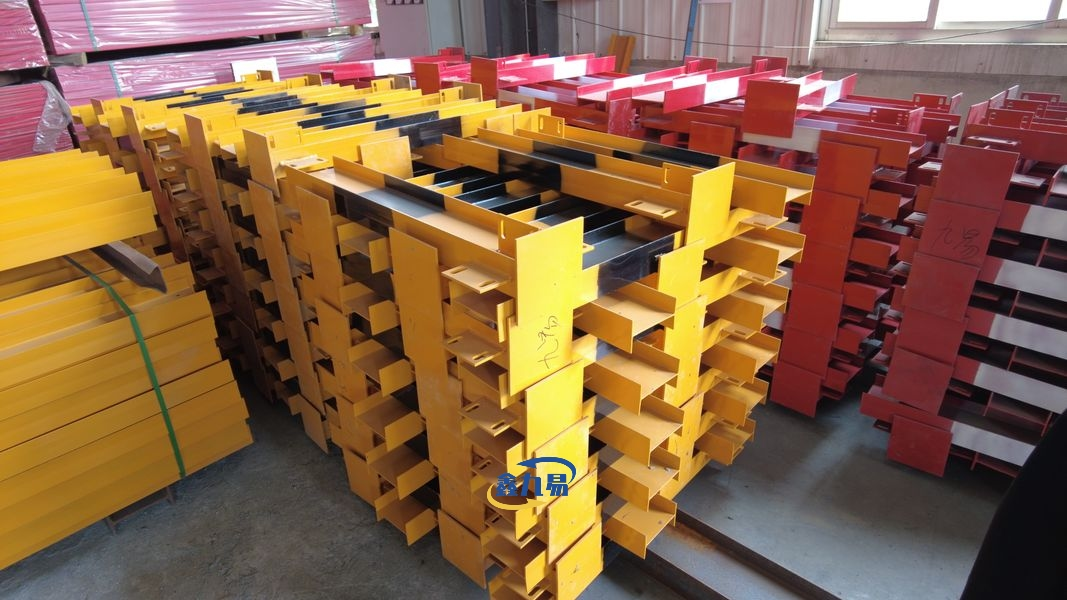

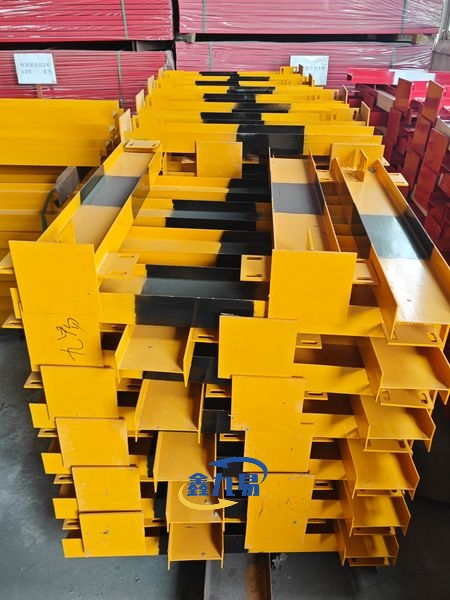

Material & Craftsmanship: The main body is a load-bearing frame welded from thickened channel steel and large rectangular tubes, offering strong load-bearing capacity to stably support coiled steel materials without deformation. The unit is fully welded with full seams, and edges are ground flat and burr-free to prevent scratching steel materials or injuring personnel.
Rebar Storage Rack – Heavy-Duty Steel Storage Solution for Construction Sites
Hebei Xinjiuyi Construction Technology Co., Ltd. delivers enterprise-grade Rebar Storage Rack systems designed for high-volume construction and steel processing environments. Our standardized storage facility features a heavy-duty frame welded from thickened channel steel and large rectangular tubes, achieving load capacities from 500 kg to over 5,000 kg per unit. With customizable dimensions (standard length: 6,000 mm to 9,000 mm, height: 1,000 mm), your site can achieve up to 300% space utilization improvement while preventing material deformation and moisture damage. Each rack undergoes strict surface treatment (rust removal + primer + warning topcoat) to ensure rust-proof durability in outdoor conditions. Our modular design allows quick assembly and lifetime maintenance support for long-term reliability.
Why Your Site Needs Professional Steel Reinforcement Storage
Traditional ground stacking exposes your steel reinforcement bars to multiple risks. Direct contact with soil accelerates oxidation and contamination. Loose piles create serious safety hazards for workers. Retrieving specific rebar sizes becomes time-consuming and inefficient.
A properly engineered storage system transforms your material yard into an organized, safe workspace. You gain classified storage by diameter and length. Materials stay elevated, protected from moisture and mud. Your crane operators can access inventory quickly without moving entire piles.
Our racks are specifically built for the construction industry's demanding conditions. The stable frame structure prevents rolling and tipping, even when handling coiled steel materials. Full-seam welding and burr-free edges protect both your materials and personnel from damage.
Technical Specifications & Parameters
| Parameter | Standard Size | Notes |
|---|---|---|
| Length | 6,000 mm / 9,000 mm | Fully customizable |
| Width | 9,000 mm | Adjustable to site requirements |
| Height | 1,000 mm | Custom heights available |
| Load Capacity | 500 kg – 5,000 kg per unit | Engineered with safety factor 1.5–2.0 |
| Frame Material | Thickened channel steel + rectangular tube | High-yield structural steel |
| Surface Treatment | Rust removal + primer + warning topcoat | Multi-layer anti-corrosion process |
| Design Type | Modular | Quick disassembly and reassembly |
| Edge Treatment | Ground flat, burr-free | Prevents material and personnel injury |
Application Scenarios for Maximum Efficiency

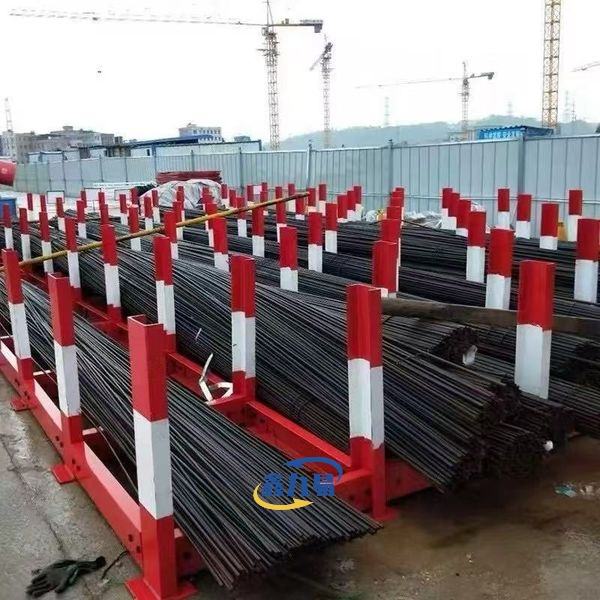

You'll find our Rebar Storage Rack indispensable across multiple construction zones. Raw material yards benefit from organized storage that keeps different grades and sizes separate. Position racks near rebar processing sheds to streamline your workflow from storage to cutting and bending.
Semi-finished product yards require reliable systems that protect processed rebar shapes until installation. Floor-level material storage points on high-rise sites need compact solutions that don't obstruct crane paths. Beam and bridge prefabrication yards handle extremely long reinforcement bars that demand specialized support at multiple contact points.
Shield segment factories and precast concrete plants operate in high-humidity indoor environments. Our surface treatment ensures long-term performance even with constant moisture exposure. The warning topcoat provides visual safety cues that meet construction site compliance standards.
Superior Material Quality & Engineering Design
The main body uses load-bearing frames welded from premium-grade channel steel and oversized rectangular tubes. This construction method delivers exceptional strength-to-weight ratios. Your racks will support heavy coiled steel without structural deformation or deflection beyond safe limits.
We employ full-seam welding across all joints, eliminating weak points that could fail under dynamic loading. Every edge receives professional grinding to remove sharp burrs. This attention to detail prevents scratches on your expensive steel materials and reduces workplace injury risks.

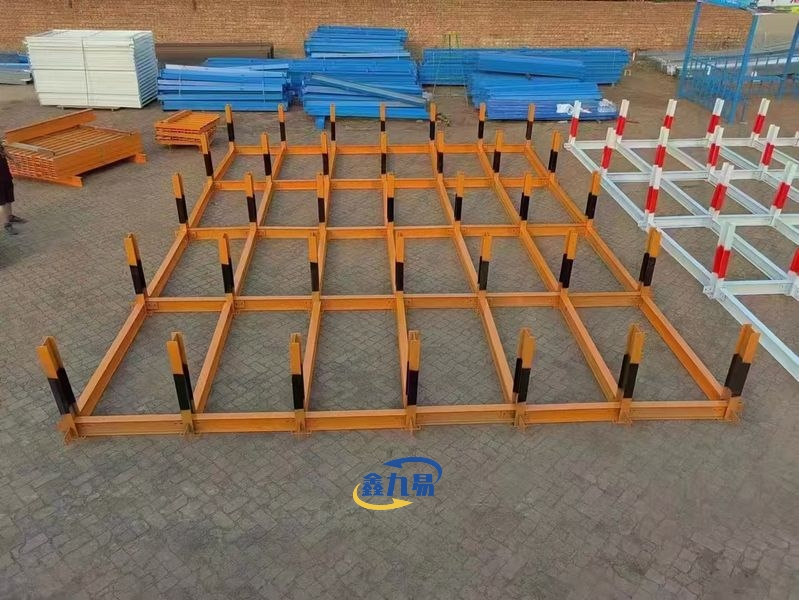

The modular architecture means you can expand storage capacity as your project grows. Individual sections connect securely but disassemble quickly when you need to relocate. This flexibility makes our racks ideal for both permanent facilities and temporary construction sites.

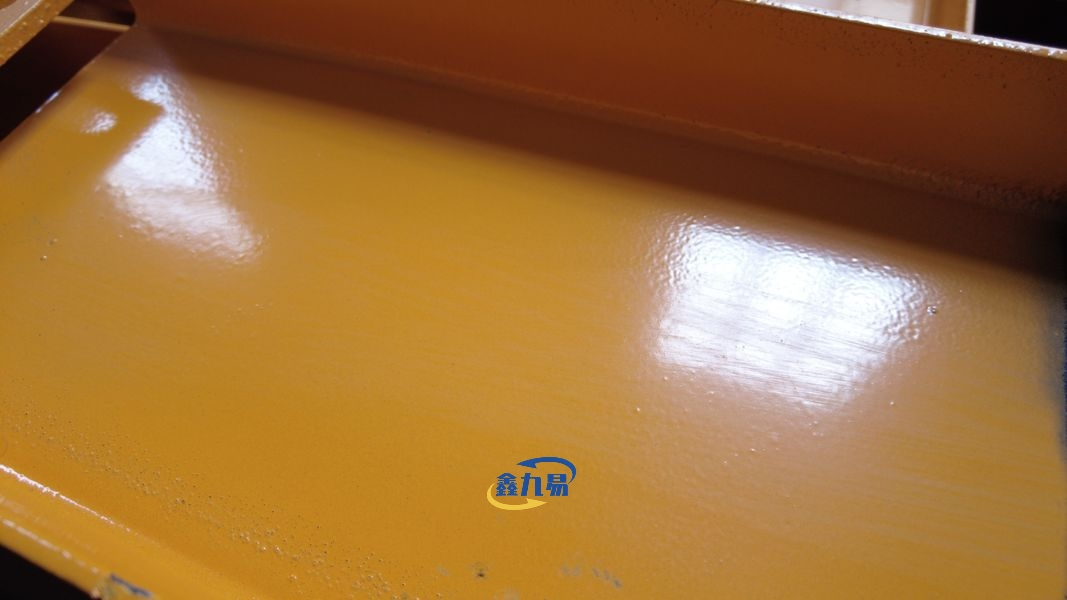

Our multi-layer surface treatment begins with thorough rust removal. The primer coat provides corrosion resistance at the molecular level. The warning topcoat adds a visible safety element while delivering additional protection against industrial pollutants and moisture.
Customization Services & Long-Term Support
Every construction site presents unique spatial challenges. We provide non-standard customization based on your actual measurements and operational requirements. Submit your site layout, and our engineering team will optimize Rebar Storage Rack dimensions to maximize usable space.
Need specialized arm lengths for unusually long rebar bundles? We'll calculate the precise base-to-column ratios to prevent tipping. Working in a seismic zone? We can engineer heavy-duty floor anchors and oversized base plates that meet your region's specific safety requirements.
Our lifetime maintenance commitment ensures your investment delivers value for years. We provide parts replacement services to address normal wear and tear. When you expand operations or move to a new site, our technical team offers guidance on disassembly, transport, and reinstallation.
This comprehensive service approach reflects our company philosophy: "Starting with user needs and ending with user satisfaction." You're not just purchasing equipment—you're gaining a long-term partner committed to your project success.
Frequently Asked Questions
Q: How does elevated storage prevent rebar deformation?
A:Ground stacking creates uneven pressure points that cause permanent bowing in long steel bars. Our racks distribute weight across the entire length, maintaining the original straightness required for structural integrity.
Q: Can these racks withstand outdoor weather conditions year-round?
A:Yes. The strict anti-corrosion treatment process (rust removal + primer + warning topcoat) protects against rain, snow, and humidity. For coastal environments with salt exposure, we recommend discussing enhanced coating options during customization.
Q: What's the typical installation time for a standard unit?
A:Our modular design allows two workers to assemble a 6,000 mm unit in approximately 2–3 hours without specialized equipment. Larger custom configurations may require crane assistance but still install in a single work shift.
Q: How do I determine the right load capacity for my materials?
A:Calculate the total weight of your heaviest rebar bundle, then select a rack with capacity exceeding that by at least 50%. Our sales team can help you analyze typical bundle weights based on bar diameter and length.
Q: Are the racks compatible with overhead crane loading?
A:Absolutely. The open frame design allows crane hooks and lifting straps to access materials from multiple angles. The warning topcoat provides clear visual boundaries for safe crane operation.
Get Your Custom Storage Solution Today
Contact Hebei Xinjiuyi Construction Technology Co., Ltd. to discuss your specific requirements for Rebar Storage Rack. Email us at global@xjy8.com.
