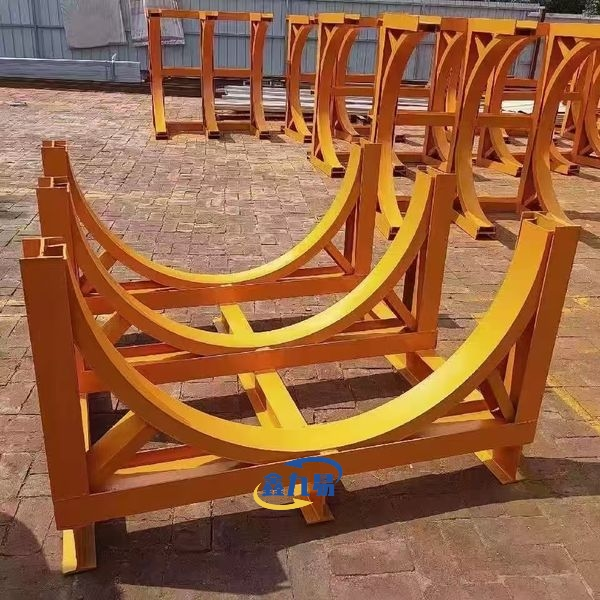

Rebar Coil Storage Cradle Rack

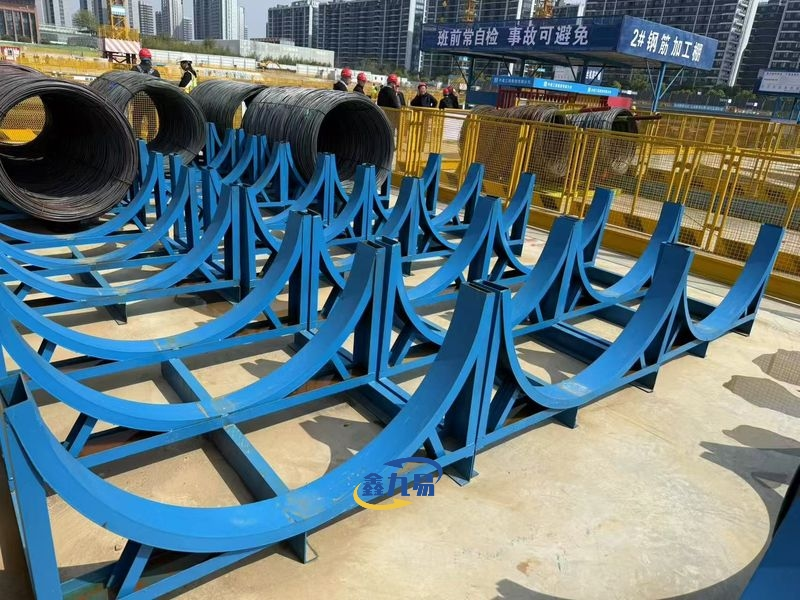

Application Scenarios: Inside rebar processing sheds, tower crane coverage areas, and temporary material storage points.
Material & Craftsmanship: The main body is a load-bearing frame welded from thickened channel steel and large rectangular tubes, offering high load-bearing capacity to stably support steel coils without deformation. The unit is fully welded with full seams, and edges are ground flat and burr-free to prevent scratching steel materials or injuring personnel.
Rebar Coil Storage Cradle Rack – Professional Steel Coil Storage Solution for Construction Sites
Hebei Xinjiuyi Construction Technology Co., Ltd. fabricates a strong Rebar Coil Storage Cradle Rack planned particularly to meet the requesting capacity needs of advanced development destinations. Built with a strong system welded from 100# channel steel with around 3.2 mm web thickness, our support rack offers remarkable load-bearing capacity to back overwhelming steel coils weighing up to 5 tons without deformation.
The standardized dimensions—1500 mm × 1500 mm × 650 mm with a 1.5 m inward diameter—provide solid back for different coil details. Our hoisted layered capacity plan successfully anticipates dampness, rust, and rolling mishaps whereas guaranteeing your materials stay in flawless condition. The arc-shaped support built from 100# channel steel and strengthened with 50 mm × 50 mm square and rectangular tube assistant materials makes a steady, anti-slip surface that keeps your rebar coils secure amid lifting and dealing with operations.
Every unit is completely welded with total creases, and all edges are professionally ground level and burr-free to secure both your steel materials and your workers.
Why Choose Our Steel Coil Storage System
Prevents Material Damage and Safety Hazards
You know how disappointing it is when rebar coils roll suddenly or endure distortion from dishonorable ground capacity. Our item dispenses with these dangers with its specialized V-shaped back structure.
The lifted plan keeps your steel materials off the ground, ensuring them from dampness, mud defilement, and erosion. This implies your rebar keeps up its auxiliary judgment and surface quality from capacity to installation.
The steady arc-shaped support avoids rolling mischances that can harm laborers or harm costly materials. Your group can work unquestionably knowing coils are safely positioned.
Enhances Site Organization and Efficiency
Construction sites benefit tremendously from organized material storage. Our cradle rack transforms chaotic floor stacking into a systematic, inventory-friendly environment.
The neat classified arrangement allows your crew to quickly identify and access the specific coil sizes needed for each task. This reduces material handling time and improves overall workflow efficiency.
You'll notice immediate improvements in your site's civilized construction rating during inspections. The professional appearance and orderly layout demonstrate your commitment to quality management.
Built for Construction Site Durability
We manufacture each rack using thickened channel steel sections selected specifically for their superior load-bearing performance. The welded frame construction creates a solid, one-piece unit capable of withstanding the harsh conditions typical of construction environments.
Surface rust prevention treatment ensures your racks adapt well to outdoor conditions, extending their service life even in challenging weather. You get reliable performance whether your site is in coastal humidity or inland temperature extremes.
The robust construction means you won't face frequent replacements or repairs, reducing your total cost of ownership over the equipment lifecycle.
Technical Specifications
| Parameter | Specification |
|---|---|
| Length | 1500 mm |
| Width | 1500 mm |
| Height | 650 mm |
| Inner Diameter | 1.5 m |
| Main Frame Material | 100# Channel Steel |
| Arc Support Material | 100# Channel Steel |
| Channel Steel Web Thickness | Approximately 3.2 mm |
| Auxiliary Material | Square and Rectangular Tube 50 mm × 50 mm |
| Load Capacity | Up to 5 tons per cradle |
| Surface Treatment | Rust prevention coating |
| Welding Method | Full-seam welding |
| Edge Treatment | Ground flat and burr-free |
Versatile Applications Across Construction Environments
Rebar Processing Sheds
Inside your rebar processing facilities, these cradle racks create efficient feeding stations for cutting and bending operations. The stable positioning allows workers to safely unwind steel coils without concerns about shifting or tipping.
The 650 mm height provides ergonomic access for manual handling while remaining compatible with forklift and crane operations. Your processing workflow becomes smoother and safer.
Tower Crane Coverage Areas
In zones served by tower cranes, our storage racks facilitate direct lifting operations. The open design and standardized dimensions allow crane operators to quickly hook and transport coils to elevated work areas.
You eliminate the dangerous practice of lifting coils directly from ground level, where instability and poor visibility create accident risks. The Rebar Coil Storage Cradle Rack provides a secure staging platform.
Temporary Material Storage Points
Construction sites often require flexible material positioning as work progresses. The modular design supports rapid relocation to match changing site layouts.
Whether you're storing materials for concrete reinforcement, prefab production, or structural framework, these racks adapt to your specific requirements. The universal dimensions accommodate various coil specifications commonly used in building construction.
Modular Design for Maximum Flexibility
Rapid Assembly and Disassembly
You face tight schedules on every project. Our cradle rack features a modular structure that assembles quickly without specialized tools or extensive training.
When your project phase completes, disassembly is equally straightforward. This allows you to efficiently transport racks to your next site, maximizing your equipment utilization across multiple projects.
The compact disassembled size reduces transportation costs and simplifies logistics planning. You can move more units per truck, reducing freight expenses.
Adaptable to Various Coil Specifications
Construction projects use rebar coils in different diameters and weights. Rather than purchasing multiple specialized storage solutions, our versatile cradle design accommodates the range of specifications you commonly encounter.
The 1.5 m inner diameter works well with standard coil sizes from 1200 mm to 1500 mm. The robust load capacity handles both lighter bundles and heavy-duty coils up to 5 tons.
This versatility means you maintain a standardized inventory of storage equipment, simplifying your site management and reducing capital investment.
Quality Manufacturing Standards
Precision Welding and Finishing
Every Rebar Coil Storage Cradle Rack undergoes rigorous quality control during manufacturing. We perform full-seam welding on all structural joints to ensure maximum strength and durability.
Our welders follow standardized procedures that create consistent, high-quality connections throughout the framework. This eliminates weak points that could lead to premature failure under heavy loads.
After welding, we carefully grind all edges to remove burrs and sharp surfaces. This attention to detail protects both your stored materials and your workers from scratches and injuries.
Material Selection and Treatment
We source channel steel and rectangular tubes from certified suppliers, ensuring the base materials meet strength requirements for construction equipment. The thickened profiles provide the substantial load-bearing capacity your heavy coils demand.
Surface treatment applies rust prevention coatings that protect the steel framework from oxidation and corrosion. This is particularly important for racks used in outdoor storage areas exposed to rain, humidity, and temperature fluctuations.
The coating process follows industry standards to ensure consistent coverage and adhesion, extending the service life of your investment.
Frequently Asked Questions
Q:What is the maximum coil weight your cradle rack can safely support?
A:Our standard product is engineered to support coils weighing up to 5 tons. The thickened 100# channel steel frame with 3.2 mm web thickness provides exceptional load-bearing capacity without deformation. For projects requiring even higher capacity, we offer custom-engineered solutions.
Q:Can the racks be used in outdoor construction environments?
A:Yes, absolutely. Each rack receives surface rust prevention treatment specifically designed for outdoor conditions. The coating protects against moisture, rain, and temperature variations typical of construction sites. Many of our customers successfully use these racks in both covered processing sheds and open storage areas.
Q:How does the elevated design prevent rebar damage?
A:The 650 mm height keeps your steel coils elevated above ground level, away from mud, standing water, and contaminants. This prevents moisture contact that leads to rust and corrosion. The elevation also improves air circulation around stored materials, further reducing moisture-related damage.
Q:Are these racks compatible with standard material handling equipment?
A:Yes, the design accommodates both forklift and crane operations. The open framework allows forklift forks to access coils from multiple angles, while the standardized dimensions provide clear lifting points for crane hooks. This compatibility streamlines your material handling workflow.
Q:Do you offer customization for special coil sizes?
A:We understand that different projects have unique requirements. While our standard 1500 mm × 1500 mm design suits most common applications, we provide customization services for special coil diameters, weights, or site-specific needs. Our engineering team can work from your drawings to create tailored solutions.
Q:How many coils can each rack hold?
A:Each cradle is designed to hold one large coil securely. The arc-shaped support maintains the coil's round geometry and prevents deformation. For sites requiring high-volume storage, you can arrange multiple racks in organized rows that facilitate inventory management and FIFO access.
Contact Us for Your Construction Site Storage Solution
Contact Hebei Xinjiuyi Construction Technology Co., Ltd. today to discuss your specific requirements for Rebar Coil Storage Cradle Rack.
