Four-Rung Frame Scaffolding – Heavy-Duty Modular Support for Your Construction Projects

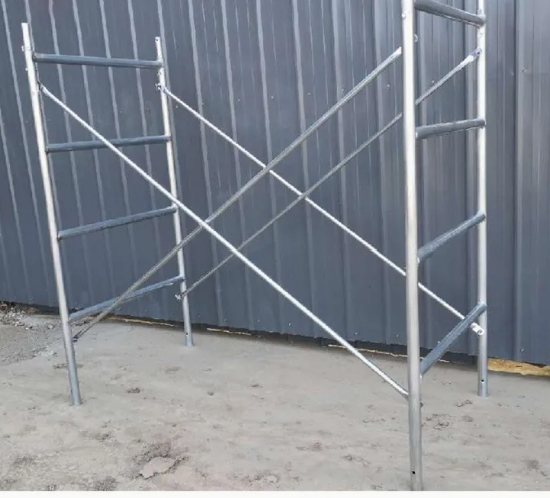

Hebei Xinjiuyi Construction Technology Co., Ltd. manufactures Four-Rung Frame Scaffolding engineered for heavy-load construction tasks. Named for its four main vertical poles, this system delivers exceptional stability for concrete pouring, equipment lifting platforms, and structural support work. Our frames use thickened Q355 steel for vertical poles and Q235 steel for crossbars, all hot-dip galvanized to resist corrosion. The four-pole design distributes loads evenly, improving overall load-bearing capacity up to 2,500 lbs per frame when properly braced. With cup-lock or ring-lock connections, you get fast assembly and strong structural nodes. We customize pole specifications and spacing based on your load requirements and provide professional structural calculation reports to ensure compliance with modern construction standards.

Why Choose Our Heavy-Duty Frame System

Our Four-Rung Frame Scaffolding solves critical challenges you face on demanding job sites. Traditional scaffolding often flexes under high loads or requires external ladders that slow down your crew. This system integrates ladder-like functionality directly into the frame, eliminating loose components and reducing assembly time.

The integrated rungs provide safe vertical access points while maintaining rigid box-frame geometry. Your workers can navigate between levels without bulky external ladders. This streamlines operations in confined spaces like refineries or urban high-rise projects.

Each frame undergoes 360-degree CO2 robotic welding at all joints. This ensures structural integrity that meets OSHA 1926.451, ANSI A10.8, and EN 12810-1 requirements. You get a stable, non-slip climbing surface backed by rigorous manufacturing standards.

Technical Specifications

Versatile Applications Across Construction Sectors

Your projects demand flexibility. Our frame system adapts to multiple construction scenarios where reliability matters most.

High-Rise Building Construction: When working on tall structures, the four-pole configuration provides torsional rigidity to maintain verticality even under high wind loads. Your crew gets stable platforms for facade work, masonry, and bricklaying at extreme heights.

Bridge Construction and Maintenance: The heavy-duty design supports the weight of multiple workers and material pallets simultaneously. This makes it ideal for bridge deck construction and inspection work where you need reliable overhead access.

Industrial Plant Maintenance: In petrochemical facilities, refineries, and power plants, space is often confined. The integrated rungs allow your technicians to navigate vertical sections efficiently during pipe inspections and equipment maintenance.

Concrete Pouring Operations: The superior load distribution handles the extreme weight of wet concrete and associated equipment. You can trust this system during critical pour operations where structural failure is not an option.

Temporary Support Structures: Use it for tunnel support, cantilever structures, suspended operations, and temporary passages. The modular design lets you configure platforms that match your specific site requirements.

Material Quality and Manufacturing Excellence

We manufacture every Four-Rung Frame Scaffolding using carefully selected materials and proven processes. Main vertical poles use thickened Q355 high-strength steel pipes that resist deformation under heavy loads. Crossbars use Q235 steel pipes, providing the right balance of strength and cost-efficiency.

All steel components undergo hot-dip galvanization meeting ISO 1461 standards. This creates a zinc coating of 65-85 microns thickness, protecting against corrosion in saline coastal environments and humid conditions. For premium applications, we offer powder coating with baking finish as a high-end customization option.

Planks come in two configurations. Steel-framed wood boards offer traditional durability with natural grip. All-steel jump boards provide maximum load-bearing capacity for the heaviest operations. Both options feature thickened construction that exceeds standard requirements.

Our Cangzhou facility operates advanced manufacturing equipment with standardized production processes. We perform dimensional tolerance testing to ensure width, height, and coupling pin alignment stay within ±0.5 mm. This precision prevents frame lean in tall tower configurations.

Fast Assembly with Reliable Connection Systems

Time is money on your construction site. Our connection systems speed up installation while maintaining structural integrity.

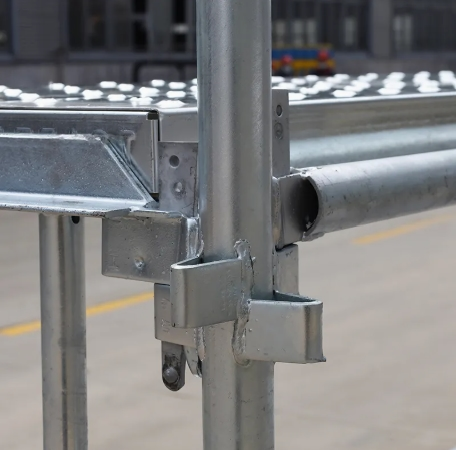

Cup-Lock System: This design allows rapid vertical and horizontal assembly. The cup mechanism locks securely with a simple hammer tap. You can dismantle and reconfigure sections quickly as your project progresses.

Ring-Lock System: For projects requiring frequent layout changes, the ring-lock provides even faster assembly. Multiple connection points on each vertical pole give you flexibility in platform placement without compromising strength.

Both systems create strong nodes that resist movement under load. The connections meet the same safety standards as the frame itself, ensuring consistent performance throughout your structure.

We support full customization of pole specifications and spacing based on your load calculations. Our engineering team provides professional structural calculation reports that document safety factors and compliance with relevant codes.

Frequently Asked Questions

Q: How does this compare to five-rung frame variants for stability?

A: While five-rung frames offer more climbing points, our four-rung configuration provides a more balanced center of gravity for heavy-duty shoring applications. It meets the same ANSI safety standards while being lighter for manual handling by your crew.

Q: Can I mix these frames with components from other manufacturers?

A: Compatibility depends on coupling pin diameter and center-to-center lock pin distance. Always verify interlock test data before mixing components. We recommend keeping systems from a single manufacturer to ensure structural consistency.

Q: What's the maximum freestanding height without additional bracing?

A: Per OSHA guidelines, the height-to-base ratio should not exceed 4:1. Beyond this ratio, you must use outriggers or wall ties to prevent overturning. Our technical team can help you design proper bracing for taller structures.

Q: Are the rungs designed to serve as work platforms?

A: No. Rungs are for vertical access and structural bracing only. Work should always be performed from OSHA-compliant planks or decks secured within the frame. This ensures proper fall protection and load distribution.

Q: What maintenance schedule should we follow for galvanized frames?

A: Conduct annual inspections for deep gouges or dents. While hot-dip galvanizing offers self-healing properties for minor scratches, any structural deformation requires immediate frame decommission. Clean frames after use in corrosive environments to maximize service life.

Q: Do you provide structural calculations for custom configurations?

A: Yes. When you order custom pole specifications or spacing, we provide professional structural calculation reports. These documents verify load capacity, safety factors, and compliance with relevant construction codes for your specific application.

Packaging and Delivery

We package frames in steel strapping bundles with protective corner guards to prevent transport damage. Bulk orders ship in standard containers for cost-effective international delivery. Our mature supply chain system ensures stable lead times even for large-scale projects.

For customized orders, we provide detailed packing lists and loading diagrams. This helps your receiving team organize components efficiently upon arrival at your job site.

​​​​​​​

Contact Us for Your Heavy-Duty Scaffolding Needs

Ready to specify Four-Rung Frame Scaffolding for your next project? Contact us at global@xjy8.com.
