Italian Type Walk-Through Scaffolding
Application Scenarios: Building construction, bridge construction and maintenance, tunnel support, infrastructure, industrial maintenance, power plants, petrochemical plants, cantilever structures, suspended operations, temporary passages, exhibition construction.
Material & Craftsmanship: Q235/Q355 low-alloy high-strength steel, 6061-T6 aerospace aluminum, 45# steel forgings/cast steel, hot-dip galvanizing, electro-galvanizing, powder coating, painting.

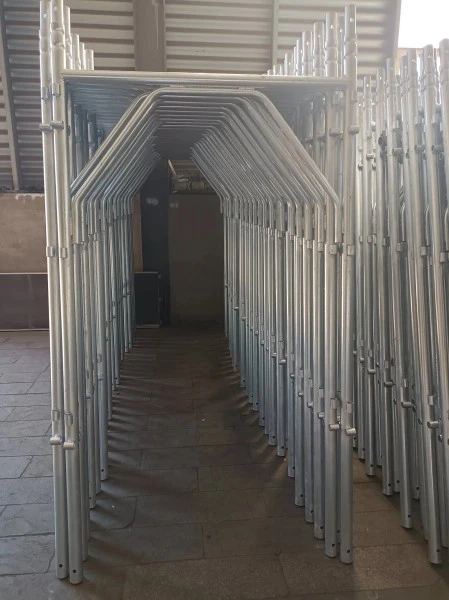

Italian Type Walk-Through Scaffolding
Hebei Xinjiuyi Construction Technology Co., Ltd. gladly makes Italian Type Walk-Through Scaffolding, a premium European-standard measured get to framework planned for requesting development and upkeep ventures. Our walk-through framework highlights circular steel pipe uprights with a standard external breadth of 48.3 mm and divider thickness extending from 2.9 mm to 3.2 mm, giving extraordinary auxiliary integrity.
The framework utilizes wedge stick or spring stick associations for adaptable and fast get together. With hot-dip galvanized surfaces advertising zinc coating thickness of 60-80 microns, our framework guarantees predominant erosion resistance and a benefit life surpassing 20 a long time. Standard setups incorporate outline statures of 1700 mm to 2000 mm and widths of 1000 mm to 1200 mm, with customization accessible to meet your particular extend requirements.
Technical Specifications
Our walk-through frames are engineered to deliver reliable performance across diverse construction environments. Below are the core technical parameters:
| Parameter | Standard Configuration | Custom Options |
|---|---|---|
| Frame Height | 1700 mm / 2000 mm | Customizable |
| Frame Width | 1000 mm / 1200 mm | Customizable |
| Platform Length | 1800 mm / 2000 mm | Customizable |
| Tube Diameter | 48.3 mm | Standard |
| Wall Thickness | 2.9 mm - 3.2 mm | Standard |
| Material Grade | Q235 / Q355 Steel | Standard |
| Surface Treatment | Hot-Dip Galvanizing | 60-80 micron zinc layer |
| Load Capacity | Up to 3.0 kN/m² | Class 4 compliance |
| Connection Type | Wedge Pin / Spring Pin | Standard |
All dimensions maintain a tolerance of ±2 mm to ensure perfect verticality and structural stability in tall configurations.
Structural Design & Engineering Advantages
The European-standard plan reasoning behind this platform prioritizes both usefulness and security. Circular steel pipe development conveys predominant torsional unbending nature compared to square tube alternatives.
The walk-through opening makes unhindered flat entries at working deck levels. This plan kills location bottlenecks and permits smooth development of staff, hardware, and materials. Your groups can keep up efficiency without consistent destroying and reassembly.
Wedge stick and spring stick association frameworks empower tool-free get together. This decreases establishment time by up to 40% compared to conventional tube-and-coupler strategies. The association focuses give adaptability for different setups whereas keeping up auxiliary strength.
Heavy-duty cast steel or produced steel connectors guarantee long-term solidness. These components are built to withstand monotonous stacking and natural push. Our welding measures meet mechanical necessities for basic load-bearing joints.
Surface Protection & Material Quality
We utilize premium Q235 and Q355 review basic steel sourced with total Process Test Certificates. Each warm number is traceable to guarantee fabric consistency and compliance.
Hot-dip galvanizing is our standard surface treatment. This handle coats both outside and insides tube surfaces with a defensive zinc layer. The zinc coating thickness ranges from 60 to 80 microns, assembly ISO 1461 universal standards.
This galvanization strategy gives uncommon erosion resistance. Your framework speculation remains ensured indeed in coastal or high-humidity situations. Not at all like painted choices, hot-dip galvanizing avoids covered up inside rust formation.
For premium customization prerequisites, we offer powder coating or extra portray over galvanized surfaces. These alternatives give improved aesthetics for ventures with particular visual guidelines. Be that as it may, galvanizing remains the establishment for most extreme longevity.
Application Scenarios for Professional Projects
Italian Type Walk-Through Scaffolding serves differing mechanical and development applications where get to, security, and effectiveness are critical.
Urban Exterior Reclamation: Authentic building upkeep in city centers requires platform that keeps up person on foot get to underneath. The walk-through plan makes secure zones for open section whereas empowering comprehensive veneer work.
Bridge Review & Upkeep: Expansive span bridges require framework frameworks that permit assessment groups to move openly with demonstrative hardware. Our secluded outlines scale vertically and evenly to oblige complex bridge geometries.
Industrial Plant Upkeep: Petrochemical offices, control plants, and fabricating destinations require heavy-duty get to stages. The clear section plan encourages hardware transport and multi-trade coordination amid shutdown maintenance.
High-Rise Development: Multi-story building ventures advantage from fast vertical scaling capabilities. Specialists move securely between levels through assigned walkways, lessening drop risks and moving forward location logistics.
Public Building Ventures: Tradition centers, stadiums, and regulation offices request compliant framework that meets European security measures. Our frameworks back both basic development and wrapping up trades.
Quality Control & Manufacturing Standards
At Xinjiuyi, quality begins with material selection and extends through every manufacturing stage. We implement rigorous inspection protocols to ensure consistent product performance.
Weld Integrity Verification: All critical joints undergo visual inspection and periodic ultrasonic testing. This confirms full penetration and structural continuity at pin connections and crossbar attachment points.
Dimensional Accuracy: CNC fabrication equipment maintains tolerances within ±2 mm for frame squareness and verticality. This precision prevents structural leaning in tall scaffold configurations.
Galvanization Testing: We verify zinc coating thickness using electromagnetic gauges on sample batches. Coating uniformity is checked across all tube surfaces to ensure complete protection.
Load Testing: Sample frames undergo destructive and non-destructive compression testing. These tests validate load capacity ratings and structural behavior under stress conditions.
Our quality management system ensures that every frame leaving our facility meets professional construction standards. You receive scaffolding that performs reliably from the first installation through years of project cycles.
Customization Capabilities for Your Project Needs
Construction sites present unique challenges that standard products cannot always address. Xinjiuyi specializes in customized Italian Type Walk-Through Scaffolding solutions tailored to your specific requirements.
We manufacture frames in non-standard heights, widths, and configurations based on your site drawings. Whether you need extended walk-through spans for oversized equipment passage or reinforced frames for heavy-load applications, our engineering team develops appropriate solutions.
Custom powder coating colors are available for projects with corporate branding or visibility requirements. We can also integrate specialized accessories including side brackets, cantilever platforms, and stair tower connections.
Our production capacity supports both small-batch custom orders and large-scale standardized procurement. Fast turnaround times ensure your project schedule remains on track. Technical support is available throughout the design, production, and installation phases.
Frequently Asked Questions
Q:What makes walk-through scaffolding different from standard frame types?
A:The defining feature is the unobstructed passage at the platform level. Traditional frames place crossbars at mid-height, creating obstacles. Walk-through design relocates structural elements to maintain clear walkways while preserving load capacity.
Q:Can this system integrate with existing tube-and-coupler accessories?
A:Yes. The standard 48.3 mm tube diameter ensures compatibility with European-standard couplers, ledgers, and brackets. This allows you to expand or modify configurations using commonly available components.
Q:What is the maximum safe working height for this scaffolding?
A:Maximum height depends on specific configuration, bracing, and anchoring. With proper structural calculation and tie-in points, walk-through frames regularly support working heights exceeding 30 m for construction applications.
Q:How do I verify the galvanization quality upon delivery?
A:Use a magnetic thickness gauge to measure zinc coating at multiple points on each frame. Readings should consistently show 60-80 microns. Surface appearance should be uniform gray with characteristic spangle patterns from the galvanizing process.
Q:Is painting over galvanized surfaces recommended?
A:Galvanizing alone provides optimal corrosion protection. Painting can be applied for aesthetic purposes but adds cost without improving structural longevity. If painting is required, proper surface preparation is essential for paint adhesion.
Q:What documentation should accompany quality scaffolding?
A:Professional suppliers provide Mill Test Certificates for steel grade verification, galvanizing test reports, dimensional inspection records, and load testing documentation. This paperwork confirms compliance with material and manufacturing standards.
Contact Us for Your Scaffolding Solution
Our team is prepared to discuss your requirements for Italian Type Walk-Through Scaffolding and develop the optimal solution.
