Wide Walk-Through Scaffolding
Application Scenarios: Building construction, bridge construction and maintenance, tunnel support, infrastructure, industrial maintenance, power plants, petrochemical plants, cantilever structures, suspended operations, temporary passages, exhibition construction.
Material & Craftsmanship: Q235/Q355 low-alloy high-strength steel, 6061-T6 aerospace aluminum, 45# steel forgings/cast steel, hot-dip galvanizing, electro-galvanizing, powder coating, painting.

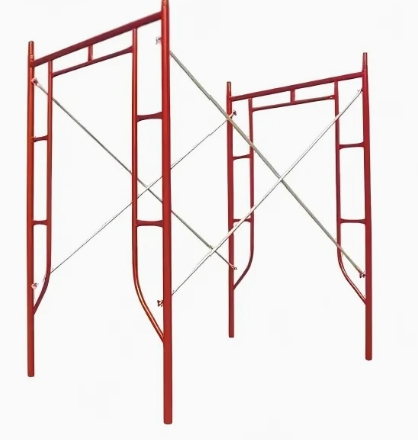

Wide Walk-Through Scaffolding – Heavy-Duty Portal Frame for Enhanced Site Mobility
Hebei Xinjiuyi Construction Technology Co., Ltd. conveys enterprise-grade Wide Walk-Through Scaffolding built to fathom basic location clog challenges. Our framework highlights an extended inside clearance of 1250 mm to 1350 mm, permitting unhindered entry for work force, fabric carts, and hardware. Built from high-strength Q235 steel pipe with divider thickness extending from 2.0 mm to 3.5 mm, each outline bolsters vertical loads up to 2500 kg per leg whereas keeping up basic keenness. The hot-dip galvanized surface treatment gives coating thickness ≥85 μm, guaranteeing long-term erosion resistance. With standardized secluded plan and exact stick dividing at 1219 mm interims, you get solid tradable over your whole framework armada. Our fabricating office in Cangzhou combines progressed welding innovation with thorough quality control to provide reliable, compliant security arrangements for worldwide development projects.
What Makes The Product Essential for Your Project
When you're overseeing high-traffic work zones, standard outlines make bottlenecks that moderate efficiency. Wide Walk-Through Scaffolding changes your base level into an productive person on foot tunnel.
You can move wheelbarrows, apparatus carts, and fabric beds through the extended opening without destroying the back structure. This plan disposes of the consistent cycle of outline evacuation and reinstallation that costs you profitable man-hours.
The strengthened header bar conveys vertical loads whereas keeping up the open entry underneath. You get the basic capacity you require for multi-level working stages without relinquishing ground-level mobility.
For urban remodel ventures, this framework permits open person on foot activity to proceed securely underneath your framework. You remain compliant with security directions whereas keeping your location operational and your neighbors satisfied.
Technical Specifications
| Parameter | Standard Options | Customization Available |
|---|---|---|
| Length | 1800 mm / 1930 mm | Yes |
| Width (Internal Clearance) | 1219 mm / 1250 mm / 1350 mm | Yes |
| Height | 1524 mm / 1700 mm / 1900 mm / 1930 mm | Yes |
| Main Tube Diameter | 42 mm / 48.3 mm | Based on load requirements |
| Wall Thickness | 2.0 mm / 2.5 mm / 3.5 mm | Per engineering specifications |
| Material Grade | Q235 / Q355 Steel | - |
| Surface Treatment | Hot-Dip Galvanizing / Powder Coating | Paint finish available |
| Load Capacity per Leg | 2500 kg - 4500 kg | Verified through testing |
| Galvanizing Thickness | ≥85 μm | Tested per salt spray standards |
Superior Material Engineering and Surface Protection
Your platform venture needs to withstand a long time of requesting location conditions. We build each outline from Q235 or Q355 review steel, chosen for ideal strength-to-weight ratio.
Our welding prepare employments persistent CO2 gas protected innovation. This makes uniform infiltration without porosity or undermined, conveying auxiliary welds that keep up judgment beneath greatest evaluated loads.
You can select between two proficient surface medications based on your working environment. Hot-dip galvanizing gives conciliatory erosion assurance perfect for coastal ventures or long-term rental armadas. The zinc coating bonds metallurgically to the steel substrate, conveying predominant durability.
Powder coating offers an temperate elective for indoor applications or standard development locales. The high-durability polyester wrap up stands up to chipping and gives amazing tasteful appearance whereas ensuring against rust.
The work stage employments anti-slip checkered steel plates with fortified edges. You get secure balance indeed in damp conditions, diminishing slip dangers for your crew.
Flexible Application Across Multiple Construction Scenarios
Urban Facade Restoration Projects
You can establish compliant sidewalk sheds that protect pedestrians while your team works overhead. The Wide Walk-Through Scaffolding base allows public traffic flow to continue uninterrupted, keeping municipal authorities satisfied and your project on schedule.
Industrial Maintenance Operations
When you're working inside refineries, power plants, or manufacturing facilities, you need to move large tool carts and replacement components through tight spaces. This system provides the clearance you require without compromising structural support for overhead work platforms.
Large-Scale Masonry Construction
Your masons gain ample room at the base level for mortar tubs, brick pallets, and material staging. The reduced need for constant material shuttling increases laying efficiency and reduces labor costs on multi-story builds.
Bridge and Infrastructure Projects
You can create temporary access passages under elevated work zones, allowing simultaneous operations at different levels. The modular design adapts to irregular terrain and varying span requirements.
Manufacturing Excellence and Quality Assurance

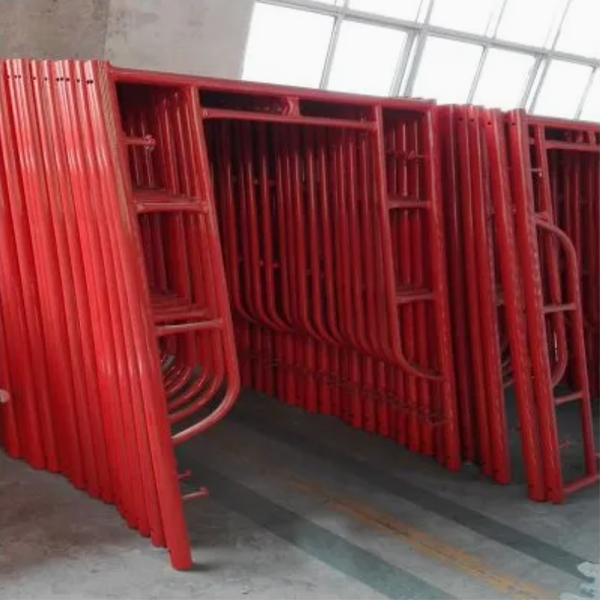

At Hebei Xinjiuyi, we maintain strict quality control throughout the production process. Our Cangzhou facility features modern manufacturing equipment and standardized workflows that ensure consistency across every batch.
Dimensional Precision Control
We maintain tight tolerances on center-to-center pin distances to guarantee modular compatibility. Your frames interlock seamlessly whether you're combining units from different production runs or integrating with existing inventory.
Weld Integrity Verification
Each structural weld undergoes visual inspection. Random samples receive ultrasonic testing or magnetic particle inspection to verify penetration depth and detect any subsurface defects before frames leave our facility.
Material Certification
We perform spectrochemical analysis and tensile strength testing on incoming steel. This confirms the material grade meets ASTM standards and possesses the mechanical properties required for safe load-bearing performance.
Corrosion Resistance Testing
Galvanized units undergo 480-hour to 1000-hour salt spray testing. This verifies coating thickness and long-term protection against rust, giving you confidence in product longevity.
Frequently Asked Questions
Q:How does the wide design affect stability compared to standard frames?
A:The increased width is balanced by longer, reinforced cross braces and more frequent tie-in points to the permanent structure. You maintain lateral stability while gaining the passage clearance you need.
Q:Can I integrate these frames with my existing standard scaffolding system?
A:Yes. We design our product with standardized pin spacing that matches industry-standard dimensions. You can use these frames as base lifts and stack standard frames above for multi-level access.
Q:What's the advantage of hot-dip galvanizing over powder coating?
A:Hot-dip galvanizing provides superior long-term protection for outdoor and coastal environments. The zinc coating corrodes sacrificially, protecting the base steel even if the surface is scratched. Powder coating costs less and works well for indoor or short-duration projects.
Q:Do you support custom dimensions for special project requirements?
A:Absolutely. Our engineering team works from your drawings and site specifications to produce frames in non-standard widths, heights, or lengths. We maintain the same quality standards regardless of customization complexity.
Q:What documentation do you provide for load capacity verification?
A:We supply technical data sheets with rated load capacities, safety factors, and material certifications. For projects requiring formal engineering approval, we can provide additional test reports and compliance documentation.
Q:How quickly can you fulfill large-volume orders?
A:Our mature supply chain and large-scale production capacity enable fast turnaround even for substantial orders. Contact us with your project timeline and quantity requirements for a specific delivery schedule.
Contact Us for Your Product Solution
Ready to improve site efficiency and worker safety with our Wide Walk-Through Scaffolding system?
Reach out to us at global@xjy8.com.
