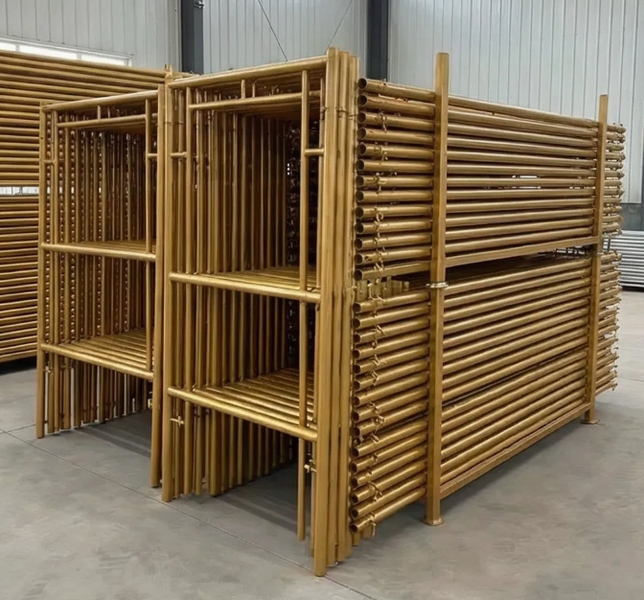

Heavy-Duty H-Frame Scaffolding

Heavy-Duty H-Frame Scaffolding - High-Strength Support System for Major Construction Projects

When your extend requests uncompromising quality and steadiness, Heavy-Duty H-Frame Scaffolding from Hebei Xinjiuyi Construction Technology Co., Ltd. conveys enterprise-grade execution you can believe. Our H-frame platform framework is made from Q355 low-alloy high-strength steel with hot-dip galvanized wrap up, planned particularly for super high-rise buildings, expansive bridge ventures, and heavy-load back scenarios. With pipe distances across of Φ48.3 mm and divider thickness extending from 2.5 mm to 3.6 mm, each outline gives remarkable vertical load-bearing capacity and sidelong drive resistance. The unmistakable H-shaped arrangement makes a inflexible structure that serves as the center back framework for major building ventures worldwide.

What Makes Our H-Frame Scaffolding System Different

The signature "H" shape isn't fair for show—it's building brilliance in activity. This arrangement disseminates loads equally over both vertical measures whereas the level part locks everything into a single inflexible unit.

You get prevalent basic quality compared to standard platform outlines. The plan dispenses with wobbling and influence, indeed when you're working at noteworthy statures with overwhelming materials.

Our heavy-duty ring-lock association framework guarantees each joint remains secure. You won't stress around associations extricating amid basic operations.

Technical Specifications

Where You'll Use This System

Super High-Rise Building Development: Your groups require steady stages when working over 30 meters. Our Heavy-Duty H-Frame Scaffolding handles different specialists and overwhelming gear at the same time without compromise.

Large Bridge Ventures: Bridge deck formwork and overwhelming chunk casting request exactness and quality. The H-frame arrangement gives the vertical bolster capacity required for these colossal loads.

Heavy Fabric Dealing with: When you're moving beds of stone, concrete pieces, or cladding materials, standard framework won't cut it. Our framework is built for these requesting applications.

Industrial Upkeep Operations: Oil refineries, control plants, and petrochemical offices require framework that withstands vibrations and wind loads. The unbending H-frame structure conveys solidness in challenging environments.

Tunnel Back and Foundation: Transitory shoring for underground development or framework ventures benefits from the solid stack conveyance our outlines provide.

Material Quality and Manufacturing Process

We fabricate each outline from Q355 low-alloy high-strength steel. This fabric choice gives you the idealize adjust of quality and workability.

The hot-dip galvanizing handle makes a defensive zinc coating that battles erosion for a long time. You'll see reliable execution whether your venture is in coastal situations or urban settings.

Our high-strength cast steel connectors guarantee hub inflexibility at each association point. These aren't stamped metal parts—they're built components outlined for basic integrity.

Wall thickness alternatives from 2.5 mm to 3.6 mm let you coordinate the outline to your particular stack necessities. Thicker dividers cruel higher capacity for the most requesting applications.

For ventures requiring improved aesthetics or extra assurance, we offer powder coating as a premium surface treatment choice. This includes an additional layer of strength whereas giving color-coded distinguishing proof options.

Professional Design and Customization Services

Every major project has unique requirements. That's why we provide professional structural design and calculation services before manufacturing begins.

You share your project loads and specifications. Our engineering team customizes frame dimensions, connection points, and configurations to match your exact needs.

We don't believe in one-size-fits-all solutions. Whether you need non-standard heights, specialized widths, or unique connection systems, our precision manufacturing capabilities make it happen.

Our technical support team guides you through assembly planning. You'll receive detailed instructions for using the heavy-duty ring-lock system to ensure safe, reliable connections on site.

Assembly and Safety Features

The heavy-duty ring-lock system uses simple mechanical connections that your crew can master quickly. No specialized tools or complicated procedures—just secure, reliable joints every time.

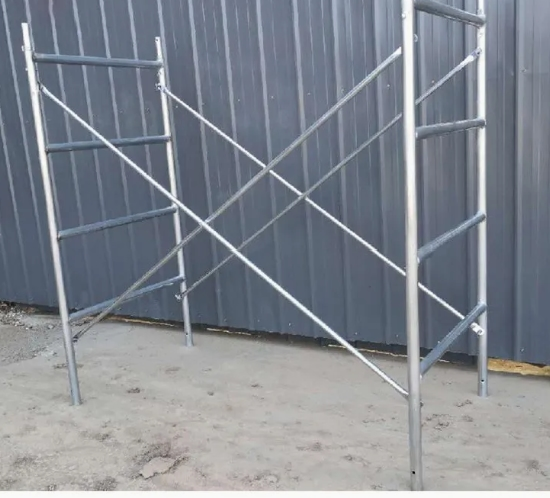

Cross-bracing integrates seamlessly with the H-frame structure. This eliminates horizontal movement and maintains geometric stability as you build vertically.

Wide walkthrough areas between the vertical standards give your workers room to move safely with materials and tools. You're not squeezing through tight spaces or taking unnecessary risks.

The system accommodates stair towers and side brackets. You can build comprehensive access solutions that serve multiple work zones simultaneously.

Base plates distribute loads across foundation surfaces. U-head jacks at the top provide precise leveling for formwork or working platforms.

Quality Control and Reliability

We conduct dimensional tolerance checks on every frame. Verticality stays within strict variance limits to prevent load eccentricity.

Weld penetration at the critical H-joint receives special attention. These connections must handle significant shear forces without failure.

Our hot-dip galvanizing meets international coating thickness standards. The zinc layer provides long-term protection against environmental degradation.

Material verification confirms every batch matches specified steel grades. You receive Mill Test Certificates documenting material properties.

We don't just claim our Heavy-Duty H-Frame Scaffolding is strong—we test it. Load capacity verification follows established safety standards with appropriate safety factors built in.

FAQ

Q: What's the maximum safe height for an H-frame tower?

A: Standard configurations safely reach 30+ meters with proper bracing and tie-backs. Projects exceeding 38 meters require engineered tie-back plans and professional structural calculations based on site-specific wind and gravity loads.

Q: Can I use H-frames for both access scaffolding and structural shoring?

A: Absolutely. When equipped with appropriate base plates and U-head jacks, the system excels at both applications. Just ensure the load path aligns vertically through the standards for shoring applications.

Q: How does hot-dip galvanizing compare to painted finishes?

A: Hot-dip galvanizing provides superior corrosion protection with a metallurgically bonded zinc coating. It lasts significantly longer than paint in outdoor conditions and requires less maintenance over the equipment's lifetime.

Q: Are your frames compatible with scaffolding from other manufacturers?

A: While industry dimensions share similarities, coupling pin diameters and lock locations vary between manufacturers. We recommend using complete systems from a single source to ensure structural continuity and valid load ratings.

Q: What inspection schedule do you recommend?

A: Conduct visual inspections before each erection. For standard construction environments, this is usually sufficient. In coastal or industrial settings with corrosive atmospheres, perform detailed thickness gauge testing annually to monitor steel condition.

Q: Can you customize frames for special load requirements?

A: Yes, that's one of our core capabilities. Share your load specifications, working heights, and site conditions. Our engineering team will design frames with appropriate material grades and dimensions to meet your exact requirements safely.

​​​​​​​

Contact Us

Ready to discuss your project requirements for Heavy-Duty H-Frame Scaffolding?

Email us at global@xjy8.com.
