Wide Ladder Frame Scaffolding

Wide Ladder Frame Scaffolding – Professional Modular Access System for Large-Scale Construction

Hebei Xinjiuyi Construction Technology Co., Ltd. fabricates enterprise-grade Wide Ladder Frame Scaffolding built with Q355 low-alloy high-strength steel for prevalent auxiliary inflexibility. Our framework highlights extended outlines extending from 1219 mm to 1350 mm, giving extended stage ranges that oblige numerous laborers at the same time. The hot-dip galvanized surface treatment conveys extraordinary erosion resistance, amplifying benefit life past 10 a long time in standard development environments.

Designed for huge hardware establishment, bridge upkeep, and scene development, this measured framework coordinating stepping stool rungs specifically into the outline structure. This disposes of the require for outside climbing components whereas maximizing usable workspace. Standard arrangements bolster stack capacities up to 245 kg/m² (50 lbs/ft²), assembly heavy-duty operational necessities for stone work work, mechanical upkeep, and framework projects.

What Makes Our Widened Frame System Different

Expanded Working Platform

The essential advantage lies in the expanded outline width. Not at all like standard platform, our Wide Ladder Frame Scaffolding gives 1219 mm to 1350 mm of horizontal space.

This permits you to position fabric capacity nearby laborer pathways. Your team can get to devices without always slipping. Numerous tradespeople can work on the same level without stage congestion.

Integrated Climbing Solution

Ladder rungs are welded specifically into the vertical posts at 305 mm interims. This plan keeps up the center of gravity inside the frame's footprint.

You kill tipping dangers related with outside stepping stools. The anti-slip knurled rungs meet worldwide climbing security benchmarks. Your specialists pick up quicker vertical get to whereas carrying instruments or materials.

High-Strength Steel Construction

We utilize Q355 low-alloy high-strength steel as our base fabric. This review offers 345 MPa least abdicate quality, altogether higher than standard Q235 steel.

The upgraded fabric properties provide more noteworthy load-bearing capacity. Your platform towers keep up basic astuteness at statures surpassing 30 meters. The framework remains steady indeed when supporting overwhelming stone work beds or mechanical equipment.

Technical Specifications

Ideal Applications for Your Projects

Large Equipment Installation

When you're introducing HVAC frameworks, mechanical apparatus, or engineering components, the broadened stage gets to be basic. You pick up space to position lifting hardware, store components, and permit specialists to work comfortably.

The unbending steel development avoids stage influence amid overwhelming lifts. Your hardware establishment continues securely and efficiently.

Bridge Construction and Maintenance

Bridge ventures request steady, wide working stages that back assessment groups, welding gear, and fabric arranging. Our Wide Ladder Frame Scaffolding framework gives the vital impression for these multi-crew operations.

The secluded plan adjusts to shifting bridge geometries. You can design even ranges and vertical towers to coordinate your particular extend requirements.

Commercial Interior Finishing

In huge atriums, shopping centers, or airplane terminal terminals, you require platform that obliges ceiling installers, painters, and circuit repairmen working at the same time. The extended stage width anticipates workflow bottlenecks.

Your venture timeline abbreviates since different exchanges can work on the same rise without interferometer with each other.

Industrial Facility Maintenance

Power plants, refineries, and fabricating offices require upkeep platform that gives steady get to around complex channeling and hardware. The self-supporting tower plan works where ground-level impediments avoid conventional platform placement.

You accomplish secure get to to lifted work zones without broad ground arrangement or basic modifications.

Material Quality and Surface Protection

Premium Steel Grades

We source Q355 steel certified with Mill Test Certificates (MTC) for every production batch. This documentation verifies tensile strength, yield point, and chemical composition meet specified standards.

Your scaffolding components maintain consistent performance characteristics throughout their service life.

Hot-Dip Galvanizing Process

Our standard surface treatment involves immersion in molten zinc at 450°C. This creates a metallurgically bonded coating typically 70-85 microns thick.

The galvanized layer resists corrosion for 10-15 years in normal construction environments. You reduce maintenance costs and avoid frequent refinishing.

Powder Coating Option

For projects requiring specific color coordination or enhanced aesthetic appearance, we offer powder coating as a premium finish. This electrostatic application creates a uniform, durable surface layer.

The powder-coated finish passes 500-hour salt spray testing. You gain both corrosion protection and visual appeal for high-profile projects.

Assembly Flexibility and Customization

Modular Connection System

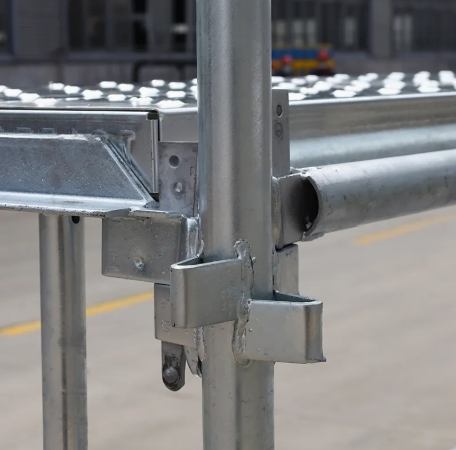

Each frame features precision-manufactured coupling points that ensure rigid vertical alignment. The gravity-lock mechanism engages automatically as you stack frames.

Your crew assembles towers quickly without specialized tools. Disassembly proceeds just as efficiently when you're moving to the next work zone.

Dimensional Customization

We understand that standard dimensions don't fit every project. Our manufacturing capabilities include custom frame production based on your specifications.

Whether you need non-standard widths for confined spaces or extended heights for specific reach requirements, we adapt our production to your needs. Provide your drawings and load requirements, and we'll manufacture frames that integrate seamlessly with your existing equipment.

Accessory Compatibility

Our wide frame system works with steel-framed wooden planks or all-steel jump boards. Both options provide anti-slip, wear-resistant surfaces suitable for heavy-load operations.

You can also integrate guardrails, toe boards, and platform leveling jacks. The modular design accommodates various safety accessories required by your local regulations.

Quality Control and Safety Assurance

Weld Integrity Testing

Every frame undergoes visual weld inspection following production. Critical joints—particularly ladder rung connections—receive ultrasonic testing to verify penetration depth and eliminate internal defects.

You receive scaffolding with welds that maintain structural integrity under repeated loading cycles.

Load Testing Verification

We conduct static load tests on sample units from each production batch. These tests verify a 4:1 safety factor, exceeding standard requirements.

Your scaffolding performs reliably even when loaded to working capacity. The testing documentation provides the verification you need for safety compliance audits.

Dimensional Precision

Our manufacturing tolerances maintain frame verticality and squareness within ±1.5 mm. This precision prevents the "leaning tower" effect when you stack frames to significant heights.

You build stable, properly aligned scaffolding towers that meet engineering requirements for high-rise construction.

Frequently Asked Questions

Q:How high can I safely build a tower with this scaffolding system?

A:You can theoretically reach heights exceeding 30 meters, but you must tie the structure to the building every 6-8 meters vertically and 9 meters horizontally. These tie-ins transfer lateral loads and prevent overturning. Always consult local regulations and engineering requirements for your specific height.

Q:What distinguishes heavy-duty from standard-duty wide frames?

A:Heavy-duty frames use thicker wall tubing (3.5 mm versus 2.0 mm) and larger tube diameters (48.3 mm versus 42 mm). Check the manufacturer's stamp on each frame for the rated load capacity. Heavy-duty units typically support 245 kg/m² while standard units handle 150 kg/m².

Q:Can I combine your wide frames with scaffolding from other manufacturers?

A:We strongly advise against mixing brands unless you verify that tube diameters, wall thicknesses, and coupling pin alignments match exactly. Even small dimensional differences compromise the structural load path and create safety hazards. When expanding existing systems, confirm compatibility specifications first.

Q:Why choose integrated ladders instead of adding external ladder attachments?

A:Integrated ladders keep the climber's weight within the frame's center of gravity. External ladders shift weight distribution, increasing tipping risk. Integrated designs also reduce assembly time and eliminate the need for additional ladder storage during transport.

Q:How do I maintain galvanized frames to maximize their lifespan?

A:Inspect frames regularly for coating damage from impacts or abrasion. Touch up damaged areas with zinc-rich paint to prevent rust propagation. Store frames in covered areas when not in use to avoid prolonged moisture exposure. With proper care, hot-dip galvanized product serves reliably for 10-15 years.

Q:What information do you need for custom dimension orders?

A:Provide detailed drawings showing required frame width, height, and length. Specify your maximum working load and total tower height. Include information about environmental conditions (coastal, industrial, etc.) that might affect material selection. Our engineering team reviews your requirements and recommends optimal specifications.

Contact Us for Your Next Project

Contact us at global@xjy8.com to discuss your project requirements for Wide Ladder Frame Scaffolding and receive a detailed quotation.
