Adjustable Steel Prop
Application Scenarios: Suitable for residential, industrial plant, and bridge projects; available in light/heavy-duty specs, adapting to ordinary floor heights and large-span, high-load scenarios.
Material and Craftsmanship: Made of Q235 steel with high strength and good toughness; multiple surface treatments like galvanizing and painting for corrosion resistance and long service life.
Adjustable Steel Prop – Heavy-Duty Vertical Support for Modern Construction

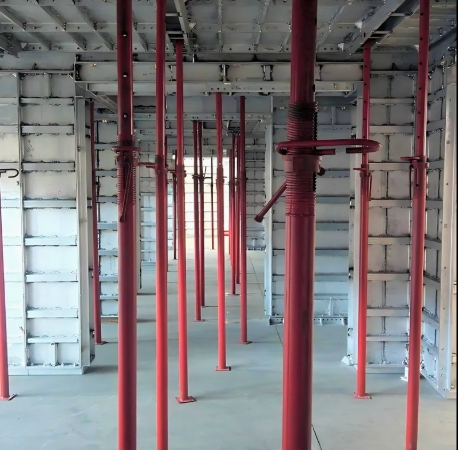

When you're managing formwork systems during concrete pouring, you need reliable vertical support that won't compromise structural integrity. Hebei Xinjiuyi Construction Technology Co., Ltd. manufactures professional Adjustable Steel Prop solutions engineered with Q235 high-strength steel. Our props feature telescopic designs with inner tube sizes ranging from 40 mm to 48 mm and outer tubes from 48 mm to 60 mm, with wall thicknesses between 1.6 mm and 4.0 mm. Standard length options span from 1.7 m to 5 m, accommodating both residential ceiling heights and large-span industrial projects. Surface treatments include hot-dip galvanizing, pre-galvanizing, painting, and powder coating—each offering distinct corrosion protection levels. This product delivers precise height adjustment through robust threaded mechanisms, ensuring formwork stability and dimensional accuracy throughout your concrete curing process
.
What Makes Our Steel Shoring Props Different
Traditional timber supports create waste and lack consistency. Our telescopic props solve these challenges with standardized manufacturing.
Each prop consists of two interlocking steel tubes. The threaded adjustment mechanism allows millimeter-level precision. You can fine-tune height even after initial installation, compensating for substrate irregularities.
The modular snap-type connection eliminates welding requirements on site. Your crew can deploy supports rapidly, reducing labor hours significantly. After project completion, simply collapse and transport to the next job site.
This reusability transforms your equipment investment. While timber supports degrade after single use, our Adjustable Steel Prop units withstand multiple project cycles, delivering superior long-term economics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Heavy Duty / Light Duty |
| Inner Tube Size | 40 mm / 48 mm |
| Outer Tube Size | 48 mm / 56 mm / 60 mm |
| Wall Thickness | 1.6 mm – 4.0 mm |
| Standard Length | 1.7 m – 3 m / 2.1 m – 3.8 m / 2.2 m – 4 m / 2.7 m – 5 m |
| Base Material | Q235 Carbon Steel |
| Surface Treatment | Hot-Dip Galvanized / Pre-Galvanized / Painting / Powder Coating |
| Application Scope | Building Construction / Bridge Projects / Tunnel Formwork |
| Packaging Method | Bundle |
Superior Material Engineering
We manufacture every prop from Q235 carbon steel, selected for its optimal balance of strength and ductility. This material grade ensures your supports resist buckling under axial loads while maintaining structural flexibility.
Surface protection determines service life in challenging environments. Hot-dip galvanizing provides the most robust corrosion resistance, with zinc coating thickness reaching 60–80 microns. This treatment protects props exposed to moisture, concrete alkalinity, and temperature fluctuations.
For standard indoor applications, pre-galvanizing offers adequate protection at moderate cost. Painting suits projects requiring specific color coding for site organization. Powder coating with baking represents our premium option—ideal when you need enhanced aesthetics alongside durability.
The standardized tube geometry ensures consistent load distribution. Welded base plates use full-penetration techniques, inspected to eliminate porosity that could compromise connection integrity.
Versatile Application Scenarios
Your residential projects benefit from light-duty props supporting standard floor slabs. The 1.7 m to 3 m range accommodates typical ceiling heights efficiently.
Industrial construction demands heavy-duty specifications. Factory floors with large spans and high concrete volumes require props with thicker wall sections and greater diameter tubes. Our 2.7 m to 5 m models with 4.0 mm wall thickness handle these elevated load requirements.
Bridge construction presents unique challenges. Soffit formwork for deck pours needs supports that deploy quickly in confined access areas. The Adjustable Steel Prop telescopic design fits through narrow openings before extension to working height.
Tunnel projects involve repetitive formwork cycles. Props must withstand continuous installation and removal without performance degradation. Our Q235 steel composition maintains structural properties through hundreds of usage cycles.
Renovation work often requires supporting existing structures while modifying load paths. You can position props as temporary needling supports, holding masonry walls stable during beam replacement operations.
Customization Meets Your Project Needs
No two construction sites share identical requirements. We provide dimensional customization based on your architectural drawings.
Need non-standard lengths for specialized ceiling heights? Our manufacturing facility produces props matching your exact specifications. Wall thickness adjustments accommodate your calculated load requirements.
Color customization supports your site safety protocols. Assign specific colors to different load ratings, helping crews instantly identify appropriate props for each application zone.
Surface treatment selection aligns with environmental exposure. Coastal projects with salt air demand hot-dip galvanizing. Interior work in climate-controlled spaces allows more economical finishes.
Our engineering team reviews your formwork plans, recommending optimal prop specifications. This consultation ensures you purchase exactly what your project demands—no over-specification waste, no under-capacity risk.
Frequently Asked Questions
Q:What distinguishes light-duty from heavy-duty models?
A:Wall thickness and tube diameter determine duty classification. Heavy-duty props use thicker steel and larger diameters, supporting higher axial loads required for industrial slab casting and large-span applications.
Q:How does extension height affect load capacity?
A:As you extend the prop, load-bearing capacity decreases due to increased slenderness ratio. Always consult manufacturer load charts to ensure the extended configuration remains within safe working limits and buckling resistance parameters.
Q:Can I use these props for horizontal bracing?
A:While designed primarily for vertical loads, props can adapt to horizontal shoring with specialized end fittings. A structural engineer must calculate lateral forces to verify suitability for your specific bracing application.
Q:Why is the locking pin design critical?
A:The pin prevents telescopic sections from collapsing under load. High-quality props use high-tensile steel pins resistant to shearing. Never substitute with lower-grade fasteners, as this compromises the entire safety mechanism.
Q:What maintenance extends service life?
A:Clean threads after each project to remove concrete residue. Lubricate adjustment nuts to prevent seizing. Inspect tubes for dents or bending that affects verticality. Store props horizontally in dry conditions to minimize corrosion between projects.
Q:How many reuse cycles can I expect?
A:With proper maintenance, quality props deliver 200-300 deployment cycles. Track usage for each unit, retiring props showing tube deformation, thread damage, or corrosion breakthrough regardless of cycle count.
Packaging and Logistics

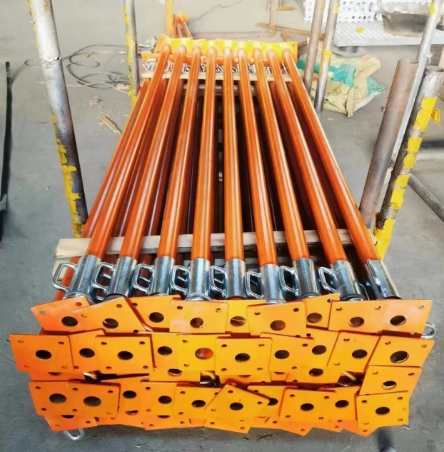

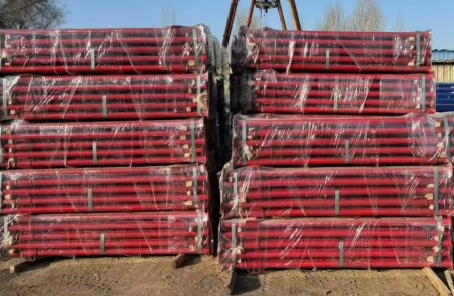

We bundle props for efficient transportation and storage. Steel banding secures units, preventing movement damage during shipping. Bundle sizes optimize container loading, reducing your freight costs.
Protective end caps shield threads from impact damage. You receive props ready for immediate deployment without pre-use reconditioning.
Our warehouse maintains inventory of standard configurations, enabling rapid order fulfillment. Custom specifications ship within agreed production timelines, coordinated with your project schedule requirements.
