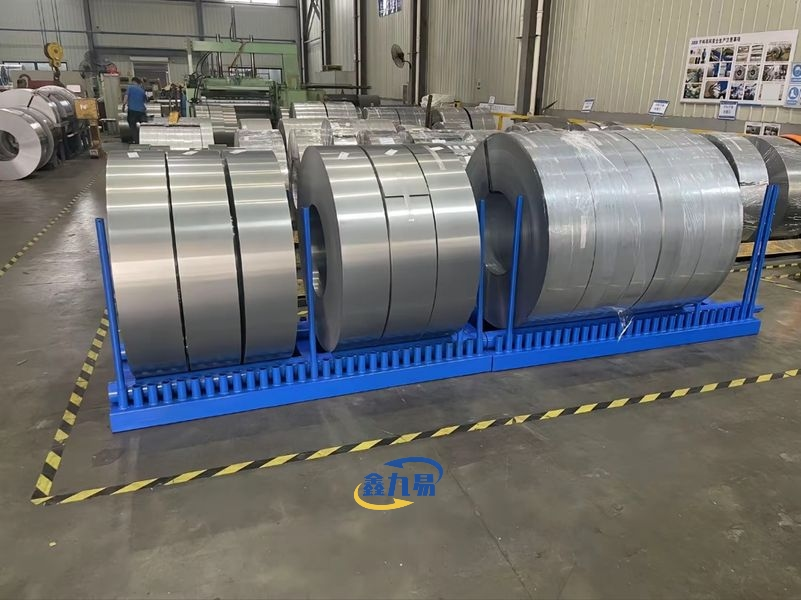

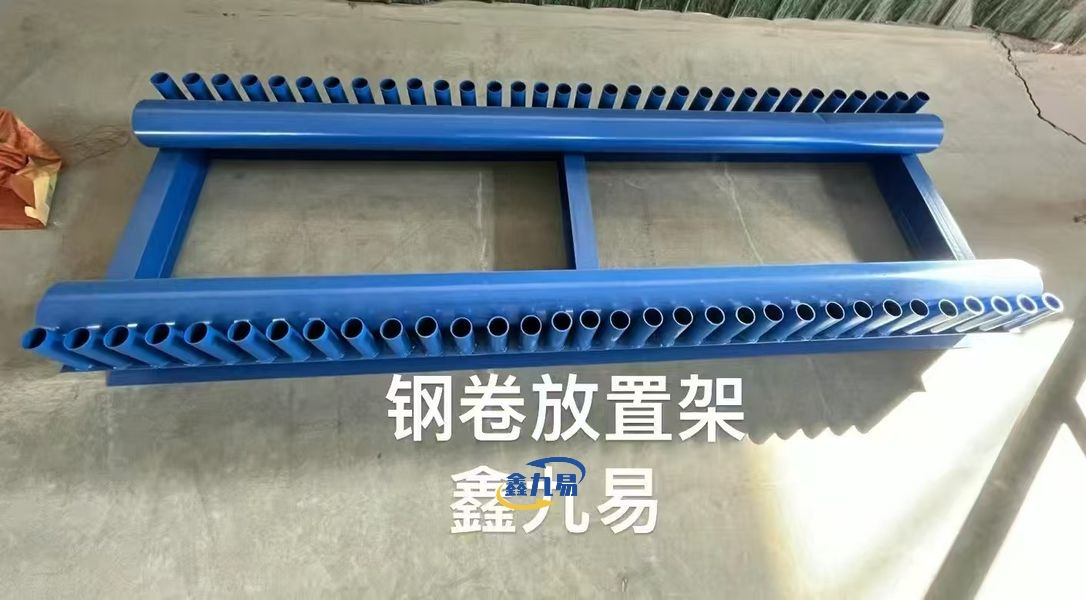

Steel Coil Storage Rack
Application Scenarios: Steel mill finished product warehouses, steel logistics centers, furniture manufacturing enterprises, and construction site rebar processing yards.
Material & Craftsmanship: The main body is a load-bearing master frame welded from thickened H-beam steel and channel steel, offering strong load-bearing capacity suitable for the centralized stacking of large-tonnage steel coils. The overall structure is treated with hot-dip galvanizing or rust removal and anti-rust painting, making it resistant to humid and acidic/alkaline environments in storage yards, ensuring it does not easily rust or deform during long-term use.
Steel Coil Storage Rack - Professional Construction Site Steel Storage Solution
Hebei Xinjiuyi Construction Technology Co., Ltd. manufactures enterprise-grade Steel Coil Storage Rack systems designed specifically for construction sites and warehouse operations. Built from thickened H-beam and channel steel with load capacities supporting large-tonnage centralized stacking, our racks feature a stable welded master frame that effectively prevents rolling, shifting, and tipping of steel coils.
With an elevated off-ground design maintaining approximately 1000 mm clearance, these storage systems protect materials from ground moisture and contamination while improving site organization. Our modular structural design enables rapid assembly and disassembly, supporting repeated reuse across multiple project sites. Standard configurations handle coils up to 190 kg frame weight, with customizable dimensions adapting to various steel coil specifications and construction site storage requirements.
Why Choose Our Steel Storage System for Your Construction Site
Managing steel materials on active construction sites demands reliable, organized storage infrastructure. Traditional ground-level stacking exposes valuable materials to moisture damage and creates workflow bottlenecks.
Our Steel Coil Storage Rack addresses these challenges directly. The thickened steel construction provides exceptional structural stability, while the standardized storage layout ensures safe material access operations for your site team.
The elevated design keeps your steel coils clean and dry, preventing the costly deformation issues that occur when materials contact damp ground. You'll notice immediate improvements in site tidiness and material management efficiency.
Technical Specifications
| Parameter | Standard Specification | Notes |
|---|---|---|
| Length | 2000 mm | Customizable |
| Width | 800 mm | Customizable |
| Height | 1000 mm | Customizable |
| Approximate Weight | 190 kg | Complete assembly |
| Main Frame | 100 × 100 × 3.0 mm Square Tube | Load-bearing structure |
| Auxiliary Material | 50 × 50 × 3.0 mm Square/Rectangular Tube | Support framework |
| Core Round Pipe | Diameter 110 mm | 5 pieces with 57 mm connectors |
| Support Column | Diameter 48 × 2.5 mm Round Pipe | 6 pieces, 1 m height |
| End Treatment | Both ends raised by 0.8 m | Anti-roll design |
| Surface Treatment | Hot-dip galvanizing or rust removal + anti-rust painting | Corrosion resistance |
Key Advantages for Construction and Industrial Applications
Robust Load-Bearing Performance
The welded master frame construction using thickened H-beam and channel steel delivers exceptional strength for concentrated weight distribution. This heavy-duty design handles the demanding requirements of steel mill warehouses, logistics centers, and busy construction sites.
Your materials remain securely positioned even in high-traffic work environments. The structural integrity supports safe stacking without compromising stability during loading and unloading operations.
Corrosion-Resistant Surface Treatment
We apply hot-dip galvanizing or comprehensive rust removal with anti-rust painting to all steel components. This protective treatment withstands humid environments and exposure to acidic or alkaline conditions common in storage yards.
The long-lasting finish prevents rust formation and structural degradation during extended outdoor use. You won't face premature replacement costs or safety concerns from corroded components.
Modular Design for Maximum Flexibility
The modular structural approach supports quick assembly without specialized tools or extensive labor. Your team can install complete systems rapidly when establishing new storage areas or relocating equipment between project sites.
Disassembly proves equally straightforward, making transportation efficient and enabling repeated reuse across multiple locations. This reusability significantly reduces your long-term material handling infrastructure costs.
Anti-Roll Safety Features
The standardized storage design incorporates raised ends (0.8 m elevation) and strategic support column placement to prevent cylindrical materials from rolling or shifting. This engineered safety approach protects both workers and materials.
Safe access during material retrieval operations reduces workplace accident risks. Your site maintains compliance with construction safety standards while improving operational efficiency.
Diverse Application Scenarios
Steel Mill Finished Product Warehouses
Large-scale steel production facilities require organized storage systems that accommodate high-volume output. Our racks provide the structural capacity and space efficiency needed for finished coil inventory management.
The hot-dip galvanized treatment handles the demanding industrial environment. Systematic organization enables quick location and retrieval of specific coil grades and dimensions.
Steel Logistics and Distribution Centers
Distribution operations demand storage solutions that balance density with accessibility. The elevated design maximizes floor space utilization while maintaining clear pathways for material handling equipment.
Your logistics team benefits from improved inventory visibility and faster order fulfillment. The modular system scales easily as your storage requirements grow.
Construction Site Rebar Processing Yards
Active construction sites need reliable temporary storage that withstands weather exposure and frequent relocation. Our Steel Coil Storage Rack delivers the durability and portability essential for project-based operations.
Ground clearance keeps materials clean and ready for processing. The standardized design integrates seamlessly with your existing site layout and workflow.
Furniture Manufacturing Enterprises
Metal furniture production requires organized raw material storage with easy access for fabrication processes. The customizable dimensions accommodate various coil sizes used in manufacturing operations.
Protecting material surfaces from contamination and moisture maintains quality standards. Your production team spends less time on material preparation and more time on value-added manufacturing activities.
Quality Manufacturing and Customization Services
Hebei Xinjiuyi Construction Technology Co., Ltd. brings advanced manufacturing capabilities to every steel storage system we produce. Our Cangzhou facility employs precision welding techniques and standardized production processes that ensure consistent quality.
We understand that different sites have unique dimensional requirements. Our customization services adapt rack specifications to your specific coil sizes, available space, and operational workflows.
The engineering team works from your requirements to deliver storage solutions that integrate perfectly with existing material handling equipment. From design consultation through production and delivery, we maintain strict quality control at every stage.
Our mature supply chain management ensures reliable material sourcing and predictable delivery schedules. You receive storage systems built to perform reliably throughout demanding construction and industrial applications.
Frequently Asked Questions
Q: What load capacity can these racks handle?
A: Our standard configuration supports centralized stacking of large-tonnage steel coils. The thickened H-beam and channel steel construction provides substantial load-bearing capacity. Contact us with your specific weight requirements for customized engineering recommendations.
Q: Can the dimensions be modified for different coil sizes?
A: Yes, length, width, and height specifications are fully customizable. We adapt the design to accommodate your specific steel coil dimensions and storage space constraints while maintaining structural integrity.
Q: How does the elevated design prevent moisture damage?
A: The 1000 mm height clearance eliminates direct ground contact. This air gap prevents moisture absorption that causes rust formation and material deformation, particularly important in outdoor storage environments.
Q: Is assembly complicated for construction site teams?
A: The modular design enables straightforward assembly and disassembly without specialized equipment. Most teams complete installation quickly, making it practical for temporary construction site deployments.
Q: What maintenance does the rack system require?
A: Regular visual inspections checking for impact damage and ensuring bolted connections remain secure comprise the primary maintenance. The galvanized or painted surfaces resist corrosion without frequent repainting.
Q: Can these racks be reused at multiple project locations?
A: Absolutely. The robust construction and modular design specifically support repeated assembly, disassembly, and relocation. This reusability makes the system cost-effective for contractors managing multiple projects.
Q: What surface treatment options are available?
A: We offer hot-dip galvanizing for maximum corrosion resistance or rust removal with anti-rust painting as a cost-effective alternative. Both treatments provide long-lasting protection in storage yard environments.
Contact Us for Your Steel Storage Solution
Our team is ready to discuss your specific requirements for Steel Coil Storage Rack. Reach out today at global@xjy8.com to get started.
