Tower Crane Access Gangway
Application Scenarios: Access passages between tower crane standard sections, connections from the building structure to the tower crane, and access channels for tower crane operation platforms.
Material & Craftsmanship: The main frame is constructed from high-strength galvanized rectangular tubes and angle steel, ensuring excellent load-bearing capacity and impact resistance. The walkway is equipped with non-slip steel grating or patterned steel plates, and the guardrails are securely welded with smooth finishes to guarantee safe and reliable passage.
Tower Crane Access Gangway – Safe High-Altitude Access Solution for Construction Sites
Hebei Xinjiuyi Construction Technology Co., Ltd. specializes in fabricating high-performance Tower Crane Access Gangway systems that interface ground structures to tower crane cabs securely and productively. Our corridors highlight a thickened steel outline development with defensive railings ≥1.2 m in stature, anti-slip treads, and anti-sway fortification planned particularly for high-altitude wind loads.

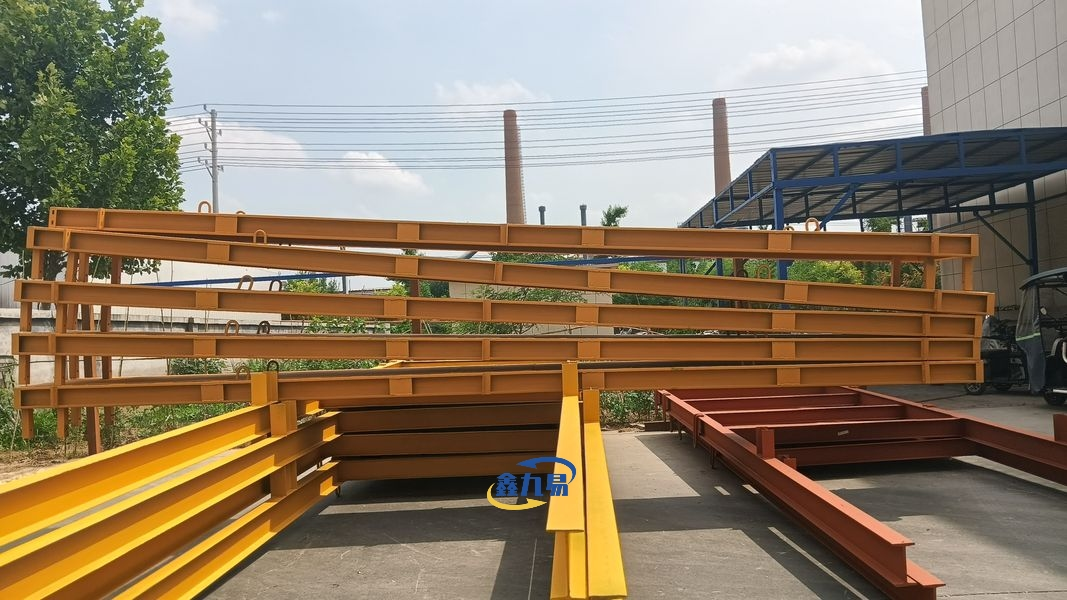

Each unit is built with 160# C-channel steel fundamental bars and galvanized rectangular tubes, guaranteeing amazing load-bearing capacity and affect resistance. The surface treatment combines yellow and dark caution paint for greatest perceivability whereas giving rust and erosion resistance.
With our progressed fabricating offices in Cangzhou and develop supply chain framework, we provide solid get to arrangements that meet advanced development security benchmarks. Our item items serve as the basic association channel between building structures and tower crane operation stages, guaranteeing your administrators can climb securely each single day.
Why Choose Our Tower Crane Access Solutions
Robust Structural Design
Your laborers merit the most grounded assurance accessible. Our corridors utilize high-strength galvanized materials as the establishment, with discretionary powder-coated wraps up for premium ventures requiring upgraded durability.
The fundamental outline coordinating 50 mm × 50 mm auxiliary pillars with 2.0 mm thickness, combined with 30 mm × 30 mm guardrails at 1.2 mm thickness. This built combination conveys remarkable solidness beneath energetic stacking conditions.
Every welded association experiences strict quality review to guarantee smooth wraps up and secure connection focuses. The chequered plate flooring at 1.5 mm thickness gives prevalent hold, viably avoiding slips amid damp or dusty conditions.
Modular Assembly for Maximum Flexibility
We get it that development plans request effectiveness. That's why our Tower Crane Access Gangway receives a completely amassed plan that disentangles establishment and dismantling forms significantly.
You can effectively move units between diverse tower cranes as your extend advances. High-strength jolt associations dispense with on-site welding necessities, decreasing establishment time by up to 60% compared to conventional welded gangways.
The secluded structure permits for customized length configurations—whether you require 4000 mm, 5000 mm, 6000 mm, or site-specific measurements. Our accuracy fabricating guarantees idealize fitment with major crane brands counting Potain, Liebherr, and Zoomlion.
Comprehensive Safety Features
Safety isn't optional—it's crucial. Our get to paths join numerous defensive frameworks working together to make a secure entry environment.
Dual-side defensive railings with middle handrails give nonstop bolster all through the climbing way. Anti-rollover and anti-fall auxiliary components meet exacting high-altitude operation standards.
Bottom support instruments neutralize wind-induced influence, keeping up soundness indeed amid antagonistic climate conditions. Standard security signage and high-visibility caution colors guarantee administrators stay caution to potential hazards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Length | 4000 mm / 5000 mm / 6000 mm (Customizable) |
| Width | 800 mm |
| Guardrail Height | 1200 mm |
| Main Beam | 160# C-channel Steel |
| Secondary Beam Size | 50 mm × 50 mm |
| Secondary Beam Thickness | 2.0 mm |
| Guardrail Dimensions | 30 mm × 30 mm |
| Guardrail Thickness | 1.2 mm |
| Chequered Plate Thickness | 1.5 mm |
| Surface Treatment | Yellow & Black Warning Paint (Galvanized Base) |
| Additional Features | Welded Wire Mesh, Anti-slip Treads, Safety Signage |
Application Scenarios
High-Rise Building Construction

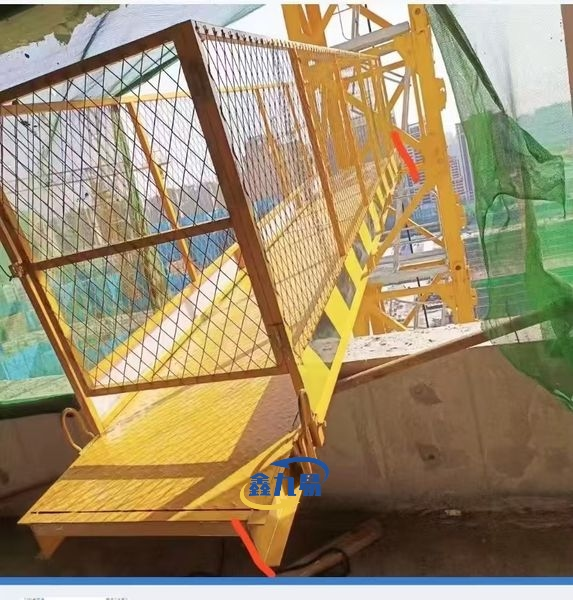

When your tower crane is anchored to the building core, our gangway provides the secure link between floor slabs and crane mast sections. It bridges the gap safely, allowing operators to transition from the building structure to the crane cab without exposure to fall hazards.
The standardized width of 800 mm accommodates operators carrying tools and safety equipment comfortably. Anti-slip steel grating ensures confident footing even during early morning condensation or light rain.
Bridge and Infrastructure Projects
Complex bridge pylon construction demands specialized access solutions. Our customizable gangway lengths adapt to the unique geometry of cable-stayed bridges, suspension bridges, and industrial structures.
Whether connecting temporary elevator platforms to exterior-mounted cranes or navigating curved cooling tower surfaces, the flexible design accommodates challenging installation environments. Custom adapter plates ensure compatibility with various structural attachment points.
Multi-Crane Construction Sites
Large-scale projects utilizing multiple tower cranes benefit from our rapid turnover capability. A single Tower Crane Access Gangway can be relocated efficiently as cranes are repositioned or removed during construction phases.
The lightweight modular design reduces lifting equipment requirements during installation, while the robust construction withstands the rigors of repeated assembly cycles throughout the project lifecycle.
Material Quality and Manufacturing Excellence
Premium Steel Components
We source Q235B and Q355B grade steel for critical structural elements, ensuring consistent mechanical properties across all production batches. The rectangular tube framework provides torsional rigidity superior to traditional angle iron construction.
Galvanization serves as our standard base treatment, delivering long-term corrosion resistance without ongoing maintenance costs. For coastal or chemical plant environments, we offer galvanized with additional paint coating as a cost-effective upgrade.
Powder-coated finishes represent our premium option for projects requiring the highest aesthetic and durability standards. This process creates a harder, more uniform surface compared to conventional liquid painting methods.
Precision Fabrication Process
Our Cangzhou facility employs CNC cutting and automated welding stations to maintain dimensional accuracy within ±2 mm tolerances. This precision ensures that bolt holes align perfectly during field assembly, eliminating frustrating fitment issues.
Each welded joint receives visual inspection following AWS D1.1 structural welding standards. Critical load-bearing connections undergo additional scrutiny to verify full penetration and absence of defects.
Before leaving our factory, every gangway unit undergoes load testing to confirm deflection remains within acceptable engineering limits. You receive products that perform reliably from day one through years of service.
Installation and Service Support
Quick-Connect Engineering
Your site crew will appreciate the intuitive assembly process. Color-coded connection points and sequential numbering simplify the installation sequence, reducing the learning curve for new workers.
All necessary hardware comes pre-packaged with each unit, including high-strength grade 8.8 bolts, washers, and locking mechanisms. Detailed installation drawings show exact torque specifications and safety checkpoints.
Typical installation time ranges from 2-4 hours depending on site conditions and access equipment availability. No specialized tools beyond standard wrenches and measuring instruments are required.
Comprehensive Technical Support
Xinjiuyi provides installation guidance documentation with every shipment. Our technical team remains available via email at global@xjy8.com to answer questions during your installation process.
For large-scale projects or complex configurations, we offer on-site installation supervision services. Our experienced engineers ensure proper assembly procedures and conduct final safety inspections before handover.
We maintain detailed records of your specific configurations, making it easy to order additional units or replacement components as your project expands. This documentation support streamlines procurement for multi-phase developments.
Frequently Asked Questions
Q:What weight capacity should I expect?
A:Our standard product is designed for personnel access, supporting distributed loads appropriate for operators carrying typical tools and equipment. The robust 160# C-channel main beam provides substantial load capacity while maintaining a manageable weight for installation.
For applications requiring material transport capabilities, we offer reinforced versions with enhanced structural members. Contact our engineering team to discuss your specific load requirements.
Q:How do you ensure stability in high winds?
A:Bottom anti-sway reinforcement mechanisms are integrated into every design. These components transfer lateral wind loads into the supporting structure, preventing oscillation that could affect operator confidence and safety.
The relatively low profile and solid construction minimize wind surface area compared to cable-based or mesh alternatives. In extreme wind zones, additional guy wire attachment points can be incorporated during the design phase.
Q:Can the gangway be customized for our specific crane model?
A:Absolutely. We manufacture custom adapter plates and connection brackets for all major tower crane brands. Provide us with your crane model specifications and mounting point dimensions, and we'll engineer the perfect interface.
Our non-standard customization service extends to length, width, and even curved gangway sections for unique architectural requirements. The modular design philosophy allows us to adapt quickly to your project needs.
Q:What maintenance is required?
A:Quarterly visual inspections represent the primary maintenance activity. Check bolt torque levels, examine anti-slip surfaces for wear, and inspect welds for any signs of stress cracks.
The galvanized surface requires minimal upkeep in normal environments. For harsh conditions, annual touch-up painting of any damaged coating areas extends service life significantly. Replacement of worn chequered plates is straightforward using standard bolt connections.
Q:How long does manufacturing and delivery take?
A:Standard configurations ship within 15-20 working days from order confirmation. Custom designs require an additional 5-7 days for engineering approval and fabrication setup.
Our efficient production processes and mature supply chain ensure consistent delivery schedules even for large quantity orders. We coordinate logistics to align with your construction timeline and site readiness.
Q:Is the product suitable for international shipping?
A:Yes, we regularly export gangway systems worldwide. Units are packaged in compact bundles that optimize container space while protecting surfaces during transit.
All products include English documentation and comply with international construction safety standards. Our export team handles customs documentation and works with your preferred freight forwarder to ensure smooth delivery.
