ZLP800 Suspended Work Platform: A Complete Guide for High-Rise Projects

If you manage high-rise facade projects, you already know that equipment choices directly affect safety, schedule, and cost. The ZLP800 suspended work platform is a heavy-duty aerial access solution built for demanding exterior wall work—curtain wall installation, bridge maintenance, chimney painting, and large-scale facade construction. With a rated load of 800 kg, dual 1.8 kW motors, and a platform length of up to 7.5 meters, it addresses the core limitations of traditional scaffolding while meeting international safety standards. This guide covers everything procurement professionals need to know.

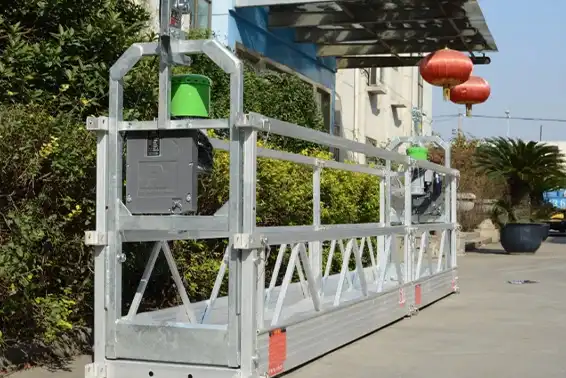

ZLP800 Suspended Working Platform

Understanding the ZLP800 Suspended Work Platform

Core Technical Specifications

The LTD80 hoist system on the platform has two 1.8 kW motors that make it able to lift things 8–10 m/min. It's 7,500 mm long, 690 mm wide, and 1,180 mm high. The support weighs 1,000 kg, and the suspension system weighs 250 kg. A steel platform weighs 600 kg, while an aluminum platform weighs 440 kg. There are two types of safety locks: LSA30 and LSA20. For international sales, these models meet the standards set by GB/T 19155-2017 and EN 1808.

How It Works?

High-tensile steel wire ropes that are 9.1 mm thick hold up the platform. These ropes are better than normal 8.3 mm ropes because they have to hold 800 kg. Workers can move the machine up and down with the help of an electric panel on the base that doesn't have any steps. The electromagnetic braking system starts working on its own when the power goes out. Each safety lock has a centrifugal speed limiter that stops the platform in milliseconds if it falls faster than the safe level.

Typical Applications

There are a lot of high-up places where this hanging work cradle works well. Along the 7.5-meter platform, several workers can work on heavy glass or stone panels at the same time. This makes it ideal for big curtain wall jobs. Places where things are deployed often have bridge pylons, dam faces, wind turbine towers, and factory chimneys. This motorized access platform can be used instead of scaffolding when it's not possible to stick to a rough surface or when it would take weeks to put together.

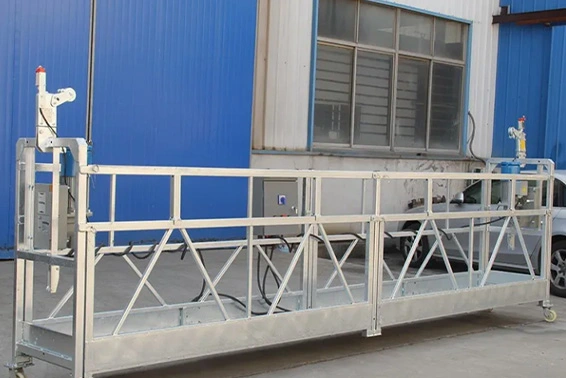

ZLP800 Suspended Working Platform

Operating and Maintaining the ZLP800 Suspended Work Platform

Pre-Operation Checklist

Before each shift, operators must check that the safety lock works by pulling the test cord and that the total weight of the counterweights matches what is written on the specification sheet. They must also make sure that the wire rope is in good shape with no kinks, broken strands, or rust. The electricity control box should be fine if there are no error codes. Anchors in the ground and tie-back points on the building need to be seen. It has been found that most accidents involving hanging platforms can be traced back to not checking before the shift. This step must always be taken.

Safe Operating Procedures

The work has to stop when the wind speed hits 10.8 m/s (Beaufort Scale Level 6). Not the platform itself, but to a different lifeline, safety belts must be put on. The 800 kg limit covers both people and things; going over that limit, even for a short time, hurts the inside of the hoist. The stepless control lets you put small things exactly where you want them on the ZLP800 suspended work platform. People often fall off of hanging platforms because they want to reach something and lean over the guardrails. This makes it less tempting to do that.

Maintenance Schedule

Based on how often they are used and the rules in your area, safety locks need to be re-calibrated by a skilled workshop every 6 to 12 months. You should get a new wire rope if you can see that it is bent. It should also be replaced after the number of times the maker says it should be fixed. Grease the hoist gears and check the electrical terminals for rust every month. You don't have to send the whole unit back to the factory to change parts like hoists, safety locks, and wire rope anchors. This means that hired machines and rental fleets can keep working with little downtime.

Comparing the ZLP800 with Other Suspended Platforms

ZLP800 vs. ZLP630

The ZLP630 has 1.5 kW motors and can move 630 kg. This means it can be used for painting and light covering. That 170 kg load gap, on the other hand, makes it hard to make stone or glass curtain wall panels for your project. The two 1.8 kW motors in the ZLP800 also work better when they are continuously loaded to their fullest capacity. This stops the motors from getting too hot in tall buildings where they have to move up and down for long periods of time.

ZLP800 vs. Traditional Scaffolding

It takes two to four weeks and a lot of space on the ground to build a 100-meter scaffolding. A hanging work platform can be put up from the roof in one to two days. It doesn't take up any room on the ground and is easy to move along the wall. When workers work on curtain walls, they get paid based on how fast a job is finished. This time difference makes it harder for them to make as much money. When you own tools for a long time, you don't have to pay rental fees that add up over time and cut into the profits of many projects.

ZLP800 vs. Gondola Lifts and Bosun Chairs

It's possible to clean windows with gondola lifts on permanent building tracks, but they aren't strong enough to move building supplies. You should not use a bosun chair for any job that needs to move things around because it's only good for one person. There is a good middle ground with the ZLP800. It can hold a construction crew and their tools, can be used for short-term projects that don't need permanent changes to the building, and has all the safety certifications that project owners and insurers need.

Guide to Procuring the ZLP800 Suspended Work Platform

Requesting Quotes and Evaluating Suppliers

Before you buy from a ZLP800 suspended work platform supplier, make sure they have a factory inspection certificate, a safety lock calibration report, and test records that show the platform can hold a static load of 1,000 kg (1.25× rated) and a dynamic load of 880 kg (1.1× rated). Ask for information on how the wire ropes were tested for materials and how wide the galvanization is (at least 65 εm). If a supplier can't give you these papers, they might not follow the rules, which is especially true for projects in the US and Europe.

Bulk Purchase, OEM, and Rental Fleet Options

If a rental company wants to add more cars to their fleet, OEM name lets them get units with their own brand that are still made by a reputable company. When you buy a lot of something, you often get standard extra parts packages and priority production schedule. This lets you plan for upkeep costs. Local dealers offer short-term rentals that allow contractors to use the tools they need for one or two projects before deciding to buy them.

Logistics, Warranty, and After-Sales Support

Before steel platforms can be used for ocean freight, they need to be coated so that they don't rust. The better choice for international shipping is an aluminum platform because it can handle sea air much better. Most warranties cover issues with the way the hoist and other solid parts were built. Make sure that your supplier either has replacement LTD80 hoist parts and LSA30/LSA20 safety locks in stock or can ship them within the lead time that was agreed upon. The parts can be sent as soon as possible. This determines how quickly the machine can start making money again.

Why Choose the ZLP800 for Your High-Rise Projects?

The ZLP800 is used on tough projects because it has a modular design that makes it easier to set up and a number of different material options that work well in a variety of conditions. On hard internal building sites, steel versions are used. On the other hand, aluminum versions are easy to move between projects at the coast and those in chemical environments, where corrosion happens more quickly. The platform can be used by project managers in the Middle East, North America, and Europe because it meets GB/T 19155-2017 standards and can handle EN 1808 file types.

Folks who own their own gear instead of renting it say they can do better in deals because they know the gear will stay the same price. Rental companies can better keep track of technician training, extra parts, and inspection dates when they stick to one tried-and-true platform type. They meet the safety standards for suspended scaffolding systems set by US OSHA 29 CFR 1926 Subpart R and similar international standards. The two safety locks and separate lifeline attachment points are also safety features.

Conclusion

In high-rise construction, the ZLP800 suspended work platform is very useful because it can handle heavy loads, has a large platform area, and has been tested for safety. It can be used right away. It's made of steel or aluminum and can hold up to 800 kg. It has two 1.8 kW motors. Because of these qualities, it can be used to put up curtain walls, fix up bridges, and work in factories. People in charge of buying things will save money and be better able to bid on projects if they buy instead of rent. Xinjiuyi backs up every unit they sell with factory test records, calibration certificates, and helpful customer service after the sale.

FAQ

What is the maximum load capacity of the ZLP800?

It can hold 800 kg. All the people, tools, and things that are on the platform at any given time add up to this weight. Before it leaves the plant, every unit has to pass 1.25× static (1,000 kg) and 1.1× dynamic (880 kg) load tests.

How often do the safety locks need servicing?

The safety locks should be checked every day, before each shift. Some places require it to be re-calibrated every 6 to 12 months, depending on the rules in that area and how often it is used.

Can the ZLP800 be customized for specific project needs?

Yes, the platform can be made any length between 2 meters and 7.5 meters. The color and finish of the surface are up to you. If a rental company wants to make its own brand, it can use OEM labeling.

What certifications does this platform carry?

GB/T 19155-2017 says that the platform must meet certain requirements. It also works with CE certification paperwork (EN 1808) for sales in other countries. You can get a factory test report, a record of the materials that were checked, and a safety lock calibration certificate if you ask.

What wind speed is the operational limit?

Work has to stop if the wind speed hits or goes over 10.8 m/s, which is Level 6 on the Beaufort Scale. The platform needs to be lowered or securely attached to the ground.
