Construction Ladder Cage
Application Scenarios: Deep excavation engineering, high pier bridge construction, building floor construction, and tunnel shafts.
Material & Craftsmanship: The main body is constructed from thickened galvanized rectangular tubes and angle steel with a welded frame, featuring modular assembly for a stable structure that resists wind loads. The unit is formed by full welding with joints ground smooth, and nodes are reinforced with bolts to eliminate hazards of loosening or deformation.
Construction Ladder Cage – Enterprise-Grade Vertical Safety Access System

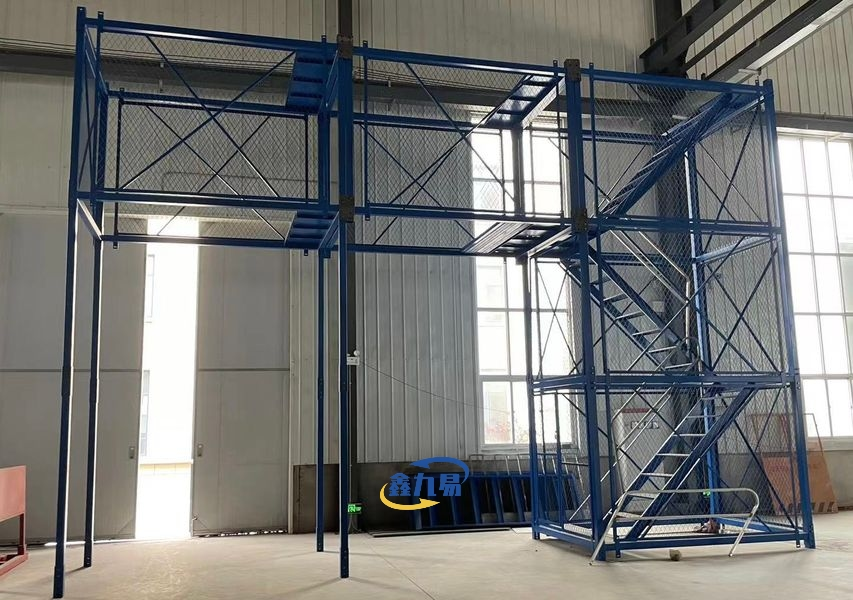

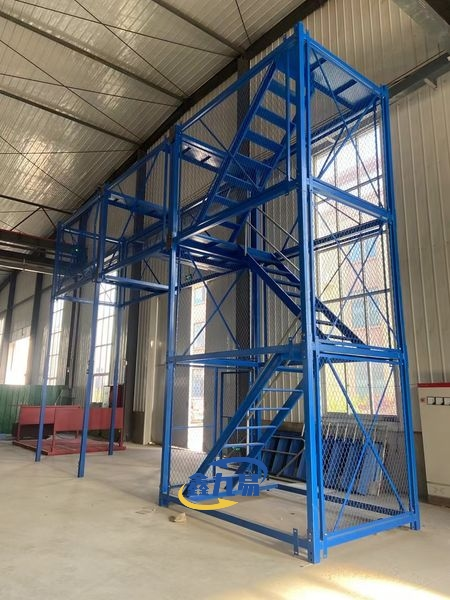

Hebei Xinjiuyi Construction Technology Co., Ltd. manufactures national standard modular Construction Ladder Cage systems engineered for maximum on-site safety compliance. Our ladder cages feature welded high-strength steel frames with column dimensions of 80 mm × 80 mm and wall thickness of 3.0 mm, delivering exceptional wind and seismic resistance. Each standard section measures 3000 mm in length and 2000 mm in width and height, with customizable configurations available.
The fully enclosed protective design integrates internal anti-slip treads with external 75 mm welded wire mesh, creating dual-layer fall protection. Surface treatment options include hot-dip galvanizing or high-temperature powder coating, ensuring long-term corrosion resistance. Our bolt-connected modular assembly allows rapid installation and flexible height adjustment, making it ideal for foundation pit access, bridge pier construction, high formwork operations, and tower crane attachments.
Why Construction Sites Choose Our Ladder Safety Systems
Traditional makeshift ladders expose your workers to serious fall risks and compliance violations. Our engineered vertical access systems completely eliminate these hazards.
You get a permanent, code-compliant solution that replaces temporary climbing methods. The robust rectangular tube frame withstands harsh weather conditions without structural degradation.
Your project benefits from improved safety inspection ratings. The yellow and black warning colors meet civilized construction site standards while enhancing visual safety management.
The modular design means you can reuse components across multiple projects. This significantly reduces your long-term safety equipment costs compared to disposable alternatives.
Technical Specifications
| Parameter | Specification | Material Standard |
|---|---|---|
| Section Length | 3000 mm (customizable) | National Standard Steel |
| Section Width | 2000 mm (customizable) | High-Strength Rectangular Tube |
| Section Height | 2000 mm (customizable) | Welded Frame Construction |
| Column Tube Size | 80 mm × 80 mm | Wall Thickness 3.0 mm |
| Platform Long Tube | 80 mm × 80 mm | Wall Thickness 2.0 mm |
| Platform Short Tube | 80 mm × 80 mm | Wall Thickness 2.0 mm |
| Platform Base | 80 mm × 80 mm | Wall Thickness 3.0 mm |
| Platform Connecting Tube | 90 mm × 90 mm | Wall Thickness 4.0 mm |
| Chequered Plate | 2.0 mm thickness | Anti-Slip Surface |
| Stair Half Tread | 2.0 mm thickness | Reinforced Design |
| Protective Mesh Frame | 30° Angle Iron | Wall Thickness 2.5 mm |
| Wire Mesh Aperture | 75 mm | Welded Construction |
| Mesh Connecting Plate | 5.0 mm thickness | High-Strength Steel |
Superior Material Engineering and Surface Protection
We construct every unit from national standard high-strength steel through precision welding processes. The rectangular tube frame provides exceptional structural integrity that traditional ladder systems cannot match.
Your equipment withstands extreme construction environments. Our welding joints undergo thorough grinding to eliminate sharp edges and potential snag points.
Base surface treatment uses hot-dip galvanizing for standard applications. This coating provides reliable rust prevention and weather resistance for typical construction site conditions.
Premium projects can specify powder coating with high-temperature baking paint. This upgraded finish offers enhanced corrosion protection and maintains appearance in chemically aggressive environments.
The dual protection system combines enclosed framework with internal anti-slip treads. External protective mesh adds a second barrier against falls and falling object strikes.
Flexible Application Across Construction Scenarios
Deep foundation excavation projects require safe vertical access into confined pit spaces. Our cage systems provide enclosed climbing routes that meet safety supervision requirements.

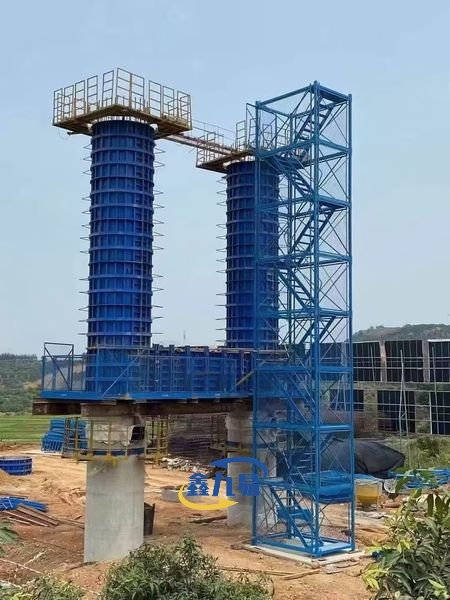

Bridge pier construction teams use these assemblies to reach elevated work platforms. The modular sections stack to match varying pier heights without custom fabrication.
High formwork operations demand reliable access for concrete placement crews. Your workers climb confidently within the protected enclosure regardless of elevation.
Tower crane installations require attachment point access at multiple levels. Our Construction Ladder Cage sections integrate seamlessly with crane structural frameworks.
Tunnel shaft applications benefit from the enclosed design in underground environments. The galvanized finish resists moisture accumulation common in subsurface construction.
Rapid Modular Assembly and Long-Term Reusability
You face tight project schedules that don't allow for complicated installation procedures. Our bolt-connection system enables two workers to assemble a complete section in under 30 minutes.
No specialized welding equipment needed on-site. Standard hand tools complete the entire assembly process from foundation to final height.
Adjust the vertical configuration as your project progresses. Add or remove sections without disassembling the entire structure.
The standardized components maintain compatibility across different project sites. Your equipment investment serves multiple construction phases and locations.
After project completion, disassemble and transport units to your next site. The robust construction withstands repeated assembly cycles without performance degradation.
Proper storage between projects requires minimal space. Stack the flat sections in your equipment yard until the next deployment.
Enhanced Site Management and Compliance Benefits
Safety inspectors immediately recognize compliant vertical access systems. Our ladder cages display clear yellow and black safety markings that meet civilized construction standards.
Your site presentation improves significantly compared to makeshift climbing solutions. This visual professionalism enhances client confidence and regulatory approval processes.
Daily maintenance requirements remain minimal throughout the service life. Simple cleaning removes accumulated construction dust and debris.
The enclosed design prevents unauthorized access to restricted work areas. You control vertical circulation more effectively than with open ladder systems.
Documentation for safety acceptance becomes straightforward. The national standard manufacturing basis simplifies your compliance verification process.
Long-term economic analysis favors permanent safety infrastructure. Calculate total ownership costs including installation, maintenance, and reuse value across multiple projects.
Manufacturing Excellence From Xinjiuyi
Our Cangzhou production facility operates advanced welding and fabrication equipment dedicated to safety product manufacturing. Standardized production processes ensure consistent quality across every batch.
Quality control inspectors verify dimensional accuracy before components leave the workshop. Weld integrity testing confirms structural performance meets design specifications.
Large-scale production capacity supports both standard procurement and customized dimensional requirements. Submit your specific site drawings for tailored Construction Ladder Cage configurations.
Our supply chain management delivers predictable lead times for project planning. Domestic clients typically receive standard orders within 15 working days.
International shipping arrangements include proper packaging to prevent transport damage. We coordinate with freight partners experienced in construction equipment logistics.
Technical support continues after delivery. Our team provides installation guidance and answers operational questions throughout your project lifecycle.
Frequently Asked Questions
Q:What height configurations can you provide?
A:Standard sections are 2000 mm tall. Stack multiple units to reach your required elevation, whether 6 meters for shallow pits or 30+ meters for tower crane access.
Q:How does the bolt connection system ensure stability?
A:Platform connecting tubes use 90 mm × 90 mm profiles with 4.0 mm wall thickness. High-strength bolts create rigid joints that eliminate wobble or separation under load.
Q:Can we specify custom widths for restricted site access?
A:Yes, our customization service adjusts width and length dimensions. Provide your space constraints and we'll engineer a solution that maintains structural integrity.
Q:What's the difference between galvanizing and powder coating?
A:Hot-dip galvanizing provides excellent baseline protection for most environments. Powder coating with baking paint offers superior finish durability for high-visibility projects or corrosive conditions at moderately higher cost.
Q:Do you provide installation training for our crews?
A:We supply detailed assembly instructions with each order. For large projects, our technical team can provide on-site guidance to ensure proper installation procedures.
Q:How do we calculate the number of sections needed?
A:Measure your required vertical distance and divide by 2000 mm per section. Add one extra section for safe landing platform clearance at the top level.
Q:What maintenance extends the service life?
A:Quarterly inspections should check bolt tightness and surface coating condition. Remove debris buildup and touch up any coating damage promptly to prevent corrosion initiation.
Contact Us for Your Vertical Access Solution
Our team provides expert consultation for your specific application requirements for Construction Ladder Cage.
Email us at global@xjy8.com
