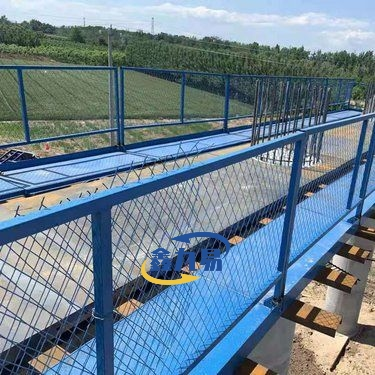

Pier Cap Work Platform
Application Scenarios: Bridge pier tops, urban overpasses, and high pier cap beam construction.
Material & Craftsmanship: The main frame is constructed from I-beams, channel steels, and thickened galvanized rectangular tubes, providing stable load-bearing capacity suitable for high-altitude pier operations. All components are derusted and painted or galvanized for corrosion resistance, adapting to the outdoor wind, rain, and sun exposure of bridge construction environments.
Pier Cap Work Platform - Professional Bridge Construction Safety Solution
When you're managing bridge pier cap construction at height, safety and efficiency are non-negotiable. Hebei Xinjiuyi Construction Technology Co., Ltd. delivers a Pier Cap Work Platform engineered specifically for high-altitude bridge operations. Our platform features a modular steel section welded frame structure with platform widths starting at 800 mm and heights at 1200 mm, utilizing 50 mm × 50 mm square tubes with 1.5 mm thickness for the main frame. The system supports combined loads from construction personnel, rebar formwork, and poured concrete, with fully laid 2.0 mm anti-slip chequered plates and perimeter guardrails. Designed for urban overpasses, high-speed rail viaducts, and cross-sea bridges, our platform eliminates high-altitude fall risks while ensuring compliance with modern bridge engineering safety standards.
Why Bridge Contractors Choose Our Platform
Superior Load-Bearing Performance
Our platform's welded frame combines I-beams, channel steels, and thickened galvanized rectangular tubes to create exceptional structural stability. The 50 mm equal angle steel with 4.0 mm thickness reinforces critical connection points.
You get a work surface that confidently bears the weight of multiple workers, heavy rebar bundles, and formwork systems simultaneously. This robust design transfers loads efficiently to existing pier structures, eliminating the need for extensive ground-based scaffolding.
Adaptable to Complex Bridge Scenarios
Every pier cap project presents unique challenges. That's why we've built flexibility into our core design.
Our platform adjusts to various pier cap geometries and construction requirements. Whether you're working on rectangular, circular, or flared pier heads, the modular components reconfigure to match your specific site conditions. The flip board system—300 mm wide and 2890 mm high—extends your working envelope for formwork installation and concrete pouring access.
Weather-Resistant Construction
Bridge construction doesn't stop for weather. Your equipment shouldn't either.
All components undergo thorough derusting treatment followed by galvanizing or painting. This corrosion-resistant finish withstands constant exposure to rain, wind, and sun throughout extended bridge projects. The galvanized coating protects the steel substrate while maintaining structural integrity across seasons.
Technical Specifications
| Component | Specification | Details |
|---|---|---|
| Platform Width | 800 mm | Customizable |
| Platform Height | 1200 mm | Customizable |
| Platform Weight | Approx. 26 kg | Per unit |
| Flip Board Width | 300 mm | Customizable |
| Flip Board Height | 2890 mm | Customizable |
| Flip Board Weight | Approx. 6 kg | Per unit |
| Main Frame Tube | 50 mm × 50 mm | 1.5 mm thickness |
| Equal Angle Steel | 50 mm | 4.0 mm thickness |
| Chequered Plate | 2.0 mm | Anti-slip surface |
| Guardrail Tube | 40 mm × 40 mm / 30 mm × 30 mm | 1.0 mm / 0.8 mm thickness |
| Expanded Metal Mesh | 60 mm × 100 mm | Aperture size |
| Flip Board Tube | 40 mm × 40 mm | 1.5 mm thickness |
Key Applications in Bridge Construction
High-Speed Rail Viaduct Projects
You need rapid assembly and disassembly when working on tight railway construction schedules. Our Pier Cap Work Platform features a modular design that installs in hours rather than days.
The lightweight components—with platform sections at approximately 26 kg—allow crane positioning without heavy lifting equipment. This speed advantage helps you maintain project timelines on repetitive pier cap operations across long viaduct spans.
Urban Highway Overpass Construction
Working above active traffic lanes demands equipment that minimizes ground disruption. Our pier-mounted platform eliminates the need for ground-supported scaffolding that would obstruct traffic flow below.
The suspension system attaches directly to the pier structure, creating a safe working zone elevated above the congestion. This approach reduces your site footprint while maintaining full access for rebar tying, formwork setup, and concrete pouring operations.
Marine and Cross-Sea Bridge Environments
Coastal bridge projects expose equipment to harsh saltwater conditions. The galvanized treatment on our platforms provides long-term corrosion resistance in marine environments.
You can deploy these platforms over water without requiring costly marine scaffolding or barge-mounted equipment. The anti-corrosion properties ensure reliable performance throughout multi-year bridge construction programs in humid, high-salt atmospheres.
Comprehensive Safety Features
Three-Dimensional Fall Protection
Worker safety drives every design decision. Our platform integrates multiple protective layers.
Standard guardrails constructed from 40 mm × 40 mm square tubes surround the entire working perimeter. Expanded metal mesh with 60 mm × 100 mm apertures fills the gaps, preventing tools or materials from falling to ground level. The three-dimensional protective netting creates a secure work envelope at height.
Anti-Slip Working Surface
The 2.0 mm chequered plate decking provides reliable traction even in wet conditions. This textured surface reduces slip risks during concrete pouring operations when water and cement paste create slippery conditions.
You and your crew can move confidently across the platform while carrying materials or operating equipment. The fully laid decking eliminates gaps or weak points in the work surface.
Stable Structural Design
The welded frame structure distributes loads evenly across connection points. The 50 mm × 50 mm main frame tubes with 1.5 mm wall thickness create a rigid foundation that resists deflection under working loads.
This stability is essential when multiple workers perform simultaneous tasks like rebar positioning and formwork adjustment. The platform remains steady even during dynamic activities, reducing fatigue and improving work quality.
Modular Design Benefits
Quick Installation and Removal
Time is money on construction sites. Our modular assembly approach cuts setup time significantly.
The standardized components connect through simple mechanical fasteners rather than complex welding or threading. Your crew can assemble the platform sections following straightforward procedures, then dismantle them just as quickly when pier cap work completes.
Reusable Across Multiple Bridges
Bridge projects often involve dozens or hundreds of similar pier caps. Our Pier Cap Work Platform design supports repeated use across your entire project portfolio.
After completing work on one pier, simply disassemble the platform and relocate it to the next location. This reusability reduces your per-pier equipment costs while eliminating the waste associated with disposable scaffolding systems. The durable galvanized construction maintains performance through many assembly cycles.
Customization for Site-Specific Needs
Standard dimensions work for many applications, but some piers require tailored solutions. We provide customization services to match your exact requirements.
Whether you need extended platform widths for wider pier caps, adjusted heights for specific working elevations, or modified flip board dimensions for complex formwork systems, we manufacture to your specifications. This flexibility ensures optimal fit regardless of your bridge design parameters.
Frequently Asked Questions
Q: How do you secure the platform to different pier shapes?
A: Our platform uses adjustable bracket systems that adapt to rectangular, circular, or flared pier geometries. The modular spanning components adjust to match your specific pier head dimensions, with mechanical fasteners providing secure attachment to the concrete structure.
Q: Can the platform support multiple workers simultaneously?
A: Yes. The steel section welded frame design bears the combined weight of construction personnel, materials, and equipment. The load distribution system safely accommodates typical pier cap work crews performing rebar tying, formwork installation, and concrete preparation concurrently.
Q: How long does platform installation typically take?
A: With an experienced crew, initial assembly takes 2-4 hours depending on platform configuration and pier height. Subsequent relocations to similar piers occur faster as your team becomes familiar with the modular system. This speed advantage significantly improves project scheduling compared to traditional scaffolding.
Q: What maintenance does the platform require during long projects?
A: Periodic visual inspections ensure all connections remain tight and components show no damage. Check the anti-slip decking for debris accumulation and verify guardrail integrity before each use. The galvanized finish requires minimal maintenance but benefits from occasional washing in marine environments to remove salt buildup.
Q: Is the platform suitable for concrete pouring operations?
A: Absolutely. The platform specifically supports concrete pouring activities on pier caps. The robust frame handles the weight of filled concrete buckets or pump hoses, while the anti-slip surface provides safe footing during placement operations. The perimeter protection keeps workers secure during this critical phase.
Why Partner with Xinjiuyi
Manufacturing Excellence
Our Cangzhou facility combines advanced production equipment with skilled fabrication expertise. We maintain strict quality control throughout the manufacturing process, from material selection through final assembly.
You receive platforms built to precise specifications with consistent quality across all units. Our production capacity supports both small custom orders and large-scale bridge projects requiring dozens of platforms.
Comprehensive Project Support
We don't just deliver equipment—we support your success. Our team provides installation guidance, dimension verification assistance, and technical consultation throughout your project lifecycle.
When challenges arise on site, you have direct access to engineers who understand bridge construction requirements. This responsive support helps you maximize platform utilization and maintain safety compliance.
Proven Bridge Construction Experience
Xinjiuyi specializes in construction safety solutions with deep expertise in bridge infrastructure projects. We understand the unique demands of pier cap operations and design our platforms accordingly.
Our products serve contractors, builders, and engineering companies on diverse bridge types—from urban overpasses to major cross-sea structures. This experience informs continuous product improvements that address real-world construction challenges.
