Square Column Steel Formwork
Application Scenarios: Suitable for the construction of vertical square columns, horizontal beam - slab structures, and the production of prefabricated square column components.

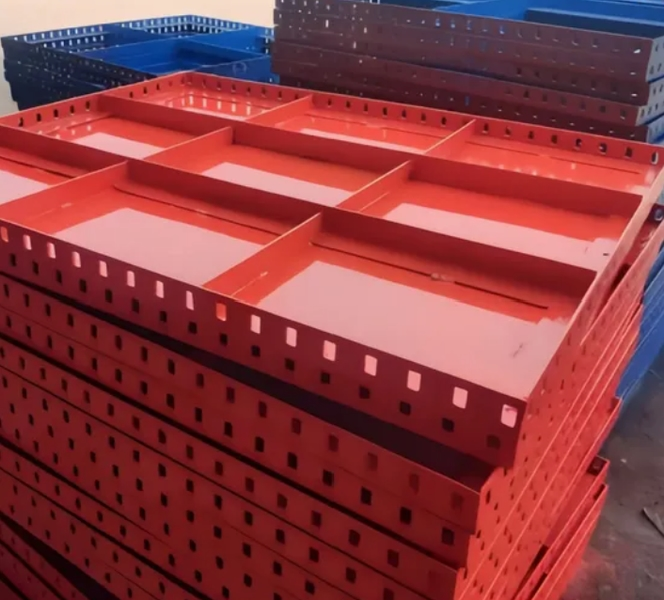

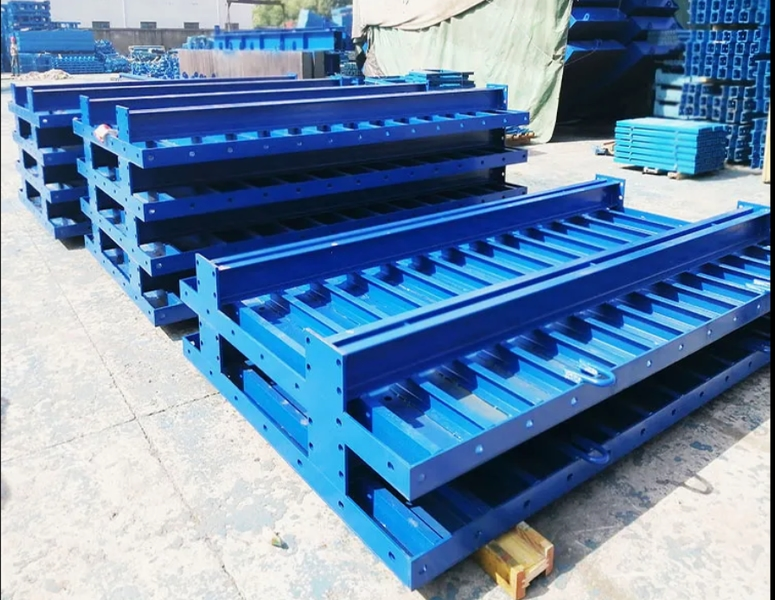

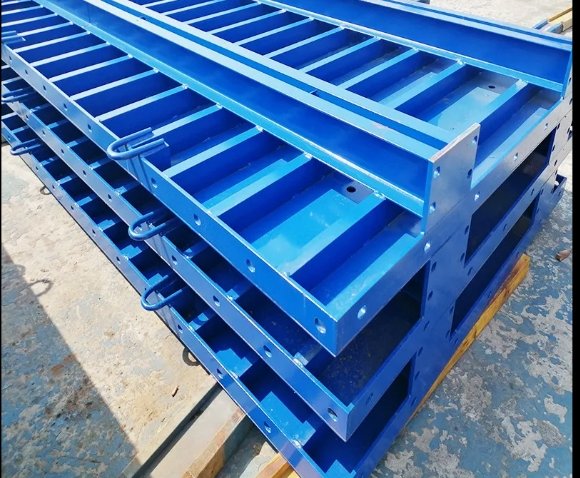

Material and Craftsmanship: The main body is welded from cold - rolled steel plates, channel steels, and angle steels as panels and stiffening ribs, with high rigidity and resistance to deformation. The integral sheet cutting, bending, and full - welding forming process is adopted, with welds polished smooth and tight joints to prevent grout leakage.
Square Column Steel Formwork – High-Strength Modular Concrete Formwork Solution
Hebei Xinjiuyi Construction Technology Co., Ltd. manufactures enterprise-grade Square Column Steel Formwork designed for demanding construction projects worldwide. Our formwork systems feature high-rigidity cold-rolled steel construction, supporting concrete pouring pressures while maintaining dimensional accuracy within ±1 mm tolerance.
With customizable widths ranging from 300 mm to 1600 mm and heights up to 3000 mm, you get flexible solutions for residential towers, commercial complexes, and infrastructure projects. Each panel delivers 300+ reuse cycles through our painted anti-corrosion surface treatment, significantly reducing your material costs per pour. Fast assembly and stripping capabilities improve site productivity, while our precision welding ensures grout-tight joints that prevent leakage and honeycombing.
Why Choose Our Column Formwork Systems
Flexible Application Across Multiple Construction Types
You can deploy our formwork across diverse building structures. Whether you're constructing vertical square columns in high-rise apartments or forming beam-column joints in shopping centers, the modular design adapts to your project needs.
The system handles wall construction with equal efficiency. You'll appreciate how quickly your crew can adjust section dimensions to match architectural drawings, eliminating delays caused by inflexible formwork.
Superior Material Engineering for Long-Term Value
We weld high-strength Q235 cold-rolled steel plates with channel steel and angle steel reinforcements. This creates exceptional rigidity that resists deformation under concrete hydrostatic pressure.
Your investment lasts longer with our painted surface treatment. The anti-corrosion coating protects against alkaline concrete and harsh job site conditions, enabling multiple construction cycles without structural degradation.
The full-welding manufacturing process produces smooth, polished seams. You get fair-faced concrete finishes that reduce secondary plastering work and associated labor costs.
Comprehensive Service Support
Our technical team provides detailed installation drawings and construction guidance. You receive clear assembly instructions that help your workers achieve proper setup on the first attempt.
Customization extends beyond dimensions. You can specify panel colors to match safety protocols and request packaging methods suited to your logistics requirements.
Dedicated customer service handles your project inquiries throughout the entire process. From initial quotation through delivery and on-site support, we ensure your Square Column Steel Formwork integration proceeds smoothly.
Technical Specifications
| Parameter | Options | Notes |
|---|---|---|
| Width | 300 / 400 / 500 / 600 / 700 / 900 / 1200 / 1400 / 1600 mm | Customizable to project requirements |
| Height | 300 / 1000 / 1200 / 1800 / 2000 / 2500 / 3000 mm | Extended heights available upon request |
| Base Material | Q235 Steel | High-strength cold-rolled plates |
| Surface Treatment | Painted | Anti-corrosion protection |
| Standard Colors | Blue / Red | Custom colors available |
| Thickness | Customizable | Determined by load requirements |
| Application | Concrete Construction Support | Columns, beams, walls, joints |
| Dimensional Tolerance | ±1 mm | Ensures structural alignment |
Key Performance Advantages
Accelerated Construction Efficiency
The modular design enables rapid assembly by standard construction crews. Your workers connect panels using standardized connectors without specialized training.
Stripping time decreases significantly compared to traditional timber systems. You can achieve faster formwork cycles, reducing the critical path duration for vertical structure completion.
Lightweight individual components allow manual handling without heavy lifting equipment for most applications. This mobility improves productivity on congested urban job sites.
Structural Integrity and Precision
Our integral sheet cutting and bending process maintains consistent panel geometry. You avoid the dimensional variations common in field-fabricated formwork.

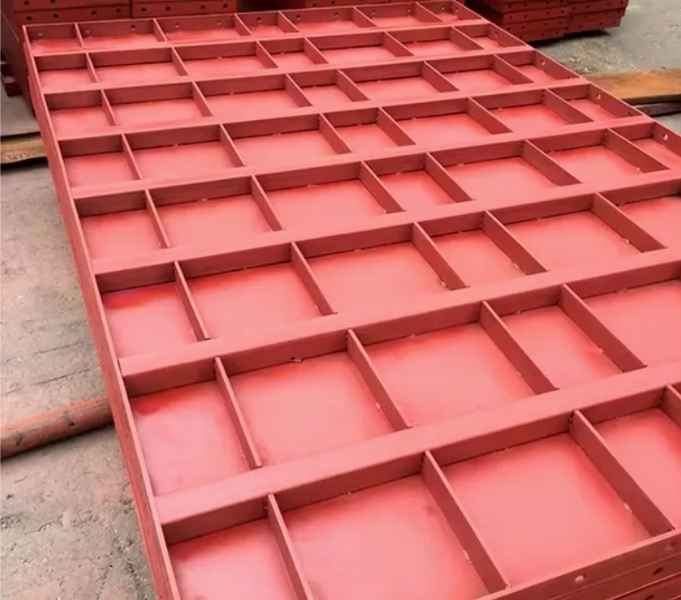

Reinforcing ribs prevent panel deflection during concrete placement. The high rigidity maintains column straightness and surface smoothness, meeting strict architectural finish standards.
Grout-tight joints eliminate paste loss that causes surface imperfections. You deliver columns with minimal remediation work, satisfying quality inspections on the first review.
Economic Life-Cycle Value
Reusability across 300+ pour cycles spreads acquisition costs over numerous projects. Your cost per use drops substantially compared to disposable formwork alternatives.
The painted steel construction withstands job site handling without cracking or splintering. You minimize replacement expenses from transportation and on-site movement damage.
Reduced secondary finishing requirements lower overall project costs. Fair-faced concrete surfaces decrease plastering materials and labor hours.
Quality Control Process
Dimensional Accuracy Verification
Every panel undergoes precision measurement during production. We verify length, width, and squareness using calibrated instruments to maintain the ±1 mm tolerance standard.
Flatness testing ensures surface uniformity. Our quality team uses straightedges to confirm maximum deviation stays within 2 mm across the panel face.
Structural Integrity Inspection
Weld quality receives particular attention through visual and testing protocols. All load-bearing joints must demonstrate complete penetration and proper bead formation.
We inspect reinforcing rib attachment points to verify they'll withstand concrete vibrator contact and lateral pressure forces during pouring operations.
Surface Finish Assessment
Paint coating thickness and adhesion meet specifications through systematic sampling. You receive Square Column Steel Formwork with consistent protective coverage that resists job site abrasion.
Final inspection confirms all connection points, pin holes, and mounting hardware function properly before shipment to your project location.
Customization Capabilities for Your Project
Dimensional Flexibility
Non-standard column sizes require tailored formwork solutions. Our engineering team works from your structural drawings to produce panels matching exact specifications.
You can order mixed panel sets that accommodate varying column dimensions within a single building. This flexibility optimizes your formwork inventory investment.
Surface Treatment Options
While painted finish serves most applications, we offer upgrade alternatives. Galvanized coating provides enhanced corrosion resistance for coastal or chemical plant environments.
Powder coating with baking delivers premium surface durability for formwork dedicated to high-visibility architectural concrete applications.
Packaging and Logistics
Your delivery requirements shape our packaging approach. We bundle panels for container shipping, truck transport, or any method suited to your supply chain.
Protective measures prevent transit damage. Corner guards, wrapping, and securing straps ensure formwork arrives at your site in ready-to-use condition.
Frequently Asked Questions
Q: What column sizes can this formwork system accommodate?
A: Our standard modular panels create square columns from 300 mm × 300 mm up to 1600 mm × 1600 mm. Custom configurations handle larger or non-square rectangular columns through engineered panel combinations.
Q: How many times can I reuse the formwork panels?
A: With proper cleaning and storage, you'll achieve 300 to 500 pour cycles. Service life depends on concrete release agent quality, stripping practices, and transportation handling care.
Q: Do you provide technical guidance for first-time users?
A: Yes, we supply detailed assembly drawings showing connection sequences and bracing requirements. Our technical support team answers installation questions and can arrange on-site training for your crew.
Q: What's the maximum concrete pour height per cycle?
A: Standard configurations safely support 3000 mm pour heights. For taller continuous pours, we recommend staged pouring or reinforced bracing systems based on your concrete placement rate.
Q: Can the formwork create columns with chamfered corners?
A: Standard panels produce square corners. Chamfered or rounded corners require corner filler inserts that we can provide as accessories based on your architectural specifications.
Q: How does your formwork prevent concrete leakage at joints?
A: Precision-machined edges and proper connection hardware create tight seams. Using appropriate release agents and following assembly instructions ensures grout-tight joints throughout the pour.
Q: What lead time should I expect for custom-sized orders?
A: Stock modular sizes ship within 5-7 days. Custom-engineered product typically requires 14-21 days for fabrication and quality verification before dispatch.
