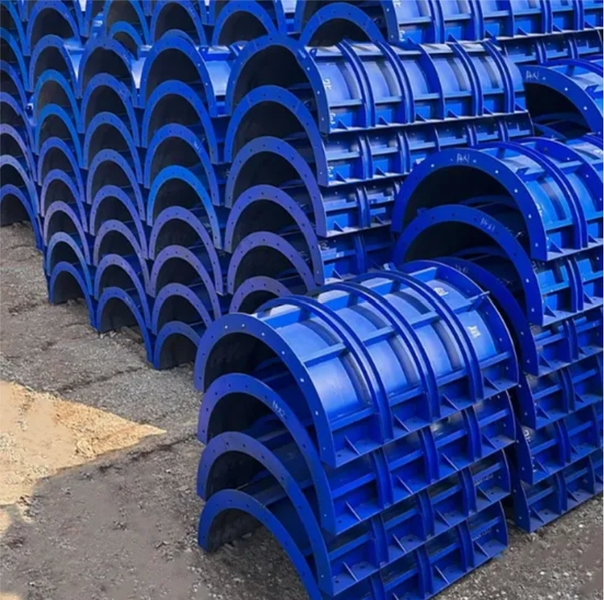

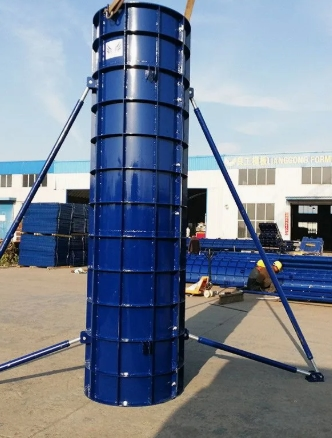

Circular Column Steel Formwork
Application Scenarios: Suitable for the construction of vertical circular columns, special - shaped curved structures, and the production of prefabricated circular column components.
Material and Craftsmanship: The main body is welded from cold - rolled steel plates, channel steels, and angle steels as panels and stiffening ribs, with high rigidity and resistance to deformation. The integral sheet cutting, bending, and full - welding forming process is adopted, with welds polished smooth and tight joints to prevent grout leakage.
Circular Column Steel Formwork – Precision-Engineered for High-Performance Concrete Casting
Hebei Xinjiuyi Construction Technology Co., Ltd. brings you enterprise-grade Circular Column Steel Formwork planned for requesting development ventures. Made from Q235 cold-rolled steel plates with precision-welded solidifying ribs, our formwork conveys extraordinary dimensional precision and surface quality.
With a reusable cycle surpassing 300 times, it altogether diminishes your long-term formwork costs whereas guaranteeing smooth, grout-leak-free concrete wraps up. Our frameworks adaptably adjust to breadths extending from 300 mm to 1600 mm and statures up to 3000 mm, making them perfect for bridge docks, high-rise building center tubes, and special-shaped bended structures.
Each unit experiences full-welding forms and weld cleaning to ensure tight joints and tall levelness. We bolster full customization of distance across, tallness, and surface treatment to coordinate your correct extend specifications.
What Is Circular Column Steel Formwork?
Circular column formwork speaks to a specialized development framework built for casting round and hollow concrete structures with exactness and effectiveness. Not at all like conventional timber or plastic choices, steel formwork frameworks offer predominant inflexibility and dimensional stability.
This heavy-duty secluded arrangement comprises of bended steel boards strengthened with longitudinal and circumferential stiffeners. The plan addresses basic development challenges counting surface honeycombing, auxiliary distortion beneath hydrostatic weight, and moo reuse rates.
You'll accomplish consistent concrete wraps up with tall dimensional precision. The precision-engineered half circle or multi-segment shells guarantee load-bearing judgment and tasteful brilliance in your foundation projects.
Technical Specifications
Our Circular Column Steel Formwork is manufactured to meet the demanding requirements of modern construction projects. Below are the detailed specifications:
| Parameter | Options |
|---|---|
| Diameter | 300 mm / 400 mm / 500 mm / 600 mm / 700 mm / 900 mm / 1200 mm / 1400 mm / 1600 mm (Customizable) |
| Height | 300 mm / 1000 mm / 1200 mm / 1800 mm / 2000 mm / 2500 mm / 3000 mm (Customizable) |
| Base Material | Q235 Cold-Rolled Steel |
| Panel Thickness | 5 mm – 8 mm (Customizable) |
| Surface Treatment | Galvanized / Galvanized + Painted / Powder-Coated (High-End Custom Option) |
| Color | Blue / Red (Customizable) |
| Reuse Cycle | 300+ times |
| Application | Concrete Column Construction, Bridge Piers, Core Tubes |
Core Advantages for Your Projects
Superior Material and Craftsmanship
The main structure uses Q235 cold-rolled steel plates welded with reinforced stiffening ribs. This construction method provides exceptional resistance to deformation under concrete pressure.

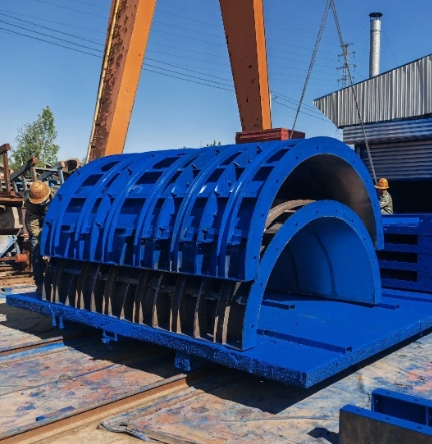

Our integral sheet cutting, bending, and full-welding forming process creates a monolithic structure. All welds are polished smooth to eliminate rough edges and potential leak points.
The high surface flatness ensures tight joints that prevent grout leakage during concrete pouring. After stripping, you'll see smooth, flawless concrete surfaces that often eliminate secondary plastering work.
Flexible Application Range
You can deploy these formwork systems across diverse construction scenarios. They excel in bridge and viaduct engineering where massive piers require high-pour speeds and extreme verticality.
In high-rise commercial buildings, they deliver fair-faced concrete finishes in lobbies and core structures. The precision casting reduces your finishing labor costs significantly.
For marine and industrial infrastructure, the structural rigidity withstands both internal concrete pressure and external environmental forces. This makes them ideal for underwater foundations and corrosive environments.
Full-Process Professional Service
We provide comprehensive support from initial design through final installation guidance. Our technical team analyzes your project requirements to recommend optimal diameter, height, and surface treatment combinations.
Custom engineering solutions address site-specific challenges. We respond quickly to construction issues with expert technical support, ensuring your project stays on schedule.
Production lead times are optimized through our advanced manufacturing facilities in Cangzhou. Our mature supply chain management ensures reliable delivery for both domestic and international projects.
Quality Control Standards
Rigorous inspection processes guarantee the reliability of every Circular Column Steel Formwork unit you receive. Our quality control covers critical performance parameters.
Dimensional Tolerance: Diameter deviation is maintained within ±2 mm to ensure perfect architectural alignment. This precision is essential for multi-story column construction where alignment errors compound vertically.
Weld Integrity: All joints undergo thorough inspection to prevent structural failure under pressure. We conduct systematic checks of weld penetration and consistency across the entire assembly.
Surface Flatness: The inner arc is verified with curvature templates to prevent bulging after concrete stripping. This ensures the concrete column maintains its designed circular profile.
Assembly Testing: Pre-shipment factory assembly confirms that seam clearances remain below 1 mm. This verification prevents grout leakage during actual concrete pours on your site.
Coating Performance: For galvanized or painted units, we measure coating thickness to ensure long-term corrosion resistance. This is particularly important for projects in humid or chemically aggressive environments.
Real-World Applications

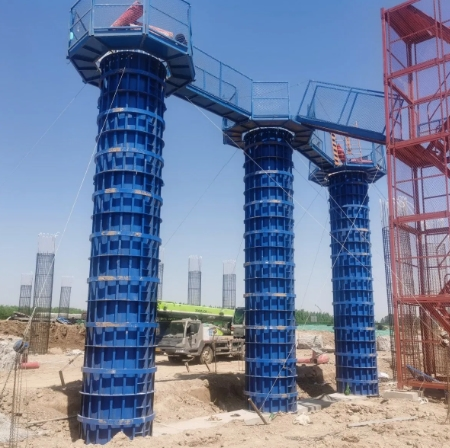

Bridge and Infrastructure Projects: Heavy-duty bridge piers benefit from the formwork's ability to handle high concrete pressures. The system maintains verticality even during rapid continuous pours.
High-Rise Construction: Core tube structures in tall buildings require the precision this formwork delivers. The smooth finish quality meets architectural concrete standards without additional treatment.
Industrial Facilities: Chemical plants, water treatment facilities, and power stations use these systems for casting load-bearing columns. The formwork's durability withstands challenging site conditions.
Prefabrication Yards: Manufacturers of precast concrete components rely on steel formwork for consistent quality across multiple production cycles. The high reuse rate makes economic sense for volume production.
Frequently Asked Questions
Q:How do you prevent grout leakage at the joints?
A:We use precision-machined flanges paired with high-elasticity EPDM sealing strips. Heavy-duty U-clips or high-strength bolts secure the connection to ensure an airtight seal throughout the concrete pour.
Q:What is the expected lifespan of the formwork?
A:With proper cleaning and application of release agents, our item can be reused over 300 times. This significantly lowers your cost-per-pour compared to plywood or single-use alternatives.
Q:Can it handle different diameters with the same kit?
A:While the arc radius is fixed for each set, we offer modular height extensions. For different column diameters, you'll need separate shells or custom reduction inserts to maintain structural integrity and finish quality.
Q:How does it perform in extreme temperatures?
A:Steel maintains its shape and stiffness from -20°C to 100°C, unlike plastic formwork that can warp. For cold-weather concrete curing, insulation blankets can be easily attached to the exterior surface.
Q:What release agent do you recommend?
A:We recommend high-quality oil-based or water-based chemical release agents specifically formulated for non-porous steel surfaces. Proper application ensures a bubble-free finish and easy formwork removal.
Q:Can you customize the surface treatment for coastal projects?
A:Yes, we offer enhanced corrosion protection through galvanizing combined with powder-coated finishes. This high-end treatment option extends service life in marine environments with salt spray exposure.
Packaging and Delivery
We package formwork components securely to prevent damage during transportation. Steel bands and protective corner guards safeguard the panels and accessories.
Palletized shipping allows for efficient handling with standard construction site equipment. Documentation includes assembly instructions and component identification for quick on-site setup.
For international shipments, we optimize container loading to reduce your freight costs. Our experienced logistics team coordinates delivery timing to match your construction schedule.
