ZLP800 Suspended Work Platform Installation: Key Steps and Safety Considerations

You already know that picking the right suspended access tools has a direct impact on job site safety and project timelines if you are in charge of curtain wall or high-rise facade work. The ZLP800 suspended work platform is a heavy-duty way to get up in the air. It can hold up to 7.5 meters of platform length and is powered by two 1.8 kW motors. This guide shows you the right way to install things, meet safety standards, maintain them, and buy them, giving you the technical information you need to make an informed decision.

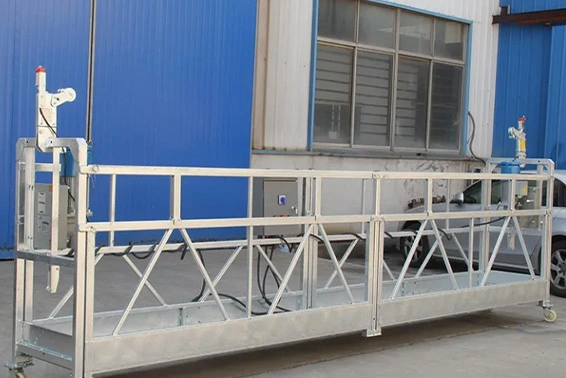

ZLP800 Suspended Working Platform

Understanding the ZLP800 Suspended Work Platform

Your team needs to know what it's made of and how it works before they start putting it together.

Core Components and Technical Specifications

The ZLP800 is made up of five main parts: the platform that hangs from the ceiling, the LTD80 hoists, the LSA30/LSA20 safety locks, the device that holds the platform up with jib arms, and an electrical control system. The platform has to be 7,500 mm long, 690 mm wide, and 1,180 mm deep, and it has to be able to lift 8–10 m/min. Also, a load of no more than 800 kg must be used. There are two different weights: one is 600 kg and the other is 440 kg. This changes how much it costs to ship and how much stress it puts on the suspension really well.

How It Works Under Load?

Heavy-duty 9.1 mm wire lines stretched across the roof's jib arms hold the platform up. Each LTD80 hoist grabs the rope on its own, so the speed at which the platform goes up and down is always the same. It can lift even when the weight is very big because it has two motors. The LSA safety locks stop both hoists from moving in milliseconds if they feel that the speed of the fall is too fast to be safe. Often, this is because the rope is broken or the load changed quickly.

Why It Outperforms Traditional Scaffolding?

On a 100-meter building face, it can take weeks to set up and take down standard steel tube scaffolding. This takes a lot of time and money, which means the project makes less money. Because the ZLP800 is made up of different parts, a trained crew can put it together and use it much faster. More than one thing can be done at once over a 7.5-meter span, and it doesn't need any ground space. For these reasons, it's the best thing to use for building big glass curtain walls, stone panels, painting bridges to keep them from rusting and keeping chimneys in good shape.

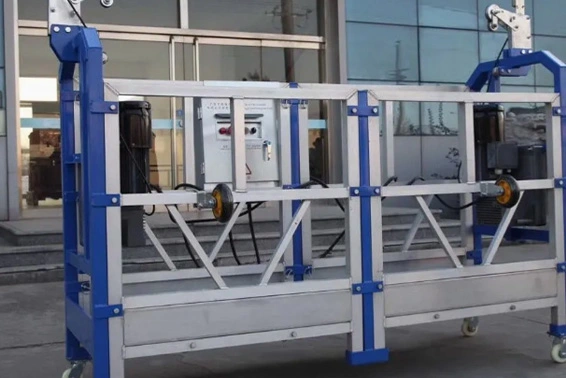

ZLP800 Suspended Working Platform

Step-by-Step Installation Guide for the ZLP800

A properly done installation is the difference between a safe, productive operation and an accident that could have been avoided. Carefully follow this order.

Site Assessment and Pre-Installation Checks

First, make sure that the base or rooftop structure can support the entire weight of the suspension system (250 kg), the counterweight (1,000 kg), and the moving loads. This is an important step that must be taken: make sure that the building parapet or structural slab meets the standards for bearing capacity. Check the forecasts for wind speed; if the wind speed goes over 10.8 m/s (Force 6), the activity has to stop. Get the tools you need, like torque wrenches, wire rope clamps, a spirit level, electrical testers and fall protection gear for the people who will be installing the system.

Assembling the Frame and Suspension Mechanism

Place the jib arms at the marked roof anchor points, leaving enough space between them based on the platform length you chose, which can be up to 7.5 meters for the full setup. Attach counterweights to the back of each jib arm before you connect the wire ropes. Thread the 9.1 mm wire ropes through the LTD80 hoists, making sure that the end of the rope is properly connected with at least three wire rope clamps that are tightened to the right torque. Before moving on, make sure that both hoists hang straight and level.

Electrical Connections and Final Pre-Deployment Testing

Connect the power supply to the ZLP800 suspended work platform control panel and make sure the voltage fits the equipment's rating. The voltage should be 220V or 380V, depending on the local site supply. Before anyone gets on the level, test how the emergency stop button works. Do a static load test with no one around and 125% of the rated capacity (1,000 kg). Then do a full lift-and-lower cycle as part of an active test at 110% capacity (880 kg). Test both safety locks to make sure they work properly by simulating an overspeed situation. People shouldn't get on the station until all the checks are done.

Safety Considerations and Compliance Requirements

At heights, safety is a must. Every project team must meet this standard before the first move.

Built-In Safety Features You Should Verify

The LSA30 and LSA20 safety locks are the main fall arrest systems on the platform. Each lock has a centrifugal mechanism that automatically opens when the speed of descent goes over a certain limit. Every day, each operator has to make sure that both locks can move easily, don't have any corrosion, and are still in their yearly recalibration cycle. The frame of the platform also has guardrails around the edges, toe boards, and an overload protection relay that turns off the power if the load goes over 800 kg.

Common Installation Errors and How to Avoid Them

Most installations fail because the wire rope clamps are not tightened enough, the counterweights are not loaded properly, or electrical continuity checks were not done. It is very dangerous to under-torque clamps because the rope can slip through when the load changes. Always use a torque wrench that has been calibrated and stick to the numbers that the manufacturer gives you. Before any wire rope tension is put on, the counterweights must be fully in place. To "speed up" the commissioning process, never go around the overload relay or emergency stop circuit.

International Certifications and Compliance Standards

Xinjiuyi's ZLP800 platform is made to meet GB/T 19155-2017, which is the national standard for suspended access equipment in China. It can also be bought with CE approval, which meets EN 1808 requirements for markets in Europe and other countries. Before accepting delivery, buyers in the US, the Middle East, or Southeast Asia should ask for full certification paperwork, such as factory inspection reports and safety lock calibration certificates. These papers are your main proof that the product meets standards and that the seller is responsible.

Maintenance Tips to Ensure Longevity and Performance

A suspended cradle that is well taken care of saves both your workers and your investment. According to studies of the equipment lifecycle in the construction access business, proactive inspections cut the number of mechanical failures by more than 60% compared to reactive maintenance methods.

Daily and Periodic Inspection Protocols

Check wire ropes for broken strands, kinking or corrosion before each shift. If you see more than 10% broken wires in one lay length, you should replace the rope. Make sure there is enough oil in the hoist and that the electromagnetic brake works properly. Visually check all of the structural welds on the platform frame. If you see any cracks or deformations, the platform must be taken out of service right away. Follow the manufacturer's instructions for how often to grease the hoist gears and wire rope contact spots. Do this once a month.

Troubleshooting Common Issues

Most of the time, a ZLP800 suspended work platform motor fails because the voltage changes or it gets too hot from being used continuously at full load. Put in a voltage stabiliser where the power supply isn't stable. Sheaves that aren't lined up right speed up the wear on wire rope. If you see uneven wear patterns, readjust the sheave brackets. Safety lock stiffness or failure to release after normal operation is usually a sign of contamination; the unit needs to be serviced by a qualified technician before it can be used again.

Partnering with Authorized Service Providers

Xinjiuyi offers technical assistance and original replacement parts for all platform models after the sale. We keep real LSA-series safety locks, LTD80 hoist parts, and wire rope systems in stock so we can send them out quickly. Working with authorised service channels saves your warranty and makes sure that replacement parts meet the original engineering tolerances. This is very important if you have 20 or more rental units.

Choosing and Procuring Your ZLP800 Suspended Work Platform

ZLP800 vs. ZLP630: Selecting the Right Capacity

The ZLP630 is good for wall work that doesn't require a lot of weight because it is only 630 kg. If you have a lot of heavy stone walls, thick glass panels, or workers carrying tools and supplies, choose the ZLP800's 800 kg type. It works better and is safer. Because there is more room, there aren't as many trips with only some of the load. This makes a big difference in the number of lift rounds needed for each job.

Steel vs. Aluminum Platform Selection

Places that get hit a lot and need to keep costs low should use steel platforms. They don't rust very often. Platforms made of aluminium weigh 160 kg less than platforms made of steel. People in other countries can ship their things for less money because the suspension jib is not under as much stress. Because it doesn't rust, aluminium is better than other things. For projects near water or where chemicals are used, this makes up the difference in cost.

Procurement Options for B2B Buyers

Big sales, OEM/private label setups, and platform sizes that aren't standard are all things that Xinjiuyi can handle. If a rental fleet owner buys 20 or more units, they can get prices directly from the plant, complete sets of spare parts, and first dibs on when the units are made. The export paperwork is ready to go, which will help you get through customs in the countries you want to go to. This includes things like packing lists, CE statements, and inspection papers.

Conclusion

A ZLP800 suspended work platform should last as long as you mount it correctly, check its safety often, and keep it in good shape. For tough industrial, bridge, and facade maintenance jobs, the ZLP800 is a good choice. It can handle up to 800 kg, is modular, has a dual-motor system, and a certified safety lock configuration. It is safe for project managers and engineering directors to use this equipment and make sure that workers working at height are safe if they follow these steps and safety rules.

FAQ

What is the maximum platform length for the ZLP800?

A platform up to 7.5 meters long can be made with the normal setup. This size is set to keep the frame stable and the right load-to-span ratio when the weight limit is 800 kg.

How often do the safety locks require recalibration?

Safety locks should be checked every day, before each shift. Based on how often it is used and the rules in your area, it needs to be re-calibrated by a professional at the factory every 6 to 12 months.

Can the platform operate in strong wind conditions?

No, work has to stop if wind speeds hit or go over 10.8 m/s (Force 6 on the Beaufort scale). The platform has to be lowered or quickly locked in place. If you go over this limit, there are too many risks for side loads.

Is the ZLP800 available with CE certification for international projects?

Yes, there are places in Xinjiuyi that are CE-approved and up to EN 1808 standards. Another thing they have is full export papers that can be used for projects in Europe, the Middle East, and other places.

What wire rope diameter does the ZLP800 require?

To work, the ZLP800 needs a special high-tensile wire rope that is 9.1 mm wide. This diameter gives the LTD80 hoist system the breaking strength and fatigue resistance it needs when the load is 800 kg.
