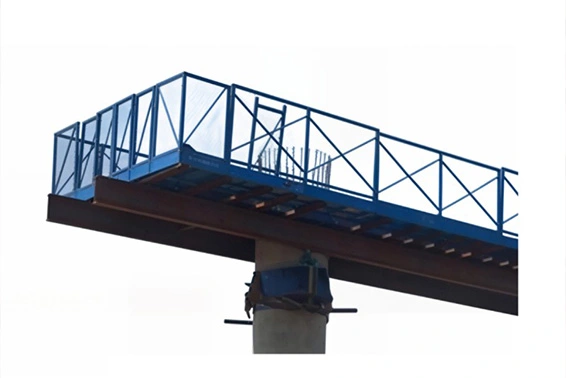

How much weight can a pier cap work platform support?

A pier cap work platform typically supports a distributed load of 2.5 kN/m² to 5.0 kN/m² under standard construction conditions, which translates to roughly 250–500 kg per square meter. The actual capacity depends on the platform's structural configuration, material grade, and how it anchors to the pier. At Xinjiuyi, our pier cap work platform is engineered with I-beams, channel steels, and thickened galvanized rectangular tubes, enabling it to bear simultaneous loads from construction personnel, rebar bundles, formwork systems, and freshly poured concrete — all at elevation.

Understanding Pier Cap Work Platforms and Their Weight Capacity

Building a bridge pier cap is usually done very high, over busy roads, waterways, or train lines. The working platform at the top of the pier has to do a lot more than just provide a place to stand. It also has to safely move all the building loads into the current pier structure without needing its own support on the ground.

Pier cap work platforms are designed to do just that. They are used instead of traditional ground-based scaffolding, which needs a lot of work to prepare the footing and takes up room on the ground that isn't always available or is limited. By using the pier's own weight, these platforms greatly cut down on the amount of materials needed and the time it takes to move them.

Minimum load values for temporary elevated work tools are set by industry standards in EN 12811-1 and OSHA 1926 Subpart L. When made from Q345B or a similar structural steel, steel-framed platforms usually have rated capacities at the higher end of the 2.5–5.0 kN/m² range. Aluminum options give up some load capacity but are lighter.

How much weight an elevated bridge platform can hold is based on three structural factors:

• Strength of the material and the shape of the section—Heavy-section I-beams and channel steels can bend much more forcefully than lighter tube profiles, which means they can hold longer spans without bowing.
• Weld and connection integrity—Primary load-bearing joints made with full-penetration welds and strengthened with angle steel gussets spread out heavy loads over a larger area, stopping failing in one spot.
• Anchoring to the pier—High-strength through-wall bolts or cast-in anchors move shear and tension forces into the body of the pier. The overall platform capacity is often limited by how well this interface works.

When procurement engineers understand these three factors, they can confidently choose the right platform before a single part leaves the factory.

Key Factors Influencing the Weight Capacity of Pier Cap Work Platforms

When talking about load ability, material choice is the first thing that comes up. Structural steel is still the most common material used for high-load bridge platforms because it can reliably handle heavy combined loads over long-term projects thanks to its high yield strength (345 MPa for Q345B). Aluminum is lighter than steel, which is helpful for platforms that need to be moved around a lot. However, because it has a lower elastic stiffness, support parts need to be closer together to keep it from deflecting under the same loads.

In addition to the material, the geometry of the structure is also very important. Here are the main design elements that improve load-bearing capacity for the pier cap work platform:

• Cross-bracing and diagonal members keep the racks from deforming when uneven loads, like a stack of rebar on one side, move the center of gravity away from the centerline of the platform.
• Reinforced connection nodes with 50 mm equal angle steel at 4.0 mm thickness spread out point loads at the bracket-to-frame surfaces. This lowers stress levels that could cause fatigue cracking over many assembly cycles.
• Fully laid 2.0 mm anti-slip chequered plate decking works as a continuous diaphragm, making the frame stiffer and stopping localized punching failure when materials are dropped or there is a lot of foot traffic.

These choices about design don't work alone; they work together. If a platform has great material grade but connection hardware that is too small, the joint will break long before the main section does. When reviewing sellers, people in charge of buying things should ask for weld inspection records, which could include ultrasonic testing (UT) or magnetic particle inspection (MPI) on the main joints, as well as material mill certificates.

Conditions of the site add a third level of effect. When platforms are set up on properly positioned and tightly torqued anchors at plumb piers, they work at their rated capacity. When platforms are put in place on anchor points that are broken or on piers where the formwork hasn't fully set, there is a lot of doubt. As part of responsible deployment, you must check the anchor depth, bolt torque, and condition of the pier surface before installing the anchor.

Comparing Pier Cap Work Platforms with Traditional Scaffolding Solutions

Ground-supported tube-and-clamp scaffolding has been used to build bridges for many years, but it has some problems that can be easily fixed with pier-mounted platforms.

The main difference is how the weight is distributed. In traditional scaffolds, all the weight is sent to the ground through vertical standards and base plates. When built on soft ground, along riversides, or over utility corridors, these base reactions turn into a geotechnical issue that needs engineered foundations. A pier-mounted platform doesn't go through any of this—loads go straight through the anchor system and into the pier base, which has already been built and tested to make sure it can hold weight.

Pier-mounted platforms are also better than regular scaffolding when it comes to safety integration. Xinjiuyi's platform has guardrails around the edges made of 40 × 40 mm square tube, extended metal mesh with a 60 × 100 mm opening, and fully closed chequered plate decking. This three-dimensional containment system gets rid of the holes between some of the barriers that are common in clamp-assembled tube scaffolding, where guardrail parts can come free over time.

Lifecycle economics strongly favor pier-mounted platforms on multi-pier projects from a buying point of view. Within one working day, a movable platform that weighs about 26 kg per piece can be moved to the next pier, used, disassembled, and lifted into place. For the same amount of tube-and-clamp support, it takes a lot more work hours, more parts per pier, and more teamwork at ground level. When added up over a 50-pier viaduct, these savings add up to real cost and time savings.

Choosing the Right Pier Cap Work Platform for Your Project

A clear load plan is the first step in choosing the right pier cap work platform. Find the situation with the most loads at the same time. This is usually when there are the most people working on the project, all the rebar is in place, and the forms are empty before the concrete is poured. The platform should be the right size to handle that peak load with a known safety factor, which is usually 1.25 times the rated capacity for static loads according to EN 12811-1.

It's also important that the dimensions match the actual shape of the pier. Pier caps are very different depending on the type of project. For example, the rectangular cap beams on urban overpasses are very different from the curved heads that are popular on high-speed rail viaducts. Platforms that are ordered from standard catalog dimensions without comparing them to actual pier drawings cause problems when they are put together on site. This is something that Xinjiuyi takes care of by doing full custom fabrication, taking in customer plans, and making dimensioned shop drawings for review before production starts.

Customization is also important for international projects that need approval from a consulting engineer. The approval process goes much faster when there are English-language structural calculation packages, material certificates with internationally known grades, and load test results from reputable third-party bodies like SGS and TÜV.

When you buy in bulk for multiple pier jobs, you get a discount for working with the maker early on. Locking in platform specs and production times before the substructure building plan calls for delivery gets rid of the schedule risk that short lead times cause.

Maintenance, Safety, and Environmental Considerations

The estimated load capacity of a pier cap platform is only valid if the platform is still in the same state it was in when it left the factory. Every three months, the anchor bolt torque should be checked, the weld toes should be looked at for fatigue cracks at high-stress nodes, the anti-slip texture of the chequered plate decks should be confirmed, and the state of the galvanizing coating should be recorded in places where water or salt spray is present.

Hot-dip galvanizing that meets ISO 1461 standards and has a coating thickness of more than 85 microns protects against corrosion in marine and humid environments. All of the platform's parts are treated this way by Xinjiuyi. The galvanized finish is very durable and can last up to 20 years with regular maintenance. This durability lowers the amount of materials used over their whole time and encourages responsible buying habits that are in line with sustainable goals.

Because they are made of steel, platforms can be recycled in any way when they are no longer needed. In established markets, the recycling rate for structural steel is always higher than 90%. This means that most of the carbon that is stored in these platforms can be recovered rather than being permanently committed.

Conclusion

The amount of weight that a pier cap work platform can hold depends on the type of structural steel used, how the connections are made, how well the welds are done, and how good the anchors are. Well-designed steel platforms can usually handle loads of 2.5 to 5 kN/m². When compared to regular scaffolds, a purpose-built, flexible pier platform offers clear benefits in terms of load capacity, safety, and the overall cost of ownership over the life of multiple piers. To choose the right platform, you need to have clear load schedules, dimensions that match the real shape of the pier, and quality paperwork that has been checked. All of these things are provided by Xinjiuyi through its experienced tech help and ISO-certified production.

FAQ

What is the maximum load a standard pier cap platform can handle?

Standard pier-mounted bridge platforms that meet EN 12811-1 or a similar standard can usually hold between 2.5 and 5 kN/m² of load. At the top of this range are steel-framed platforms with strengthened connection nodes that can hold the weight of people, rebar, and formwork all at the same time.

How often should the platform be inspected on an active project?

The standard is to check the pin torque, weld state, decking stability, and coating thickness every three months. Before starting up again after any strong weather event, like high winds above 15 m/s or big changes in temperature, the main joints and anchor points should be carefully checked.

Can the platform be customized for unusually wide or irregular pier caps?

Yes. For rectangular, circular, and flared pier head profiles, modular designs with changeable spanning beams and customizable bracket forms can be used. Custom manufacturing based on customer plans makes sure that the platform fits correctly before it gets to the site, which saves money on costly rework.

What wind speed requires operations to stop?

Safety rules in the industry usually say that work has to stop when wind speeds stay above 15–20 m/s, which is the same as Gale Force 7–8. Local OSHA rules and the professional engineer's safety plan should match the project-specific limits.

How long does installation typically take?

It only takes two to four hours to move a pre-assembled modular platform into place and secure it. This is a lot faster than putting together similar tube-and-clamp scaffolding systems.

Get Your Custom Pier Cap Work Platform Quote from Xinjiuyi

For difficult bridge projects around the world, like high-speed rail viaducts and structures that cross the sea, Xinjiuyi provides engineered pier cap work platform solutions. We are a reliable company that makes pier cap work platforms. We offer full custom manufacturing, quality management that is ISO 9001-certified, and full technical paperwork packages. Visit xjy8.com or email our team at global@xjy8.com right now to get a price that fits your needs and feel confident about starting the buying process.

References

1. European Committee for Standardization. EN 12811-1: Temporary Works Equipment — Scaffolds — Performance Requirements and General Design. CEN, 2003.

2. Occupational Safety and Health Administration. OSHA Standard 1926 Subpart L: Scaffolding. U.S. Department of Labor, 2019.

3. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles — Specifications and Test Methods. ISO, 2009.

4. Ryall, M. J., Parke, G. A. R., & Harding, J. E. Manual of Bridge Engineering. Thomas Telford Publishing, 2000.

5. Nawy, E. G. Concrete Construction Engineering Handbook. CRC Press, 2008.

6. Xanthakos, P. P. Bridge Substructure and Foundation Design. Prentice Hall, 1995.
