ZLP500 Temporary Cradle Specifications for Exterior Wall Work

The ZLP500 temporary cradle is a light-duty suspended access platform built for exterior wall operations at height. Rated at 500 kg and powered by a dual 1.1 kW × 2 motor system, it delivers a lifting speed of 9–11 m/min across a 5-meter standard platform. Manufactured by Hebei Xinjiuyi Construction Technology Co., Ltd., this suspended work platform addresses the real limitations of conventional scaffolding — slow assembly, large ground footprint, and poor adaptability to irregular facades. For B2B procurement teams managing multi-story facade projects, it offers a practical, compliance-ready solution.

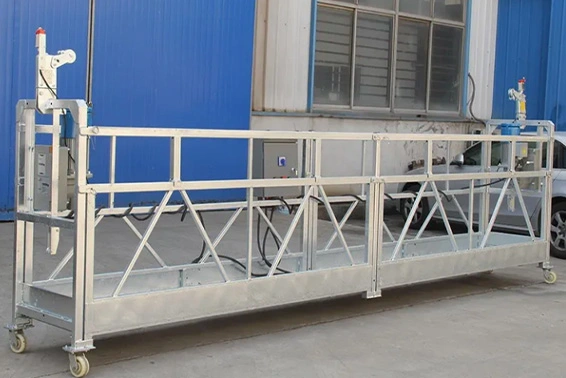

ZLP500 Temporary Cradle

Understanding the ZLP500 Temporary Cradle: Specifications & Core Features

Procurement managers need exact technical data on any suspended access equipment they want to buy before they commit to it. Here is what the ZLP500 temporary cradle does in its most important areas.

Full Technical Specifications at a Glance

Parameter	Value
Rated Load	500 kg
Lifting Speed	9–11 m/min
Rated Power	1.1 kW × 2
Hoist Model	LTD50
Safety Lock Model	LSA30 / LSA20
Platform Dimension (L × W × H)	5000 mm × 690 mm × 1180 mm
Suspension Mechanism Weight	250 kg
Counterweight	750 kg
Steel Platform Weight	400 kg
Aluminum Platform Weight	290 kg

Safety Systems Built Into the Platform

The LTD50 hoist has an electromagnetic stopping motor and a manual lowering feature. This means that if the power goes out, workers can safely lower the ZLP500 temporary cradle without using any extra tools. When the tilt angle is between 3° and 8°, the LSA30/LSA20 safety lock goes off. This stops the platform from moving before it reaches a dangerous lean angle. The control system has built-in overload safety that stops it from working when the rated capacity of 500 kg is reached.

Material and Surface Treatment Options

The platform comes in two different types of structural materials. The steel version is 400 kg heavy and works well in normal construction sites. The aluminum version is 110 kg lighter than the steel version, which makes it much easier for smaller teams to move and place. As standard, both versions are treated with hot-dip galvanizing, which has been shown to be resistant to corrosion when used outside. As an add-on, electrostatic spray coating can be used to protect and improve the look of the surface.

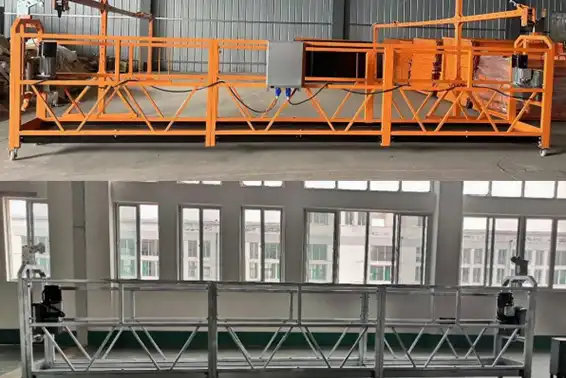

ZLP500 Temporary Cradle

Operational Insights: How the ZLP500 Temporary Cradle Works?

Being aware of how this ZLP500 temporary cradle works on a daily basis helps project managers plan rollout correctly and avoid downtime.

Installation Process and Personnel Requirements

A modular sequence is used for assembly. The 750 kg counterweight system is set up to keep the whole rig stable, and the suspension system is attached to the roof of the building. There is an 8.3 mm diameter steel wire rope that runs between the hoist units and the platform. Two or three trained workers can do the installation without any heavy lifting tools. The 2.5-meter pieces that make up the platform make it easy to quickly get to its usual 5-meter shape.

Workflow During Facade Operations

The platform moves vertically at 9–11 m/min once it is set up, so workers can cover building floors without having to stop and rerig. The 690 mm platform width gives workers enough room to move along the wall and handle tools and materials. Stepless lifting control lets you precisely set the height, which is very important for jobs like installing insulation panels and aligning curtain walls.

Routine Inspection and Maintenance Practices

Safety rules say that the safety lock needs to be professionally re-calibrated every 6 to 12 months, but this depends on how often it is used and the rules in the area. Before every shift, wire ropes should be checked to see if they are breaking or kinking. Periodically, the LTD50 hoist should be checked to see if it stays stable at high temperatures when it's fully loaded. These steps in care protect both the workers and the equipment that was bought.

Comparing the ZLP500 to Other Temporary Cradles and Scaffolding Solutions

Before making a purchase, procurement teams often look at more than one access solution. This comparison looks at the most common options to help you make a smart choice.

ZLP500 vs. ZLP630: Capacity and Use Case Differences

With a maximum load of 630 kg and more powerful motor units, the ZLP630 is perfect for heavy exterior jobs like installing thick composite panels or marble cladding. When working on mid-rise domestic buildings to paint, clean windows, or insulate, the ZLP500 temporary cradle is the best choice because it is lighter and can be set up faster, which saves money and time. The ZLP500's lighter weight makes it easier for teams that are in charge of several smaller buildings at the same time to move between them.

ZLP500 vs. Traditional Scaffolding

Traditional tube-and-coupler scaffolding needs a lot of room on the ground, a long time to set up, and a lot of materials. Scaffolding makes things more difficult to do on urban job sites where entry from the ground is limited. The ZLP500 temporary cradle doesn't leave any marks on the ground and can be used in hours instead of days. The Construction Industry Institute says that on buildings over eight stories, suspended access equipment cuts by 40–60% the amount of work needed to set up the façade compared to standard scaffolding.

ZLP500 vs. Bosun Chairs

A bosun chair can only support one user at a time and can't hold many tools. A team of workers can work at the same time on the ZLP500's 5-meter platform, which directly improves output per shift. The ZLP500 temporary cradle is much more productive per hour of work for any commercial project that needs to cover large areas of the facade consistently.

Procurement Guide: How to Buy and Source ZLP500 Temporary Cradles?

It is very dangerous to get suspended access platforms through channels that haven't been checked out. The quality of the products isn't always consistent, and they might not have all the necessary safety licenses, which can put you at risk on controlled job sites.

Evaluating Supplier Credibility

Check that the manufacturer of the ZLP500 temporary cradle has ISO 9001 quality management certification and that the product meets EN 1808 for European markets or GB/T 19155 for international construction projects before you choose a supplier. Hebei Xinjiuyi Construction Technology Co., Ltd. is certified by ISO 9001, ISO 45001, and ISO 14001, and its factories are in the Xian County Development Zone of Cangzhou, Hebei.

Bulk Order and Logistics Considerations

Bulk ordering lowers the cost per unit and guaranties consistent delivery dates for procurement managers who are working on multiple projects at once. Xinjiuyi can handle big orders because it has a stable supply chain system that can handle shipments of multiple units with clear lead times. For smooth service after the sale, spare parts for the LTD50 hoist and LSA safety lock series are kept on hand.

Leasing vs. Purchase for Project-Based Needs

Leasing may be a better option than buying for short-term jobs, like painting the outside of a single apartment building. For businesses that do regular work on facades at several sites every year, ownership lowers the long-term cost per deployment. Talk to the supplier about your project cycle to find the model that fits your budget for buying things.

Benefits and Value Proposition of Choosing the ZLP500 Temporary Cradle

There are three main points that support the business case for this suspended work platform: safety, operational efficiency, and total cost of ownership.

Here are the main benefits that buying teams always list:

Ready for regulatory compliance: The platform is approved by EN 1808 and GB/T 19155, and can hold a static test load of 1,500 kg (3 times the rated load). This means it can pass inspections in most international markets.
Faster deployment: Modular assembly lets a small crew get the platform up and running in just a few hours, saving a lot of money on idle labor costs compared to setting up scaffolding.
Adaptable to irregular facades: The wire rope support system can be moved to work around building features like bay windows, setbacks, and canopies that make it impossible to use fixed scaffolds.
Long service life: Hot-dip galvanized parts can withstand 1,000 hours of salt spray tests, which is important for seaside or high-humidity project sites.

These benefits directly lead to fewer delays on the job site, a lower risk of accidents, and less regulatory exposure, all of which are important to both HSE officers and project managers. When companies work in places where site inspections are very important, using a recognized, well-documented platform like this one protects both the workers and the project timeline.

Conclusion

The ZLP500 temporary cradle is a useful and well-designed platform for working on the outside walls of business and mid-rise buildings. Its modular 5-meter deck, dual-motor drive, and 500 kg maximum load make it suitable for painting, insulation, curtain wall installation, and window cleaning. Plus, it doesn't take up as much ground room or as long to set up as traditional scaffolding. This platform directly meets the needs of B2B procurement teams that put safety compliance, operational efficiency, and supply reliability at the top of their list of priorities. The manufacturing and after-sales service at Xinjiuyi are both ISO-certified, which gives buying managers a reliable source for current projects.

FAQ

What is the maximum safe wind speed for operating the ZLP500?

When the wind speed goes over 10.8 m/s, which is Level 6 on the Beaufort Scale, work has to stop. This is the normal safety procedure for all platforms that hang in the air.

How difficult is installation for crews with limited experience?

The pieces are easy to put together, and you don't need any heavy lifting tools. By following the normal setup procedure, a trained crew of two to three workers can finish the installation. Xinjiuyi gives expert documentation and help with advice on-site.

What wire rope specification does the ZLP500 use?

The platform is made with 8.3 mm high-strength steel wire rope that is specifically made to work with the LTD50 unit and traction hoists.

Can the ZLP500 operate in coastal environments?

Yes. You can choose the platform made of aluminum alloy or hot-dip galvanizing steel. In seaside areas, both choices don't rust when exposed to salt water. Tests show that galvanized parts can handle being exposed to salt spray for 1,000 hours.

Is leasing available for short-term projects?

There are leasing choices for needs that are project-based. Get in touch with Xinjiuyi directly to talk about availability and the terms for your project's length and location.
