7 Key Factors to Consider When Choosing Gully Gratings for Stormwater Drainage

When selecting gully gratings for stormwater management, seven critical factors demand your attention: material composition, load-bearing capacity, corrosion resistance, installation requirements, cost efficiency, application versatility, and regulatory compliance. Among available options, Ductile Iron Gully Grating has emerged as the industry-preferred solution for municipal contractors and infrastructure developers. This engineered drainage component combines spheroidal graphite metallurgy with anti-settlement design, delivering tensile strength exceeding 500 MPa while maintaining pedestrian safety and hydraulic efficiency across diverse traffic conditions.

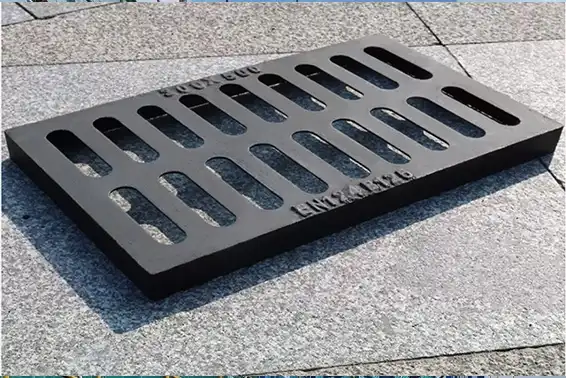

Material Selection: Why Ductile Iron Stands Out?

Picking the right materials has a direct effect on how well and how much your project will cost in the long run. The three main materials that we've seen dominate the market are traditional gray cast iron, structural steel, and composite plastics. Each has its own trade-offs between the original cost and the worth over time.

The Metallurgical Advantage of Spheroidal Graphite Iron

In regular gray cast iron, the graphite forms crackly flakes. But in ductile iron, the graphite is spread out in the form of round lumps in the ferrous matrix. This difference in structure changes how the material acts when it is stressed. Because the iron is spheroidal, it bends instead of breaking when it is hit by something heavy. This is a very important property for when heavy trucks drive over drainage covers over and over again. At Xinjiuyi, where we make things, we make sure that spheroidalization rates are higher than 80%. This means that the products meet Grade 500-7 standards, which say that they must have a minimum tensile strength of 500 MPa and an extension rate higher than 7%. This metal mixture can handle the changing weight of fast traffic without getting the tiny cracks that happen in lower-quality materials.

Comparative Performance Across Material Classes

Steel gratings are very strong, but they rust quickly in chloride-rich environments like those found on roads that have been treated with deicing salts. Composite materials are lighter, but they can't hold as much weight as heavy-duty materials. These problems can be solved by ductile iron, which has a great strength-to-weight ratio and can prevent rust with protection coatings. The natural noise-dampening ability of the material cuts down on noise pollution, which is becoming more of a problem in home areas where noisy drainage covers cause problems. When you look at the total costs of ownership, like how often you have to replace things and how often you need to do maintenance, ductile iron always shows better value retention.

Industry Standards Governing Quality Assurance

Professionals in procurement should make sure that gratings are in line with EN124:2015 standards, which divide them into classes from A15 to F900 based on how much weight they can hold. When we make our goods, we make sure they meet both ISO9001 quality control standards and ISO45001 occupational safety standards. Third-party testing records are very important for tender evaluations. Our gratings go thru Brinell hardness testing, ultrasonic flaw detection, and measurement accuracy checks to make sure they fit within frames without rocking.

Load Capacity and Structural Performance Requirements

Knowing how to classify loads can help you avoid major mistakes that put people in danger and put you at risk of being sued. The EN124 standard sets clear limits for matching installation sites with the right load classes.

Decoding Load Class Specifications

Class C250 Ductile Iron Gully Grating is good for areas with lots of people and light vehicles because it can hold up to 250 kN of weight. All types of vehicles will have to use Class D400 roads and parking lots, which can hold 400 kN loads. Classes E600 and F900 are used in airports, ports, and heavy industrial sites because they can handle harsh conditions like fully loaded container trucks and aircraft ground equipment. Our product line is designed to cover the whole range, so project managers can choose exactly the right options without having to over-engineer setups.

Tensile Strength Translating to Field Reliability

Our ductile iron gratings have a minimum tensile strength of 500 MPa, which means that every square centimeter can hold up to 5,000 kilos of force before it breaks. With 7% extension, the material slightly deforms instead of breaking under heavy loads. This ability to bend is very important during freeze-thaw cycles, when trapped moisture expands and puts pressure on the material inside, breaking it. When temperatures change by more than 50 degrees Celsius from season to season, this trait is especially valuable to municipal workers in northern climates.

Case Evidence from High-Traffic Applications

Our D400 ductile iron units were used to replace gray iron gratings that were breaking on 40 kilometers of highway shoulders by a regional expressway authority. After three years of service with heavy trucks driving over it every day, an inspection showed that there were no structural failures. This is in contrast to the old system, which needed to be replaced 18% of the time every year. The built-in anti-subsidence frame design kept the pavement level all the way thru, so there was no need for expensive milling and resurfacing around areas where the pavement had settled.

Corrosion Resistance and Environmental Impact

Environmental factors slowly break down sewer systems, adding to the cost of upkeep and raising the overall cost of ownership. Corrosion management that works well can increase the service life from years to decades.

Environmental Accelerators of Material Degradation

Chemicals that are harmful to road drainage systems include chlorides used for de-icing, sulfates from car fumes, and acidic runoff from industry areas. When moisture mixes with these contaminants, it causes electrolytic rust, which wears away load-bearing parts until the structure breaks. Coastal installations have to deal with extra problems caused by salt spray, and places where groundwater levels change a lot have faster oxidation during wet-dry cycles. Our ductile iron makeup stops these processes because it has a dense metallurgical structure that stops water from getting in.

Protective Surface Treatments Extending Service Life

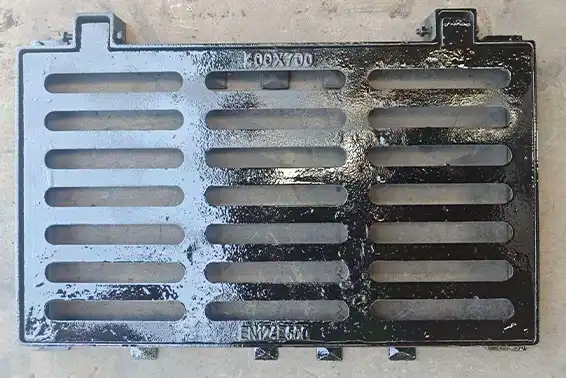

As usual, we put on bitumen coats that are 50 to 100 microns thick. These create a barrier of moisture between the iron base and surroundings that are likely to rust. Epoxy powder coatings are better at resisting chemicals and making things look better, making them perfect for installations that need to last longer. The choice of coating depends on the conditions of your place; we offer expert advice to make sure that treatment requirements are met. Preparing the surface correctly before applying the coating—such as by shot blasting to get rid of mill scale—ensures strong bonding that keeps the security going for the 25-year design life.

Sustainability Through Recyclability

Ductile Iron Gully Grating can be recycled over and over again without losing any of its quality. This supports the circular economy principles that are becoming more and more important in public procurement. When they are no longer needed, gratings are sent back to foundries to be melted down and remade into new parts that have the same performance characteristics. This is very different from composite materials, which need to be thrown away in a landfill or burned, which uses a lot of energy. Material choice helps infrastructure planners who are working toward LEED approval or other green building standards show proof that their environmental goals are being met.

Installation and Maintenance Considerations

Practical installation factors affect project timelines and worker costs, and they also determine how reliable the system will be in the long run. We made our tools with the situations that contractors face every day in the field in mind.

Best Practices for Field Installation

Setting the frame correctly is the first step in getting the grating to work right. For the anti-subsidence integrated design we use, the surface needs to be perfectly leveled with the nearby ground in order to have a flat surface that stops damage from vehicles hitting it. Before setting frames, our technical team suggests pressing base materials to a 95% Modified Proctor density. This makes a stable support that moves evenly with the roadbed's settlement. The captive hinge system lets a single person open the door for maintenance work while keeping it from moving when the door is being used or when someone tries to steal it. When compared to complex anchoring systems, simple anchoring systems are easier to install and don't require as much specialized equipment.

Maintenance Protocols Maximizing Operational Lifespan

Three important things should be checked during regular inspections: the soundness of the frame-to-pavement contact, the smoothness of the hinge operation, and the hydraulic capacity thru the grate openings. We suggest cleaning every six months to get rid of the sediment that builds up and makes drains less effective, especially before it rains and stormwater amounts are at their highest. Every two years, we have to look at the EPDM rubber sealing strips we use to see if they are breaking or having a compression set. Replacing them only takes minutes and doesn't require taking the whole unit apart. Maintenance crews for cities like the quick-access design because it lets them clear out traffic jams without having to use traffic cones.

Supplier Support Simplifying Project Execution

Choosing makers that offer full expert support lowers the risks of implementation. Xinjiuyi provides engineering help from creating the original specifications to overseeing the installation. We make detailed CAD models that show where the frames should go in relation to the shape of the road. This helps construction engineers plan drainage with utilities that are buried underground. Our quality documentation packages include reports on dimensional inspections, load testing results, and material certifications that meet the requirements for regulatory approval. This "turnkey" method gets rid of the problems that come up when you have to coordinate buying parts from different suppliers.

Cost Efficiency and Procurement Factors

Total ownership economics must be included in financial research, not just buying prices. We show buying managers how to do thorough cost modeling that shows them what the real value offerings are.

Total Cost of Ownership Analysis

About 30% of the total cost of maintaining drainage infrastructure is paid for at the beginning. The other 70% is paid for over time thru repairs, maintenance, and replacement. Our ductile iron gratings don't have any recurring costs because they last 25 years under normal traffic conditions. Compared to lower-quality options that need to be replaced every 5 to 8 years, which requires paying for removal, disposal, new materials, and labor to install them. Using regular city discount rates to figure out the net present value, the extra cost for high-quality ductile iron parts is paid for within the first ten years, and they continue to work for free for another fifteen years.

Strategic Procurement Through Volume Purchasing

Consolidated sourcing systems are good for big building projects. We can handle large orders that span multiple stages of a project and offer production schedules that work with your construction schedule. Custom size gets rid of the waste that comes with cutting standard goods in the field to fit odd-shaped holes. Our production ability can handle orders for as few as one replacement unit or as many as thousands of pieces for citywide standardization projects. The payment terms are based on how much money the project will actually have, and the billing is based on milestones to match the construction payment schedules.

Supplier Credibility Verification Checklist

Check potential Ductile Iron Gully Grating vendors against these important standards: ISO9001 certification showing quality management systems; third-party testing documentation from approved laboratories; dimensional tolerances within ±2mm to make sure the right fit; and production capacity meeting your delivery deadline. Ask for steel test results that show the tensile strength and elongation requirements. Check references from similar projects that have already been done, and make sure you understand the warranty terms that cover production flaws. Our ISO45001 and ISO14001 certifications at Xinjiuyi show that we are committed to safety at work and taking care of the environment throughout all of our manufacturing processes.

Application Versatility and Use Cases

Different types of infrastructure need flexible draining options. Ductile iron technology can be used in places like pedestrian plazas and large industrial complexes.

Municipal Road Infrastructure Requirements

Mixed-traffic urban main roads need gratings that are marked D400 and can handle heavy vehicles going thru them over and over again. There are extra problems with installing things at intersections because of the braking forces and turning movements that create lateral loads that aren't present on straight sections. Our fixed hinge design keeps things from moving, even if busses brake right on drainage points. Because shoulders of expressways get sprayed with salt water by passing cars in the winter, they need to be resistant to corrosion. The bitumen layer we use creates protective shields that keep the structure's stability even when it is constantly exposed to chloride. Our noise-dampening EPDM seals are great for tunnel and viaduct setups because they stop the sound from getting louder in these tight areas.

Heavy Industrial and Logistics Environments

Extreme loading situations happen in port facilities, container yards, and transport parks, where trucks and reach stackers put heavy point loads on small contact areas. Our products with an F900 rating can handle these conditions because they have reinforced ribbing patterns that spread the force across the whole frame structure. Industrial sites that use corrosive chemicals need better surface treatments. After looking at how you handle your materials, we can offer specialized epoxy coatings that can stand up to certain chemical exposures. Manufacturing plants benefit from custom slot designs that catch metal chips and other process debris while keeping workers safe as they cross draining zones.

Residential and Commercial Pedestrian Safety

Community roads and business plazas put passenger comfort and water needs at the top of their lists. We come up with heel-safe designs where the slot widths stay small enough to keep the hydraulic capacity for storms while still preventing shoe heels from getting caught. Raised diamonds or crosshatching on anti-slip surface designs give you grip when it's wet, which lowers your risk for a slip-and-fall accident. In high-traffic areas, how things look is important. Our gratings fit in perfectly with decorative paving patterns because the slot patterns can be changed and powder-coat color finishes can be chosen to match architectural palettes.

Regulatory Compliance and Safety Standards

Getting around regulatory frameworks keeps your organization safe and protects it from liability. Full compliance documentation speeds up the approval process.

EN124 Standards Defining Performance Thresholds

The European standard EN124:2015 sets up testing procedures and classification systems that are used all over the world thanks to trade deals that are standardized. The standard describes how to apply loads, how much a product can bend, and what kinds of markings must be used so that testers can be sure the right product was chosen. These standards are built into every step of our manufacturing process, from designing the products to making them. Each grating is forever marked with the load class, manufacturer name, and material grade. This allows for easy tracking, which meets audit requirements during project acceptance and protects against liability if failures in the field are caused by bad installation rather than product defects.

Americans with Disabilities Act (ADA) Considerations

According to ADA rules, gratings that are put in places where people walk must have holes that are no bigger than 13 mm in the main direction of movement. Our heel-safe designs meet these requirements for mobility while still allowing for effective draining thru better slot geometry. It's important that the surface doesn't slip, and the Polished Stone Value must meet certain minimum friction coefficients when it's wet. We test samples using standard British Pendulum methods and provide paperwork to back up the ADA compliance approvals your projects need.

Product Testing and Certification Documentation

Procurement teams should ask for full testing portfolios that show they are in line with regulations. We offer metallurgical analysis reports that confirm the chemical make-up and mechanical properties, dimensional inspection certificates that confirm the tolerances, load testing documentation that shows performance at rated capacities, and corrosion resistance data from accelerated weathering chambers that simulate decades of exposure to the elements. These documents meet the requirements for due diligence that municipal engineers must meet when writing specifications and judging bids. Third-party certification from accredited laboratories adds an extra layer of security that takes away any worries about manufacturers lying about their own reports.

Conclusion

If you don't choose the right Ductile Iron Gully Grating gratings, your sewage infrastructure will either not work for decades or require constant upkeep. We've looked at seven factors that affect procurement decisions. These are the choice of material, the load capacity, the resistance to corrosion, the ease of installation, the cost-effectiveness, the suitability of the application, and regulatory compliance. Ductile iron technology takes all of these things into account with its proven mechanical benefits and well-thought-out design features. When you put lifecycle value ahead of initial costs and expect full compliance paperwork, good drainage solutions turn into infrastructure investments instead of ongoing costs.

FAQ

What distinguishes ductile iron from traditional cast iron in drainage applications?

Ductile iron has spheroidal graphite clusters instead of flakes, which makes it about twice as resistant to contact and lets the material bend instead of break when it's stressed. This difference in the way the metal is made keeps it from breaking suddenly and badly like gray cast iron often does, especially when heavy traffic is loading it up and down.

How should I determine the appropriate load class for my project?

Place installation areas according to the EN124 classifications: A15 is for areas with a lot of pedestrians, C250 is for areas with light vehicles, D400 is for major roads and parking lots, E600 is for big industrial sites, and F900 is for airport taxiways and port facilities. When setting standards, you should think about both the static weight of the car and the dynamic impact forces.

What maintenance schedule maximizes grating service life?

Do reviews every six months to check the frame-to-pavement connections, the way the hinges work, and the hydraulic capacity. Before it rains, clean up any trash that has piled up, and every two years, check the rubber closing strips for wear. This low-maintenance plan supports the 25-year design life when gratings are installed correctly on stable base materials.

Why do gratings create noise and how can this be prevented?

Rattling happens when gratings don't fit tightly into frames because their sizes don't match or the contact areas are worn down. Machined mating surfaces with tight tolerances and EPDM rubber gaskets that absorb vibrations are signs of high-quality products. Impact noise from vehicles can be eliminated by installing it correctly so that it is flush with the surrounding pavement.

What kind of paperwork should I ask suppliers for?

For tensile strength specifications, dimensional inspection certificates, third-party load testing documentation, EN124 compliance markings, and ISO9001 quality certifications, you should ask for them. This documentation package helps with government approvals and makes sure the product is real before taking delivery.

Ready to Upgrade Your Drainage Infrastructure?

Xinjiuyi provides designed stormwater solutions that are made to meet the needs of tough building projects. Our Ductile Iron Gully Grating products are made with tried-and-true metalworking and an anti-settlement design that makes them useful for city contractors and industrial developers working in tough conditions. As a well-known company with ISO9001, ISO45001, and ISO14001 certifications, we offer full expert support, from helping you come up with specifications to showing you how to put them. Get in touch with our engineering team at global@xjy8.com to talk about your project needs and get solutions that are tailored to your load capacity, weather conditions, and legal requirements. Purchasing managers looking for dependable providers of Ductile Iron Gully Grating are welcome to experience the Xinjiuyi difference thru our all-around service approach.

References

1. British Standards Institution. (2015). Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas—Design Requirements, Type Testing, Marking, Quality Control. EN 124 Standard Series.

2. American Society for Testing and Materials. (2019). Standard Specification for Ductile Iron Castings. ASTM A536-84.

3. Davis, J.R. (1996). Cast Irons: ASM Specialty Handbook. Materials Park, Ohio: ASM International.

4. Rajani, B., & Tesfamariam, S. (2007). Estimating Time to Failure of Cast-Iron Water Mains. Proceedings of the Institution of Civil Engineers—Water Management, 160(2), 83-88.

5. Transportation Research Board. (2013). Drainage Requirements in Pavements: NCHRP Synthesis 434. Washington, DC: National Academy of Sciences.

6. Municipal Engineering Standards Association. (2018). Best Practice Guidelines for the Installation and Maintenance of Drainage Infrastructure. London: MESA Publications.
