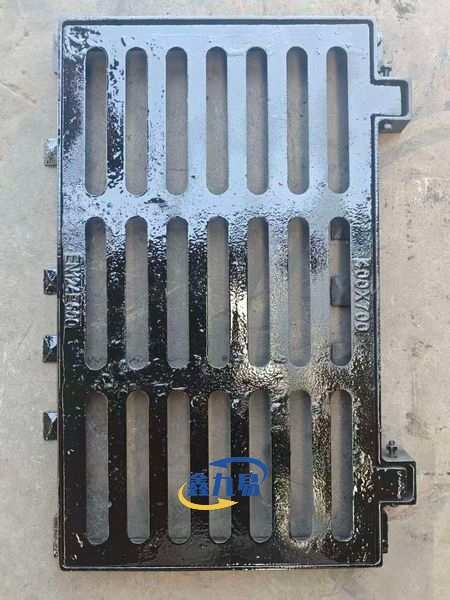

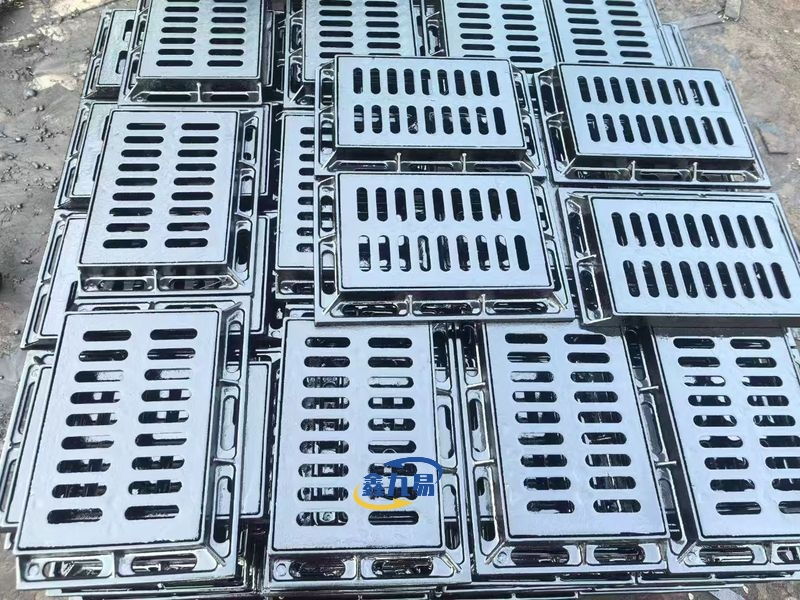

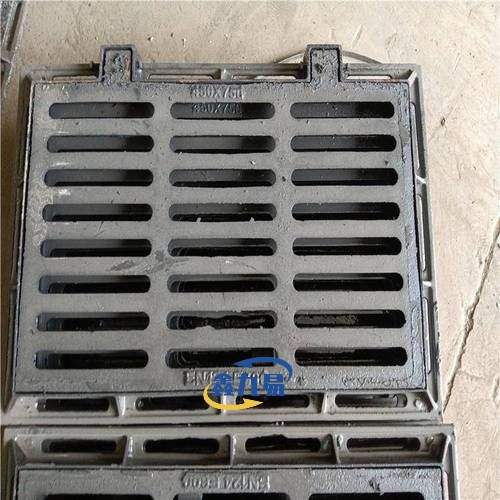

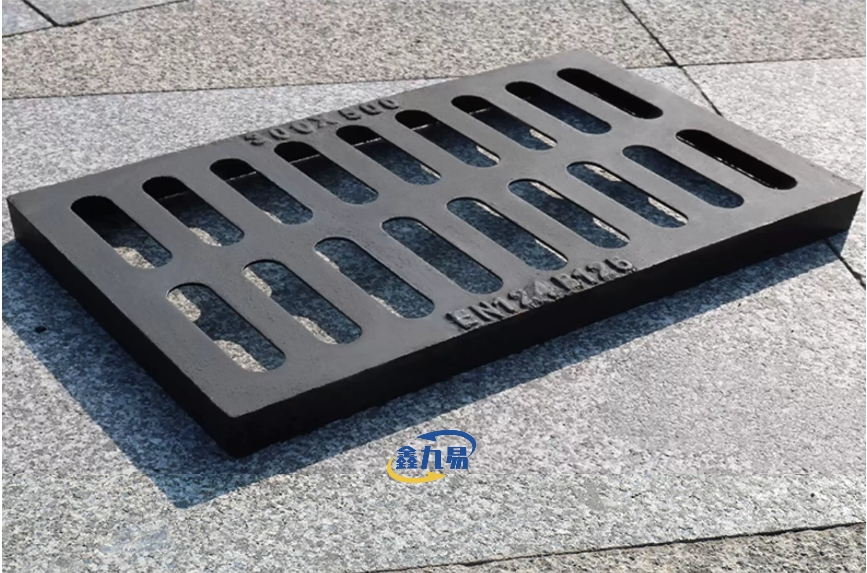

Ductile Iron Gully Grating
Application Scenarios: Urban municipal arterial and secondary roads, express lanes, intersections, expressways, viaducts, tunnels and ring roads; main community roads, garage entrances and commercial street driveways; heavy-load roads of industrial parks and logistics parks; national highways, provincial highways and urban-rural traffic arteries.
Material & Craftsmanship: Integrally cast from high-strength ductile iron. Adopting a unique anti-settlement structural design, the manhole cover and frame achieve integrated load-bearing, with a service life far exceeding ordinary cast iron manhole covers.
Ductile Iron Gully Grating——High-Performance Drainage Solution for Modern Infrastructure
Hebei Xinjiuyi Construction Technology Co., Ltd. conveys proficient Ductile Iron Gully Grating built for requesting street framework ventures. Our gratings are fabricated from high-quality spheroidal graphite press, advertising least ductile quality of 500 MPa and stretching surpassing 7%. This prevalent metallurgical structure gives remarkable load-bearing capacity from Course C250 to F900, making them perfect for heavy-traffic applications.
With coordinates anti-subsidence plan and precision-cast outlines, our item accomplishes consistent integration with street asphalt. Accessible in standard measurements of 600-750 mm length and 400-450 mm width, each unit highlights elastic shock-absorbing fixing strips that kill clamor and avoid relocation. The product's corrosion-resistant properties and frost-thaw resistance guarantee a benefit life distant surpassing conventional cast press arrangements, altogether diminishing your long-term upkeep costs.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | High-strength ductile iron (spheroidal graphite iron) |
| Tensile Strength | ≥ 500 MPa |
| Elongation | ≥ 7% |
| Load Class | C250 / D400 / E600 / F900 (EN 124 standard) |
| Length Options | 600 mm / 700 mm / 750 mm |
| Width Options | 400 mm / 450 mm |
| Surface Treatment | Bitumen coating (50-100 micron) / Epoxy coating optional |
| Frame Integration | Anti-subsidence integrated load-bearing design |
| Sealing System | High-quality EPDM rubber shock-absorbing strips |
| Anti-theft Features | Captive hinge system with optional security bolts |
| Service Life | 25+ years under normal traffic conditions |
Why Choose Our Drainage Grating System
Superior Material Engineering
Your foundation ventures merit materials that perform beneath weight. Our bendable press composition highlights round graphite knobs or maybe than chips, conveying about twofold the affect resistance of conventional dark iron.
This special metallurgical structure anticipates fragile disappointment indeed beneath extraordinary point loads. The material's inborn durability permits it to retain overwhelming impacts without fracturing.
When overwhelming vehicles pass over and over over the surface, the grinding keeps up auxiliary judgment. You won't confront the disastrous disappointments common with second rate materials.
Anti-Subsidence Integration Design
Road settlement around waste covers is a determined industry challenge. Our Ductile Iron Gully Grating fathoms this through coordinates fitting plan between outline and pavement.
The framework synchronizes with roadbed settlement, totally dispensing with tallness contrasts. This avoids the common issue of jutting or depressed covers that harm vehicles and make security hazards.
Your streets keep up uniform levelness all through their benefit life. The precision-engineered outline disperses loads equally over the asphalt structure, securing encompassing black-top or concrete from deterioration.
Silent Operation and Driving Comfort
Nobody wants noisy, rattling drainage covers on their roads. We've engineered machined contact surfaces that create a stable, silent fit within the frame.
High-quality rubber gaskets absorb vibrations and eliminate bouncing when vehicles pass overhead. This dramatically improves driving comfort and reduces noise pollution in residential and commercial areas.
The tight sealing structure also blocks odors from underground drainage systems. It prevents rainwater and sediment backflow that can cause pipeline blockages.
Application Scenarios
Municipal Road Infrastructure
Urban arterial roads and secondary roads require drainage solutions that handle high-frequency traffic without failure. Our D400 and E600 class gratings are specifically designed for these demanding environments.
They perform exceptionally well at intersections, expressway entries, and fast lanes where dynamic loading is constant. The captive hinge design prevents displacement even under heavy braking forces.
For viaducts, tunnels, and ring roads, the corrosion-resistant properties ensure long-term reliability. You won't need frequent replacements that disrupt traffic flow.
Heavy Industrial Applications
Logistics parks, factory zones, and industrial estates present unique challenges. Forklifts, reach stackers, and loaded trucks create extreme point loads that would destroy ordinary gratings.
Our F900 rated product handles these conditions without deformation. The high-strength casting withstands repeated impacts from heavy machinery operating daily.
Port facilities and container yards particularly benefit from the anti-corrosion properties. Even in salt-spray environments, the protective coating maintains grating integrity for decades.
Residential and Commercial Areas
Community main roads and garage entrances need drainage covers that are safe for pedestrians while maintaining hydraulic efficiency. Our designs balance slot width with structural strength.
The anti-skid surface patterns meet safety requirements in wet conditions. This prevents slips and falls while ensuring efficient water intake during heavy rainfall.
Commercial street pavements benefit from aesthetic designs that integrate seamlessly with modern urban landscapes. The gratings enhance rather than detract from the visual environment.
Professional Service System
Customized Installation Support
Every road construction project has unique requirements. We provide professional installation guidance to ensure seamless integration between grating frame and pavement structure.
Our technical team helps you select the appropriate load class based on traffic patterns and vehicle types. This ensures optimal performance without over-engineering.
We guide your installation crews through proper placement techniques that guarantee flatness and stability. This eliminates future maintenance issues related to improper installation.
Load-Bearing Adaptation Services
Different scenarios demand different performance standards. We analyze your specific traffic loads and environmental conditions to recommend the right solution.
Whether you're building municipal roads, logistics facilities, or residential areas, we ensure the Ductile Iron Gully Grating meets required standards. Our products adapt to your project rather than forcing you to adapt to standard offerings.
For special applications like airport taxiways or heavy docks, we provide F900 class gratings with enhanced specifications. You get exactly what your project needs.
Lifecycle Cost Optimization
Your budget concerns extend beyond initial purchase price. We focus on reducing your total ownership costs through superior durability and minimal maintenance requirements.
The corrosion-resistant properties and frost-thaw resistance minimize replacement frequency. This saves substantial labor and material costs over the infrastructure's service life.
The convenient opening design makes routine inspections efficient. Your maintenance teams spend less time accessing underground drainage systems, reducing operational expenses.
Quality Assurance
Rigorous Testing Protocols
We implement comprehensive quality control measures to ensure every grating meets exacting standards. Load-bearing tests verify that products support rated loads without excessive deformation.
Metallographic analysis confirms spheroidization rates exceed 80%, guaranteeing material integrity. Dimensional accuracy checks ensure non-rocking fits that prevent noise and premature wear.
Brinell hardness testing validates surface wear resistance. This ensures long-term performance even under constant vehicular traffic.
Manufacturing Excellence
Our Cangzhou facility operates modern production workshops equipped with advanced casting equipment. Standardized production processes ensure consistent quality across every batch.
Mature supply chain management enables rapid delivery for both domestic and international projects. You receive products on schedule without delays that disrupt construction timelines.
Large-scale production capacity means we handle projects of any size efficiently. From small residential developments to major highway construction, we deliver reliably.
Frequently Asked Questions
Q: How does ductile iron compare to traditional cast iron for drainage gratings?
A: Ductile iron offers nearly double the tensile strength and significantly higher impact resistance. This prevents sudden catastrophic failure under heavy traffic that's common with grey cast iron. The material's ductility allows it to absorb impacts without fracturing.
Q: What load class should I specify for my project?
A: Load class selection depends on installation location and traffic types. C250 suits pedestrian areas and light vehicle zones. D400 is standard for main carriageways and parking areas. E600 handles heavy commercial traffic in industrial zones. F900 is reserved for extreme applications like airport taxiways. We're happy to help you determine the appropriate specification.
Q: How do you prevent noise when vehicles pass over the grating?
A: Our gratings feature precision-machined contact surfaces that create stable, gap-free fits within frames. High-quality EPDM rubber gaskets integrated into the sealing system absorb vibrations and eliminate rattling. This ensures silent operation that maintains neighborhood quality of life.
Q: What anti-theft features protect the gratings?
A: Modern designs incorporate captive hinge systems that make removal extremely difficult without specialized tools. Optional anti-theft bolts provide additional security in high-risk areas. The integrated design means the grating cannot simply be lifted out, deterring opportunistic theft.
Q: How often will I need to replace these gratings?
A: Under normal traffic conditions, our product provides 25+ years of service life. The corrosion-resistant properties and high-strength material minimize wear and degradation. This dramatically reduces replacement frequency compared to traditional cast iron or composite alternatives, lowering your long-term infrastructure maintenance burden.
Contact Us
Contact us today at global@xjy8.com. Our technical team is ready to provide customized solutions for your project requirements for Ductile Iron Gully Grating.
