How much concrete pressure can steel column formwork withstand?

Steel column formwork must resist substantial lateral forces generated by freshly poured concrete. Based on engineering standards and field-validated data, well-engineered square column steel formwork withstands concrete lateral pressure ranging from 40 kN/m² to 80 kN/m², depending on pour rate, concrete temperature, and slump characteristics. At Hebei Xinjiuyi Construction Technology Co., Ltd., our modular column formwork systems are engineered from Q235 cold-rolled steel with integrated stiffening ribs, designed to handle these hydrostatic loads while maintaining dimensional accuracy within ±1 mm — delivering fair-faced concrete finishes without honeycombing or grout leakage.

Understanding Concrete Lateral Pressure and What Steel Formwork Must Resist

As soon as it's poured, fresh concrete acts like a fluid. The water pushes against the walls of the formwork, and the pressure is highest near the base of the pour. The ACI 347R-14 (Guide to Formwork for Concrete) says that the method to find the highest lateral pressure for column formwork is P = wh, where w is the unit weight of concrete (about 23.5 kN/m³) and h is the height of the pour.

Key Variables That Drive Pressure Levels

How much pressure your formwork has to withstand is always based on three things: the rate of pouring, the temperature of the concrete, and the type of additive used. When you pour concrete faster, it doesn't have as much time to start getting stiff, so it stays wet for longer and the horizontal pressure is higher. Lower temperatures make the process of soaking take longer, which makes the fluid pressure range bigger. When you pour high-slump or self-consolidating concrete, the water pressure is almost full throughout the whole pour height. Because of these factors, choosing the right materials and designing the structure are not choices but must be made.

Pressure Resistance Specifications and Design Principles

The building plans for column formwork are based on engineering standards from ACI, EN 12812, and ASTM. Formwork systems must show a safety factor, usually between 1.5 and 2.0, above the calculated maximum working pressure according to these codes. Most residential and commercial column uses design pressures between 40 kN/m² to 60 kN/m². However, high-rise pours or pours with pump help can raise the demand to 80 kN/m².

How Material and Structure Determine Pressure Capacity?

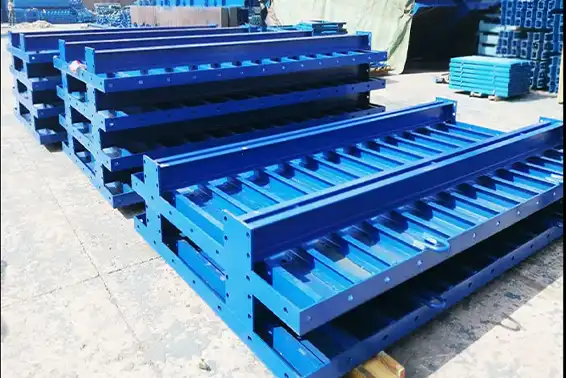

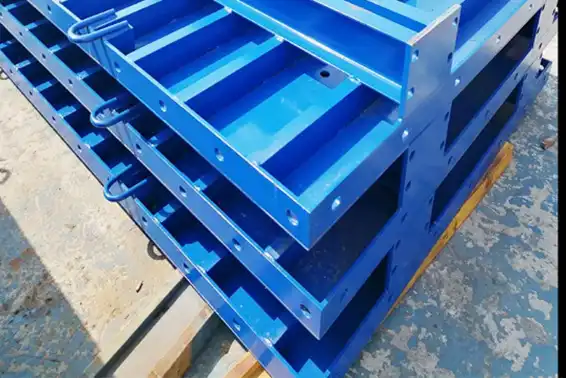

How much weight the system can hold without bending is based on the width of the face plate, the distance between the stiffeners, and the shape of the anchorages. The square column steel formwork in Xinjiuyi is made of Q235 high-strength cold-rolled steel plates that are bonded together with channel steel and angle steel ribs that make them stronger. The process of cutting, bending, and fully welding all at once gets rid of weak spots at joints. Visual and structural checks are done on every weld to make sure it goes all the way through. The connection places of the reinforcing ribs are checked against horizontal pressure and concrete vibrator contact. The GB 50204 deviation limit, L/400, tells us how to shape our panels so that the surface stays straight during each pour.

Panel thickness can be changed to meet the load needs of each project. Standard setups can fit widths from 300 mm to 1600 mm and heights up to 3000 mm. This gives buying teams the freedom to match the shape of the formwork to the structure plans without any problems.

How Installation Practices Directly Affect Pressure Performance?

When installed wrong, even the strongest formwork panel loses its rated strength. The system's real-world pressure resistance is affected by how the panels are aligned, where the braces are placed, and how tight the connections are. Stress builds up in places where tie rods are loose or panels aren't lined up right, which speeds up failure when the load is applied.

Here are the installation practices that most directly protect pressure performance:

• Panel alignment before pouring: Panels must be lined up so that they sit flush against each other and there is no space between them. Even a 1 mm misalignment makes it possible for grout to leak, which weakens the seal and leaves marks on the finished column's surface.
• Brace and clamp torque verification: Each connection point should be tightened to the torque values given by the maker. When vibrations happen, links that aren't tight enough let small movements happen, which add up to noticeable deflection at the surface level.
• Controlled pour rate: To avoid going over the maximum horizontal pressure level, you should only let the concrete rise vertically at the rate that your formwork's pressure design allows. This is very important when using self-compacting or high-slump mixes.
• Environmental temperature monitoring: When it's cold, concrete stays fluid for longer, so it can hold lateral pressure for longer. This risk can be successfully managed by changing your pour plan or using insulated curing methods.

These practices work together to ensure that your formwork system performs at its engineered capacity across every pour cycle. Neglecting any single factor can reduce effective pressure resistance below the design threshold, creating rework costs that dwarf the original material savings.

Comparing Steel, Timber, and Aluminum Column Formwork by Pressure Capacity

When building a tower, the choice of material affects everything that comes after. Even though timber formwork is easy to find, it can only handle lateral pressures of up to 30 kN/m² in normal conditions, and it loses its structural strength when it gets wet. Aluminum formwork is lighter than steel, but it can't handle as much pressure. This means it's not as good for high-rise columns where pump-fed concrete creates high hydrostatic loads.

Steel column formwork always does better than both options when it comes to resistance to pressure, steadiness in dimensions, and the ability to be used again. While wood warps and metal bends, Q235 steel panels keep their shape over 300 or more pour cycles with proper upkeep. Xinjiuyi's full-welding production method gets rid of the gaps between joints that let grout leak out, which is a common way for wood and some aluminum systems to fail. For purchasing managers looking at lifecycle costs, steel's 300+ reuse cycles spread the cost of acquisition across enough pours to make per-use savings over other materials that are meaningful.

In terms of shape, square column steel formwork spreads the weight of the concrete across flat panel faces, which needs strong stiffener reinforcement in the middle. Pressure is spread out in a circle by circular column shapes, which lowers bending stress but limits the modular freedom. Most residential and commercial column grids can use square profiles. This makes modular square systems the practical standard choice for most B2B procurement situations.

Enhancing Durability and Maintaining Safety Standards Over Time

For sustained pressure performance, maintenance must be done regularly between pour cycles. After cleaning, any leftover concrete should be cleaned up right away so that the surface doesn't harden and damage the panel face when it's used again. Xinjiuyi panels have an anti-corrosion painted surface that can stand up to the alkaline climate of new concrete. However, the coating can be touched up before corrosion weakens the structure if it is checked for damage on a regular basis.

Xinjiuyi is certified by ISO 9001, ISO 45001, and ISO 14001, which makes sure that environmental, health and safety at work, and quality management standards are followed at every stage of production. Before leaving our plant, each batch of panels is checked for flatness (within a maximum 2 mm deviation across the panel face), dimensional accuracy (within ±1 mm tolerance), and weld integrity. For seaside or chemically harsh areas, galvanized surface treatment updates are available to make the service life longer than painting versions.

Conclusion

The numbers are clear: column formwork must be able to safely handle 40 kN/m² to 80 kN/m² of lateral pressure from concrete, based on the project conditions. These needs can be met by properly designed square column steel formwork made from Q235 cold-rolled steel with full-weld construction and built-in strengthening ribs. It can be used over 300 times and still have a smooth, even surface. Choosing the right materials, installing them correctly, and keeping up with maintenance are all factors that affect how well your formwork works over the course of a project.

FAQ

What is the maximum concrete pressure steel column formwork can safely handle?

When it comes to pour rate, temperature, and mix design, well-engineered square column steel formwork systems can handle side pressures of 40 kN/m² to 80 kN/m². The top of this range is safely supported by high-strength Q235 steel that has stiffening rods built right in and is made with full-weld construction.

How does pour rate affect lateral pressure on column formwork?

Faster pour rates keep the concrete fluid for longer, which keeps the hydrostatic pressure against the walls of the formwork close to full. The easiest way to deal with this risk is to make sure that the vertical rise rate is equal to the design pressure capacity of your formwork.

How many reuse cycles can steel column formwork achieve?

Quality steel column formwork systems can be used 300 times or more if they are cleaned, stored, and maintained properly between rounds. Because it can be used again, the cost of materials per pour is much lower than with wood options.

Can steel column formwork be customized for non-standard column sizes?

Yes. Custom widths and heights outside of standard series are possible, and the fabrication process usually takes 14 to 21 days after the drawing is approved and the quality is checked.

What certifications should a reliable steel column formwork supplier hold?

A good starting point is to look for ISO 9001 quality control approval. Having ISO 45001 and ISO 14001 certifications shows that a company cares more about worker safety and environmental management throughout the whole manufacturing process.

Partner with Xinjiuyi — Your Trusted Square Column Steel Formwork Manufacturer

Xinjiuyi makes enterprise-grade square column steel formwork that is made to withstand the forces of real concrete over hundreds of uses. Our construction with Q235 steel, ±1 mm dimensional tolerance, and ISO-certified quality processes give procurement teams confidence from the first question they ask to the last delivery. Our engineering team is ready to help you with your project, whether you need standard panel series or fully customized non-standard configurations. To get a professional advice and quote right away, email us at global@xjy8.com or go to xjy8.com.

References

1. American Concrete Institute. ACI 347R-14: Guide to Formwork for Concrete. ACI, 2014.

2. British Standards Institution. EN 12812:2008 — Falsework: Performance Requirements and General Design. BSI, 2008.

3. ASTM International. ASTM E1745: Standard Specification for Plastic Water Vapor Retarders Used in Contact with Soil or Granular Fill under Concrete Slabs. ASTM, 2017.

4. Hurd, M.K. Formwork for Concrete, 7th Edition. American Concrete Institute, 2005.

5. China National Standard. GB 50204: Code for Acceptance of Constructional Quality of Concrete Structures. Ministry of Housing and Urban-Rural Development of China, 2015.

6. Peurifoy, R.L., and Oberlender, G.D. Formwork for Concrete Structures, 4th Edition. McGraw-Hill, 2011.
