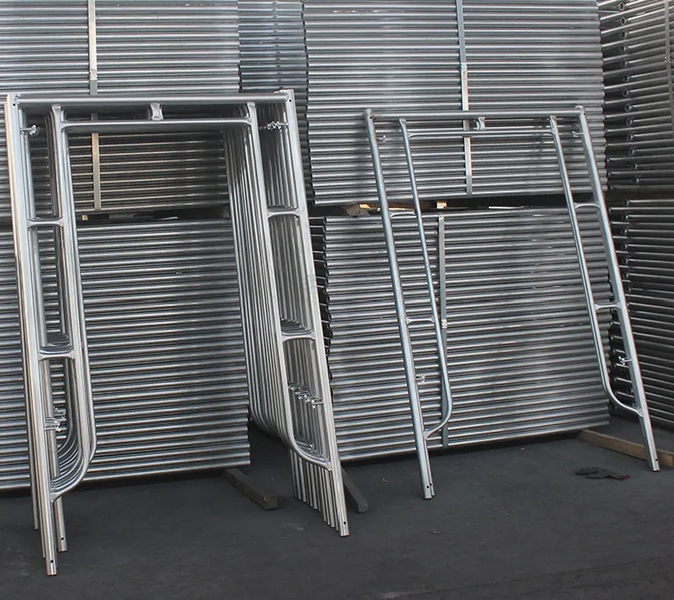

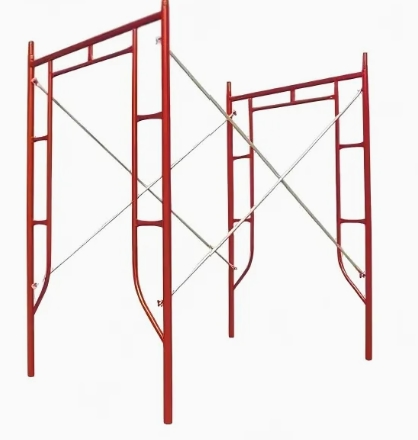

Double Ladder Walk-Through Scaffolding
Application Scenarios: Building construction, bridge construction and maintenance, tunnel support, infrastructure, industrial maintenance, power plants, petrochemical plants, cantilever structures, suspended operations, temporary passages, exhibition construction.
Material & Craftsmanship: Q235/Q355 low-alloy high-strength steel, 6061-T6 aerospace aluminum, 45# steel forgings/cast steel, hot-dip galvanizing, electro-galvanizing, powder coating, painting.
Double Ladder Walk-Through Scaffolding – Professional Modular Access Solution from Hebei Xinjiuyi
Hebei Xinjiuyi Construction Technology Co., Ltd. conveys Double Ladder Walk-Through Scaffolding planned particularly for high-access development situations where proficiency and security are basic. Our secluded outline framework highlights coordinates vertical step rungs on both sides and an unhindered lower clearance zone that permits continuous level mobility.
Built with high-strength Q235 area steel and hot-dip galvanized anti-corrosion treatment, our outlines back loads up to 75 lbs per square foot. Standard measurements incorporate lengths of 1800 mm to 1930 mm, widths from 950 mm to 1250 mm, and customizable statures from 1524 mm to 1931 mm. The quick-disassembly plan empowers tool-free gathering in most cases, diminishing on-site establishment time by up to 40% compared to conventional platform systems.
Why Choose Our Double Ladder Walk-Through Scaffolding
Dual Access Design for Maximum Efficiency
The double-sided step setup disposes of the require for partitioned outside step connections. You get two autonomous get to focuses on each outline, which implies your groups can enter and exit at the same time without bottlenecks.
This plan altogether diminishes blockage amid move changes. It too gives repetitive crisis departure courses, assembly OSHA and EN security measures for secured vertical access.
Unobstructed Walk-Through Clearance
Unlike conventional stone work outlines with cross-braces blocking ground level, our framework highlights open lower clearance. Your laborers can transport materials along the stage whereas ground-level operations proceed underneath.
This fathoms a center industry torment point. You do not require to destroy areas or climb over impediments when moving gear on a level plane through the work zone.
Superior Load-Bearing Performance
Our frames use high-tensile carbon steel tubing with 42 mm or 48 mm outer diameter and wall thickness ranging from 2.0 mm to 3.5 mm. The symmetrical structural load distribution ensures stability even under heavy-duty applications.
Anti-slip checkered steel planks with reinforced edges provide reliable footing. Precision-cast connectors ensure tight connections without wobbling, maintaining structural integrity throughout extended project durations.
Technical Specifications
| Parameter | Standard Options | Customization Available |
|---|---|---|
| Length | 1800 mm / 1930 mm | Yes, based on project requirements |
| Width | 950 mm / 1219 mm / 1250 mm | Yes, non-standard dimensions supported |
| Height | 1524 mm / 1700 mm / 1900 mm / 1931 mm | Yes, engineered to site specifications |
| Material | Q235/Q355 low-alloy high-strength steel | 6061-T6 aerospace aluminum available |
| Surface Treatment | Hot-dip galvanizing (≥60μm thickness) | Powder coating option for premium finish |
| Tube Diameter | 42 mm / 48 mm | — |
| Wall Thickness | 2.0 mm – 3.5 mm | — |
| Load Capacity | Up to 75 lbs per square foot | Verified through destructive load testing |
| Pin Spacing | Standard 4-foot / 2-foot compatibility | Universal accessory integration |
Primary Application Scenarios
Large-Scale Commercial Construction
In commercial masonry and facade cladding projects, the walk-through design allows seamless material transport along platforms. Multiple crews can work simultaneously with dual access points, dramatically improving workflow efficiency.
Large factory buildings and sports venues benefit particularly from this configuration. The spacious interior clearance accommodates high-volume material staging while maintaining safe vertical access.
Industrial Maintenance Environments
Refinery and power plant maintenance requires Double Ladder Walk-Through Scaffolding that withstands high wind loads and chemical exposure. Our structural rigidity excels in these complex environments where interior transit is often restricted.
The hot-dip galvanized finish provides corrosion resistance in saline or high-humidity conditions. You get long-term durability without frequent maintenance intervals disrupting critical operations.
Interior High-Ceiling Renovations
Airport terminals, theaters, and exhibition halls require work platforms that don't block ground-level pedestrian flow. Our system serves as a stable mobile tower that permits operations underneath the work zone.
This minimizes facility downtime. Your renovation team works overhead while normal business activities continue below, reducing revenue loss for your client.
Quality Control Process
Five-Point Inspection System
We implement rigorous quality verification across five critical vectors:
Weld Integrity: Every joint undergoes non-destructive testing (NDT) using CO2 shielded arc welding to ensure zero porosity.
Dimensional Precision: Frame verticality and locking pin distances are accurate to within ±1.5 mm, guaranteeing modular compatibility across all components.
Material Verification: Each production batch includes Mill Test Reports (MTR) confirming chemical composition and yield strength meet specifications.
Salt Spray Testing: Our finishes exceed 500-hour resistance benchmarks, ensuring long-term performance in aggressive environments.
Structural Load Testing: Both destructive and non-destructive tests confirm a 4:1 safety factor as per industry regulations.
Installation and Service Support
Quick-Disassembly Design
Most assembly operations require no tools. Our engineering team designed connection points for rapid field deployment, allowing your crew to complete setup in a fraction of traditional installation time.
Standard 4-foot or 2-foot pin spacing ensures compatibility with universal cross-braces and screw jacks. You can integrate our frames seamlessly with existing Double Ladder Walk-Through Scaffolding inventory.
Professional Technical Guidance
Xinjiuyi provides comprehensive project support from planning through completion. Our technical team assists with:
- Customized solution planning based on site-specific requirements
- Load calculation verification and structural engineering consultation
- On-site installation guidance and crew training
- After-sales support and maintenance recommendations
We customize specifications according to your project drawings and dimensional requirements. Our precision manufacturing capabilities ensure accurate production matching your exact application scenarios.
Frequently Asked Questions
Q:What is the maximum height allowed for tower configurations?
A:The height-to-base ratio should not exceed 4:1 per OSHA standards or 3:1 per EU regulations without additional outriggers or wall ties. Our engineering team can calculate proper bracing requirements for your specific elevation needs.
Q:How does the double ladder design improve safety over single-ladder frames?
A:Dual ladders provide redundant emergency egress routes and reduce worker congestion during shift changes. This configuration meets or exceeds protected vertical access requirements in OSHA and EN safety standards.
Q:Are these frames compatible with standard scaffold accessories?
A:Yes, our frames feature standard pin spacing designed to work with universal cross-braces, screw jacks, and platform planks. You can integrate them into existing scaffolding systems without compatibility issues.
Q:What maintenance is required for galvanized frames?
A:Regular visual inspections for tube deformation, weld cracks, and localized rust are essential. Minor surface damage can be repaired with zinc-rich cold galvanizing spray to maintain corrosion protection.
Q:Can this scaffolding be used for heavy-duty shoring applications?
A:While primarily designed for access, it can serve shoring functions if an engineer of record confirms leg load capacity meets specific concrete slab requirements. Contact our technical team for load calculation assistance.
Q:What is the difference between hot-dip galvanizing and powder coating?
A:Hot-dip galvanizing provides base-level corrosion protection suitable for most construction environments. Powder coating offers a premium finish with enhanced chemical resistance and aesthetic appeal, ideal for high-visibility projects or corrosive industrial settings.
