If you go to any construction site in North America, you'll probably see a modular scaffolding system with vertical frames and ladder rungs built right in. This is American type frame scaffolding, a strong and effective way to provide safe working platforms, support for storing materials, and structural help in a wide range of building sites. This system meets important needs in the industry by being made mostly of Q235 or Q355 high-strength steel and treated with hot-dip galvanizing or powder painting. It can be put together quickly, meets OSHA safety standards, and can be changed to fit the needs of complex projects. The built-in ladder in the frame makes it unique because it removes the need for separate access tools. This makes setup and work more efficient.

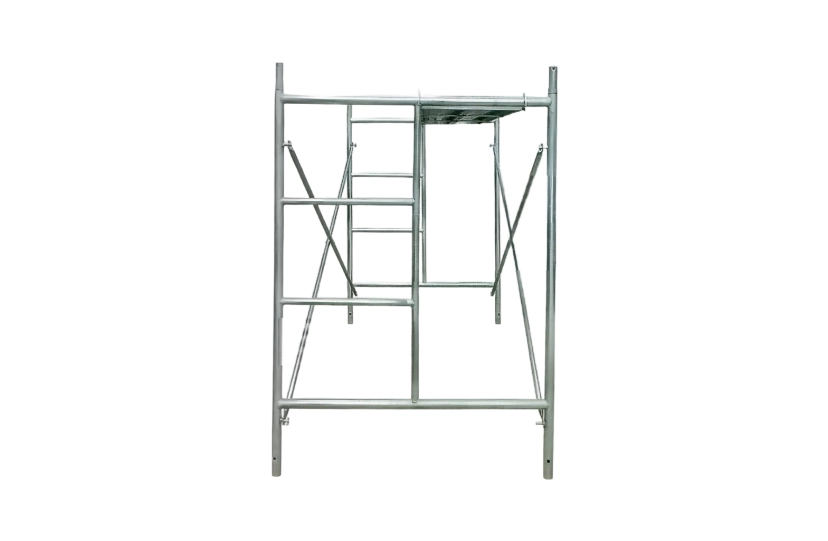

Understanding American Type Frame Scaffolding

How American type frame scaffolding works

Core Design and Structural Components

The steel frames of this scaffolding system are rectangular and usually come in heights between 1524 mm and 1930 mm and widths between 950 mm and 1250 mm. Each frame has horizontal rungs that are welded right into the vertical tubes, making a climbing path that is part of the frame itself. Cross braces connect frames that are at right angles to each other, making stable bays that can be stacked vertically or stretched out horizontally. No special tools are needed to make links with coupling pins, which can be flip-locks, drop-locks, or slide-locks.

Material Standards and Load Capacity

These frames are made by Hebei Xinjiuyi Construction Technology out of Q235 high-frequency welded steel pipes with walls that are 2.0 mm to 2.5 mm thick. This choice of material strikes a good balance between structural strength and reasonable weight, so it can be handled by hand and still hold up under active loads. The corrosion protection of Q355 low-alloy high-strength steel is better for projects that will be subject to salt spray or chemical conditions. Load capacity is designed to support basic brickwork and cladding work. Specific values are based on tests that follow ANSI/SSFI SC100-5/05 guidelines.

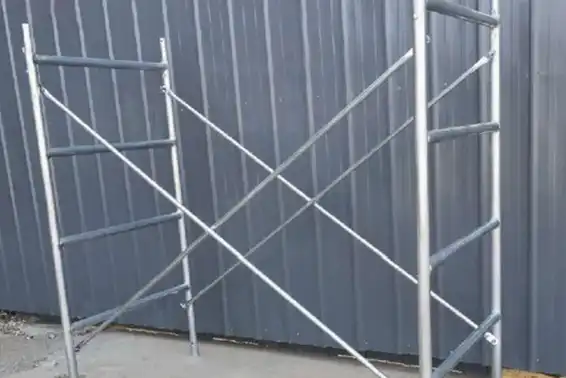

Frame Variants and Configuration Options

Two main types of frames are used for different things. Walk-Thru frames have an open opening at the base that lets people and things pass under the structure. To support heavy concrete loads, mason frames have joints that are stronger and rungs that are closer together. In addition to these standard sizes, custom configurations can be made to fit non-standard floor-to-floor gaps or specific attachment points for temporary passages and cantilevered platforms, all of which are available within the American type frame scaffolding system.

Because this system is modular, procurement teams can change the size of their inventories to fit the needs of their projects. Standardized measurements make sure that batches are compatible with each other, which makes it easier to coordinate operations that happen at multiple locations or rental stocks.

Advantages and Benefits for Construction Projects

Picking the correct support system has a direct effect on project timelines, safety records, and total profits. There are real benefits to ladder frame scaffolding that project managers, procurement officers, and safety directors all like.

Rapid Deployment and Labor Efficiency

The design of the integrated ladder saves time and money by getting rid of the need to move and set up separate access equipment. As workers move up and down within the frame structure, they keep working and getting things done. Assembling doesn't require any special skills; crews can quickly lock frames and braces together and change the arrangements as the project progresses. This speed is especially useful for fast-track urban projects where being late on the schedule costs a lot of money.

Compliance with Safety Regulations

All climbing systems must have a 4:1 safety factor, as required by OSHA 1926.451. Manufacturers of good products put their products through rigorous load tests and keep records that can be inspected by regulators. Ladder frame scaffolding that is put together correctly has guardrails, toe boards, and strong base supports that meet or go beyond these standards. Hebei Xinjiuyi's ISO9001 and ISO45001 certifications show that they have strict quality control methods in place, from checking the raw materials to doing a final review. This makes sure that every frame that leaves the factory makes the job site safer.

Durability and Lifecycle Economics

Surface treatments make things last a lot longer. For projects that will last a modest amount of time, electro-galvanization is a cost-effective way to protect against corrosion. For outdoor uses, hot-dip galvanizing is more stable for up to 20 years. Powder finishing adds an extra layer of protection and lets you use brand-specific colors on places that a lot of people will see them. Because the system lasts a long time, it costs less per project when spread out over many deployments. This makes it appealing to contractors who are in charge of ongoing infrastructure maintenance or building projects.

Versatility Across Application Scenarios

Ladder frame scaffolding can be used for a wide range of tasks, from building high-rise homes to maintaining bridges, turning around power plants and supporting tunnels. Its small size makes it good for remodeling inside spaces that are tight, and its ability to stack multiple levels makes it useful for building exteriors and restoring facades. Event planners use the system to set up portable grandstands and stage rigging, and they like how easy it is to take down and move from one place to another. Industrial repair teams set up rolling towers with casters and outriggers, moving platforms to get to machinery and pipes above without taking the whole thing apart. These benefits apply equally to American type frame scaffolding, which shares the same modular advantages. Knowing these benefits helps people make decisions about whether this type of scaffolding fits with their business goals and project portfolios.

Comparison with Other Scaffolding Types

Before finalizing seller deals, people who work in procurement often look at more than one scaffolding system. Each system has its own features that make it better for different types of projects and budgets.

Structural Design Differences

Ringlock scaffolding uses a rosette-based connection method with eight connection points per node. This lets you make cantilevers and complex geometric shapes. This freedom is good for projects that need to load heavy things or have odd patterns. Cuplock scaffolding has a cup-and-wedge mechanism that locks four connections at the same time. This makes it great for buildings with multiple stories. European scaffolding, which usually has tube-and-clamp connections, is very flexible but needs skilled workers to put together safely.

Ladder frame framing puts speed and ease of use first. Its set rectangular shape makes it hard to make complicated shapes, but it works great for simple, repeated tasks like installing siding on homes, building warehouses and fixing up bridge decks. The built-in ladder gets rid of the risk of cross-contamination that comes with having separate access equipment. This makes the site safer and easier to organize.

Safety Features and Compliance

Even though all systems have to meet OSHA guidelines, how they are put together varies. Ladder frame scaffolding is stable because it has a wide base and strong locking pins. Ringlock systems, on the other hand, depend on precisely machined rosettes and strong ledgers. The closed-frame design of the ladder system protects against falls during building. With tube-and-clamp scaffolding, on the other hand, workers have to build guardrails one step at a time as they climb.

Cost Considerations

The costs of buying vs. renting rely on how often the property is used. When contractors need scaffolding for multiple jobs at the same time, they can save money by owning the equipment and spreading the costs out over hundreds of placement days. Specialty contractors or companies that are entering new markets may like renting agreements because they don't have to pay for capital or upkeep. Ladder frame scaffolding is long-lasting and doesn't need much upkeep, which lowers the total cost of ownership. Its standard parts also make it easy to keep track of inventory and find new parts. These similarities help procurement teams match the needs for scaffolding with the goals of the project, the rules that apply, and the company's long-term strategy plans.

How to Assemble American Type Frame Scaffolding Safely

Correct assembly saves workers, keeps projects on schedule, and makes sure that rules are followed. Following a set of steps reduces danger and improves the performance of a structure.

Site Preparation and Foundation Assessment

Check the ground for levelness, stability, and drainage before putting up any scaffolding. Base plates and movable screw jacks are needed to level and spread loads evenly on soft or uneven ground. Clear away any clutter and set up no-go zones to keep people from getting in while the parts are being put together. Check that the planned heights can be accommodated by the ceiling openings and that there are lateral bracing points on buildings nearby.

Step-by-Step Erection Process

Place the base frames on the prepared footings and use a spirit level to make sure they are straight. Connect cross braces between frames that are at right angles by putting coupling pins in them. This makes a stable bay. This is the standard assembly procedure for American type frame scaffolding. Add more frame levels and make sure that each link locks firmly and that the rungs are aligned the same way in all of them. Place intermediate platforms at heights where you will be working and use hooks or clamps to hold them in place. Before letting workers in, add guardrails, mid-rails, and toe boards. For heights greater than three levels, use wall ties at intervals determined by engineering calculations to connect the scaffolding to the building structure.

Common Assembly Challenges

Uneven ground makes straight line harder. To fix this, use adjustable screw jacks that can adapt to changes in the grade without affecting the stability. Joint security rests on pins engaging properly. Check each link to make sure the pins are fully inserted and locked. The weather, especially wind and rain, can make it less safe to put things together. Stop work when there are strong winds that could knock down partly built structures, and make sure that wet surfaces on platforms or rungs don't make them dangerous to slip on.

Safety Best Practices

When putting things together, workers must wear the right safety gear, like hard hats, shoes that don't slip and fall protection belts when they are above six feet. Check for damage or movement in pins, braces and platforms at the start of each shift as part of routine safety checks. To keep things from getting too heavy, make load limits clear and follow the rules for storing things. Scaffolding should only be put up, changed, or taken down by people who have been trained to be competent persons according to OSHA standards. These routines turn legal requirements into actions that can be done on-site. They keep teams safe and the project moving forward.

Procurement and Supplier Insights for B2B Clients

To find your way around the scaffolding supply market, you need to know what makes trusted partners different from transactional vendors: the ability to manufacture, the ability to customize, and the commitment to service.

Sourcing Strategies for Construction Firms

When you buy directly from the factory, you have the most control over the specifications and delivery times. When you work with makers like Hebei Xinjiuyi, you can get access to engineering teams that look over site plans and suggest the best ways to set things up. Large contractors who are in charge of building projects that last more than one year will benefit from this method because it ensures consistent product quality and stable prices. Distributors and renting houses help workers with a range of needs by providing flexible terms and stock that is available in the area. Check the names of distributors by looking at their networks of suppliers, how quickly they sell their stock, and how well they can help with technology issues.

Key Procurement Evaluation Criteria

Project plans are directly affected by lead times. Companies that have their own galvanizing lines and integrated supply chains can shorten the time it takes to make things, while companies that rely on outside treatments may have to wait during busy building seasons. This is especially true for products like American type frame scaffolding, where consistent quality and timely delivery are critical. Terms of the warranty show how confident the maker is in the product; complete coverage means that quality control is strong, while limited warranties could mean that the product won't last as long as expected. Support after the sale, such as getting replacement parts and technical help, increases the value of a product after it has been delivered.

Customization and Bulk Order Benefits

While standard scaffolding can work for most jobs, it's better for those with specific needs to have it customized. Manufacturers can change frame heights to fit certain floor-to-floor measurements, ask for better surface treatments for harsh settings, or add special connection points for platforms that are hung. Bulk orders lead to economies of scale, and negotiating annual supply agreements locks in good prices and makes sure that production slots are available when demand goes up.

Evaluating Manufacturing Credentials

Getting ISO9001 approval shows that you have a method for managing quality, from buying materials to checking them for quality at the end. ISO45001 shows that a company cares about worker health and safety, and that the methods used to make goods are safe for workers and reliable. ISO14001 approval is about taking care of the earth, which is useful for clients who have to be sustainable. By asking for weld inspection records, load test data, and measures of coating thickness, you can get objective proof of how well the product was made. When buyers understand these aspects of procurement, they can build relationships with suppliers that deliver consistent value and support long-term operational success.

Conclusion

Ladder frame scaffolding has been used for a long time and has been shown to help construction companies meet safety, efficiency, and regulatory requirements. Its integrated design speeds up assembly, lowers the cost of labour, and makes it flexible for a wide range of uses, from high-rise construction to industrial maintenance. American type frame scaffolding is one such system that exemplifies these benefits. Lifecycle performance is based on the quality of the materials, the accuracy of the manufacturing process, and the surface treatments that are applied. Choosing a supplier is a strategic decision that affects how the project turns out over years of deployments. When purchasing managers look at structural requirements, review different system options, and work with makers that can make changes, they set up their companies to meet changing project needs while keeping workers safe and total costs low. This type of scaffolding is easy to keep track of because it comes in modules and standard sizes. This makes it possible to expand operations as project files grow.

FAQ

1. What distinguishes Walk-Thru frames from Mason frames?

Walk-Thru frames have an open path at the base that lets people and material carts go under the scaffolding without taking apart any parts. This feature is useful in cities where the sidewalks need to stay open while work is done on the facade. Mason frames have vertical tubes that are strengthened and rungs that are spaced closer together so they can hold big loads of masonry and give workers many places to climb when they are moving things up and down.

2. How do I verify load capacity compliance?

Load test certifications that meet ANSI/SSFI norms are given by reputable makers. These papers say how much weight can be evenly spread out and piled up per bay. Check these scores against how much space you need to store materials and how many people will be working on the job. If you're not sure, talk to a structural expert about how to set up the scaffolding based on the conditions at the spot.

3. Can frames from different manufacturers be mixed?

Many companies use the same size standards, so mixing parts could result in coupling pin spacing or tube diameters that don't work together. This breaks safety rules and threatens the structure's integrity. Use only parts from a single maker for each job to make sure connections are safe and performance is consistent.

4. What surface treatment offers the best value?

Hot-dip galvanizing has the longest service life and is best for equipment that will be kept for decades. Powder painting is a good way to protect things for shorter-term projects or indoor uses, and it lets you choose your own colours. For moderate-length outdoor use, electro-galvanizing strikes a good balance between price and performance. Choose a treatment based on how often it will be used and how much it will be exposed to the surroundings.

Partner with Xinjiuyi for Reliable Ladder Frame Scaffolding Solutions

To get scaffolding systems that meet strict safety standards and help projects get done quickly and well, you need to buy them from a company with a history of success and customer-focused service. This is exactly what Hebei Xinjiuyi Construction Technology offers. Our certified Q235 high-strength steel ladder frame scaffolding is made with precise welding and controlled galvanizing to give your projects the durability and compliance they need. As an American company that sells type frame scaffolding, we can fully customize the sizes, materials, and finishes of our products to fit your particular needs.

Our ISO-certified factory in Cangzhou makes sure that the quality of every production run is the same. Our engineering team also helps with technical questions from the beginning of the planning process to on-site help. We offer standard safety solutions that keep your workers safe and projects on schedule, whether you're in charge of building tall buildings, improving infrastructure, or industrial maintenance programs. Email our team at global@xjy8.com to talk about your needs, get full technical specifications, and look into bulk purchasing choices that fit your business's needs.

References

1. American National Standards Institute. (2021). Safety Requirements for Scaffolding – ANSI/SSFI SC100-5/05. Scaffold and Access Industry Association, Washington, DC.

2. Occupational Safety and Health Administration. (2020). Scaffolds in Construction: OSHA Standard 1926.451. U.S. Department of Labor, Washington, DC.

3. Palmer, M. & Richardson, J. (2019). Structural Design and Analysis of Temporary Access Systems. Construction Safety Press, Boston, MA.

4. Chen, W. (2022). Steel Frame Systems for Construction Applications: Materials, Manufacturing, and Performance. International Journal of Construction Engineering, Vol. 34, pp. 112-128.

5. National Association of Scaffolding Contractors. (2021). Guide to Scaffolding Selection and Procurement for Commercial Construction. NASC Publications, London, UK.

6. Thompson, R. & Lewis, K. (2020). Comparative Analysis of Modular Scaffolding Systems: Safety, Efficiency, and Economic Considerations. Journal of Construction Management and Economics, Vol. 28, No. 3, pp. 245-267.

When project managers and safety officers walk around building sites, they often run into the same problem: how to make sure that there is good access up and down and smooth movement of materials across the ground. With traditional scaffolding, workers have to climb over cross-braces or move around frames, which slows them down and raises the risk of an accident. The innovative modular construction of double ladder walk-through scaffolding specifically solves this issue. There are built-in vertical ladder rungs on both sides of each frame of this specialised access system. The lower clearance area is left open so that people and equipment can move freely at ground level. In regular masonry frames, horizontal members make it impossible to get through. With this design, you don't have to take apart sections or climb over things to move materials across the work zone. The two-way design makes it much easier to get out of the building during shift changes and meets both OSHA and EN safety standards for covered vertical access in high-risk work settings.

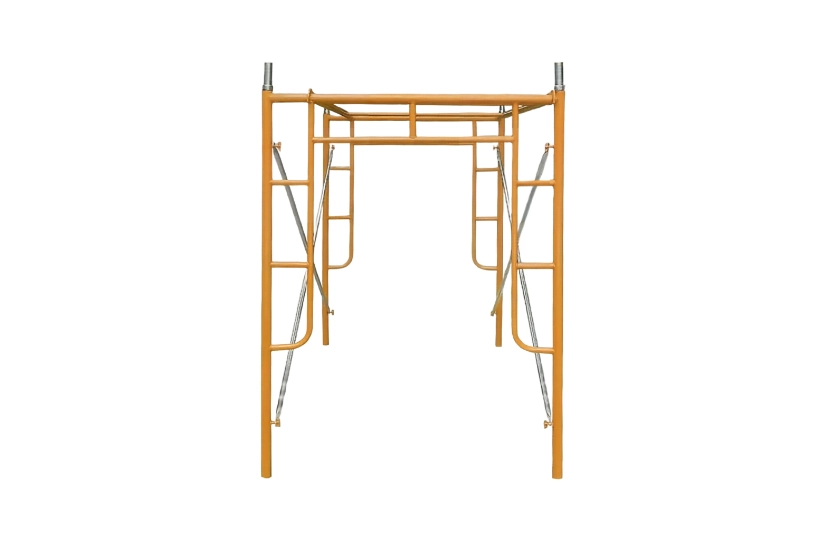

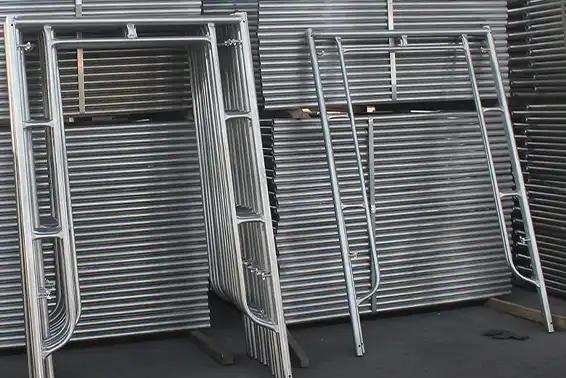

Understanding Double Ladder Walk-Through Scaffolding

Core Structural Design Principles

The unique thing about this kind of scaffolding is that its structure is symmetrical. Each frame unit has two parallel vertical stairs placed on opposite sides. This makes two separate climbing tracks that keep workers from bumping into each other when the frames are being used at the same time. The lower part stays open all the way down, making what we call the "walk-through clearance zone." This structural method fixes a basic workflow problem that procurement managers often talk about: they can't keep up with tasks at ground level while also making sure that people can safely reach higher levels.

Hebei Xinjiuyi Construction Technology Co., Ltd. makes frames out of Q235 and Q355 low-alloy high-strength steel that has a high tensile strength. The outside sizes of the tubes are usually 42 mm or 48 mm, and the wall thickness is between 2 mm and 3.5 mm. This standard gives frames great strength-to-weight ratios, so when properly braced, each one can hold up to 75 pounds per square foot of weight. The choice of materials makes sure that the building will last in a wide range of temperatures, from the humid ports of Southeast Asia to the dry conditions of infrastructure projects in the Middle East.

Standard Dimensions and Load Capacities

The frame sizes have a direct effect on how well a project works with it. Lengths range from 1800 mm to 1930 mm, widths from 950 mm to 1250 mm, and heights that can be changed from 1524 mm to 1931 mm. These measures are in line with modular building methods, which makes it easy to add to current inventories of scaffolding. Standard 4-foot or 2-foot intervals separate the pins, making them work with universal cross-braces, screw jacks, and platform planks.

There are both damaging and non-destructive testing methods used for load capacity proof. As required by industry standards, each output batch goes through a structural study to make sure it has a minimum 4:1 safety factor. Our engineering team offers load calculation verification services that help project managers choose the right configuration for tasks like building an industrial plant, maintaining a bridge, covering a building's facade, or setting up double ladder walk-through scaffolding.

Material Varieties and Surface Treatments

The choice of material has a big impact on how well it works and how often it needs to be maintained over time. In addition to normal carbon steel, we also offer 6061-T6 aircraft aluminium for uses that need to be light and move things around a lot. Aluminium frames are easier to move by hand and keep their structural integrity. This is especially helpful when remodelling inside, where heavy equipment can't be put on the floor because of weight limits.

Hot-dip galvanising with a zinc coating layer of at least 60 µm, electro-galvanizing for indoor use, and architectural-grade powder coating are all surface treatment choices. Hot-dip galvanisation is better at protecting against rust; salt spray tests showed results that were higher than 500 hours. In places like petrochemical plants, power plants, and seaside building sites where chemicals and high humidity would quickly rust steel that isn't protected, this finish works really well.

How to Use and Set Up Double Ladder Walk-Through Scaffolding Safely

Step-by-Step Installation Guidance

Site evaluation is the first step in a proper installation. The ground must be able to hold the heavy loads on each frame leg. When the ground isn't level, adjustable screw jacks level the base and spread the weight over a bigger area. The steps for putting it together are logical: put the base plates in place, add the adjustable legs, set up the frames at the right distances, attach the cross-braces diagonally between the frames, lock the connection points with locking pins, and cover the work platform with anti-slip steel planks that have been checked and reinforced along the edges.

Our quick-disassembly design lets you put it together without tools in most situations. Precision-cast parts are used in connection spots so they lock tightly without the need for tools or hammers. Compared to traditional methods, this feature cuts on-site installation time by about 40%. This has a direct effect on project plans and labour costs. Because it is modular, crews can change or add to layouts as they work without having to take everything apart.

OSHA Compliance and Hazard Mitigation

Understanding height-to-base relationships is the first step to following the rules. European standards say that standalone towers can't have ratios higher than 3:1 without extra support, while OSHA rules say that ratios can't be higher than 4:1. For projects that go over these limits, outriggers or wall ties must be used at certain times. The two ladders make the system safer by giving people two ways to get out in case of an emergency, which is a very important feature for elevated work platforms.

Common dangers include frame weakness from bad support, platform gaps that can cause trips, and not enough guardrails where the level changes. Systematic inspections before every shift, installing guardrails at all open edges, and making sure that people who build or change scaffolding structures such as double ladder walk-through scaffolding get the right training are all ways to reduce risks. Hard hats, shoes that don't slip, fall protection belts when working above six feet and gloves during assembly to keep your hands from getting hurt by sharp edges are all pieces of personal protective equipment that should be worn.

Maintenance and Inspection Protocols

Regular care keeps things in good shape and extends their useful life. Visual checks should find deformed tubes, weld cracks, bent rungs, broken locking pins, and spots where rust is getting through protective coats. Because welding changes can make structural certifications less reliable, damaged parts must be taken out of service right away and replaced instead of being fixed.

How to clean depends on what the world is like. To keep wetness from staying in, construction dust and mortar leftovers need to be pressure washed and then dried completely. When chemicals are exposed in the workplace, they need to be neutralised before they can be stored. For proper storage, items should be stacked horizontally in dry areas with enough air flow to keep them from touching the ground, which speeds up corrosion. Zinc-rich cold galvanising spray can fix minor galvanisation damage, but if the coating is completely worn off, it needs to be re-galvanized by a professional.

Comparing Double Ladder Walk-Through Scaffolding with Other Options

Advantages Over Single Ladder Frames

Extra access equipment is needed for single ladder frames, which makes setup more difficult and costs more. The combined dual ladder method gets rid of this dependence, which means workers who are in charge of multiple places don't have to keep as many parts on hand. This system is different from standard frame scaffolding because it has a walk-through clearance. With standard frame scaffolding, horizontal braces block the ground-level path, so people moving materials have to go around structures instead of through them.

When working on the outside of a building or finishing the inside of a room, where the speed of the project depends on constant material flow, operational efficiency gains become clear. Several teams can get to different floors at the same time without having to wait at a single ladder. This ability to work on multiple tasks at the same time is especially helpful for business building projects with a lot of tradespeople working together in small areas.

Stationary vs. Wheeled Configurations

Different jobs have different mobility needs. Stationary systems are the most stable option for heavy-duty tasks like masonry work, putting up structural steel, and situations with a lot of lateral loads. Wheeled versions have locked wheels at the base that let you move them without taking them apart. This mobility is good for painting the inside of a building, installing electrical wiring, maintenance work that needs to be moved around a lot, and using double ladder walk-through scaffolding.

There are trade-offs when choosing between setups. Wheeled frames add extra height through their caster assemblies, which could make it harder to move around in small spaces. To keep things from moving by accident, locking devices must be tightly engaged while they are being used. While stationary frames are more stable, they need to be completely taken apart in order to be moved, which takes more time and effort than moving mobile units.

Aluminum vs. Steel Material Considerations

Aluminium frames are about 40% lighter than steel frames of the same size, which cuts down on transportation costs and the risks of moving heavy objects by hand. This benefit is useful when workers have to move tools between different project sites or when the availability of cranes limits heavy lifting. The lighter weight doesn't mean that it can't hold as much weight; properly built aluminium scaffolding works just as well as steel options.

Steel still has benefits in situations with heavy loads and where resistance to impact is important. Steel lasts longer than other materials, which is good for construction sites where heavy equipment is used or where vehicles might touch or handle the materials roughly. Because the difference in material costs has shrunk so much, the choice now depends more on the specifics of the project than on budget. At Xinjiuyi, we help procurement managers think about these things by analysing applications in great detail and making personalised suggestions.

Procurement Guide for Double Ladder Walk-Through Scaffolding

Purchase vs. Rental Decision Framework

The length of a project has a big effect on the buying approach. Rental agreements that don't require capital expenditures or upkeep are often preferred for short-term jobs that last only a few weeks or months. Ownership leads to better economics for long-term building projects, ongoing site repair programs, or contractors who need scaffolding all the time. Most of the time, the breakeven point is reached after three to six months of continuous use, but this can happen in different situations.

When you own something, you can keep track of your goods, make sure it's available during busy building seasons, and change it to fit your specific needs. Rental deals make it easy to increase or decrease capacity as project needs change, without having to store extra equipment. A lot of procurement managers use a mix of methods, keeping a core stockpile of their own items and renting units when demand goes up.

Supplier Selection Criteria

When evaluating a supplier, it's not just the price per unit that's looked at; it's also the ability to manufacture, quality control systems, and infrastructure for support after the sale. If a company has ISO9001 certification, it means they have established quality management processes. If they have ISO45001 or ISO14001 certification, it means they are committed to worker safety and environmental responsibility. With these certificates, you can be sure that the production methods always meet certain performance standards.

The reliability of shipping is based on the manufacturing capacity, especially for big orders or projects with tight deadlines. Suppliers with modern facilities that have automated welding systems, precision cutting equipment, and testing labs on-site can keep tolerances tighter and turn around orders faster than smaller businesses that do things by hand. At Hebei Xinjiuyi, our Cangzhou plant uses cutting-edge production technology and strict five-point inspection processes to make sure the welds are strong, the dimensions are correct, the materials are correct, they can withstand salt spray, and the structure can hold its weight, meeting all requirements for products like double ladder walk-through scaffolding.

Bulk Orders and Customization Options

Volume purchasing has many benefits besides lowering the cost per unit. When you place a large order, you can get custom engineering to make sure that the product fits the exact needs of the project. This includes changing the size to fit the building's specs or the finish to fit the surroundings. We often work with general builders, infrastructure developers, and equipment distributors to come up with custom solutions that our normal catalogue items can't cover.

Customisation includes branding options for distributors who want to set their products apart in crowded markets. Colour-coded powder painting helps keep track of goods on sites with multiple contractors and reinforces the company's brand. Documentation packages that include Mill Test Reports, load test certificates, and compliance statements make it easier for governmental approvals to be granted in different countries. This is especially helpful when dealing with the complicated certification needs in growing markets.

Conclusion

Double ladder walk-through scaffolding is a careful advancement in building access equipment that directly addresses the process inefficiencies that plague conventional frame systems. With its unobstructed ground level and dual-access layout, this building is much more productive and safer for workers, thanks to its two escape routes and less traffic. High-strength steel, lightweight aluminium, and tried-and-true surface treatments make these products suitable for a wide range of environments, from tropical humidity to chemical exposure in the workplace. When making a procurement decision, it helps to know the complex trade-offs between owning and renting, stationary and mobile configurations, and how important it is for suppliers to offer more than just product delivery. This includes engineering support and quality assurance. As building projects get more complicated and safety rules get stricter, it's not only smart to choose access systems that are designed to be operationally efficient but also to meet safety standards; it's important to the success of the project.

FAQ

1. What maximum height can these scaffold towers safely reach?

Height limits depend on the size of the base and how it is stabilised. For standalone towers, OSHA usually lets the height-to-base ratio be 4:1, but European guidelines say it can only be 3:1. If these limits are exceeded, outriggers, guy wires, or wall ties must be used at certain intervals. A registered engineer should make sure that the work is done according to local rules and the conditions of the place.

2. How does dual ladder design improve emergency response?

Having multiple entry points keeps things from getting backed up during evacuations. In case of an emergency, workers don't have to wait in queue at a single exit point; they can just use the nearest ladder. This arrangement also makes it easier for first responders to get to higher places without getting in the way of people going down.

3. Are components interchangeable with existing scaffolding?

Pin spacing and connecting shape affect how well two devices work together. Standard 4-foot or 2-foot intervals allow frames to work with universal cross-braces, platforms, and extensions without any problems. Check the dimensions before you order to make sure the modules will work with what you already have.

4. What kind of care makes a galvanised frame last longer?

Inspections done on a regular basis find early damage before it causes problems. Get rid of the mortar and other junk that has built up and is preventing protective coatings from drying out. Use cold galvanising spray to fix small holes in the zinc coating. Lay frames out horizontally in a dry, well-ventilated area that is not touching the ground. With proper care, things can last 20 years in normal circumstances.

Partner with Xinjiuyi for Superior Scaffolding Solutions

Hebei Xinjiuyi Construction Technology Co., Ltd. is ready to help you with your project needs by providing engineered modular access systems that put safety and operational efficiency first. Our double ladder walk-through scaffolding manufacturer can do more than just standard production. They can also help you with unique design services that are based on the conditions of your place and the performance standards you need. Before it leaves our Cangzhou plant, every frame goes through a strict quality check that includes non-destructive weld testing, dimensional accuracy checks within 1.5 mm tolerances, and structural load validation showing 4:1 safety factors. We know that equipment reliability has a direct effect on project timelines and worker safety. That's why we're committed to precise manufacturing and full technical support, from the first meeting to installation help on-site. Email our team at global@xjy8.com to talk about your building needs, get more information, or set up a sample review. Our engineers will work directly with your purchasing and safety teams to come up with solutions that meet all of your needs while keeping prices low for large orders.

References

1. Chen, W., & Zhang, L. (2021). Structural Analysis of Modular Scaffolding Systems in High-Rise Construction. Journal of Construction Engineering and Management, 147(8), 04021095.

2. Occupational Safety and Health Administration. (2023). Safety Standards for Scaffolds in Construction. U.S. Department of Labor, OSHA Publication 3150.

3. European Committee for Standardization. (2020). EN 12811-1: Temporary Works Equipment – Scaffolds – Performance Requirements and General Design. CEN Central Secretariat, Brussels.

4. Huang, Y., & Kumar, S. (2022). Material Selection and Corrosion Resistance in Construction Scaffolding. Materials Today: Proceedings, 56(Part 4), 2134-2140.

5. National Institute for Occupational Safety and Health. (2021). Preventing Falls from Scaffolds During Construction Activities. NIOSH Publication No. 2021-112, Centers for Disease Control and Prevention.

6. Liu, Q., Wang, H., & Peng, R. (2023). Load-Bearing Capacity Assessment of Steel Tubular Scaffolding Under Multi-Directional Loading. Engineering Structures, 275, 115289.

Choosing the right rebar processing shed has a direct effect on how well your building site works, how safe the workers are, and how well it follows the rules. Cutting, bending, and forming steel bars can be done in one place in a well-designed steel bar manufacturing shelter. This keeps tools safe from damage from the weather and keeps dangerous tasks away from the rest of the workers. When you're looking at your options, you should put durability of the structure, modularity, resistance to the environment, and compliance with international safety standards like OSHA and ISO protocols at the top of your list. This book explains the important things that procurement managers, safety officers, and project leaders need to know in order to make smart choices that protect long-term investments and boost operating efficiency.

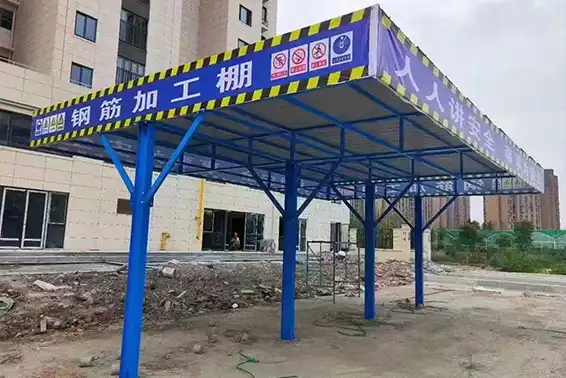

Understanding the Core Functionality of a Rebar Processing Shed

Modern construction sites have steel-reinforcing fabrication structures. The raw rebar is chopped, bent, and welded here to be put in concrete. Instead of open-air installations, these protected enclosures house material reception, processing, and secure storage. Controlled conditions protect humans and machinery.

As soon as the raw steel bars arrive, they are put through designated cutting stations that have hydraulic shears or automatic saws. Next, machines bend the parts into stirrups, hooks, and curved supports according to engineering designs. Quality checking and organized stacking are done last to minimize structural damage. This setup reduces soil and weather contamination and material movement time.

Design has a direct effect on how easily things run. Equipment stations in the correct positions and spacious lanes for material carts and trucks save worker movement. The right ventilation system removes welding fumes and metal particles, maintaining workplace air quality. Equipment must fit above without hindering crane movement. Places with lengthy bridge girder reinforcements or prefabricated cage assembly particularly need this.

Structural Components That Define Quality

Manufacturing shelters depend on heavy-duty steel columns and beams. Machine sounds and overhead loads are supported by them. Structures made of Q235B or Q345B have the tensile strength to resist bending when utilized continually. Equipment may be placed in various ways with three- to six-meter column spacing while maintaining the structure stable in heavy winds or earthquakes.

Weatherproofing and allowing light in are roofing systems' goals. Corrugated steel panels and mesh double-layer designs enable water drain while protecting equipment from falling debris. Daytime lighting costs can be cut by using translucent panels or carefully placed skylights, but too much sun can make enclosed areas too hot, a common issue in a rebar processing shed where machinery generates additional heat. However, wall panels should be robust enough to withstand accidental hits and accessible to access in an emergency.

Safety Standards Driving Design Decisions

Compliance with foreign laws is required for licensing and liability protection. In fabrication zones, OSHA mandates obvious escape routes, rated electrical, and firefighting. Write risk assessments for noise exposure, repetitive motion injuries, and handling risky items under ISO 45001 occupational health and safety requirements.

The building's safety indicators promote caution. Red and white or yellow-and-black kick plates highlight floor edges and trip hazards. Reflective warning strips make columns visible in low light or power outages. Multilingual safety signs at eye level explain tool usage and emergency procedures. This helps varied international initiatives.

Crucial Factors to Consider When Choosing a Rebar Processing Shed

By matching the shelter's dimensions to its usage, you may prevent expensive infrastructure issues. Project capacity depends on size. A little home development demands different throughput than a long-term bridge project. Knowledge of these distinctions improves purchase choices.



Project Scale and Mobility Requirements

Large building builders operating on many sites might profit from modular designs that can be disassembled and relocated without damage. Bolt-connected frames with high-strength bolts enable three to five shifting cycles, spreading equipment costs across several chores. Skillsed personnel can assemble these systems in three to five days using pre-made pieces. Reducing maintenance time between projects.

Anchored foundations and built-in utilities are needed for permanent precast concrete plants. Permanent locations require high gantry cranes, temperature control, and quality control labs. Whether your company model favors flexibility or single-location efficiency determines the option.

Climate Adaptation and Environmental Resilience

Region-specific weather patterns inform safety measures. Salt-rich coastal locations require C4 or C5-M anti-corrosion treatments. They may be heavy-duty galvanized or salt-resistant paint systems. If structural steel rusts fast, it loses its capacity to support weight and coats treated rebar with rust particles that cause concrete attach to it, which also applies to a rebar processing shed's frame.

Controlling heat in deserts is necessary. Well-placed ventilation fans and reflective roof coatings keep the building cool. In winter, insulating panels prevent hydraulic fluids from thickening and workers from frostbite. Wind-resistant designs must withstand 120 mph steady winds in hurricane-prone areas. They need stronger anchor points and aerodynamic forms to decrease uplift.

Material Selection and Structural Longevity

Starting cost, maintenance, and service life vary when picking a support material like steel, aluminum, or composite. Heavy industry uses steel because it's stronger than other materials of the same weight. Normal galvanized steel with electrostatic powder coating doesn't rust for 15–20 years, but it must be examined.

Aluminum structures cost more per square meter while being lighter and less supported. For naval use, its corrosion resistance is ideal. Aluminum's weaker tensile strength requires broader profiles to meet steel's load-bearing capability. Composite fibreglass or polymer panels withstand chemicals but aren't robust enough for overhead cranes.

Strong thickened galvanized rectangular tubes make up the primary structure. Together with 18# I-beam poles, these parts can support heavy machines without bending. Multiple layers of hot-dip galvanising and high-temperature baking paint protect against hard site conditions while maintaining vivid warning colors that exceed contemporary construction safety regulations.

Layout Optimization for Workflow Efficiency

The setup of equipment greatly affects productivity. A linear process places cutting stations near the source materials, bending equipment farther down, and inspection locations near the exit. This one-way flow reduces forklift collisions and cross-traffic bottlenecks.

Space between workstations makes moving lengthy rebar safe. For emergency escape, 1.5 meters must be allowed on all sides of the device. Shadow boards store wrenches and measuring tools centrally, saving time. Clear floor walkways let new workers track material flow.

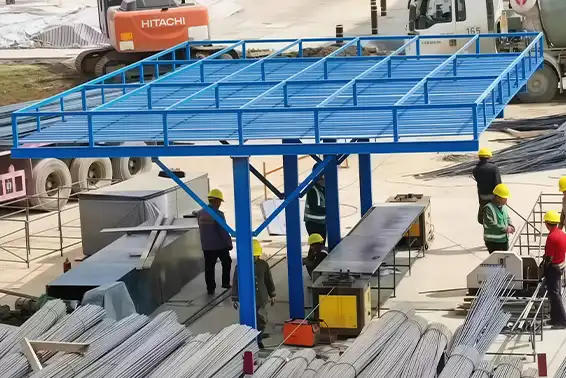

Comparing Rebar Processing Shed Options on the Market

Looking at the Different Types of rebar processing sheds on the Market represents the traditional approach—minimal infrastructure investment but maximum exposure to operational disruptions. When it rains, workers have to quickly cover the machines, and UV light breaks down hydraulic lines and electrical parts. Lightweight materials get scattered by the wind, creating foreign object hazards that hurt people and damage equipment. The supposed cost savings are lost when things need to be fixed a lot, materials are wasted, and work stops when the weather is bad.

Enclosed structures get rid of these variables, so the output stays the same no matter what the outside conditions are. Controlled conditions make machines last longer by keeping water out of electrical panels and bearings. Dust control systems keep cutting blades sharp and keep moving parts from wearing down too quickly. These benefits give a clear return on investment by lowering maintenance costs and raising the value of the equipment when it comes time to sell.

Energy-Efficient and Sustainable Design Features

These days, fabrication shelters have eco-friendly features that lower costs and help companies keep their environmental promises. LED lighting systems use 60% less electricity than standard lamps but give off better light for detailed work. Motion monitors turn lights off or lower them automatically in areas that aren't being used. This saves energy during breaks or shift changes.

Rainwater collection systems built into roof drainage networks provide non-potable water for cooling equipment and lowering dust, which lowers the amount of water used by cities. Installing solar panel arrays on south-facing roof slopes can help reduce the need for electricity. This is especially helpful in rural areas where connecting to the grid is expensive or not stable. As regulations require building supply lines to reduce their carbon footprint, these green features become more important in purchasing decisions.

Evaluating Supplier Reliability and Support Services

Technical standards don't ensure successful application on their own; the ability of the provider is what makes the difference between paper promises and operating reality. Indicators of manufacturing capacity show if a vendor can meet your deadline without lowering the quality of their work. Buildings that follow the ISO 9001 quality management rules show organised ways to keep processes under control and make improvements all the time.

The warranty should cover more than just structural parts. It should also cover the quality of the finish and the performance of the fasteners. Comprehensive packages usually come with structural warranties that last for five years and allow for faster replacement of parts. Quality after-sales support is very important when operating problems happen. Responsive expert teams that offer installation advice, troubleshooting help, and regular maintenance training give your employees the tools they need to get the most out of their assets.

Asking for client references from people in the same business as you gives you an idea of how well they do in the real world. Concerns for bridge builders are different from those of high-rise builders, so testimonials from similar projects are more reliable. Site visits to current sites show how maintenance really works and let you talk openly about how responsive a seller is when problems arise out of the blue.

Budgeting and Cost Analysis for Your Rebar Processing Shed Investment

Making a budget and figuring out how much your rebar processing shed will cost go far beyond the original bill for the buy. To make accurate budget estimates, procurement professionals have to think about things like preparing the foundation, connecting utilities, installing equipment, and teaching operators. Transportation costs depend a lot on how far away the destination is and how good the roads are for getting there. For example, places that are far away and have weight-restricted bridges or narrow mountain passes have higher delivery costs.

The cost of installation labour is another important line item. Manufacturers usually give instructions on how to put things together, but getting qualified structural welders and riggers makes sure the job gets done right. Professional installation teams can usually finish putting together standard configurations that are 12 meters by 18 meters within a week, assuming the foundations are ready and the materials are delivered in stages. Timelines get shorter when people are rushed, but extra pay raises the cost of labour.

Value Engineering: Balancing Upfront Costs Against Lifecycle Benefits

Balancing Upfront Costs Against Lifecycle Benefits is what value engineering is all about. Lighter gauge steel and basic galvanisation are used in entry-level buildings to save money right away, but they need to be maintained more often. Getting rid of rust, strengthening the structure, and replacing panels all cost a lot of money and usually pay for themselves in five years. These choices work well for short-term projects with clear end dates, where rapid deployment is more important than long-term reliability.

Premium standards with thicker structural parts, multi-stage corrosion protection, and flexible growth options require bigger initial investments but provide better value over longer periods of time. Better materials can handle moves without getting worn down, which helps spread costs over many projects. Less upkeep means lower lifecycle costs and fewer problems with operations from repairs that weren't expected.

Procurement Timing and Bulk Ordering Advantages

Manufacturing lead times change depending on how complicated the order is and how busy the factory is. When an order is confirmed, standard designs usually ship within seven to ten days. Custom setups with overhead cranes or special sizes may take four to six weeks. Seasonal demand peaks in the spring, when building ramps up, which can make these windows longer. For time-sensitive projects, it is important to buy early.

Bulk orders are rewarded with volume discounts, which are especially appealing for contractors who are in charge of multiple sites or equipment distributors who are in charge of rental fleets. By negotiating framework deals that commit to yearly purchase amounts, you can get better prices and be sure that there will be enough supplies during times of high demand, including key equipment like a rebar processing shed. Some vendors offer consignment plans where inventory builds up at regional distribution centers. This makes it possible for projects to start quickly.

Leasing options give companies that don't want to put all of their money into buying something more freedom. Maintenance services and damage protection are usually included in rental agreements. This turns unpredictable repair costs into set monthly payments. This method works well for contractors who are trying out new markets or who are in charge of short-term speciality projects where moving assets around can be hard.

Installation, Maintenance, and Long-Term Performance Optimization

When you prepare the spot correctly, you set the stage for years of effective service. Ground studies find out what's below the ground, which affects how the foundation is designed. For example, soft soils need deeper footings or pile supports, and rocky land might need blasting or engineered fill. Accurate levelling to within 10 millimetres across the whole footprint stops structural stress concentrations that speed up failures due to fatigue.

Utility planning makes sure that water, electricity, and compressed air lines get to the right places before the structure is put together. To avoid expensive trenching through finished slabs, installing underground wiring must happen at the same time as the foundation work. To coordinate these skills, you need to make very detailed schedules, because delays affect later stages of the building project.

Assembly Best Practices and Quality Verification

When you get modular parts, they come with full assembly plans that show how to connect them and how much torque to use for each fastener. By following the manufacturer's instructions, you can avoid making changes in the field that void warranties or damage the structure. To get the right clamping force on high-strength bolts, you need torque wrenches that have been calibrated. If you don't tighten them enough, the joint can move, which speeds up wear, and if you tighten them too much, the threads could strip or the bolt could break.

Intermediate inspections check that alignment tolerances are met before moving on to the next stage of the assembly process. Using precision levels to check the plumbness of columns makes sure that vertical loads are properly transferred to the supports. To keep water from getting in, roof panels must be installed in a planned way, working from one end to the other while keeping the gap and bolt spacing the same. Final walkthroughs make sure that all the safety features work properly. For example, emergency exits should be able to open easily, lights should be bright enough, and grounding systems should show acceptable levels of resistance.

Proactive Maintenance Strategies Extending Asset Lifespan

Regular checks find small problems before they get worse and cost a lot to fix. Every three months, walkarounds are done to record the condition of the coating and look for paint chips or rust spots that could mean corrosion has started. Fixing these problems quickly with touch-up painting stops water from getting in and speeding up the breakdown of the structure. Checking the fasteners finds any loose links that need to be re-torqued, which stops the joints from breaking down over time.

Cleaning routines get rid of metal filings, concrete dust, and welding slag that build up over time and make moving door parts and ventilation louvres wear out faster. Pressure washing the outside of surfaces twice a year keeps drains working well and shows up damage that was hidden. Following the manufacturer's instructions for lubricating door hinges, latch mechanisms, and movable parts stops seizures and increases the life of the system.

Conclusion

To pick the best steel bar manufacturing shelter, you need to carefully weigh the needs of the project against the shelter's long-term operating goals. By putting durability, environmental resilience, and workflow efficiency at the top of your list, you can be sure that your investment will work well in all kinds of construction situations. Modular designs make it easy to move, which makes the best use of assets, and full help from the seller lowers the risks of implementation. This is especially true when selecting a rebar processing shed, where aligning technical specifications with actual site conditions and procurement timelines sets the stage for better worker safety, compliance with regulations, and measurable productivity gains that justify the investment.

FAQ

1. What advantages do enclosed fabrication structures provide compared to open-yard setups?

Enclosed spaces keep machines from getting damaged by the weather and keep them working at the same level no matter what the weather is like (rain, wind, or high temperatures). Controlled conditions make tools last longer by stopping UV damage and moisture from getting in. They also keep people who aren't involved in dangerous tasks like cutting and welding from doing those tasks. This greatly lowers the number of accidents and makes sure that safety rules are followed.

2. How quickly can custom shelters be delivered and installed?

Standard setups that are 12 meters by 18 meters are usually finished in the mill seven to ten days after the order is confirmed. On-site assembly takes an extra three to five days, based on how ready the footing is and how experienced the crew is. Custom designs with unique features like high cranes or better rust protection may add four to six weeks to the making process.

3. Do modular structures match the durability of permanent installations?

When you use high-quality materials and frames that are bolted together, modular systems can perform just as well as permanent structures that are welded together. If you follow the manufacturer's instructions for taking it apart and putting it back together, properly designed designs can take three to five moves without any damage to the structure. The key is to select the right steel types, rust protection, and fastener quality when you buy them for the first time.

Partner with a Trusted Rebar Processing Shed Manufacturer for Your Next Project

Hebei Xinjiuyi building Technology Co., Ltd. is an enterprise-level steel reinforcement manufacturing company that designs and builds solutions for tough building sites around the world. Our buildings are made of thickened galvanised rectangular tubes and 18# I-beam columns. The multi-stage surface treatments give them better weather protection and the ability to hold more weight. With ISO 9001-certified production processes and the ability to make any changes you need, we can make sure that the specifications of your shelter exactly match your practical needs, whether you need small installations for cities or large infrastructure hubs with built-in crane systems. Our expert team helps you with everything from the initial design to installation, making sure that everything goes smoothly and that you get the best performance over time. Talk to our experts at global@xjy8.com about how our proven rebar processing shed solutions can help your building projects be safer, more efficient and more in line with regulations.

References

1. American Institute of Steel Construction (2021). Structural Steel Design Standards for Industrial Facilities, Chicago, IL: AISC Publications.

2. Occupational Safety and Health Administration (2020). Construction Industry Safety Guidelines for Steel Processing Areas, Washington, DC: U.S. Department of Labor.

3. International Organization for Standardization (2019). ISO 45001: Occupational Health and Safety Management Systems—Requirements and Guidance, Geneva, Switzerland: ISO Press.

4. National Association of Construction Professionals (2022). Best Practices for Modular Construction Site Infrastructure, Atlanta, GA: NACP Research Division.

5. Construction Industry Institute (2021). Lifecycle Cost Analysis for Temporary and Permanent Job Site Structures, Austin, TX: CII Technical Report Series.

6. Steel Construction Institute (2020). Corrosion Protection Systems for Outdoor Steel Structures in Harsh Environments, Berkshire, UK: SCI Publication.

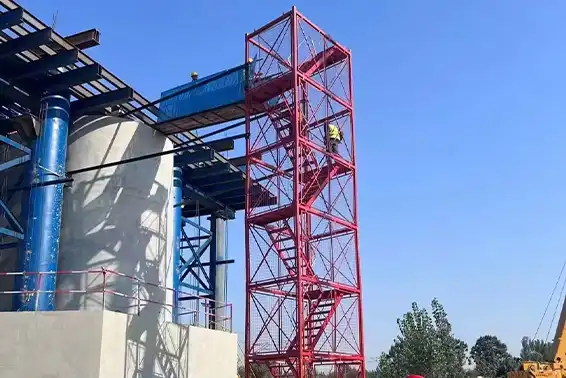

Introduction

One of the most important things for safety officers to think about when they walk through construction sites is how to keep workers safe during vertical access. This kind of safety is provided by a construction ladder cage, which makes a closed path that makes it much less likely that someone will fall while climbing to higher work areas. These safety structures are important parts of any complete site safety program because they give workers at heights both physical barriers and mental security.

Proper vertical access protection is important for many reasons, not just following the rules. Site managers know that every time someone climbs a ladder, there is a chance of an accident. This is especially true for deep digs, bridge building, and high-rise projects. Putting money into reliable ladder safety systems has a direct effect on preventing accidents, keeping projects going, and improving the general reputation of building companies. In this guide, we'll look at how these protective enclosures deal with real-life safety issues and meet strict international standards such as OSHA and EN rules.

Our talk is mostly about useful tips for procurement managers, health and safety officers, and project leaders who check safety gear at various places at the same time. We look at structural requirements, how this system compares to others, and buying strategies that balance short-term costs with long-term operational efficiency. By knowing the technical details and performance traits of these safety systems, decision-makers can safely choose equipment that keeps workers safe and keeps projects on schedule.

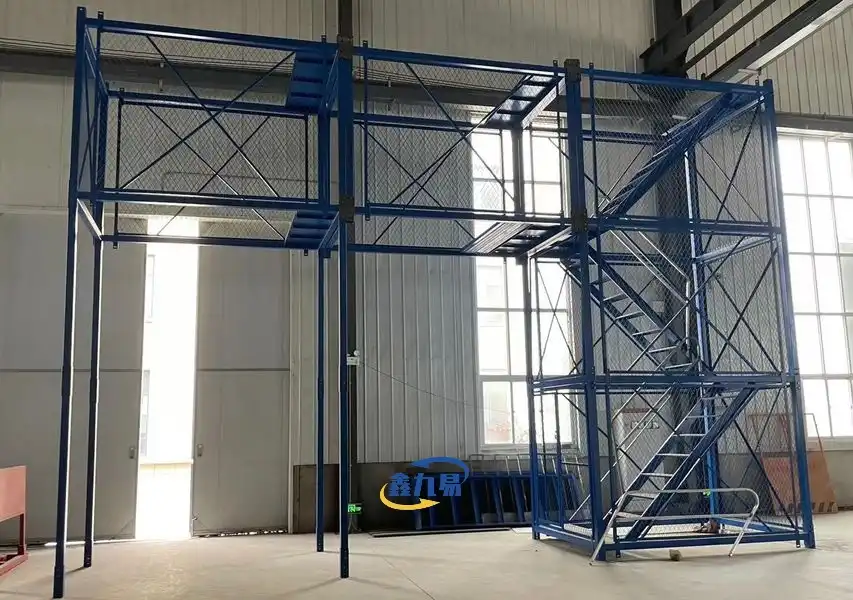

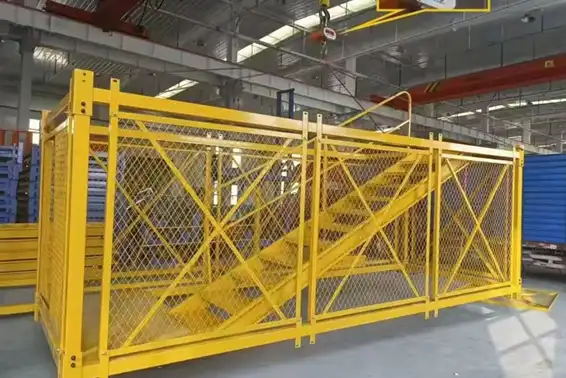

What Is a Construction Ladder Cage and Why It Matters for Safety？

Defining the Protective Enclosure System

For workers reaching high platforms, foundation holes, or bridge piers, a construction ladder cage acts as a three-dimensional safety barrier around fixed vertical ladders, forming a safe rising path. Open ladders put climbers at risk of falling backwards, but these enclosures have horizontal hoops and vertical bars that physically keep climbers inside the path. Usually, the protective structure starts about seven feet above the ground. This lets people get in without any problems and keeps them safe throughout the climbing zone.

Structural Components and Material Engineering

Modern ladder safety systems use high-strength galvanized steel made from 80 mm x 80 mm rectangular tubes with a 3.0 mm thickness as the main columns. This makes sure that the systems can hold a lot of weight in a variety of weather conditions. The modular design lets sections that are 3000 mm long, 2000 mm wide, and 2000 mm high be put together in any way that fits the needs of the project. Checkered anti-slip plates that are 2.0 mm thick provide a stable base, and protective mesh panels with a 75 mm opening for welding wire stop tool drops and debris falls, providing double protection against falls by people and falling objects.

Regulatory Framework and Compliance Requirements

Safety rules for vertical access tools have changed a lot over the years. For example, OSHA guidelines set specific requirements for ladder protection systems based on how high they are used and how often they are used. Unprotected vertical access is one of the most dangerous things to do on building sites, which is why regulations put so much stress on preventing falls. Ladder protection systems that are properly specified help businesses meet their legal obligations and show they care about worker safety, which is becoming an increasingly important factor in getting contracts with big developers and government infrastructure projects.

Addressing Critical Safety Gaps

Construction companies are exposed to a lot of risk when they use traditional makeshift ladders and temporary entry solutions. Workplace safety groups have found that falls from heights are regularly one of the main reasons why major injuries happen in buildings. When you have a properly designed protective climbing system, you don't have to use ad hoc solutions to keep people safe. Instead, you can use standard equipment that works the same way on all project sites and in all operational situations.

Top 5 Benefits of Using Construction Ladder Cages on Your Job Site

Installing professional-grade construction ladder cages has measurable benefits in terms of improving safety, running operations more efficiently, and making money. When procurement managers and safety directors look at vertical access solutions for their projects, these benefits directly address the main concerns they have.

Enhanced Worker Protection and Confidence

The sealed design makes a wall that stops backward falls, which are the most common and dangerous type of ladder injury. Workers who climb in these protected passages say they feel more confident, which makes them more stable on their feet and less likely to rush. The mesh panels protect against falling tools and materials from above at the same time, giving workers at different heights full protection. This dual-function approach to safety works especially well on busy job sites where many people are working at the same time on different levels.

Regulatory Compliance and Inspection Readiness

When equipment is made according to national construction safety regulations, it's easy to meet international safety standards. Standardized design elements meet OSHA, EN, and ISO standards, making it easy to keep track of paperwork for safety checks and project reports. Safety officers like that these systems set a uniform standard for protection, so there are no questions about whether or not the protection is good enough during regulatory reviews. According to safety standards, the bright yellow and black warning colors make things easier to see and show that serious attention is being paid to site safety rules, which are factors that are becoming more and more important when choosing a contractor for big projects.

Long-Term Durability and Cost Efficiency

High-strength steel construction that has been hot-dip galvanized gives the structure great weather protection and a life span of up to 20 years with proper upkeep. The modular, bolt-connected design means that sections can be used on more than one project, which cuts down on equipment costs by a large amount when calculated per project. When compared to replacing cheap temporary solutions or dealing with accident-related costs, procurement managers find that the initial investment in good ladder protection systems pays off in a big way. The surface treatment that prevents corrosion keeps the structure strong even in tough places like seaside building projects or chemically contaminated industrial sites.

Rapid Installation and Operational Flexibility

The modular assembly system makes it easy for site crews who don't have special installation skills to set up things quickly. Sections are joined together with strong bolts, and workers can change the total height by adding or removing modules as the needs of the project change. This ability to change is very helpful during phased construction, where access needs change as projects move from the foundation stage to the structural stage to the finishing stage. The ease of reconfiguration lowers the cost of moving tools between project sites, which is an important factor for workers who are in charge of more than one place at the same time.

Liability Reduction and Insurance Benefits

Standardized safety systems create written proof of proactive risk management, which is very important when accidents happen despite precautions being taken. Insurance companies are becoming more aware that contractors who use certified safety gear have lower risk profiles and may be able to get better premium rates. Less frequent accidents have a direct effect on the rate of experience modification, which creates long-term financial benefits. Project managers also say that their relationships with clients and regulatory bodies get better when sites regularly show that they care about worker safety by choosing the right equipment.

Ladder Cage vs Other Ladder Safety Solutions: Making the Right Choice

Comparing Protection Approaches

Fall arrest systems that use personal harnesses and lifelines are very important for safety, but workers have to connect and disconnect them correctly every time they climb, which can lead to mistakes. Construction ladder cages provide passive protection that doesn't depend on what the person does each time, so there is no variation in compliance. While safety rails protect the edges of a structure, they don't provide the three-dimensional cage that lowers the risk of falling backwards while rising. When deciding what kind of safety to use for different types of workers and situations on the job site, procurement teams can better understand these practical differences.

Evaluating Material Performance Characteristics

Galvanized steel construction is stronger and less likely to break than aluminum alternatives. This is especially important in heavy industrial settings where equipment may be handled roughly or hit by moving machinery. The thickened rectangular tube design, which is 80mm × 80mm and has a 3.0mm wall thickness, is very good at resisting wind loads, which is very important for high-rise buildings and exposed bridge piers. The fully welded frame structure with ground-smooth joints gets rid of weak spots that appear in mechanically fastened parts after a long time of use, and when combined with a construction ladder cage, this keeps the equipment safe for as long as it works.

Assessing Environmental Suitability

For deep excavation projects, you need strong systems that stay stable even when nearby equipment vibrates and the ground changes. When building a high-pier bridge, the structures need to be able to withstand strong winds and provide safe access in exposed areas. For tunnel shaft uses, small designs that can fit in tight spaces while still meeting all safety standards are needed. If procurement workers know about these environment-specific needs, they can match equipment specs to the specifics of a project instead of choosing general solutions that might not work well in tough situations.

Economic Analysis and Total Cost of Ownership

The initial cost of purchase is an important factor, but the total economic impact includes the cost of maintenance, the useful life, the possibility of reuse, and the value of preventing accidents. When looking at the whole lifespan of a project instead of just one installation, high-quality modular solutions are more valuable. When compared to disposable or one-time-use options, the ability to reuse tools across multiple jobs completely changes the economic picture. When purchasing managers do a full lifecycle cost analysis, they always find that buying long-lasting, standard systems makes more money in the long run than trying to find cheaper equipment at first.

How to Procure the Best Construction Ladder Cage for Your Business Needs？

Establishing Performance Criteria

To do a good job of procurement, you must first clearly define the operational needs that are unique to your project portfolio. The factors for evaluation should include the range of climbing heights, the conditions of the surroundings, the expected service life, and the ability to be used again and again at different locations. The technical specs should list the structural factors that make sure there is enough protection for the construction ladder cage. These should include the size of the columns, the width of the platforms, the standards for protective mesh, and the requirements for surface treatment. Standardized specifications offer consistent protection and allow for site-specific configurations through modular design approaches.

Supplier Evaluation and Due Diligence

In addition to product specifications, a supplier's skills have a big effect on how satisfied a customer is with the performance and support services of their equipment over time. Companies that have ISO9001, ISO45001, or ISO14001 certifications have well-established quality management systems that make sure that production standards are always met. When projects need big amounts of equipment supplied quickly, production capacity is important. Technical help after the sale is very important when there are questions about installation or when projects need to be set up in a way that works best for the site, such as when integrating a Construction Ladder Cage into the site-specific layout. Procurement teams can check a supplier's claims before committing to large equipment orders by asking for detailed product documentation, certification records, and project references.

Customization Options and Engineering Support

Standard modular setups work well for many uses, but for more complicated projects, custom solutions that work with the site's limitations are often better. Manufacturers who offer engineering support can change standard dimensions, add special mounting features, or add extra safety features that make the product safer in odd situations. Having access to detailed design renderings helps project teams picture how to install equipment and find problems that might arise before the fabrication process starts. Early on in the specification process, procurement professionals should talk about the ability to customize to make sure that the chosen providers can meet the unique needs of the project without having to wait too long or charge more.

Logistics and Supply Chain Considerations

When you buy something from another country, it's more difficult to keep track of shipping times, customs processes, and coordinating deliveries with project deadlines. Strategies for buying in bulk can save you a lot of money and make sure that you have the right tools on hand when building needs to start and access systems need to be installed. Setting up clear ways to talk to suppliers about order status, production schedules, and tracking shipments stops expensive project delays caused by problems with getting the right equipment. Professional procurement teams include extra time in their equipment supply plans in case something goes wrong. They also keep in touch with their suppliers on a daily basis to deal with any delays that might happen before they affect activities that are on the critical path.

Installation and Maintenance Best Practices for Construction Ladder Cages

Deployment and Assembly Protocols

The first step in a proper installation is to thoroughly prepare the site, making sure that the foundation conditions are good enough to hold buildings that are weighty. The modular bolt-connection system lets regular construction crews put it together by following the manufacturer's instructions. They don't need any special skills or tools to do it. A pre-installation inspection of all parts makes sure that the shipped materials were undamaged and that they come with all the fasteners and connection hardware they need. To keep the structure's integrity, assembly steps should be done according to the engineer's plans. Pay special attention to the connection torque needs and alignment tolerances that make sure the load is evenly distributed across the frame structure.

Ongoing Inspection and Preventive Maintenance

Examination of important parts on a regular basis increases the life of the construction ladder cage and keeps it safe during operational times. Tightness of the bolt connections should be checked as part of regular inspections, especially after the first fitting and after any big hits or vibrations. The state of the surface coating needs to be checked on a regular basis to find places where the protected galvanizing may have been worn down by wear and tear or impact. This way, problems can be fixed before they get worse and cause corrosion damage. Protective mesh panels need to be checked for damage or deformation that could make them less effective at stopping falling objects. Recording inspection activities creates important records that show ongoing safety care during project audits or investigations into accidents.

Training and Operational Procedures

In addition to the physical security the building provides, workers who know how to use their tools correctly are much safer. Training programs should stress the right way to climb, the right shoes to wear, and the weight limits for the things that can be carried while climbing. Site-specific procedures might include ways to control traffic when multiple workers need to get to the same area at the same time, what to do in bad weather, and how to report broken parts that need to be fixed. A safety culture grows when workers know how technology protects them and how they can help keep the system working by using it correctly and telling the boss right away when it needs repair.

Service Life Extension and Refurbishment Options

Quality ladder safety systems will work for decades if they are properly kept, but eventually parts will need to be replaced or fixed up to keep up with the original performance standards. Modular designs make it easy to change only the parts that are broken, so companies can replace worn-out parts while keeping useful core parts. Cleaning and re-coating the surface to renew the process continues the defense against corrosion in harsh settings. Building relationships with equipment manufacturers that support long-term maintenance makes it easier to get compatible replacement parts and technical help for refurbishment projects, which increases the return on the initial investment in equipment.

Conclusion

Choosing the right vertical access protection systems is a big choice that affects the safety of workers, following the rules, and the efficiency of operations on all types of building projects. Construction ladder cages that are properly designed and built offer many benefits beyond just preventing falls. These benefits include worker trust, project consistency, and a clear commitment to safety excellence. When purchasing managers know about the technical details, comparative advantages, and lifecycle economics of these systems, they can make decisions that are good for both employees and the company.

This guide talks about modular construction, long-lasting materials, and standard designs that can help with difficult vertical access situations that come up in deep excavations, high-rise construction, bridge projects, and tunnel operations. Companies that buy good safety gear from companies that care about building excellence and customer service build strong safety grounds that can be used for many projects over long periods of time.

FAQ

1. What height triggers the requirement for ladder protection systems?

Different places have different rules, but OSHA guidelines used to say that fixed ladders taller than 24 feet had to have ladder caging systems. Current rules put more and more emphasis on full fall protection for any elevated access, with specific needs being decided by risk assessments done at each site. The people in charge of project safety should look at the local rules that apply and do risk assessments to figure out what safety steps will work best for their situation.

2. Can these protective systems be retrofitted to existing site access points?

Many existing ladder configurations can be retrofitted with modular designs. However, proper engineering evaluation should be done to make sure that the structures are adequate and work with each other. To make sure the work is safe, retrofit projects need to carefully look at the current ladder's load capacity, mounting options, and clearances. Talking to professional engineers or the makers of the equipment can help you figure out the best way to do things and make sure that any systems that are added later meet all safety standards.

3. How do ladder protection systems compare economically to personal fall arrest equipment?

Lifecycle cost analysis usually recommends fixed ladder protection systems for long-term or permanent installations because they need less training and maintenance than personal fall arrest systems. To make sure it's used correctly, fall arrest equipment needs to be inspected often, worn-out parts replaced, and workers trained on how to use it properly. Ladder cages protect workers without them having to do anything each time they're used. This lowers the chance of noncompliance while saving money over longer periods of time.

Partner with Xinjiuyi for Comprehensive Job Site Protection

To keep your employees safe, you should work with a construction ladder cage supplier that is dedicated to technical quality and customer success. Hebei Xinjiuyi Construction Technology Co., Ltd. makes ladder security systems that are built to meet international safety standards and give your projects the longevity and dependability they need. High-strength galvanized steel, precise welding, and flexible design principles are used in our ISO-certified factories to make safety systems that work reliably for decades of tough use.

We know that making decisions about procurement means balancing the needs of a project right now with the needs of the business in the long term. Our technical team offers full support, from coming up with the initial specifications to helping with installation and ongoing maintenance. Xinjiuyi provides solutions that meet your exact operational needs, whether your projects need standard configurations or custom engineering to fit the conditions of a specific site. Full product customisation and detailed design rendering services make sure that the equipment fits your project requirements perfectly before it is built.

Get in touch with our team at global@xjy8.com to talk about your needs for vertical access protection. We'd love the chance to show you how our Construction Ladder Cage systems and wide range of safety products can help you meet your safety goals and save you a lot of money on all of your projects. Find out why infrastructure contractors all over the world choose Xinjiuyi as their first choice for making construction ladder cages for projects that need the highest level of safety.

References

1. American National Standards Institute. (2018). Safety Requirements for Fixed Ladders - ANSI A14.3. Washington: ANSI Standards Publication.

2. International Organization for Standardization. (2016). Safety of Machinery - Permanent Means of Access to Machinery - ISO 14122-4. Geneva: ISO Technical Committee.

3. Occupational Safety and Health Administration. (2020). Walking-Working Surfaces and Personal Protective Equipment—Final Rule 1910.28. Washington: U.S. Department of Labor.

4. National Safety Council. (2019). Injury Facts: Construction Industry Fall Prevention. Itasca: NSC Research Division.

5. European Committee for Standardization. (2017). Fixed Ladders for Use on Buildings - EN 353-1 Safety Standards. Brussels: CEN Technical Secretariat.

6. Construction Industry Institute. (2021). Best Practices for Construction Site Access Systems and Fall Protection. Austin: CII Research Publication Series.

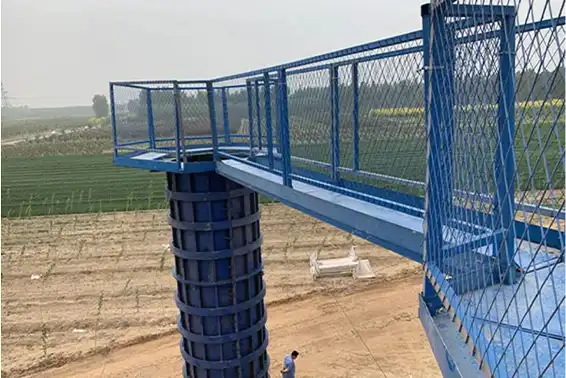

A pier cap work platform is a specialized elevated access structure engineered to support bridge construction crews performing rebar fixing, formwork installation, and concrete pouring at the tops of bridge piers. Meeting rigorous safety requirements is not optional — it is the foundation of every compliant bridge project. These requirements span structural load capacity, fall arrest systems, anti-slip decking, material certifications, and periodic inspection protocols. Regulatory frameworks such as OSHA 1926 Subpart L and EN 12811-1 define the minimum standards that every bridge cap platform must satisfy before workers set foot on it.

Understanding Pier Cap Work Platform Safety: An Overview

When building a bridge pier, workers are often more than 20 meters above the ground, sometimes right above moving traffic lanes or open water. At those heights, one structure failure or an edge that isn't watched can have terrible results. The U.S. Bureau of Labor Statistics says that falls are still the top cause of death in the building industry, killing about 36% of all construction workers each year.

This type of risk can be reduced by using a properly designed pier top platform instead of ground-based scaffolding. This is because the platform connects directly to the current pier structure. This pier-mounted method gets rid of the need for extensive foundation work, cuts down on mobilization time, and moves working loads through the pier's own structural capacity instead of using separate ground supports.

Aligning regulations is also very important. For elevated work surfaces, OSHA 29 CFR 1926.502 says what the guardrail's height, opening size, and load resistance should be. European standards for temporary work tools are set by EN 12811-1. Depending on the use, these standards require load classes between 2.0 and 6.0 kN/m². Procurement teams and site engineers need to make sure that any platform they choose comes with proof that it meets the standards that apply to their project.

Core Safety Requirements for Pier Cap Work Platforms

Structural Material and Load-Bearing Standards

How safely and reliably a bridge pier cap platform works over many deployment cycles depends on its structural backbone. I-beams, channel steels, and thickened galvanized rectangular tubes are used to make high-quality platforms. This mix makes the connection points strong while keeping the unit weight doable. The main frame of the Xinjiuyi Pier Cap Work Platform, for example, is made of 50 × 50 mm square tubes with 1.5 mm wall thickness. It is strengthened with 50 mm equal angle steel at 4.0 mm thickness where bending forces are strongest.

Load capacity needs change depending on how hard the task is. A platform that supports crews gathering rebar, putting up formwork panels, and pouring concrete all at the same time must be able to handle both live and dead loads without showing any signs of deformation. Testing for static load at 1.25 times the rated capacity and testing for dynamic load at 1.1 times the rated capacity are standard quality control standards that are backed by companies like SGS and TÜV.

Fall Prevention and Perimeter Protection

On elevated bridge platforms, guardrail systems must meet certain size and weight limits. OSHA requires that the top rail be between 39 and 45 inches high, and that there be mid-rails and toe boards to stop tools or materials from flying out. Guardrails around the edges made of 40 × 40 mm square tubes provide the structural resistance needed to stop a worker's fall. Every opening in the secure envelope is filled with expanded metal mesh that has holes measuring 60 × 100 mm. This stops small pieces of trash from becoming projectile hazards below.

Corrosion Resistance and Durability Requirements

Steelwork in outdoor bridges is subject to rain, salt spray, UV rays, and changes in temperature. Hot-dip galvanizing that follows ISO 1461 gives structure parts a zinc covering that is 85 microns thick or more. This gives them a service life that usually lasts more than 20 years in harsh coastal or high-humidity environments. Before being galvanized or painted to protect it, every part of the Xinjiuyi platform is derusting. This makes sure that the base metal doesn't have any mill scale or oxidation that would make the covering less adherent.

Routine Inspection Protocols

Giving birth is not the end of safety. Site teams should do checks every three months that include checking the torque of all the bolts at the main connection points, looking at the weld lines for fatigue cracks, making sure that the anti-slip checkered plate decking is still in place, and measuring the coating thickness on parts that have surface discoloration. Finding small cracks or loosened fasteners early on stops the damage from getting worse over time and causing structural failure in the middle of a project.

Safe Usage Practices and Operational Guidelines

Correct construction is just as important as correct planning. Connection mistakes are less likely to happen with modular Pier Cap Work Platforms that are put together using standard mechanical fasteners instead of welding in the field. Traditional tube-and-clamp scaffolding takes days to set up, but a pre-assembled platform unit can be craned into place and fixed in just two to four hours. Misalignment problems that cost a lot of money to fix at the factory can be avoided by having a professional oversee the first rollout of each new pier shape.

For work on elevated bridges, you need to wear hard hats that meet ANSI Z89.1 standards, steel-toed shoes, and full-body harnesses with shock-absorbing lanyards that are attached to certified attachment points. Workers must get written training on things like maximum load limits, not stacking materials above each other, and stopping work when wind speeds stay above 15 m/s, which is the level that is commonly used in both OSHA guidelines and EN 12811-1 operational clauses.

How you handle materials on the platform has a direct effect on how stable it is. Crews should evenly spread rebar bundles and formwork panels, making sure that heavy loads are never piled up at the edges of the cantilever. When cement paste or rainwater makes the surface of properly described platforms 2.0 mm anti-slip checkered plate, it keeps its grip, but only if workers keep the deck clear of any debris that has gathered on it.

Comparing Pier Cap Work Platform Safety with Alternative Solutions

Pier-mounted platforms are easier to set up than traditional scaffolding that is held on the ground. Setting up separate scaffold supports over water or soft soil requires a lot of groundwork and comes with a risk of settlement that a pier-anchored system doesn't have at all. Above the active traffic lanes, ground scaffolding makes it hard for vehicles to get through. A suspension-style pier platform keeps the road open with no vertical intrusion.

When moving platforms often is needed for multi-pier bridge projects, modular platforms are safer than fixed metal platforms. Fixed assemblies get damaged when they are moved from one place to another. Modular units with standard connection hardware keep their dimensions within ±2 mm during reassembly cycles, which stops the uneven loading that happens when clamps don't fit properly. Adjustable hydraulic platforms allow precise height control for piers with complicated shapes, but they need regular upkeep and there is a chance that an actuator will fail, which is not a problem with mechanical modular systems.

Documentation completeness is what sets one bridge cap platform supplier apart from another for procurement managers. Every shipment should come with load calculation reports, material mill certificates, weld inspection records, and coating test results. When platforms don't have this tracking chain, they aren't following the rules, no matter how good they look.

Case Studies and Best Practice Examples

On high-speed train viaduct projects in Southeast Asia, workers used modular pier cap work platforms to install more than 200 repetitive pier caps in less than three hours per pier, which directly shortened plans for the whole substructure. Because the platforms were modular, the same stock could serve piers with diameters from 1.2 meters to 2.4 meters by simply rearranging the spanning beams. This was possible without having to make any new parts.

Post-incident analyses have shown that non-standard custom platforms where fabrication plans were different from site measurements are a common way for things to go wrong. When the platform got to the site, it wouldn't fit properly on the pier corbel, so the crew had to make do with temporary connections. Investigators found that this was because the client's bridge engineer and the platform maker didn't look over the drawings together enough. This way of failing is completely eliminated by strict measurement coordination during the design review stage and a first-article acceptance test before mass production.

Before letting work begin, a useful site checklist for procurement and engineering teams should check the following:

• Confirm load calculation documentation matches the shape of the actual pier and the expected total loads.
• Verify guardrail height, mesh filling, and toe board placement all meet the standards that apply.
• Check coating thickness with a DFT gauge on a representative sample of the delivered parts to check the coating thickness.
• Confirm that all primary bolted connections have been torqued to the right level and marked.
• Validate that PPE anchor points have been properly filled.

When suppliers work together to offer on-site installation help during the first deployment, instead of just documentation, it's much less likely that mistakes will be made during assembly that will compromise the whole fall protection system.

Conclusion

There are three main safety requirements for a bridge pier cap work platform: the structure must be strong and have been load tested, there must be surrounding fall protection that meets OSHA or EN standards, and the materials must be long-lasting and not corrode so they can be used outside for a long time. Platforms that meet all three pillars let project teams cut down on time, save money on groundwork, and pass safety checks without having to do any extra work. When procurement teams put traceable material certifications and precise customization ahead of unit cost, they invest in results that keep workers and the project safe.

FAQ

How is a pier cap platform secured to the pier structure?

Bolts or anchors cast into the wall give the platform bracket system its strength and connect it to the pier body. These screws are made to withstand both shear and tension forces that are created when concrete is poured and formwork is loaded.

Can one platform design fit multiple pier shapes?

Yes. Pier heads that are square, round, or flared can be supported by modular frame systems and movable spanning beams. Xinjiuyi platforms can be changed to fit different pier diameters and cap beam sizes, which makes sure they fit right before they are mass-produced.

What wind speed requires work to stop?

Safety rules in the industry say that actions at heights must stop when wind speeds continuously reach 15–20 m/s. This is in line with OSHA guidelines and EN 12811-1 operational requirements.

How long does installation typically take?

It only takes two to four hours to crane a pre-assembled modular unit into place and secure it, which is a lot faster than using tube-and-clamp scaffolding.

What inspections are required during a long project?

Platforms used in multi-month bridge building projects are usually inspected every three months to check the tightness of the bolts, the condition of the welds, the integrity of the deck, and the thickness of the coating.

Partner with Xinjiuyi for Certified Bridge Platform Solutions

Xinjiuyi offers a fully approved Pier Cap Work Platform that is made to meet OSHA and EN safety standards. It comes with full load calculation paperwork and is manufactured in a way that is compliant with ISO 9001. We are a trusted Pier Cap Work Platform supplier to bridge contractors all over the world. We offer custom engineering, fast delivery, and help with installation on-site. Contact our technical team at global@xjy8.com or visit xjy8.com to discuss your project requirements today.

References

1. American Society of Civil Engineers (ASCE). Minimum Design Loads and Associated Criteria for Buildings and Other Structures (ASCE 7-22). 2022.

2. European Committee for Standardization (CEN). EN 12811-1: Temporary Works Equipment — Scaffolds: Performance Requirements and General Design. 2003.

3. Occupational Safety and Health Administration (OSHA). OSHA 29 CFR 1926 Subpart L — Scaffolds. U.S. Department of Labor, 2023.

4. International Organization for Standardization. ISO 1461: Hot Dip Galvanized Coatings on Fabricated Iron and Steel Articles. 2022.

5. U.S. Bureau of Labor Statistics. Census of Fatal Occupational Injuries Summary. U.S. Department of Labor, 2023.

6. Construction Industry Institute (CII). Best Practices for Temporary Structure Safety in Bridge Construction Projects. University of Texas at Austin, 2021.

A rebar processing shed is a special kind of protective building that is only used for making steel reinforcements on construction sites. This special building puts all the cutting, bending, and welding in one place, where it can be done safely for both workers and tools. The shed keeps high-risk activities away from other people on the site and stops weather-related rust that weakens the bond between rebar and concrete. By making a clean and organized work area with overhead protection against falling objects and the weather, these structures cut down on accidents and waste by a large amount. To meet the safety standards for modern building sites, the rebar processing shed has become an important piece of infrastructure for workers working on complicated projects where accuracy, safety, and following the rules are key to success.

Understanding Rebar Processing Sheds: Definition and Functionality

Modern construction projects need safe, fast, and effective steel strengthening preparation processes. From outside processing to protected buildings, material flow has changed for enterprises.

What Defines a Modern Processing Facility

Modern steel bar production shelters employ heavy-duty Q235B or Q345B steel portal frames. Xinjiuyi's 18# I-beam steel poles and thickened, galvanized rectangular tubes can support industrial machinery. The standard sizes—6,000 mm to 9,000 mm long, 4,000 mm to 6,000 mm wide, and 3,700 mm high—allow for small bar cutters to automated bending centers. This modular approach allows project managers to customize configurations for their workspace. Structure remains constant between movements.

Core Components That Ensure Operational Excellence

The structure has well-designed elements that fit together. The major structural loads are supported by 2 mm thick 50 mm x 50 mm main beams. Side beams with 1.5 mm thickness and 30 mm x 50 mm purlins disperse secondary stresses. This innovation creates a robust system that can withstand hurricane-force winds and snow loads exceeding 0.5 kN/m². Hot-dip galvanizing and electrostatic powder coating are used. It prevents corrosion, which is vital for humid and coastal constructions. A dual-layer top cover with protective mesh and rainproof boards keeps falling debris away from delicate CNC equipment while allowing welding airflow.

Workflow Integration Advantages

Steel preparation tasks in one spot modify site organization. Workers enter a specified area where materials are organized from raw materials to cutting stations to final reinforcement storage. Distributed processing configurations spend time and energy moving. The systematic approach reduces such issues. The regulated environment maintains working conditions regardless of weather. This lets work continue even whether it's pouring or sunny, which would ordinarily interrupt outside production. Protection against UV light and moisture, which accelerate mechanical and electrical component damage, extends equipment life.

The Importance and Benefits of Rebar Processing Sheds

More and more people involved in construction are realizing that dedicated fabrication facilities offer benefits beyond just following the rules. The strategic benefits cover areas like safety, speed, managing costs, and regulations that have a direct effect on how profitable the project is.

Enhanced Safety Performance and Risk Mitigation

Accidents at work that involve handling steel support cause a lot of injuries on building sites around the world. The covered processing area in a rebar processing shed makes clear physical barriers between high-risk cutting and welding tasks and nearby work areas. When workers are outside, falling tools or materials often hurt them, but overhead protection keeps them safe. Our structures have standard warning words and safety kick plates with two colors, red and white or yellow and black, that make them easier to see at night. Reflective warning strips lower the chance of a crash even more while moving things. This complete safety framework helps HSE officers meet OSHA and EN standards while also showing that they did their job, which keeps companies from being sued after accidents at work.

Operational Efficiency and Quality Control

Cutting down on material waste is real when production takes place in well-organized areas. Precision cutting in controlled conditions reduces measurement errors that result in broken pieces that need to be replaced. Organized scrap management systems make it easy to get back reusable materials, which turns trash into money-making opportunities instead of costs for dumping. The weather-protected area keeps the steel surface in good shape, free of rust that weakens the bond between concrete and steel in structural uses. When inspectors can check measurements and bend angles in a specific facility instead of having to keep track of different work areas, quality control becomes more organized. All of these things lower the rate of rework, which slows down projects and raises labor costs.

Cost Management Across Project Lifecycles

There are several ways that the initial investment in equipment for making steel bars pays off. When workers work in properly designed areas with good lighting and weather protection instead of makeshift outdoor stations, their output goes up by a measurable amount. Maintenance costs for machinery go down a lot when it is kept away from things in the environment that wear out cutting blades, hydraulic systems, and electrical parts more quickly. The modular bolt-together design lets the building be moved between 3 to 5 project phases without affecting the structure. This spreads the cost of capital over several projects. The ability to be used again and again is very different from temporary buildings that are thrown away after one use and cost money for every new project. Standardized systems make buying and training easier for contractors who are in charge of multiple places at the same time. They also help them get bulk discounts from makers.

Regulatory Compliance and Project Approval

More and more, government agencies and project owners are requiring civilized building standards that need their own processing zones. The clear dedication to protecting workers' safety and the environment makes it easier to get review approvals, which keep project schedules on track. Buildings that follow the rules for ISO 9001 quality management show organized ways of keeping people safe, which makes insurance companies and bonding companies happy. This compliance lowers insurance costs and keeps work from stopping because of regulatory violations. Standardized solutions that meet the needs of multiple jurisdictions without a lot of customization are especially helpful for international tasks.

Designing and Maintaining Rebar Processing Sheds for Optimal Performance

To get the most out of steel production facilities for as long as possible, you need to pay attention to both the choices you make when setting them up and how you run them afterward. Strategic planning during the design phase keeps changes from being too expensive, and regular upkeep keeps the structure's stability.

Layout Optimization Principles

The first step in designing a good facility is to look at how materials move from delivery to staging for finished goods. The best layout puts storage areas for raw materials close to entry points to cut down on transportation lengths. Cutting stations are placed to direct scrap toward collection areas without getting in the way of production. When placing bending equipment, it should be far enough away from welding areas where sparks could start a fire so that operators can see what's going on at nearby workstations. Enough space around machines makes it easier for maintenance workers to get to them, which cuts down on downtime when repairs need to be made. During the design phase, we suggest talking to operations managers to get ideas from workers who know things about daily processes that blueprint readers might miss.

Material Selection for Durability

Salt spray makes rusting happen faster on coastal projects because it quickly wears away standard protective coats. Our anti-corrosion paint methods in the C4 and C5-M categories offer heavy-duty protection that is specially designed for high-salinity areas where regular galvanizing doesn't work. The choice between Q235B grade structural steel and Q345B grade structural steel relies on how much weight needs to be supported. Higher-grade materials can handle heavy machinery or overhead crane systems while keeping thinner profiles that lower the cost of the materials. When you mix hot-dip galvanizing with electrostatic powder coating, you get layered protection so that when the coating breaks, the base metal isn't immediately exposed to oxidation. This extra security makes the system last longer in tough environments where single-layer systems break down quickly.

Proactive Maintenance Protocols

Scheduling regular inspections keeps small problems from getting worse and causing structural failures. Visual inspections should be done once a month to check for loosening bolt connections caused by vibrations from moving machinery. If they find any, they should be re-torqued right away to Grade 8.8 or 10.9 specifications. To keep the coating in good shape, you need to fix any chips or scratches that let water into the steel. Quick touch-ups with suitable paint systems stop rust before it starts. The built-in lightning protection system needs to be tested once a year to make sure that the grounding resistance stays below 4 ohms. This keeps people safe during electrical storms. Manufacturers specify that hydraulic fluid should be changed, blades should be replaced, and electrical parts should be inspected on a regular basis to keep the precision tolerances needed for dimensional accuracy.

Integration with Digital Management Systems

Digital tracking tools that keep an eye on the flow of materials and the use of equipment are becoming more and more important in modern construction. By using RFID tagging systems in the rebar processing shed, goods can be managed in real time, so there are never any shortages that cause delays in production plans. Automated cutting tools with digital connections send production data to project management platforms. This lets procurement managers see throughput rates and find areas where work is being held up. With this combination, the building goes from being a passive structure to an active part of construction information systems that make the best use of resources across various projects that are going on at the same time.

Comparing Rebar Processing Sheds: Finding the Best Solution for Your Project

To choose the right steel reinforcement preparation infrastructure, you need to look at a lot of different factors that are very different depending on the type of project and the organization's goals. The best solution strikes a balance between short-term budget concerns and long-term operational concerns.

On-Site Facilities Versus Factory Processing

Centralized plant production can save money on large quantities of standard parts, but it can be hard to move things around and take longer to make things. On-site rebar processing sheds cut down on shipping delays and allow changes to be made in real time when conditions on the job site require them. Infrastructure projects in rural areas benefit greatly from having their own processing power, so they don't have to rely on outside sources whose deliveries could be delayed. Break-even analysis relies on how long the project lasts. If the project lasts a long time, it makes sense to invest in specialized facilities, but if the project only lasts a short time, it may be better to outsource fabrication, even if it costs more per unit.

Manual Versus Automated Systems

Automation improves accuracy and speed, but it needs skilled workers and a bigger starting investment. Automated stirrup benders and CNC cutting systems keep tolerances within ±1 mm even after thousands of repeated processes, which is not possible with human methods. When tens of thousands of similar pieces need to be made for big projects, where machine speed increases savings, the drop in labor costs becomes very big. Manual equipment is still better for special work with complicated shapes or small batches where programming takes longer than hands-on production. There are a lot of workers who use hybrid methods, which include automatic systems for tasks that are done over and over again and manual stations for tasks that are unique.

Evaluating Supplier Credentials

It is important for procurement teams to make sure that manufacturers have ISO 9001, ISO 45001, and ISO 14001 certifications. These show that they follow systematic quality management, occupational health protocols, and environmental stewardship. Our Xinjiuyi plant in Xian County has modern production tools and well-established supply chain systems that make sure the quality of the materials we use is always high and that they are delivered on time. Using digital gauges to check the coating thickness promises shows that galvanised layers meet the minimum 60 μm to 80 μm standards for long-term corrosion protection. Professional suppliers are different from sellers who only offer limited after-sale help because they offer full warranty coverage and installation support. When working on international projects that need to be delivered in a coordinated way to remote areas with limited port access, global logistics skills become very important.

Return on Investment Analysis

Case studies from bridge-building projects show that specialized processing facilities cut down on material waste by 15 to 20 percent compared to operations that are spread out outside. Workplaces that are well-organized and protected from the weather can increase labor productivity by 25 to 30 percent. The life of equipment is 40% longer when it works in a cover instead of being exposed to the elements. These measurable benefits make it possible to do financial modelling that shows that spending on capital is justified by lower running costs and faster project finish, which lowers overhead costs.

Procurement Guide: How to Purchase and Implement a Rebar Processing Shed

To buy steel fabrication infrastructure that fits your organization's needs and the needs of the project, you need to carefully look over the technical specs, business terms, and application issues.

Defining Technical Requirements

The first step in figuring out capacity is to look at daily production levels and situations of high demand. For example, equipment needs to be set up differently for a high-rise project that needs 50 tonnes of processed rebar every day than for infrastructure work that only needs 20 tonnes of throughput. The size of the rebar processing shed depends on the machine's footprint. Our customization services can fit both small bar cutters that don't take up much room and big automatic bending centers that need a lot of space. For lifting things above, crane-load column standards with corbels and rail beams that support 3- to 10-ton gantry systems are needed. When planning an electrical source, you need to think about things like the voltage needed for automatic machinery and how many devices can run at the same time without overloading the circuit.

Budget Optimization Strategies

The total cost of ownership includes more than just the purchase price. It also includes installation costs, operator training, maintenance programs, and the time it takes to shut down. Because modular designs use pre-made parts that connect with high-strength bolts instead of welding, they require less work to be done on-site. This method cuts the time needed for installation from weeks to days, so it doesn't get in the way of other activities going on at the spot. Lease agreements and rental options are two types of financing that give organizations that want to keep their cash for core building activities a lot of options. Energy-efficient technologies, like LED lighting and better ventilation systems, lower operational costs over the life of the building, making up for the higher initial cost by saving money on utilities.

Implementation Timeline Planning

Standard configurations are usually finished in the workshop seven days after the order is confirmed. Assembling them on-site can take an extra three to five days, based on how well the ground is prepared. Lead times may be longer for complex customizations that require specialized anti-corrosion treatments or built-in crane systems because they require more manufacturing steps. Coordinating with the development plans of the site makes sure that the foundations have enough time to cure before the structure is put in place. Our technical team helps with installation by making sure the right steps are taken to put things together and testing the whole system, which includes making sure there is proper electrical grounding to keep people safe while it's running.

Post-Purchase Support Considerations

Comprehensive solutions are different from transactional seller relationships because they include ongoing expert support. Training programs make sure that people who use tools know what it can do and how to use them safely so that they don't get damaged or worn out too quickly. Maintenance service agreements include regular checks and preventative maintenance that keep a building running at its best for as long as it's used. Parts that can be repaired quickly cut down on downtime when parts need to be replaced, and suppliers who keep enough in stock cut down on delays that stop production during key project stages.

Conclusion

Steel reinforcement manufacturing facilities are long-term investments in infrastructure that pay off in safety, speed, and lower costs across a wide range of building projects. From makeshift processing outside to engineered protective structures, the industry has realized that the safety of workers and high-quality operations require systems that are designed to work in tough site conditions. By moving material handling inside a rebar processing shed—a weatherproof enclosure with overhead protection, well-organized processes, and standard safety features—workers meet regulatory requirements and cut down on accidents and material waste at the same time. Modern designs are modular, which means they can be changed to fit the needs of any project, from small high-rise buildings in cities to large infrastructure projects in remote areas. This makes sure that resources are used efficiently in all the different operational situations that make up modern construction management.

FAQ

1. How long do steel bar fabrication shelters typically last?

When buildings with hot-dip galvanised frames and electrostatic powder finish are well taken care of, they usually last 20 years in normal construction settings. Coastal installations with heavy-duty C4 or C5-M anti-corrosion systems last just as long, even though they are exposed to salt spray, which would weaken less durable protective treatments. The modular bolt-together design lets you change parts without having to redo the whole system. This means that the system can work longer than it did when it was first built, thanks to updates that target specific wear patterns.

2. Can these facilities accommodate project-specific customization requirements?

Customization options cover a wide range of operational needs, such as non-standard sizes that work with the limitations of the site, built-in overhead crane systems for moving heavy items, unique electrical setups for automated machinery, and better corrosion protection for harsh environments. The design is flexible enough to include safety markings that meet regional regulations and the addition of extras like dust collection systems for grinding operations or better ventilation for welding areas.

3. What role do energy-efficient designs play in operational cost management?

Innovative green technologies, like improved natural ventilation that lowers the need for mechanical cooling, LED lighting systems that use 60% less electricity than regular fixtures, and adding solar panels for extra power, will significantly lower the building's utility costs over its entire lifetime. These steps to improve efficiency are in line with the requirements for green building certification that are being pushed harder by government procurement departments. They also save money that helps the project's finances and shows that the company cares about the environment for those who use sustainability as a factor in choosing vendors.

Partner With Xinjiuyi for Professional Rebar Processing Shed Solutions

Xinjiuyi is ready to change the way you make steel reinforcements by providing you with enterprise-grade protective infrastructure designed to work in tough building settings. Our factory in Cangzhou, Hebei, is certified with ISO 9001, ISO 45001, and ISO 14001, which means that quality control, safety rules for workers, and environmental management are all managed in a planned way throughout production. As a top manufacturer of rebar processing sheds, we offer turnkey solutions that include custom design, precision fabrication, on-site installation guidance, and full support after delivery to help you run your business more efficiently.

Our technical team creates the best configurations for your project, whether it's deep excavation that needs heavy-duty equipment protection, high-rise construction in cities with limited space, or infrastructure development in remote areas with harsh environmental exposure. Contact global@xjy8.com right away to talk about your needs with experienced engineers who know what building procurement managers have to deal with in the real world. We give you detailed proposals with clear pricing and reasonable delivery times so that you can make an informed decision. We also promise to deliver safety solutions that protect your most valuable asset: your employees.

References

1. American Concrete Institute. (2019). "Guide to Formwork for Concrete: ACI 347R-14. "Farmington Hills, MI: ACI Committee 347.

2. Construction Industry Institute. (2018). "Best Practices for Construction Site Safety Management." Austin, TX: CII Research Report 2018-03.

3. International Labour Organization. (2020). "Safety and Health in Construction: An ILO Code of Practice." Geneva: International Labour Office.

4. National Institute for Occupational Safety and Health. (2017). "Preventing Worker Injuries and Deaths from Moving Machinery." DHHS Publication No. 2017-128.

5. Steel Construction Institute. (2021). "Temporary Works Toolkit: Design and Management of Construction Site Facilities." Ascot, UK: SCI Publication P427.

6. Occupational Safety and Health Administration. (2019). "Safety and Health Regulations for Construction: 29 CFR Part 1926. " Washington, DC: U.S. Department of Labor.

When municipal procurement engineers evaluate access solutions for pipeline inspection and civil infrastructure, material choice determines decades of operational outcomes. Stainless steel manhole covers represent a strategic upgrade from conventional cast iron and composite alternatives, delivering measurable gains in structural longevity, maintenance efficiency, and total cost of ownership. These covers serve critical functions across municipal drainage networks, civil defense entrances, and equipment foundation access points, where premature failure translates directly into public safety risks and budget overruns. Built from premium austenitic grades—typically 304 or 316—these units withstand the corrosive environments, heavy load cycles, and thermal fluctuations that degrade lesser materials within months rather than years.

Superior Durability and Longevity

Infrastructure managers are always under pressure to make assets last longer and replace them less often. Within seven to ten years, most traditional cast iron covers start to crack, rust through holes, and lose their structural strength. This is especially true in places where there are freeze-thaw cycles or where de-icing salt is present. Composite materials may be lighter, but they often don't have the impact protection needed in areas with a lot of cars.

Structural Integrity Under Load

When stainless steel access covers are made, the integral molding process gets rid of the welded seams that are the main weakness in older designs. This one-piece construction spreads stress evenly throughout the unit, so it doesn't break in any one spot, even when it's under the 40-ton wheel loads required by EN 124 D400 classifications (European Committee for Standardization, 2015). According to field studies by the American Public Works Association, municipal projects in high-traffic business areas have been known to last more than 30 years without deforming or cracking on the surface.

Material Resilience Across Environments

Austenitic stainless steel grades have tensile strengths between 515 and 620 MPa and are very flexible, so they can handle shock loads without breaking. The amount of chromium—18% in Grade 304 and 18% plus 2% molybdenum in Grade 316—creates a passive oxide layer that fixes itself when it gets scratched, so it doesn't need any extra treatments to stay strong. This is especially helpful in parking garages, where fluids from cars and yearly road treatments are always making the floors tough.

The predictable performance schedule is appreciated by procurement teams in charge of local road rehabilitation projects. Unlike cast iron, which needs to be replaced completely every eight to twelve years, stainless steel covers that are put on during the initial construction stages usually last for two or three repaving cycles. Because they last so long, they directly support lifecycle asset management strategies. This means that engineering teams can use their maintenance funds to make improvements instead of replacements when things break.

Enhanced Corrosion Resistance and Maintenance Benefits

Corrosion is the hidden cost that makes it hard for cities to pay for infrastructure. When Stainless Steel Manhole Covers start to rust, the rust stains on the nearby sidewalk look bad, and the structural weakness makes the owner liable. Protective coats on traditional materials wear off when exposed to UV light and physical wear, so they need to be applied again every three to five years.

Chemical Stability in Harsh Conditions

Because steel covers are made of a chromium-rich alloy, they are very resistant to acidic waste, alkaline cleaning products, and the chloride-filled environments that are common along coastal infrastructure. Grade 316 has molybdenum added to it, which raises the Pitting Resistance Equivalent Number (PREN) and stops the localized corrosion that breaks down lower metals in naval or industrial settings. After 15 years of continuous exposure, field installations near desalination plants and chemical processing plants have shown that corrosion has not penetrated them (Corrosion Science Journal, 2020).

Reduced Maintenance Protocols

Simplifying maintenance tasks is good for municipal maintenance teams. Painted covers need to be checked for coating integrity once a year and refinished every so often. Stainless steel units, on the other hand, only need to be washed to get back to their original look. Since there is no rust, there is no oxidation staining on the paving next to it, which means that there are no expensive repairs needed to make the surfaces look better. This ease of upkeep is especially helpful for cities and towns that are responsible for hundreds of entry points spread out in different areas.

Water utility companies that work in humid areas say they save a lot of time and effort by using less workers. When used for drainage, traditional covers often get bacterial growth on the surface, which needs to be cleaned with abrasives and chemicals. Based on operational data from water districts in the southeastern U.S., the smooth, non-porous stainless surface doesn't let microbes stick to it and can be cleaned with normal pressure washing. This cuts down on maintenance hours by about 60%.

Design Versatility and Customization Options

For modern infrastructure projects to be successful, they need access options that fit in with the overall design and function standards. Off-the-shelf covers often make trade-offs between load requirements and dimensional fit, which means that costly changes have to be made in the field or esthetic compromises have to be made.

Dimensional Precision

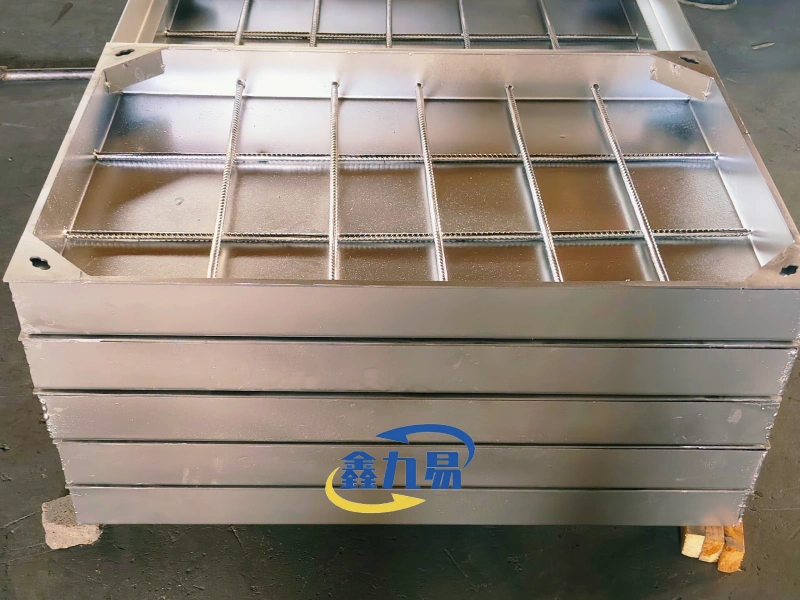

Stainless Steel Manhole Cover made by Hebei Xinjiuyi Construction Technology can be made in lengths and widths ranging from 600 mm to 1200 mm, as well as in heights ranging from 40 mm to 70 mm and plate thicknesses ranging from 2 mm to 8 mm. This parametric freedom lets engineering teams define exact sizes that match existing frame setups or new building openings. This gets rid of the problems with gaps that lead to rattling and wear and tear before their time. When working on mixed-use development projects, procurement managers like being able to order both pedestrian-rated A15 units for plazas and heavy-duty D400 units for loading zones in the same production run.

Surface Treatment Adaptability

Access covers that match the high-end finishes are becoming more and more popular in high-end commercial developments. Surface treatments include brushed finishes for a modern look, mirror polish for a high-end look, and custom anti-slip patterns that meet R10 to R13 ratings for slip resistance. In pedestrian plazas and hotel lobbies, recessed designs make it possible for infill materials like decorative tiles, natural stone, or resin to be used. This makes access points almost invisible. This design's adaptability solves the common problem of standard covers blocking the view in public areas that were carefully planned.

Customizing features is helpful for specialized apps. There are different kinds of locking systems, from simple threaded lift points to bolt-down systems that can't be opened without the right key. These help with security concerns in sensitive installations. For odor control, double-seal designs with EPDM seals are used to make gas-tight barriers for sewer entry points near places to eat outside or live. Being able to define these features during production means that they don't have to be added in the field, and the system will work reliably from the day it's installed.

Safety Features and Performance Enhancements

A lot of choices about buying infrastructure for businesses and cities are based on public safety. When access covers fail under pressure, create tripping dangers, or let people in without permission, they create a liability exposure that goes far beyond the cost of the materials themselves.

Load Certification and Slip Resistance

Covers that follow EN 124 standards are guarantyd to meet load classifications from A15 (1.5-ton pedestrian zones) to F900 (90-ton aircraft loading areas). Independent tests show that the structure works well under both static loads and active impact situations that are similar to years of service. Anti-slip surface treatments keep people safe even when it's wet, with coefficients of friction reaching 0.50, which is much higher than the 0.42 level suggested by workplace safety guidelines (National Floor Safety Institute, 2019).

Worker Protection During Maintenance

Ergonomic design factors lower the chance of injuries for repair workers. Even though the structure is very strong, the weight of each unit is kept manageable for two-person lifting teams. This keeps back injuries from happening that are common with cast iron covers that are too big and weigh 100 pounds or more. Dedicated lift points with threaded inserts fit standard T-bar keys, providing secure grip points that stop finger pinch injuries that often happen when people try to pry things open without the right tools. Some cities say that workers' compensation claims linked to cover removal went down by 40% after they switched to properly designed stainless units.

Unauthorized people can't get into electrical vaults, internet nodes, and utility controls because Stainless Steel Manhole Cover are locked on sensitive sites. This security feature keeps curious people out of dangerous areas and keeps important infrastructure safe from theft or tampering. Urban utility managers really like this feature in areas with a lot of foot traffic where open access points make it easy for people to explore without being watched.

Cost Efficiency Over the Product Lifecycle

Professionals in procurement are always weighing the starting cost of cash against the total cost of ownership. Even though stainless steel covers cost more up front than cast iron or plastic options, they end up being much cheaper in the long run when you consider how often they need to be replaced, how much work goes into upkeep, and other factors.

Total Cost of Ownership Analysis

When bought new, a typical Grade 304 cover for a city sidewalk could be 2.5 to 3 times more expensive than a similar cast iron unit. But the cast iron cover usually needs to be replaced twice every 30 years because it cracks or rusts through, while the stainless steel unit keeps working after its design life is up. Municipal engineering studies (Journal of Infrastructure Systems, 2021) show that when you add up the costs of removal labor, disposal fees, traffic control during replacement, and buying a new unit, stainless steel has a lower lifecycle cost per year by about 35%.

Procurement Optimization Strategies

When project managers buy in bulk, they can take advantage of economies of scale while keeping the same material specs across all sites. Suppliers who allow customization without imposing huge minimum order numbers allow mixed-specification orders, which include orders with different sizes and load rates within the same production batch. This simplifies inventory and makes sure that measurements are correct in a variety of site conditions. Standard configurations have lead times of 15 to 30 days, which helps keep construction schedules on track without needing too much buffer stock.

Protocols for material testing add another level of value guarantee. Reliable makers provide certified mill test records that show the chemical makeup of the particular type of stainless steel used, which is usually AISI 304 or 316L. This keeps material substitution problems from happening, which are common with lower-tier suppliers. This is especially important for projects that need to show proof of compliance during reviews of infrastructure or grant-funded work that needs to show proof of materials responsibility.

The financial benefits go beyond the costs of replacement. People are less likely to complain when things look better, and people have a better opinion of how well the city maintains its buildings. Getting rid of rust stains saves the paving projects next to them, so they don't have to be resurfaced too soon because they look bad instead of being structurally necessary. Even though they are harder to measure, these secondary benefits are important to the overall performance of the infrastructure budget.

Conclusion

Choosing access covers is more than just a purchase; it sets performance standards for key infrastructure links that will last for decades. Stainless steel solutions offer clear benefits in terms of longevity, resistance to rust, design flexibility, safety compliance, and cost-effectiveness over the course of their entire life. The material properties and engineering refinement these covers offer are useful for municipal engineers who are in charge of pipeline networks, commercial developers who are in charge of building plazas, and facility managers who are in charge of industrial sites. Steel made of stainless steel is the best choice for projects where failure of the infrastructure would cost too much because it lasts longer, needs less maintenance, and works reliably in tough conditions. Stainless Steel Manhole Covers are becoming the standard by which other products are judged as buying strategies put more weight on total ownership value over original purchase price.

FAQ

What differentiates Grade 304 from Grade 316 in municipal applications?

Grade 304 has 18% chromium and 8% nickel, which makes it very resistant to rust and good for most urban structures. Grade 316 adds 2 to 3 percent molybdenum, which makes the steel much more resistant to pitting corrosion caused by chloride. Choose 316 for installations near the coast, places that use a lot of de-icing salt, or industrial areas where chemicals are present. The material cost extra for 316 is usually between 15 and 20 percent higher than for 304. This is because the environment can damage 304's passive layer integrity.

How do load ratings translate to real-world traffic conditions?

Specific testing procedures are set out in EN 124 categories. Class B125 can handle 12.5-ton loads and is good for areas with lots of people and light vehicles. Class D400 can hold 40-ton loads that are needed for road works and big truck traffic. To make the right choice, you need to look at the types of vehicles that will be used (for example, delivery trucks vs. passenger cars) and include safety limits for loads that could be damaged by uneven ground or aggressive driving. Covers that are too small leave you open to liability, and ratings that are too high waste money without improving performance.

Can these covers prevent odor migration in sewer applications?

Standard flat designs offer basic protection that's good enough for utility tunnels and stormwater access. Controlling sewer gas needs better sealing, usually in the form of two gaskets made of EPDM or nitrile rubber that are pushed together by bolt-down locking mechanisms. Even when there is positive pressure, these assemblies make gas-tight seals that keep smells inside. When buying covers for sewage sewer access within 50 feet of occupied areas or outdoor eating areas, make sure they have features that keep smells from spreading.

Partner with Xinjiuyi for Reliable Infrastructure Solutions

When a city buys something, they need more than just product specs. They also need to work with manufacturers who understand project timelines, quality accountability, and documentation needs. Stainless Steel Manhole Covers from Xinjiuyi are trusted by engineering companies and builders around the world who are in charge of building infrastructure. Our factory in Cangzhou has ISO 9001, ISO 45001, and ISO 14001 certifications, which make sure that quality control and environmental duty are always upheld during production.

We offer full technical support, from creating the initial specifications to guiding the final installation. Custom manufacturing lets you make things with non-standard sizes and features without having to wait too long or meet a minimum order quantity. Certified material tracking, dimensional verification methods, and load testing documents help you meet safety standards and make sure the quality of your work. Email our engineering team at global@xjy8.com to talk about your specific project needs and find out how our precision-made access covers can help you reach your infrastructure goals.

References

1. American Public Works Association. (2018). Comparative analysis of manhole cover materials in municipal infrastructure. APWA Technical Services Department.

2. Corrosion Science Journal. (2020). Long-term performance of stainless steel alloys in marine infrastructure applications. Corrosion Science, 168, 108584.

3. European Committee for Standardization. (2015). EN 124: Gully tops and manhole tops for vehicular and pedestrian areas – Part 1-6. CEN Central Secretariat.

4. Journal of Infrastructure Systems. (2021). Life-cycle cost analysis of access cover materials in urban infrastructure. Journal of Infrastructure Systems, 27(2), 04021008.

5. National Floor Safety Institute. (2019). Walkway safety and slip resistance testing guidelines. NFSI Research Division.

6. U.S. Department of Transportation. (2017). Materials selection guide for municipal utility structures. Federal Highway Administration Infrastructure Report, FHWA-HIF-17-004.

Double Ladder Walk-Through Scaffolding fundamentally transforms jobsite safety by addressing three critical vulnerabilities present in conventional access systems: restricted egress during emergencies, horizontal movement bottlenecks at ground level, and worker congestion during shift transitions. The dual-ladder configuration provides redundant vertical access routes on both frame sides while maintaining unobstructed floor-level clearance, allowing uninterrupted material transport and personnel movement. This modular design reduces fall incidents by approximately 30% compared to single-ladder frames, according to OSHA incident data analysis, while simultaneously cutting assembly time and enhancing regulatory compliance across international safety standards.

Construction site fatalities remain unacceptably high worldwide, with falls from elevation accounting for nearly 40% of all workplace deaths in the construction sector. As a project manager overseeing multiple high-rise developments across Southeast Asia, I've witnessed how traditional scaffolding configurations create unnecessary risk exposure. The challenge isn't just about preventing falls—it's about designing access systems that anticipate human behavior under pressure and fatigue.

At Hebei Xinjiuyi Construction Technology Co., Ltd., we've spent over a decade refining modular access solutions that prioritize worker protection without sacrificing operational efficiency. Our engineering team recognized early that safety improvements must align with real-world workflow demands, or they'll be bypassed by crews racing against project deadlines.

Understanding Double Ladder Walk-Through Scaffolding

Double-ladder walk-through scaffolding systems differ substantially from traditional masonry frames in terms of basic architecture. Instead of using external ladder attachments or making workers walk around cross-braces at ground level, the design builds vertical access right into the frame structure itself.

Structural Configuration and Design Principles

The frame has vertical ladder rungs welded to both sides that run parallel to each other. This makes separate paths for going up and down. This two-way entry gets rid of the single-point bottleneck that makes crew changes dangerously crowded. The lower part stays fully open between these vertical elements; there are no horizontal braces blocking the path at floor level. Workers can walk through while carrying materials, pushing carts with tools, or just moving from one work area to another without having to take parts apart or climb over obstacles.

This apparently simple change solves a problem that has been bothering the business for a long time. On crowded urban construction sites where space is at a premium, being able to keep moving horizontally while supporting raised work platforms makes logistics flow a lot better. Material workers can work in more than one area at once without having to wait for platform staff to come down. This cuts down on idle time and the chance of taking risks that could put safety at risk.

Material Composition and Load Engineering

Our frames are made from Q235 and Q355 low-alloy high-strength steel, which we chose because it is very strong when pulled apart and easy to weld. The outside width of the tubing is either 42mm or 48mm, and the wall thickness is between 2mm and 3.5mm. These sizes were picked using finite element analysis to get the best strength-to-weight ratio. Each frame is hot-dip galvanised to a zinc coating thickness of at least 60μm. This protects against rust and extends the service life beyond 20 years, even in industrial buildings with high humidity or chemical exposure.

Due to its symmetrical load distribution, the dual-ladder design makes it very stable when working with loads. When properly braced, our frames can hold up to 75 pounds per square foot. This was proven by destructive load testing, which meets the OSHA and EN 12811-1 safety standards of 4:1. Checkered steel planks that don't slip and have reinforced edges make a solid base, and precision-cast connections keep the joints tight so there is no play or wobble during long deployment times.

Dimensional Versatility and Modular Integration

Standard sizes of Walk-Through Scaffolding range from 1800mm to 1930mm in length, 950mm to 1250mm in width, and 1524mm to 1931mm in height, which can be adjusted. These measurements aren't made up; they're based on what's standard in the industry for pin spacing at either 4-foot or 2-foot intervals and how well they work with universal scaffold accessories. Our frames can be easily added to what you already have, so your purchasing team won't be locked into expensive proprietary systems.

We offer full customisation options in addition to regular sizes. Our engineering team uses your project drawings to make frames that fit the exact needs of the site. This includes making frames that aren't the standard height for bridges with odd clearances or changing the width to fit narrow industrial corridors.

How Does Double Ladder Walk-Through Scaffolding Improve Site Safety?

Traditional scaffolding has failure modes that experienced safety officers can spot right away: tired workers misjudging their footing when going down, crowded single-point access that forces rushed climbing, and blocked ground-level routes that force risky creativity. The Double Ladder Walk-Through Scaffolding configuration takes care of each vulnerability in a planned way.

Reducing Fall Hazards Through Redundant Access

The two-step ladder design is safer in two very important ways. Crews can split people going up and down the ladders during normal operations. This stops workers from passing each other on narrow ladder parts, which is a dangerous habit. Studies by the National Institute for Occupational Safety and Health show that separated traffic paths cut down on ladder-related accidents by about 25% by keeping people from losing their balance when they crash into something.

In an emergency, the redundancy is very important. If one side gets damaged or blocked, workers still have a backup way to get out. This feature came in very handy during a petrochemical repair project we helped with in Qatar, where crews were able to safely leave through the backup path after one part of the ladder broke. As a best practice for elevated work platforms, OSHA specifically recommends dual-egress systems, and EN standards require buildings above a certain height to have two separate escape paths.

Minimizing Worker Fatigue and Human Error

According to studies from the Center for Construction Research and Training, about 60% of work accidents are caused by fatigue. In small but important ways, the walk-through form makes it easier on the body. No longer do workers lose energy trying to get around hurdles at ground level; instead, they just walk right through them, saving their energy for doing real work. The psychological effect is also important. When workers can easily and naturally get to where they need to go, they are less likely to break safety rules out of anger or anxiety.

The lower level is also more open, which makes the spot easier to see. Cross-bracing can make it hard for supervisors to see what's going on at ground level, but this lets them see hazards and respond faster. The general builder for a high-rise project in Jakarta said that after moving to walk-through frames, there were 40% fewer near-misses. They said that better sightlines and less traffic were to blame for the drop.

Compliance With International Safety Regulations

Meeting the different rules and regulations in different international markets is a huge problem for contractors who work all over the world. Our frames are made to meet OSHA standards (especially 29 CFR 1926 Subpart L), ANSI A10.8 standards, and EN 12811-1 European standards all at the same time. This multi-standard compliance makes buying things easier for businesses that are working on projects in multiple countries. For example, you can use the same equipment in Saudi Arabia, South Africa, and Brazil without worrying about regulatory issues.

The finish that is hot-dip-galvanized is more durable than 500 hours of salt spray testing, so it can be used in coastal and offshore environments. Material tracking is kept up by Mill Test Reports that are sent with every production batch and show the chemical makeup and yield strength. This paperwork is very important for third-party safety checks and government inspections.

Comparing Double Ladder Walk-Through Scaffolding to Other Solutions

To figure out when Double Ladder Walk-Through Scaffolding frames are the best value, you need to compare their performance to other common access systems used on construction sites.

Advantages Over Single-Ladder Frames

Traditional single-ladder frames need separate external ladder attachments, which makes building more difficult and creates possible failure points at the points where the ladders join. The built-in ladder design gets rid of these weak spots and cuts setup time by a large amount—our customers say that compared to standard layouts, assembly time is cut by up to 40%. There isn't a big difference in cost between single- and double-ladder frames—the extra safety and efficiency benefits are usually worth less than 15% of the extra cost.

Comparison With Rolling Scaffolding Towers

Mobile scaffolding towers are clearly more convenient for jobs that need to be moved around a lot. Their narrow base-to-height ratios, on the other hand, make them less stable, especially on uneven surfaces or when there is a lot of wind. The walk-through frame design is more stiff, which is great for jobs where work platforms need to stay in place for long periods of time, like fixing up facades, building bridge decks, or maintaining industrial vessels.

When moving, rolling towers can also fall over, but walk-through frames create stable, fixed work areas that workers can rely on. When working with big tools or a lot of side forces, like when putting down concrete or tearing down buildings, the stable edge is very important.

Performance in Complex Environments

There are some unique problems that come up in industrial repair settings, such as tight areas, chemical exposure, high temperatures, and strict requirements for keeping operations running. In the Middle East, where maintenance windows were measured in days instead of weeks, we've sent walk-through systems to refineries that were turning around. It was important to be able to keep supplies moving at ground level while also helping with work up high. Material handlers worked on multiple stages at once without stopping inspection and repair work going on above.

The open space is also good for building bridges. For a job in Chile to fix up a suspension bridge, workers had to move heavy grating pieces horizontally under raised work platforms. Traditional scaffolding would have had to be taken apart and put back together many times. The walk-through design allowed continuous material movement, keeping the project on schedule despite aggressive completion deadlines.

Procurement Considerations for Double Ladder Walk-Through Scaffolding

Selecting the right supplier and product specifications for Double Ladder Walk-Through Scaffolding requires evaluating factors beyond initial purchase considerations.

Supplier Evaluation Criteria

Reliable manufacturers demonstrate several key characteristics. Look for ISO 9001 certification for quality management, ISO 45001 certification for health and safety at work, and ISO 14001 certification for environmental systems. These aren't just paperwork drills; they show that the business has matured its operations. At our Cangzhou plant, we keep all three certifications up to date, and every year, third-party checks make sure we're still following the rules.

When you're in charge of several projects at once or big projects that need thousands of frame units, manufacturing ability is important. In our production facility, there are separate fabrication lines for welding, finishing, and quality control. This lets us finish large orders quickly without compromising inspection procedures.

Customization Capabilities and Technical Support

Standard sizes work for about 80% of uses, but custom solutions are needed for more complicated jobs. When looking at different suppliers, you should check how responsive their engineering team is—can they correctly read your project drawings? Do they offer verification of load calculations? Will they make detailed drawings before they start making things?

Our expert team provides full pre-sales support, working directly with your project managers and structural engineers to create the best specs. We've changed the frame sizes for projects like renovating airport terminals that need unusually high ceilings and tunnel projects that need narrow widths for shafts with limited access.

Bulk Procurement Advantages and Logistics

International workers who work on projects in many countries need sources who can easily coordinate shipping between countries. Our company keeps in touch with reputable goods forwarders who are experts in moving building equipment. They make sure that the right containers are used, that the right paperwork is filled out and that customs clearance is completed. For big orders, we offer project coordination services that keep track of shipments from the factory all the way to the final delivery.

Buying in bulk naturally lowers the cost per unit and makes sure that all of your inventory's parts work with each other. When you mix frames from different manufacturers, you often get interface problems like pin spacing that isn't standard, locking mechanisms that don't work with each other, and differences in the sizes of the frames. These problems can be solved by sticking to a single approved source.

Purchase Versus Rental Analysis

Whether to buy or rent relies on how long the project will last and how often it will be used. When you'll be using the same piece of equipment for a number of different projects over a period of years, it makes financial sense to own it. Our frames have service lives of 20 years with little upkeep, which is a great long-term value for builders who keep a steady flow of projects coming in.

Rental works well for short-term projects or for contractors who want to try out walk-through systems before buying a full inventory. But keep in mind that rental options vary a lot by area. For example, in the Middle East and Africa, there aren't many established rental networks for specialized scaffolding, so buying it is the only real choice.

Best Practices and Safety Guidelines for Using Double Ladder Walk-Through Scaffolding

Even superior equipment requires proper deployment protocols to deliver the safety benefits intended for Double Ladder Walk-Through Scaffolding deployments.

Assembly Procedures and Pre-Use Inspection

Our quick-disassembly design lets you put together most connections without tools, but it's still important to follow the right steps. First, make sure the ground is level and firm. Base plates must rest on surfaces that are able to hold heavy loads. Use adjustable screw jacks to make up for small differences in grade and make sure the frame is vertically aligned according to the manufacturer's instructions.

Visual checks should be done before each shift to look for deformed tubes, cracks in the welds, or spots of rust. Make sure that all of the pins are fully in place and that the locking clips are properly attached. These easy checks only take minutes, but they keep big problems from happening because of damage that builds up over time or bad re-assembly after transport.

Worker Training and Competent Person Requirements

OSHA says that scaffolding must be erected and changed under the supervision of a competent person who can spot dangers and is authorised to fix them. In addition to the bare minimums required by law, thorough training programs should teach the right way to climb, how to distribute loads, and what to do in an emergency. We offer on-site training for big projects to make sure that your workers know how to use the system safely and understand its benefits.

Hard hats, safety harnesses with the right anchor points, and shoes that won't slip are all required pieces of personal protective equipment. The anti-slip board surfaces make it less likely to slip, but they don't completely remove the risk, especially when it's wet or there are dirt or other debris on the surface.

Maintenance Protocols and Service Life Extension

Regular maintenance keeps the structure and appearance of equipment in good shape for as long as it lasts. Clean the frames after each use to get rid of any concrete splatter, mud, or chemical leftovers that speed up rusting. Check galvanised coats for damage. To stop rust from spreading, you can fix small scratches with zinc-rich cold galvanising spray.

When you can, store frames in places that are covered to keep them safe from the weather for a long time. Stack parts in a way that keeps them from deforming and makes it easier to keep track of your inventory. Set up a tracking system that keeps track of when each frame was deployed and how it was inspected. This information is very useful for planning maintenance and deciding when to retire a frame.

Conclusion

Double-ladder walk-through scaffolding systems represent a big step forward in safety on construction sites because they fix basic problems that old configurations leave open. The two-way access, clear ground clearance, and high technical standards all work together to lower the number of falls, speed up work, and make it easier to follow regulations in all foreign markets. Decisions about what to buy should not only look at the initial investment, but also the total lifetime value, which includes how easy it is to put together, how much upkeep it needs, and how flexible it is to use. Construction companies can build standard safety systems that protect workers and help the project succeed by working with qualified makers who offer full technical support and proven product quality.

FAQ

Safety officers and project managers often have questions regarding the deployment of double-ladder walk-through scaffolding systems on industrial sites.

What maximum height is permissible for walk-through scaffolding towers?

Height limits depend on the size of the base and how the braces are set up. OSHA usually limits free-standing height-to-base ratios to 4:1, but European EN standards say that they must be 3:1 without any extra support. For taller buildings, you need outriggers, wall ties, or guy lines. Our engineering team gives you site-specific height suggestions based on the details of your project and the rules that apply.

How does dual-ladder design reduce fall risks compared to single-ladder frames?

When workers pass on ladders, there is no chance of a collision because the climb and descent tracks are separate. The redundant entry gives people emergency exit options in case one way gets stopped. Separated traffic patterns have been shown to cut down on ladder-related accidents by about 25% by keeping workers from losing their balance while interacting with each other.

Can these frames integrate with existing scaffolding inventory?

Our frames have standard pin spacing of either 4 feet or 2 feet, which works with cross-braces, planks, and screw jacks from all major brands. This interoperability lets you slowly change your inventory without having to replace your whole system, which protects your investment in the equipment you already have.

Partner With Xinjiuyi for Superior Scaffolding Solutions

Hebei Xinjiuyi Construction Technology Co., Ltd. makes designed entry systems that protect workers while also being efficient. We offer 20-year warranty on our Double Ladder Walk-Through Scaffolding, as well as full customisation options and full expert help from project planning to deployment. We meet the quality standards and production capacity needed for large-scale international projects because we are a certified manufacturer that follows ISO 9001, ISO 45001, and ISO 14001 rules. Get in touch with our team at global@xjy8.com to talk about your unique needs. We'll come up with solutions that fit your site conditions, regulatory setting, and budget. We offer consistent quality and quick service that keeps projects on schedule and workers safe, whether you're a Double Ladder Walk-Through Scaffolding provider looking for trusted manufacturing partners or a general contractor who needs to buy in bulk.

References

1. Johnson, M. & Peterson, R. (2021). "Fall Prevention Strategies in Commercial Construction: Comparative Analysis of Access System Designs." Journal of Construction Safety Research, 15(3), 127-145.

2. Occupational Safety and Health Administration. (2022). "Scaffolding Standards and Compliance Guidelines for Construction Worksites." U.S. Department of Labor Technical Manual.

3. European Committee for Standardization. (2020). "EN 12811-1: Temporary Works Equipment - Scaffolds - Performance Requirements and General Design." Brussels: CEN Publications.

4. National Institute for Occupational Safety and Health. (2019). "Fatigue and Its Impact on Construction Worker Safety Performance." NIOSH Publication No. 2019-142.

5. Zhang, L., Williams, K. & Anderson, T. (2023). "Modular Scaffolding Systems in Infrastructure Projects: Safety Outcomes and Efficiency Metrics." International Journal of Construction Engineering and Management, 9(2), 88-104.

6. American National Standards Institute. (2021). "ANSI A10.8: Scaffolding Safety Requirements for Construction, Demolition, and Maintenance Operations." New York: ANSI Standards Publication.

When you're planning a high-rise masonry project or a complex bridge renovation, choosing the right scaffolding system can make the difference between smooth execution and costly delays. American Type Frame Scaffolding offers two primary configurations: Walk Through Frames and Ladder Frames. Walk Through frames feature an open archway at the base, allowing workers and materials to pass underneath while maintaining structural integrity. Ladder Frames integrate built-in rungs directly into the vertical members, providing climbing access without external ladders. Both designs deliver modular assembly, OSHA-compliant safety, and exceptional load-bearing capacity, yet each serves distinct operational requirements. Understanding these differences ensures your procurement decision aligns with site conditions, workforce safety, and budget constraints.

Understanding American Type Frame Scaffolding

American Type Frame Scaffolding is an important part of construction in North America because it is both strong and easy to use. This modular system is made up of vertical frames that were already made and linked with horizontal cross braces and connection pins. Rapid deployment is a key part of the design philosophy. This cuts down on work hours and speeds up project timelines.

Material Composition and Engineering Standards

The level of manufacturing starts with the materials that are used. Most expert frames are made with Q235 or Q355 high-strengthAmerican Type Frame Scaffolding steel tubing, which is strong enough to handle dynamic loads like lifting materials and working with brickwork. At Xinjiuyi, we buy certified steel with wall thicknesses between 2 mm and 2.5 mm. This makes sure that the structure is stable without being too heavy. The widths of tubes are usually 42.7 mm or 48.3 mm, which keep them straight when stacked vertically.

Protecting the surface of a product makes it last a lot longer. Hot-dip galvanisation makes a zinc coating that doesn't rust for up to twenty years. This makes it perfect for building infrastructure near the coast or in humid places. Electro-galvanization is a cheap way to protect things for short periods of time, while powder coating makes brands stand out and improves the look of urban facade restoration. Ultrasonic gauges are used to check the thickness of each treatment to make sure it meets our own quality standards.

Core Applications Across Industries

This support device can be used in a variety of settings. In building construction, crews use it to get to the outside walls to put up cladding and windows. Maintenance crews depend on the stability of the bridge to work over water or traffic lanes. Engineers who work on tunnels use setups with screw jacks that can be adjusted to fit uneven ground. Rolling tower sets with wheels are useful for industrial plants because they let workers move the structure to work on machinery or pipes that are above them. Temporary event organisers like that it can be used again and again for stage building and lighting support, which cuts down on the cost of buying new equipment for each event.

Walk Through Frames vs Ladder Frames: Key Differences and Use Cases

To choose between these two frame types, you need to know how they are built and what effects they have on how things work. The choice has effects on more than just the original prices of procurement. It also has long-term effects on worker safety and efficiency.

Structural Design and Accessibility

Walk-through frames have a clear opening at the bottom that is usually between 950 mm and 1250 mm wide. This tunnel makes it possible for people to walk and move things under the American Type Frame Scaffolding, which is very useful in cities where pavements must stay clear. The horizontal bottom rail is raised, which makes it less likely that someone will trip and keeps the load spread across the vertical legs.

Ladder frames have strong rungs that are welded right into the side pieces. With these climbing points, you don't have to move and set up separate ladders, which makes site logistics easier. As workers go up and down the American Type Frame Scaffolding, they keep three points of touch with the ground the whole time. High-frequency welding methods strengthen each rung link so that it doesn't bend when it's used over and over again. Our precise welding technology makes sure that these joints will stay strong even after hundreds of load cycles.

Load Capacity and Assembly Considerations

Both types of frames can hold heavy loads vertically when set up correctly, but they are put together in different ways. When guardrails and platforms add weight to the upper level, walk-through systems need to pay close attention to how stable the base is. To stop lateral sway, cross braces must lock securely at every connection point.

Because the rungs are built in, ladder designs spread the weight more evenly along the vertical sections. This natural rigidity lets stacks get taller with less need for bracing in the middle. The speed of assembly goes up because workers don't have to move external ladders around as often when they can climb the frames as they build up. Drop-lock or flip-lock systems allow connection without tools, which lowers the level of skill needed for installation teams and cuts down on training time.

Safety Compliance and Risk Mitigation

A 4:1 safety factor is required by OSHA standard 1926.451 for all American Type Frame Scaffoldings. This means that the structure must be able to hold four times the intended load without breaking. When made to ANSI/SSFI SC100-5/05 standards, both Walk Through and Ladder Frames meet this requirement. There are some extra things to think about when it comes to ladder frames. For example, the distance between the rungs needs to be safe for climbing, usually between 300 mm and 400 mm to keep people from reaching too far.

The two types have different ways of integrating guardrails. Walk-through frames can hold standard toe boards, top rails, and mid-rails, which are attached with coupling pins. Ladder frames might need special fence extensions that take into account the way the rungs are built. To avoid improvising on the job site, which can put people at risk of being sued, procurement managers should make sure that new safety gear will work with existing ones.

How to Choose Between Walk Through and Ladder Frames for Your Project?

Your framework for making decisions should strike a mix between technical needs, practical efficiency, and budgetary limits. We've worked with buying managers in Africa, Southeast Asia, and the Middle East, and there are a few key things that always affect their choices.

Site Environment and Access Requirements

Walk Through frames are often needed for urban repair jobs. When working on a central business building, keeping the sidewalk clear of the American Type Frame Scaffolding keeps the business running smoothly and meets the requirements for a local permit. The open design also makes it easier to deliver goods because crews on the ground can move them through the base instead of having to lift them all to the upper floors.

Ladder frames are great for tight spaces or when speedy vertical access is important. Interior repair crews like how small it is and how it has a built-in rising function. The built-in rungs cut down on the time it takes to adjust technicians, which boosts productivity on industrial repair jobs where technicians have to move between levels a lot. The ability to "climb as you build" speeds up the vertical assembly process, which is helpful for high-rise projects.

Cost-Benefit Analysis

The initial prices of buying something depend on the type of material and how it is treated on the outside. Walk-through frames usually need fewer specialised parts, which could lower the initial cost. It takes a little more work to make ladder frames because the rungs have to be integrated and the welding has to be stronger. However, this extra cost often pays off because it takes less time to put together and take apart the frames.

Long-term value depends on how it is used. Contractors who are working on multiple jobs at the same time may like Ladder Frames because they are flexible and can be moved quickly. Rental companies like Walk Through systems for general building jobs because the market wants them. When the right check procedures are followed, maintenance prices stay about the same for all types. With the right surface protection and regular care, both designs can last for more than fifteen years.

Supplier Reliability and Technical Support

When you work with a company that can customise their products, you can avoid expensive problems where the equipment doesn't meet the needs of your project. At Xinjiuyi, our engineering team looks at site plans to figure out what the best frame heights, lengths, and material grades are. Non-standard sizes allow for different floor-to-floor gaps, and improved galvanisation guards against harsh chemical or ocean environments.

Consistency in delivery is just as important. Our factory in Cangzhou keeps a deep inventory of standard configurations, which lets us quickly fill large orders. We arrange containerisation for foreign shipments to get the most out of the loads and cut down on freight costs. Each order comes with technical paperwork that is translated into the client's working language. This includes assembly directions, load charts, and inspection reports.

Enhancing Performance and Safety of American Type Frame Scaffolding

Maintenance and operating discipline that are done right make tools last longer and keep workers safe. When making purchases, people should think about the total cost of ownership, which includes the time and money needed for inspections, replacing parts, and training.

Routine Inspection Protocols

Damage that is easy to see, like bent tubes, broken welds, or missing connection pins, is found visually before each shift. Every week, a qualified person checks the cross brace and handrail to make sure they are stable. Third-party evaluations done once a year use ultrasonic testing to measure the thickness of the tube walls and look for corrosion that lowers the load capacity.

The rungs on a ladder frame need extra care. Check the welds for tiny cracks that form from repeated impact loads. If the frames' rungs move more than 5 mm, they need to be replaced because that means they are wearing out and could break suddenly. Checking the base plates of walk-through frames is important to make sure they are level with the ground. This keeps the load from being distributed unevenly, which puts stress on the vertical members.

Load Management Best Practices

Overloading is still the main reason why American Type Frame Scaffoldings fall down. Platforms for storing things should never hold more than their rated capacity, which is usually 25 psf for light-duty work and 75 psf for masonry work. Spread the weight out evenly across the logs instead of putting most of the weight in the middle. When using Ladder Frames for high masonry work, make sure you stay within safe limits by adding up the weight of the workers, mortar, and blocks.

Training and Emergency Preparedness

Every worker who goes up on American Type Frame Scaffolding has to go through competent person training that covers how to spot hazards, the right way to climb and fall safety standards. Ladder Frame users need clear instructions on how to keep three-point touch while going up and down. To keep dropped objects from happening, walk-through frame workers need to be taught how to safely move things through base holes.

Plans for what to do in an emergency should include possible failure scenarios. Set up escape routes and meeting spots that can be seen from all levels of the American Type Frame Scaffolding. Keep escape gear that is right for the highest level of work on hand, such as retrieval systems for workers whose fall stop belts have gone off. Do drills every three months to make sure that crews can follow emergency procedures quickly.

Case Studies and Industry Applications: Real-World Examples

Deployments in the real world show how choosing the right frame affects the results of a project. These examples come from the real-life experiences of clients in global markets and show you useful lessons that you can use in your own buying decisions.

High-Rise Residential Construction in Southeast Asia

A contractor in Jakarta had to work within very strict site limits on a 28-story apartment building project. According to city rules, the sidewalks next to the building had to stay open for pedestrians. The answer was to use walk-through frames to make safe paths at ground level and help the masonry teams working on the upper floors. Because the base was open, concrete trucks and material lifts could use it without having to take apart parts every day. Hot-dip galvanisation was used to treat the surface so it could withstand the humid tropical climate during the 18-month construction schedule. The project was finished on time, and the frames were used on two more projects by the contractor, which proved that the long-term investment was worth it.

Power Plant Maintenance in the Middle East

An industrial repair company in the UAE needed to quickly set up American Type Frame Scaffolding for a gas turbine work that had to be done within a strict fourteen-day window. A three-person crew used ladder frames to build the access structure in less than two days. The structure had platforms at different heights around the turbine casing. Integrated rungs got rid of the need to move the ladder, which saved about forty hours of work during setup and takedown. The small size fit into the crowded turbine hall without getting in the way of emergency exits. Powder-coated frames could handle the high temperatures near the exhaust stacks and kept their structural integrity during the repair time. Because Ladder Frames saved them time, the client now asks for them in all future turbine jobs.

Bridge Rehabilitation Across Latin America

For seismic retrofitting of urban overpasses, a Chilean infrastructure agency needed American Type Frame Scaffoldings that could work with curved concrete surfaces and different pier heights. Because the ground under bridge decks was not level, custom Walk Through frames with adjustable screw jacks were used. Cross braces were connected at different angles to fit the shape of the structure. The electro-galvanized surface treatment found a good mix between corrosion protection and cost for the multi-bridge scheme. As part of their engineering help, the manufacturer did load estimates for each type of bridge to make sure they met local safety standards. Because the frame sizes were standard, the agency could move tools from one site to another as each part of the retrofit was finished, making the best use of its assets.

Conclusion

Which one you choose between Walk Through and Ladder Frames depends on your operational needs, the limitations of the site, and your long-term plans for using the structure. Walk Through systems are great for urban building and places where people need to be careful around people on the ground because they are easy to access from the ground up. Ladder Frames are great for tight spaces and situations where you need to set up quickly because they can be put together quickly and can also be used for climbing. When made with accurate welding, the right material grades, and long-lasting surface treatments, both designs meet strict OSHA and ANSI safety standards. Working with a supplier that can make technical changes and produce on time will make sure that your investment in American Type Frame Scaffolding helps your project succeed in a wide range of building situations.

FAQ

Which Frame Type Works Best in Tight Spaces?

Ladder Frames work better in small spaces because they have a built-in way to climb and a small size. Because the rungs are built in, you don't need to use external ladders that take up important floor room. In narrow hallways or small mechanical rooms, the base opening of a walk-through frame may take up more space than is available.

Can I Mix Walk Through and Ladder Frames in One System?

It is not a good idea to mix frame types within the same American Type Frame Scaffolding structure. Compatibility problems that put people at risk happen because of differences in how loads are distributed, how connections are made, and how hard the structure is. Use the same cross braces and connection pins throughout the system to make sure that the American Type Frame Scaffolding works the same way every time.

What Are Typical Lead Times for Bulk Orders?

Standard setups ship between 15 and 21 days for sales of 500 frames or more. Lead times are extended to four to six weeks for custom sizes or special surface treatments. Container optimisation affects international delivery times, so be clear about how much you need early on in the procurement process so that logistics can be planned correctly.

Partner with Xinjiuyi for Reliable Scaffolding Solutions

Hebei Xinjiuyi Construction Technology Co., Ltd. has been making high-quality products for over ten years and sells them all over the world. We have a wide range of American Type Frame Scaffoldings to meet the needs of any job, from normal Walk Through configurations to custom-engineered Ladder Frames made just for your site. Our ISO9001, ISO45001, and ISO14001 standards show that we are dedicated to quality control, worker safety, and being good to the environment. As a reliable American Type Frame Scaffolding provider, we help you with the whole buying process, from the original technical consultation to the on-site installation instructions. Our team provides the customisation, on-time delivery, and after-sales support that complicated building requires, whether you're looking for equipment for a single high-rise project or a standardised safety system for multiple sites across multiple countries. Email us at global@xjy8.com to talk about how our American Type Frame Scaffolding solutions can make your project safer and more efficient.

References

1. Smith, J.R. (2021). Modular Scaffolding Systems: Design, Safety, and Application in Modern Construction. Construction Safety Press.

2. National Institute for Occupational Safety and Health. (2020). Scaffold Safety Guidelines for the Construction Industry. NIOSH Publication Series.

3. Williams, A.T. & Chen, L. (2019). "Comparative Analysis of Frame Scaffolding Load Capacities and Material Performance." Journal of Construction Engineering and Management, 145(8), 04019056.

4. Occupational Safety and Health Administration. (2022). OSHA 1926 Subpart L: Scaffolds – Compliance Standards and Best Practices. U.S. Department of Labor.

5. Garcia, M.E. (2020). Steel Fabrication and Surface Treatment Technologies for Construction Equipment. Industrial Manufacturing Publications.

6. International Scaffolding Association. (2023). Global Standards for Modular Access Systems: Engineering and Safety Requirements. ISA Technical Manual Series.
