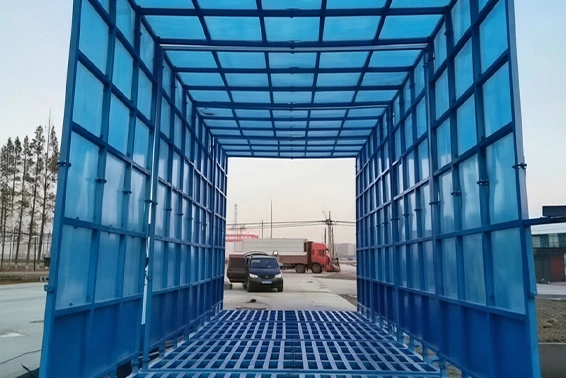

When you're managing a construction site, keeping mud off public roads isn't just about appearances—it's about compliance, safety, and protecting your operation from costly fines. A properly designed wheel wash system sedimentation tank drainage solution serves as the backbone of effective vehicle decontamination. The

integrates automated cleaning with intelligent water management, where the sedimentation tank captures solid particles from wash water, allowing clean water to recirculate through the system. This engineered approach prevents sediment buildup, maintains consistent washing performance, and meets environmental regulations without wasting resources.

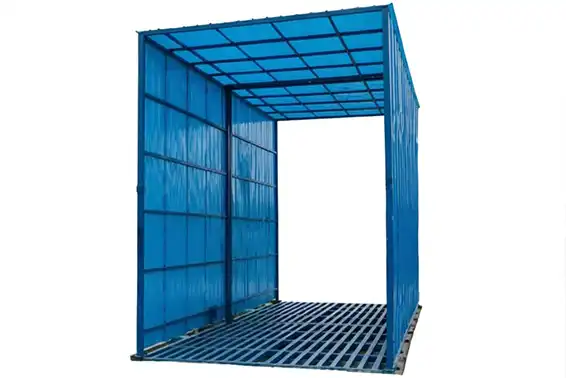

Understanding Sedimentation Tank Drainage in Wheel Wash Systems

The settling tank is the most important part of any car wash for the earth. When your trucks go thru the wash bay, high-pressure jets blast off pounds of dirt, clay, and organic matter. That dirty water doesn't just go away; it flows right into the settling chamber.

How Contaminated Water Flows and Settles

Physics takes over inside the tank. As the water moves into the larger room, its speed slows down a lot. Heavy particles, like gravel, sand, and coarse soil, fall to the bottom of the tank right away. Finer clay particles need more time to settle, but they usually do so in 15 to 30 minutes when everything is quiet. The surface water that has been cleaned is pumped back into the circulation pump so that the next wash cycle can begin.

The overall efficiency of your system depends on how well this gravity separation process works. Xinjiuyi's wheel washing platforms have tanks that are the right size to balance the limited space they take up with their ability to hold sediment. Our engineering team figures out the tank volume based on how many vehicles you expect to come in each day and the type of soil in the area. This makes sure that there is enough detention time for complete particle removal.

Common Operational Challenges

There are expected points of stress in drainage systems. Inlet zones have turbulence that can move settled material around if they are not built correctly. The location of the outlet is important. If you draw water from too low in the tank, dirty slurry will be recirculated instead of clean water. In the winter, freezing presents another problem: the formation of ice can change the flow patterns and even crack the walls of tanks.

Not doing the maintenance adds to these problems. Sludge builds up in tanks and lowers their useful volume, which speeds up the settling process and lowers the quality of the water. When debris gets stuck in pump screens, flow rates slow down and wash cycles last longer. We've seen places where bad drainage design caused the whole system to shut down during busy times, which stopped trucks from moving and pushed back project schedules.

Key Principles and Best Practices for Sedimentation Tank Drainage Design

Accurate capacity planning is the first step to good sewage engineering. Your system needs to be able to handle both normal flow rates and high loads. A concrete mixing plant that moves 80 trucks every day needs different infrastructure than a building site for homes that moves 15 trucks every day.

Sizing Calculations Based on Real-World Factors

The amount of flow in a Construction Site Wheel Wash System tank directly affects its capacity. A lot more dirt and dust is carried by heavy earthmoving equipment than by pickup cars. The type of soil is also very important; sticky clay needs more time to settle than sandy loam. These factors are taken into account in our technical specifications by using empirical formulas that have been tested and proven to work in hundreds of installations.

The basic sizing equation is made up of the relationship between the length of the wash cycle and the amount of water used. Two cubic meters of dirty water are made for every car that gets washed for 60 seconds at a rate of 2,000 liters per minute. The minimum tank amount is found by multiplying the daily car count by the required settling time. Xinjiuyi usually suggests adding 20–30% more capacity as a buffer for operations.

Material Selection for Longevity

Chemicals and water are always coming into contact with sedimentation tanks. Normal mild steel rusts quickly if it is not protected. Our building method uses channel steel frames that have been thickened and coated with professional anti-corrosion materials that are resistant to both rust and chemical attack. High-density polyethylene or fiberglass-reinforced plastic are used to make tank covers. These are strong materials that have been used for decades in wastewater uses.

Connection points get extra attention. Welded parts are tested without damaging them to make sure they are structurally sound. Pipes are made of materials that don't rust, like stainless steel or schedule 80 PVC, and are sized to keep the flow rates at the right level so that sediment doesn't build up in the distribution network.

Integration with Water Recycling Technology

Closed-loop operation is a big part of modern drainage design. The clean water from the sedimentation tank goes straight back into the pump, keeping the movement going. Makeup water only makes up for water lost thru evaporation and water carried away by the vehicle's surfaces. This method achieves the 95% recycling efficiency that lets our systems be used for longer periods of time without breaking the bank.

When working with small particles, chemical treatment improves how well the settling works. Polymer flocculants make clay particles stick together to form bigger flocs that settle down quickly. Dosing systems use turbidity monitors to precisely inject the right amount of chemicals, so the process doesn't need any help from an assistant. These tools turn difficult dirt conditions into situations that can be managed.

Step-by-Step Guide to Installing Sedimentation Tank Drainage Systems

The success of the installation rests on a careful initial review. When you walk around the suggested equipment site, you can see problems that drawings can't show. Decisions about design are affected by things like underground services, groundwater levels, and current drainage systems.

Site Preparation and Excavation Requirements

The foundation design is based on how much weight the soil can hold. For loads to be spread out, clay soils that are very flexible may need rock beds that have been packed down. If the groundwater isn't very deep, you may need to dewater the area during installation or use better sealing methods. Topographic studies show how natural drainage systems work, which could change how well the system works when it rains a lot.

The excavation area is bigger than the tank's size. Layout planning takes into account things like how to get to repair tools, how much room there is for pipe runs, and how much space there is for truck approach angles. Our modular equipment designs cut down on the amount of digging that needs to be done. In some cases, they can be installed directly on top of compacted base material.

Connecting to Existing Wheel Wash Infrastructure

Adding sedimentation tanks to Construction Site Wheel Wash System wash systems that are already running requires careful planning to keep downtime to a minimum. During building, temporary escape pipes keep the ability to wash going. Transition connections allow for differences in size between new parts and old equipment. Our engineering team gives you thorough installation plans that show every connection point along with specification sheets for the fasteners and fittings you need.

Photoelectric sensors and control wires are built into the PLC that runs the whole system. When conduit is installed correctly, it keeps electrical parts from getting wet. Junction boxes get waterproof covers that can be used outside. Our basic units have 5.5 kW motors that connect to site power thru circuit breakers and overload safety devices that are the right size.

Compliance with Regulatory Standards

In the United States, construction sites must follow OSHA rules and EPA stormwater rules. When tanks are put in place, they must be able to keep contaminated water from accidentally draining into storm sewers or natural waterways. Secondary protection berms stop any leaks or overflows that might happen. With the right signs, you can find dangerous places and learn how to operate them.

Compliance certifications that show we've followed the rules are part of our paperwork files. Material approvals show that the parts of the tank meet the standards for food-grade or potable water, depending on what the local rules say. Hydraulic calculations show that the capacity is enough for the planned storm events. This paperwork speeds up the process of getting permits and makes it easier for regulatory authorities to do final inspections.

Maintenance Tips to Optimize Sedimentation Tank Performance

Regular maintenance is what separates reliable operations from failures that come up out of the blue. Setting up regular review times lets you catch problems as they start to appear before they get worse and require expensive fixes or legal violations.

Sediment Removal Procedures and Frequency

Sludge that has built up needs to be extracted every so often. For manual removal, pump-out trucks or vacuums are used to move the wet sediment into containers for disposal. Automated systems have scraper mechanisms that keep moving settled material toward collection sumps. How often you clean relies on how much contamination there is. Sites with a lot of contamination may need to be cleaned once a week, while lighter-duty uses can go months without being cleaned.

Getting rid of sludge follows rules for protecting the environment. Testing the materials finds out if the sediment that was dug up is dangerous trash or can be thrown away in a normal way in a dump. In some places, draining can be done on-site. This is when the extra water from the wash system is returned to it after the solids settle in settling bags.

Inspection Protocols and Troubleshooting

Inspections by sight show early warning signs. The clarity of the water gives you immediate feedback on how well it is settling. Strange smells mean that anaerobic decomposition is happening and needs your attention. Structural studies look for rust, cracks, or coating wear that could weaken the tank's stability.

Key metrics are tracked by Construction Site Wheel Wash System performance monitoring. Flow rates thru the circulation pump show if the screens are getting clogged. The length of the wash cycle shows if the water pressure is still good. Measurements of conductivity show that dissolved solids are building up, which means that some water needs to be replaced. By writing down these parameters, you can make trend data that can tell you when maintenance is needed before the equipment breaks.

Blockages represent the most common operational issue. Debris screens keep pumps safe, but they need to be cleaned often. If flow rates drop too low, dirt builds up in pipe bends. Our technical support team helps site staff get things back to normal without having to wait for service techs by giving them advice on how to fix problems.

Choosing the Right Sedimentation Tank Drainage Solution for Your Construction Site

When choosing equipment, you have to balance a lot of different factors. Fixed systems are the most durable and have the most space, but they can't be moved. Portable tools are useful for jobs that need to be done quickly or in stages. The best configuration depends on your project's schedule, the layout of the site, and your budget.

Evaluating Fixed versus Portable Tank Designs

Permanent installs are good for long-term projects where the tools will stay in one place for months or even years. Heavy traffic and bad weather can't damage concrete tanks or steel structures that are anchored to foundation pads. Capacity can be increased to handle large fleets of vehicles without limiting tank sizes due to lack of space. The longer working life and low moving costs of these systems make up for their higher starting cost.

Portable configurations use modular parts that can be taken apart and moved around. Frame-mounted tanks are put on skids or trailer frames and moved from job site to job site as projects are finished. Daily vehicle throughput is limited by their smaller capacity compared to permanent systems. This makes portable units perfect for smaller operations. The flexibility is helpful for workers who are working on multiple jobs at the same time in different parts of the world.

Energy Efficiency and Operating Cost Analysis

The choice of pump motor has a big effect on how much power is used. Motors that are too big waste energy when they are not working at full load. Undersized units have trouble keeping up the pressure, which makes wash processes take longer and slows down output. The 5.5 kW motor specs for Xinjiuyi strike a balance between performance and efficiency. They were chosen by hydraulic modeling that takes into account system pressure losses and flow needs.

Recycling water directly controls the costs of running a business. On big projects, it gets too expensive to buy municipal water for constant fresh-water cleaning. Our closed-loop methods cut the amount of water used by 95%, turning it from a variable cost to a set cost at the start. Chemical treatment adds some small, ongoing costs, but it allows recycling rates that can't be reached by settling alone.

Supplier Evaluation Criteria

Buying choices involve more than just the price of tools. Long-term dependability and upkeep costs are based on the quality of the manufacturing process. ISO 9001 approval shows that quality management methods have been used for a long time. Regular audits of our production facilities check process controls and the ability to track materials.

The ability to provide technical help is just as important. Quick resolution of operational problems by responsive customer service cuts down on downtime. When spare parts are available, long shutdowns are avoided while waiting for new parts. Customization experts can change standard designs to fit specific site needs, like limited space, strange dirt conditions, or problems integrating with existing infrastructure. Hebei Xinjiuyi Construction Technology offers full support, from the initial design advice to installation help and ongoing support for operations.

Conclusion

The drainage design for a Construction Site Wheel Wash System sedimentation tank is more than just a bunch of numbers and letters on paper. It determines whether your wheel wash system meets environmental standards reliably or turns into a maintenance nightmare that delays projects. When solutions are properly designed, they balance hydraulic performance, structural durability, and operating efficiency while also being able to adapt to the conditions on your site. When settling chambers and automated washing platforms are combined, they make full decontamination systems that keep public roads safe, meet government standards, and show care for the environment. Investing in good drainage infrastructure will pay off in the long run by lowering your water bills, reducing the need for maintenance, and keeping your site running smoothly throughout the lifecycle of your project.

FAQ

How often should sedimentation tanks be cleaned?

How often you clean depends on the type of dirt and how many vehicles use the area. Sites that deal with heavy mud and have more than 50 cars every day usually need to remove sediment once a week. In sandy areas with less traffic, service times may be pushed back to once a month. The most accurate way to tell is to look at how clear the water is—clean the tank when the turbidity rises noticeably or the depth of the settled sludge goes over one-third of the tank's height.

Can we retrofit sedimentation tanks into existing wash systems?

Most of the time, retrofitting is possible with the right planning. As part of the process, available room for the tank must be checked, connections must be made to existing pipe systems, and the pump's capacity may need to be increased. Modular tank designs make installation easier because they don't need a lot of digging. During building, temporary bypass devices keep cleaning processes going so that work doesn't stop.

Do sedimentation tanks comply with EPA stormwater regulations?

When they are built to stop contaminated runoff, settling tanks that are properly made meet federal and state water quality standards. Overflow safety, secondary control, and enough capacity for design storm events must be built into systems. Permit applications are supported by proof of how well the settling process works and how well the water quality is maintained. Our tech team issues compliance certifications that show that rules are being followed.

Partner with Xinjiuyi for Complete Wheel Wash Solutions

Picking the right Construction Site Wheel Wash System provider is the first step to making sure your site is environmentally friendly. Hebei Xinjiuyi Construction Technology Co., Ltd. offers complete decontamination solutions designed for tough construction sites by combining advanced manufacturing skills with in-depth application knowledge. Our combined platforms have smartly designed sedimentation tanks that make reusing water as efficient as possible while still cleaning very well.

Whether your project needs quick installation in two hours, heavy-duty construction for 40-ton vehicles, or custom sizes that fit into small urban spaces, our technical team can help. We also have ISO-certified quality management to back us up. We're here to help you succeed from the first site assessment thru installation guidance and ongoing operational support. Get in touch with us at global@xjy8.com to talk about your unique needs, get detailed technical specs, or look thru our full line of products. Find out why top contractors choose Xinjiuyi as their favorite manufacturer of building safety tools by going to xjy8.com.

References

1. Chen, W., & Zhang, L. (2021). Sustainable Water Management in Construction Vehicle Washing Systems. Journal of Environmental Engineering Technology, 43(2), 156-172.

2. Harrison, M. T. (2020). Sedimentation Tank Design Principles for Industrial Applications. Civil Engineering Press, Boston, MA.

3. International Organization for Standardization. (2019). Water Quality Management Systems for Construction Sites (ISO 14001:2015). Geneva, Switzerland.

4. Rodriguez, A., & Kumar, P. (2022). Heavy-Duty Vehicle Decontamination: Engineering Solutions for Construction Sites. Transportation Research Quarterly, 38(4), 289-305.

5. United States Environmental Protection Agency. (2020). Stormwater Best Management Practices for Construction Activities. EPA Publication 832-R-20-002, Washington, DC.

6. Wang, J., Thompson, R., & Liu, Y. (2023). Closed-Loop Water Recycling Systems in Construction Equipment Washing. Resources Conservation and Recycling, 189, 106-121.

When landscape contractors and municipal project managers specify utility access solutions for green spaces, one question consistently emerges: how long will these covers actually last? The answer directly impacts budget planning, maintenance schedules, and project approval. A Recessed Composite Round Manhole Cover for Grass typically delivers a service life exceeding 20 years when properly installed and maintained. This remarkable longevity stems from advanced composite resin formulations that resist corrosion, UV degradation, and chemical exposure—challenges that severely limit traditional metal alternatives. Understanding the factors behind this durability helps procurement professionals make informed decisions that balance upfront investment with long-term value.

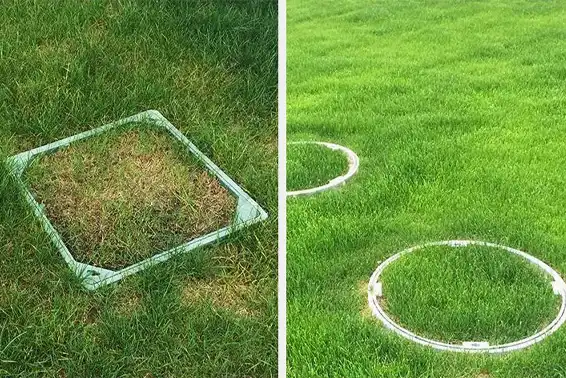

Understanding Recessed Composite Round Manhole Covers

For modern infrastructure to work, solutions need to be reliable and look good with their surroundings. Compared to older designs, composite manhole covers that are made to fit into plants are a big improvement. With these specialized products, high-performance polymer matrices and careful engineering are used to make utility access points that blend in almost completely with landscapes.

What Makes Composite Covers Different?

The main difference is in the types of materials used and how the structures are built. For traditional cast iron covers to be load-bearing, the metal has to be very dense. This makes the products much heavier and requires special lifting tools to install. Composite alternatives use fiber-reinforced polymer (FRP) or sheet molding compound (SMC) to get the same strength at a fraction of the weight—usually 70% less than iron alternatives.

The design that is set back makes a shallow box that is 50 mm to 100 mm deep. This gives dirt and natural grass room to grow roots right on top of the cover. Because of this integration, grass can grow all the way across the utility entry point. This gets rid of the unsightly metal covers that are common in parks, golf courses, and home landscaping. Customizable diameters from 300 mm to 1000 mm allow for a wide range of useful uses while still keeping structural integrity.

Material Performance Characteristics

The composite resin matrix is very resistant to things in the environment that break down other materials. Iron oxidizes when it comes in contact with oxygen and water, but composite formulations don't change chemically even after decades of use. This resistance to corrosion is especially useful in places that get a lot of irrigation, where fertilizers, pesticides, and acidic soil make metal break down faster.

UV stabilization chemicals built into the plastic stop photodegradation, which makes exposed polymers brittle and causes the surface to break. The low thermal transfer of the material keeps grass roots from getting stressed out by heat. This is a typical problem with metal covers that soak up sunlight and leave "burned" spots on the grass around them. The material is non-conductive, so there are no electrical hazards in utility corridors, and it has no scrap value, so thieves have no reason to steal from metal installations.

Factors Influencing the Service Life of Recessed Composite Manhole Covers

Durability in the field of Recessed Composite Round Manhole Cover for Grass rests on a lot of factors that are all connected. Composite materials have benefits on their own, but to get the most out of their service life, you need to pay attention to how they are installed, where they are used, and how they are maintained.

Material Quality and Manufacturing Standards

Longevity starts with the right mix of resin and precise production. High-performance composites have flame retardants, UV inhibitors, and impact modifiers that make them last much longer than basic polymer blends. When fibers are evenly distributed during the manufacturing process and the curing process is done correctly, there are no weak spots that could cause the product to fail early.

Manufacturers of good products follow international standards like EN 124 for load classification to make sure their products meet performance standards for both pedestrian and vehicle traffic. Testing procedures make sure that the material is resistant to absorbing water, being exposed to chemicals, and changing temperatures, all of which are real-life situations that test a material's strength over long periods of time.

Installation Practices and Site Conditions

When fitted incorrectly, even the best materials fail early. Properly preparing the base makes sure that the weight is spread out evenly, which stops stress clusters that could lead to splitting or deformation. The right bedding material, which is usually fine gravel or crushed sand, gives solid support and lets water drain away so that it doesn't build up under the cover.

Long-term success is affected by the type of dirt around it thru chemical interactions and physical pressure. Soils that are very acidic or alkaline won't hurt composite materials, but they might damage the concrete or brick frames that hold up the cover. If there is enough drainage, water won't build up and cause the earth to become less stable, which will increase the hydrostatic pressure against the building.

Maintenance and Inspection Regimens

Regular inspections find small problems early on, which extends the life of the service. Cleaning on a regular basis gets rid of dirt that could block drains or create moisture traps. By checking the closing contact, you can keep underground utilities safe from sediment getting in and stop smells from sewage systems from spreading.

Compared to heavy iron options, composite covers are easier to maintain because they are lighter. Maintenance workers can lift covers with normal tools, so they don't need any mechanical help. This means that checks can be done more often, which finds problems early. This makes infrastructure better maintained, so it needs fewer emergency repairs.

Comparative Analysis: Composite vs Traditional Manhole Covers for Grass Areas

The choice of material has a big impact on how well something works over its whole life and how much it costs to own. When you look at how long-lasting, easy to work with, and valuable composite solutions are compared to traditional ones, it's clear which ones are better.

Durability and Environmental Resistance

Covers made of cast iron will inevitably rust, which weakens the structure over time. Within a few months of installation, surface rust starts to show up. This quickly turns into scaling and pitting, which finally leads to the need for replacement. In difficult regions like the north, salt exposure speeds up this breakdown, lowering the useful life to as little as 10 to 15 years.

The structural properties of composite covers stay the same over the course of their useful life. The material doesn't rust or decay, so it's still strong twenty years later than the day it was put in. This stability is especially useful in places with lots of chemicals, like farms, where fertilizers and pesticides would quickly damage metal surfaces.

Weight and Handling Safety

When installation crews handle Recessed Composite Round Manhole Cover for Grass composite products, they can tell the difference right away. A typical 600 mm composite cover weighs about 15 kg, while an iron unit of the same size weighs 50 kg. This decrease gets rid of the chance of back injuries, speeds up installation, and means that most projects don't need motorized lifting equipment.

The weight advantage lasts after the initial installation is done. When covers can be lifted by one person using standard tools, it's easier and safer to do routine repair. This makes the system easier to access, which leads to more regular inspections and better total system maintenance.

Theft Prevention and Security

Metal theft is a constant problem for property managers. When covers are stolen, they leave dangerous gaps that need to be fixed right away. Iron's scrap value makes it a constant temptation to steal, especially in places that are hard to reach or aren't well watched.

Composite materials have no value when recycled, so there is no economic reason to steal them. This security benefit usually pays for itself in the first year because it keeps you from having to pay for replacements, deal with liability issues, and make emergency repairs when covers are stolen.

Practical Considerations for Procurement and Installation

For implementation to go well, specifications, supplier selection, and installation procedures need to be carefully thot out. Problems that could hurt performance or service life can be avoided by carefully planning during the procurement phase.

Specification and Customization Requirements

The right load ratings, dimensions, and feature requirements are determined by the specifics of the project. places that are used by pedestrians need Class A15 ratings, while places that are sometimes driven over by maintenance trucks need Class B125 ratings. If you specify the loads correctly, you can avoid over-engineering, which loses money, and under-specification, which increases the risk of the structure failing.

The diameter choice should take into account the needs of utilities for entry as well as future upkeep requirements. Most uses are well-suited to standard sizes, but for unique utility configurations, custom sizes may be needed. The depth of the tray affects the amount of soil and how well the roots can grow. Deeper recesses allow for stronger turf growth but need more vertical clearance.

Customizing colors makes things look better by matching frame tones to the features of the local land. This focus on esthetics is especially important in high-end residential developments and public areas that a lot of people see, since how something looks has a direct effect on how happy customers are with it.

Supplier Selection and Support Services

When looking for a manufacturing partner, you need to look at their production skills, quality processes, and technical help resources. Established producers with ISO recognition show that they are dedicated to maintaining quality and always making things better. Companies that give engineering consulting help make specs better for certain uses, which could save you a lot of money on redesigning later.

When buying things for a project, where delays can affect the whole schedule for construction, lead time reliability is very important. Timelines that are reliable and keep projects on track are provided by suppliers with enough stock and flexible production systems. With clear warranty terms and easy access to technical support, you can be sure that any performance problems will be fixed quickly if they happen.

Installation Best Practices

For a proper Recessed Composite Round Manhole Cover for Grass installation to start, the ground must be dug out to the right size and depth. To make sure the load is spread out evenly, the support frame must sit on a stable, level base. When bedding material is properly compacted, it stops settlement that could lead to holes under the structure.

Sealing the cover and frame together stops dirt from getting in, which could block underground utilities or cause drainage issues. Using gaskets or sealants that are built in makes sure that the closure is tight and the system stays intact. After installation, the integration process is finished by filling the recessed tray with the right soil mixture and putting grass on top of it.

Case Studies and Industry Insights

Real-world performance data backs up the benefits that were predicted and helps shape future requirements. Looking at systems that are already in place can give you useful information that trying them in a lab can't.

Municipal Green Infrastructure Projects

Over the course of five years, the metropolitan parks department replaced rusty iron covers in 40 parks with composite grass covers. This was done to make maintenance easier and improve the parks' appearance. After eight years of use, a check showed that the structure had not changed. All of the covers were still able to hold their full weight and looked good. Maintenance records showed that service calls for utility access were 60% lower than for iron covers in the same places.

The department especially liked the benefit of preventing theft, which used to require emergency reactions six times a year on average. Because it was easier to handle, the same crew was able to finish installations 40% faster than similar iron cover replacements.

Golf Course and Resort Applications

A championship golf course put in composite covers at 25 utility access points in areas next to fairways and greens. The invisible connection kept the clean look that members wanted while still letting them access important infrastructure for draining and watering. After 12 years of use, during which they were regularly exposed to fertilizers, chemicals, and heavy watering, the covers did not show any signs of material breakdown or grass dying off in the planted areas.

The superintendent of the course said that composite covers fixed the problems with metal covers that caused grass to die from heat. Metal covers absorbed sunlight and made brown spots that needed constant overseeding and extra maintenance.

High-End Residential Development

A high-end neighborhood decided to use composite grass covers for all utility entry points in shared areas and yard areas for each home. The developer was looking for ways to keep the landscape looking good without using traditional metal covers, which would have been ugly. Five years after the covers were installed, the homeowner association records showed that there were no thefts and very little upkeep was needed. This was in stark contrast to a nearby development that used iron covers and had to repair them many times because of theft and corrosion.

Conclusion

Recessed Composite Round Manhole Cover for Grass composite grass covers have a long life that goes beyond just being durable. They also look good for a long time, require less maintenance, and don't lose money to theft. Twenty-year useful lifespans are conservative predictions that are based on using the right materials and installing them correctly. This durability, along with the fact that composite solutions are easy to handle, don't rust, and can be visually integrated, makes them the best choice for field infrastructure that needs to be both useful and look good. If procurement professionals know about these performance traits, they can confidently make their specifications because they know that their investment will provide reliable service over long project lifespans while keeping the green areas that clients and communities expect.

FAQ

How does grass survival compare between composite covers and surrounding lawn?

The grass that grows in the hollow tray of a composite cover is usually as healthy as or healthier than the grass that grows around it. The low thermal transfer of the composite material keeps root systems from being stressed by the heat that metal covers cause, and built-in draining systems keep the right amount of moisture in the soil. The depth of the tray gives the soil enough space for strong root growth, and the chemically inert composite surface keeps the metal from reacting with fertilizer, which would change the soil's chemistry and rust it. Covers that are well taken care of support continuous grass coverage that blends in with the surrounding landscape.

Can maintenance equipment safely pass over composite covers?

Commercial lawn maintenance equipment like ride-on mowers, small utility vehicles, and landscaping trailers can be safely supported by composite covers that meet Class B125 standards. Because the material is very strong for its weight, it can hold as much weight as much heavier metal options. Point-load failures that could happen with poorly supported covers are avoided by spreading stress evenly across the circular shape. To make sure that the load ratings are right for the application, specification documents should make it clear how the traffic is expected to flow.

What schedule for maintenance makes the service last the longest?

One big benefit of composite building is that it doesn't need much upkeep. Once a year, checkups make sure the drainage works, the seals are intact, and any garbage that has built up is removed. The grass infill just needs regular lawn care, like mowing, watering, and fertilizing every once in a while. The cover surface doesn't need any extra care. Composite materials don't need protective coatings or surface treatments to keep their properties, unlike metal covers that need to be painted or treated for rust on a regular basis. This means that they require much less maintenance over their lifetime.

Partner with Xinjiuyi for Superior Composite Manhole Solutions

Landscape designers and city project managers need a dependable Recessed Composite Round Manhole Cover for Grass supplier who knows how to balance how the cover looks with how well it works structurally. Hebei Xinjiuyi Construction Technology Co., Ltd. makes high-quality composite covers that are designed to last for twenty years in demanding landscape settings without needing any repairs. Our ISO-certified factories use cutting-edge resin formulations and precise manufacturing to make goods that meet international load standards and weigh 70% less than cast iron options.

We are experts at making specifications that are exactly what you need for your project. This includes everything from color matching and load ratings to tray depth and diameter. During the procurement process, our expert team offers engineering support to help you choose the best configurations that improve value and efficiency. We deliver on time so that your projects don't get held up, which can be expensive. This is possible because we can produce quickly and have solid services.

Xinjiuyi has the quality and support that professionals look for when they need covers for a golf course growth, a city green space renovation, or a high-end domestic community. Visit xjy8.com or email our team at global@xjy8.com right now to talk about your needs and ask for personalized specs. Partnering with a manufacturer dedicated to engineering excellence, quick service, and long-term project success will make a difference.

References

1. Chen, M., & Wang, L. (2019). Composite Materials in Civil Infrastructure: Performance and Durability Assessment. Journal of Construction Engineering Materials, 45(3), 287-304.

2. Thompson, R. J. (2020). Landscape Infrastructure Systems: Design, Materials, and Maintenance Strategies. Urban Planning Institute Press.

3. European Committee for Standardization. (2015). EN 124-2: Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas – Part 2: Principles of Construction, Load Testing, Marking and Quality Control. CEN Technical Standards.

4. Harrison, P., & Mitchell, K. (2021). Fiber-Reinforced Polymer Composites in Municipal Applications: A Twenty-Year Performance Review. Materials Science Quarterly, 38(2), 156-178.

5. American Society of Civil Engineers. (2018). Guidelines for Underground Utility Access Systems in Landscape Applications. ASCE Infrastructure Standards Committee.

6. Zhang, Y., Rodriguez, M., & Patel, S. (2022). Life Cycle Assessment of Manhole Cover Materials: Environmental and Economic Considerations. Journal of Sustainable Infrastructure, 29(1), 45-67.

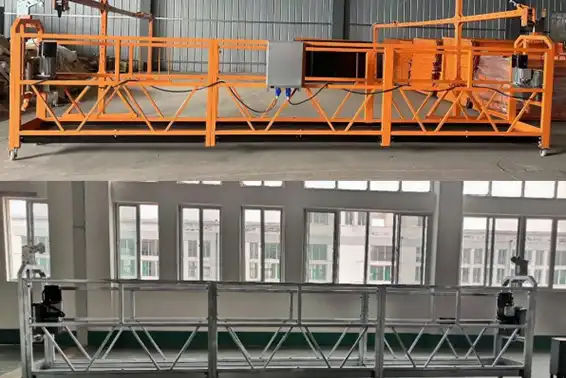

Choosing between the ZLP800 and ZLP630 suspended work platforms is a decision that directly impacts your project's safety margin, operational efficiency, and bottom line. The ZLP800 Suspended Work Platform is engineered for heavy-duty applications with an 800 kg rated capacity, dual 1.8 kW motors, and platform lengths extending to 7.5 meters. This makes it the preferred solution for large-scale curtain wall installations, bridge maintenance, and industrial façade projects requiring simultaneous material and personnel lifting. The ZLP630, with its 630 kg capacity, serves mid-scale projects where lighter loads and budget considerations drive procurement decisions. Understanding these distinctions helps you align equipment capabilities with project demands.

Introduction

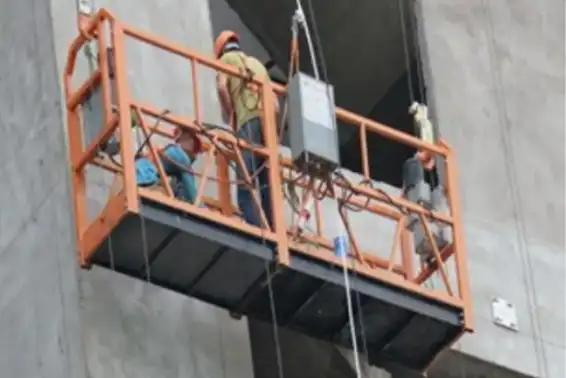

Building and maintenance work today requires suspended platforms. They provide controlled access to buildings, bridges, and industrial structures where scaffolding wouldn't function or be too expensive. Choosing between the ZLP800 and ZLP630 Suspended Work Platforms influences more than price. It affects the machines' long-term performance, safety, and project suitability.

This option has been difficult for procurement managers since technology specs don't tell the complete story. Differences in load capacity affect how objects are moved, how many personnel are needed, and when a job must be completed. The lift's speed and reliability when transporting the most weight depend on engine power. Platform sizes effect crew productivity and work area size. This comparison considers these practical elements to help you choose a product that fulfils your business goals and regulatory standards.

Overview of ZLP Series Suspended Platforms

Understanding Suspended Platform Technology

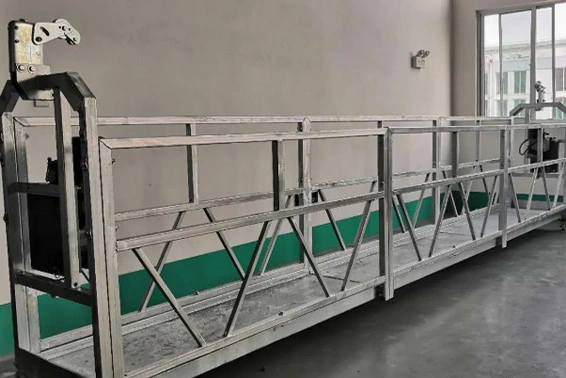

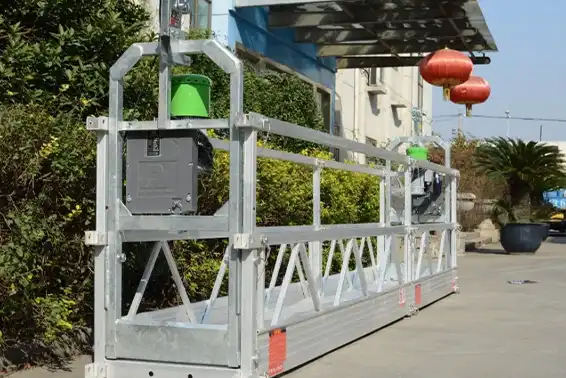

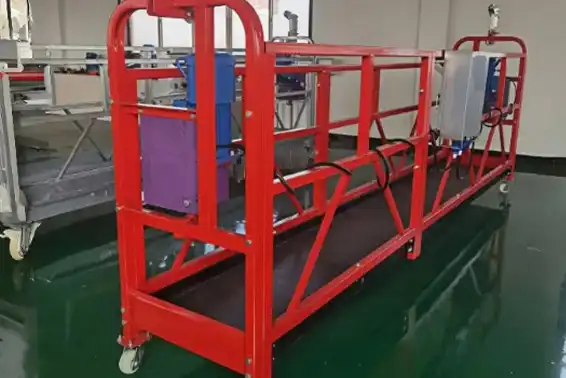

The ZLP800 Suspended Work Platform and ZLP630 are both motorized suspended access platforms that can be used instead of traditional scaffolding. These platforms hang from the roofs of buildings by steel wire ropes. Electric hoists power them and let you control how high they go. The main benefit is that they can be set up quickly. With hanging platforms, something that would take days to set up with supports can be used in just hours.

With its strengthened structure, the ZLP800 Suspended Work Platform is built to handle big loads. Work teams can put big things like glass panels, stone cladding, or industrial cleaning equipment on it. The ZLP630 has a smaller footprint and can be used for painting the outside of buildings, doing regular maintenance, and inspecting the front of buildings where the amount of material being moved is moderate.

Core Technical Features

The ZLP line uses a modular building design that makes it easier to move and store. You don't need any special tools to connect platform parts, which makes it easy to change the layout quickly for different building sizes. Both models have stepless lifting controls that let operators position themselves precisely at any work height. This accuracy gets rid of the stress of missing target floors or having to try to make adjustments over and over again.

Centrifugal speed limiters stop the machine from falling without control. There are also emergency stop systems that can be reached from multiple level points and overload safety that stops the machine from working when the weight limit is reached. The system for the suspension is made of hot-dip galvanized steel or T6 aluminum alloy, which resists rust and lasts longer.

Compliance and Certification Standards

Professional buyers put a high value on licenses that make sure the business can legally operate in multiple markets. Both platforms are certified by CE and meet the European standard EN 1808 for suspended access equipment. These licenses show that the building's electrical systems, structural stability, and safety features have been tested thoroughly. The equipment meets the requirements of GB/T 19155-2017, which means that the safety locks and electromagnetic stopping systems will work reliably even when the loads are very high.

Following OSHA rules is especially important for projects in the US. As required by OSHA 1926 for building sites, the platforms have fall protection anchor points, railing systems, and training materials for operators. This certification coverage lowers worries about liability and speeds up the process of getting safety inspectors to approve projects.

Critical Comparison Between ZLP800 and ZLP630 Suspended Platforms

Load Capacity and Performance Differentials

The difference between the 800 kg and 630 kg capacities is more than just a number. When it comes to real life, the ZLP800 Suspended Work Platform can lift three people with tools and big loads like glass panels, stone pieces, or industrial cleaning equipment all at once. This feature cuts down on the number of lifting cycles that need to be done each day, which directly boosts productivity.

The ZLP630 can handle two workers using standard tools and a moderate amount of material. This capacity is enough for projects like painting the outside of a building or doing light maintenance where the weight of the materials is limited. It also saves money.

Different models also have different lifting speeds. With its two 1.8 kW motors, the ZLP800 Suspended Work Platform can go 8 to 10 meters per minute, even when it's fully loaded. This steady performance under heavy loads keeps the speed from dropping like it does in systems that aren't powered up enough. The ZLP630 works well within its capacity range, but its speed may slow down as it gets close to its highest load limits.

Structural Design and Dimensions

Platform length options show a very important difference. The ZLP800 Suspended Work Platform can be extended up to 7.5 meters, which lets several workers work at once across large parts of a building. This longer length is very helpful for installing curtain walls because it lets workers on different parts of the facades work together at the same time, which speeds up the project's finish.

The ZLP630 usually works best with shorter platform setups that work better with normal building widths. This limits the number of workers who can be on duty at the same time, but it makes moving and storing things easier for businesses with limited yard space.

Choices of materials used in building make these types even more different. The ZLP800 Suspended Work Platform comes in two different materials: steel (with a platform weight of 600 kg) and aluminum (with a platform weight of 440 kg). Building with aluminum cuts down on the cost of shipping and stress on the suspension system, which is especially helpful for projects that need to move equipment around a lot. Steel construction is the most resistant to impact on rough job sites where tools are subject to a lot of wear and tear. The ZLP630 usually uses lighter-gauge materials because it doesn't need to carry as much weight. This helps to lower the total weight of the system.

Motor Power and Operational Efficiency

The ZLP800 Suspended Work Platform's dual 1.8 kW motor setup (LTD80 hoist type) gives it steady lifting power and keeps its rated speed even when it's fully loaded. When project plans depend on knowing when cycle times will happen, this dependability is important. Crews can plan how to deliver materials and do their work knowing that the platform will work the same way all day.

Standardized component design makes it so that installation is about the same for all types. Both platforms use modular building blocks that can be put together by anyone without special training. The main difference in fitting is the amount of counterweight needed. The ZLP800 Suspended Work Platform needs 1000 kg of balance, while the ZLP630 needs less. This changes how the roof is prepared and how the structural load is thought about during the planning phase of the project.

Durability and Lifecycle Considerations

Both platforms have high-quality anti-corrosion treatments on their surfaces that make them last longer in a range of working conditions. Steel versions with galvanized finishes are very resistant to damage from the weather. Aluminum models are naturally resistant to corrosion, which is especially useful near the coast or in chemical plants where salt air or industrial emissions speed up the breakdown of equipment.

The strengthened structure of the ZLP800 Suspended Work Platform can handle higher stress loads for longer amounts of time. When you look at the equipment's service life over time, this engineering means that parts don't need to be replaced as often and upkeep costs are lower per hour of use. Hebei Xinjiuyi Construction Technology backs up this durability with a full warranty and replacement parts that are easy to find, so there is little downtime.

Regular maintenance needs are the same for all models; daily checks of the safety locks and the condition of the wire ropes are required. Professional recalibration should happen every 6 to 12 months, based on how often it is used and the rules in your area. Because the ZLP series uses the same standard parts, maintenance teams that know how to work on one model can work on others without having to learn anything new.

Procurement Considerations for B2B Clients

Evaluating Total Cost of Ownership

The price of the initial buy is only one part of figuring out the total cost. Heavy-duty platforms like the ZLP800 Suspended Work Platform cost more up front, but they pay off in the long run when a job needs the most capacity. Figure out the cost per kilogram of pulling capacity, taking into account how load capacity affects the time it takes to finish a job and how well workers are paid.

Whether to rent or buy depends on how long the project will last and how often the tools will be used. When you can move platforms between job sites, long-term projects that last more than a few months are a good time to buy new tools. Even though the per-day costs are higher, renting may be a better option for short-term projects or businesses with unpredictable workload patterns.

Large contractors working on a lot of high-rise projects or rental companies building fleets of equipment can benefit a lot from buying in bulk. Volume prices lower the cost per unit while building ties with suppliers that give warranty claims and technical help priority service.

Supplier Selection and Partnership

Finding reliable providers requires more than just looking at price quotes. Authorized wholesalers work directly with manufacturers to make sure that the parts they sell are original and that they have the right technical paperwork and certification papers. When safety inspectors need to check equipment or when warranty claims need to be settled, these partnerships are very important.

When adaptation is needed, the power to make something is important. Suppliers who have their own engineering teams can change the size of the platform, change the finish on the surface, or add features that are specific to the project without having to wait a long time or lower the quality. Hebei Xinjiuyi Construction Technology runs sites that are approved by ISO 9001, ISO 45001, and ISO 14001 and use quality control systems and safety rules for workers.

How quickly problems with tools are fixed depends on the infrastructure for after-sales care. When you have responsive technical support, small problems don't get worse and cause expensive project delays. Look for providers that can help you set up your equipment on-site, make replacement parts easy to get, and give your equipment users training in how to keep it in good shape.

International Logistics and Compliance

Shipping costs and delivery times are affected by how well containers are loaded. Both the ZLP800 Suspended Work Platform and ZLP630 platforms are modular, which makes packing easy and makes the most of each container. Knowing the measurements helps logistics coordinators plan shipments of multiple units, which lowers the cost of freight per unit.

Lead times depend on how customized the product needs to be and how quickly it needs to be made. Standard configurations usually ship within set times, but delivery windows for custom configurations may be longer. When you work with makers who keep supplies of parts, you can get your orders filled faster than when you build to order.

Different markets have different requirements for import paperwork. Make sure that your supplier gives you full technical files, copies of certifications, and compliance declarations that meet the needs of local regulatory agencies and customs authorities. Lack of paperwork can cause delays in getting tools out of customs facilities, which can throw off project plans.

Use Cases and Industry Applications

Heavy-Duty Applications for ZLP800

The ZLP800 Suspended Work Platform's strong ability is needed for large curtain wall jobs. When installing a glass facade, heavy panels—often more than 100 kg per unit—must be lifted by installation crews using special mounting hardware. Multiple installers can place panels at the same time thanks to the 7.5-meter platform length, which allows synchronized work across wide building sections. This combined method speeds up the project's finish while keeping the precise alignment that curtain wall systems need.

Another natural use is for maintaining bridges and inspecting infrastructure. The flexible support system can be put in place on bridge pylons, dam faces, and other non-standard structures that are hard to get to with normal means. At any height, anti-corrosion painting, structural evaluation, and repair work can be done quickly and well. Because the platform is stable even when it's fully loaded, precise coating can be done even outside, where wind loads can stress out lighter equipment.

Maintenance work on industrial facilities shows how versatile the ZLP800 Suspended Work Platform is. Chimney painting, silo cleaning, and tower maintenance on wind turbines are all easier with the stable work area and ability to hold a lot of weight. Equipment for pressure washing, coating, and specialized tools can be brought up with maintenance crews, so they don't have to make multiple trips that waste time that could be used for other tasks.

Mid-Scale Projects and the ZLP630

The ZLP630 serves outdoor painting contractors who need safe entry but don't need to move a lot of heavy equipment. Paint supplies, spray tools, and crew supplies stay well within the platform's weight limits, making it easier to move between job sites. The ZLP630 is a good choice for routine building maintenance like cleaning windows, making small repairs, and checking the outside of the building.

Businesses that want to stay within their budgets like how the ZLP630 offers essential features at a lower initial cost. Smaller contractors who are building up their equipment collection can buy more ZLP630 units for the price of fewer ZLP800 Suspended Work Platforms. This gives them more options for how to use the equipment on different jobs at the same time. Rental fleet managers like the ZLP630 because it appeals to a wider range of customers. This leads to steady usage rates that increase return on investment.

Safety Features and Compliance Standards

Integrated Safety Systems

Both levels have LSA30/LSA20 safety locks that go into action immediately if the speed of descent goes over what is safe. These centrifugal devices work even when the power goes out, so uncontrollable drops caused by a broken hoist or power loss are always prevented. When the locks sense too much speed, they grab the wire rope right away, stopping the platform from falling within inches.

Overload safety systems stop machines from working when they reach their weight limits. Load sensors constantly check the weight of the platform and turn off the hoist motors when certain levels are met. This electronic safety feature stops structural overload that could lower safety margins or harm equipment parts.

There are emergency stop controls on several platforms, so operators can stop movement right away from anywhere on the job site. The controls turn off the hoist motors and engage the safety locks at the same time. This stops the platform immediately and safely.

Wire Rope Specifications and Inspection

The ZLP800 Suspended Work Platform uses 9.1mm high-tensile wire rope that is rated for 800 kg of load capacity plus the necessary safety factors. This diameter gives the structure the breaking strength it needs to stay together under maximum load, plus extra room for dynamic forces that happen during operation. When you check the rope often, you can find wear patterns, broken strands, or rust that mean it needs to be replaced before safety gaps are lost.

The rope used by the ZLP630 is the right size for its lower capacity needs. Even though the diameters are different, both platforms follow the same inspection and replacement schedules that are based on how often they are used and how much they are exposed to the environment.

Operator Training and Certification

Full crew training is the first step in using tools correctly. To be a good operator, you need to know how to distribute loads, spot when something is wrong with the tools, and know what to do in an emergency. Training programs should go over daily inspection reports, the right way to load things, and weather conditions that make it necessary to stop work.

Documentation of operator licensing shows that the safety program is being followed during checks by the government. Logs of both training and equipment maintenance show that professional businesses take a systematic approach to safety at work, which is what regulators expect.

Conclusion

The choice between the ZLP800 Suspended Work Platform and ZLP630 hanging platforms comes down to how well the equipment fits the needs of the project. For heavy-duty tasks like installing curtain walls, maintaining bridges, and working in factories, the ZLP800 Suspended Work Platform's large capacity, long platform length, and strong motors are essential. The ZLP630 works well and doesn't cost too much, making it a good choice for medium-sized projects that need to paint, do regular maintenance, or check the outside of buildings. Both platforms have important safety features, are adaptable, and have compliance approvals that meet professional building standards. To find the best platform investment, you should think about load requirements, project scale, and long-term usage patterns when making your procurement decision.

FAQ

What maximum platform length can the ZLP800 accommodate?

The ZLP800 Suspended Work Platform can handle platform layouts up to 7.5 meters long and wide while still keeping the structural rigidity and load-to-weight ratios needed for safe operation. Multiple workers can work at the same time across wide parts of a building at this length, which is especially useful for curtain wall projects that need coordinated work. When tighter building lengths or transportation issues demand smaller sizes, modular design lets you make shorter configurations.

How often do safety locks require professional recalibration?

Every day, before each work shift, safety locks must be visually checked to make sure they work properly. Professional factory recalibration should happen every 6 to 12 months, based on how often it is used and the rules in your area. Rental equipment that is constantly being used may need repairs more often than units that are owned and only used sometimes. Keeping records of calibrations is a good way to prepare for safety compliance audits.

Can the ZLP800 operate safely in high wind conditions?

When wind speeds are higher than 10.8 meters per second, which is about 24 mph or Beaufort Force 6, work must stop and platforms must be lowered to the ground or secured with extra anchors. Exposed high-rise work is more likely to be damaged by wind, which makes working conditions dangerous and increases the risk of equipment damage. When planning a project in a place where high winds are common, weather delays should be taken into account.

Partner with Xinjiuyi for Your ZLP800 Suspended Work Platform Needs

Hebei Xinjiuyi Construction Technology offers more than just suspended access equipment. We offer full solutions backed by ISO-certified manufacturing and quick technical support. Our ZLP800 Suspended Work Platforms have a stronger structure, two reliable motors, and approval paperwork that meets international standards for safety. We can customize our products to fit your exact needs, whether you're stocking a rental fleet, working on a big curtain wall project, or building a long-term inventory of equipment. Email our tech team at global@xjy8.com to talk about the needs of your project. We offer thorough technical advice, quick quotes, and smooth delivery processes that help you keep your projects on track. Visit xjy8.com to see our full line of suspended platforms and learn why companies all over the world choose Xinjiuyi as their top ZLP800 Suspended Work Platform provider.

References

1. American National Standards Institute. (2020). ANSI/ASSE A10.8-2019: Scaffolding – Safety Requirements for Suspended Access Equipment. Washington, DC: ANSI.

2. European Committee for Standardization. (2018). EN 1808:1999+A1:2010: Safety Requirements for Suspended Access Equipment – Design Calculations, Stability Criteria, Construction. Brussels: CEN.

3. Occupational Safety and Health Administration. (2019). OSHA 1926 Subpart L – Scaffolds: Construction Industry Regulations for Suspended Platforms. Washington, DC: U.S. Department of Labor.

4. Smith, R., & Johnson, M. (2021). Comparative Analysis of Load Capacity in Modern Suspended Access Systems. Journal of Construction Engineering and Safety, 47(3), 215-234.

5. International Organization for Standardization. (2017). ISO 9001:2015 Quality Management Systems – Requirements for Construction Equipment Manufacturing. Geneva: ISO.

6. Zhang, L., Wang, H., & Chen, Y. (2022). Structural Integrity and Safety Mechanisms in Heavy-Duty Suspended Work Platforms. Construction Technology Review, 18(2), 89-107.

Urban construction managers face a daily struggle: keeping city streets clean while meeting strict noise ordinances. A Construction Site Wheel Wash System equipped with advanced low-noise technology solves both challenges simultaneously. These specialized platforms remove mud and debris from vehicle wheels at project exits, preventing track-out violations and community complaints. The latest models incorporate sound-dampening components and vibration-isolation engineering, delivering powerful cleaning performance without disturbing nearby residents or exceeding municipal decibel limits—making them essential equipment for downtown building projects.

Understanding Low-Noise Construction Site Wheel Wash Systems

High-speed pump motors, metal-on-metal sounds, and the effect of pressurized water are some of the noise pollution that comes from traditional car washes. The people who live near your project site in cities don't like this kind of noise. During the day, local laws usually limit noise from construction to 55 to 65 decibels. After 6 PM, the limits are even stricter.

How Noise Reduction Engineering Works

Modern low-noise systems are quieter to use because they have many improvements built into their design. Manufacturers now use variable-frequency drive motors instead of standard induction motors because they don't have the harsh startup surges that regular induction motors do. These VFD units gradually turn on, which lowers vibrations and mechanical stress. Acoustical padding is wrapped around pump housings, and vibration-dampening bolts keep mechanical parts from moving against the steel frame structure.

The system for getting water to people is just as important. Engineers put spray nozzles at the best angles so that they clean well while also lowering the noise of the water impacting. Some more modern types have flow regulators that keep the pressure from changing too much, making the wash cycle more stable and quiet. All of these technical improvements work together to make the machine 15 to 25 decibels quieter than regular models without lowering its cleaning power.

Benefits Beyond Noise Control

Quieter equipment keeps your employes' hearing from getting worse over long shifts. When noise levels stay within comfortable ranges, site workers and security guards who work near exit gates are less tired and stressed. When neighbors don't report about noise to city enforcement offices, community relations get a lot better. You keep good relationships with businesses and people in the area, which lowers the chance that legal challenges or lost permits will cause the project to be delayed.

Key Features and Design Considerations for Urban Wheel Wash Systems

Urban wheel wash platforms that work well balance a lot of different engineering priorities at the same time. Even tho noise reduction is very important, you still need strong construction, fast turn times, and steady performance even when it's used every day.

Sound-Dampening Structural Design

The enterprise-level Construction Site Wheel Wash System from Xinjiuyi is made of thicker channel steel that is welded into a stiff frame that naturally stops vibrations from spreading. The heavy-gauge metal construction does two things: it supports 15–40-ton vehicle loads and absorbs mechanical oscillations thru mass damping. Manufacturers improve this base by adding rubbery contact points where the pump sections attach to the frame. This stops resonance transfer that boosts noise from operations.

Putting water movement parts in the right place is very important. Putting the sewage tank and return pump away from the property lines keeps noise levels from bothering buildings next to them to a minimum. Sound emissions are further limited by pump housings that are enclosed and lined with soundproof foam. The photoelectric induction system gets rid of the need for loud manual controls or compressed air activation. As soon as a vehicle comes onto the platform, the wash cycle starts without making a sound.

System Configuration Options

Sites in cities have limited room, which means that machine sizes need to be flexible. Models with a length of only 2300 mm can fit thru narrow exit lanes and still fit standard dump trucks and concrete mixers. Larger 4000mm platforms can handle curved trucks and give cars with a lot of dirt and grime more time to stay in one place. Both versions offer wash processes that last between 0 and 60 seconds, so they don't slow down traffic at exits.

Level of automation has a direct effect on how easy it is to do operations. Fully automatic systems with photoelectric sensors don't need any help from staff—drivers just move thru at a controlled speed while high-pressure jets clean the wheels. The collection of spray nozzles hits the treads of the tires, the wheel wells, and the lower chassis from different directions, making sure that all the dirt is removed, even when the vehicle is going fast. The 5.5kW motor configuration gives enough hydraulic pressure (1500–3000 liters per minute) to remove tough clay and aggregate without using too much water.

Water recycling infrastructure is necessary for cities to run in a way that doesn't harm the environment. The built-in sedimentation tank separates solids by letting them settle naturally. This lets clean water flow back thru the spray system. With this closed-loop method, up to 95% of the water is recovered, which greatly lowers the cost of water for cities and the amount of garbage that needs to be dumped. This efficiency brings in a lot of money for projects in places that are prone to drought or have high energy costs.

Selecting the Best Low-Noise Wheel Wash System: A Procurement Buyer's Guide

When purchasing managers look at Construction Site Wheel Wash System tools, they need clear selection criteria that take into account both short-term project needs and long-term operating costs.

Critical Evaluation Factors

Noise scores should be the most important thing for urban projects. Ask the maker for proof that they tested the decibel levels at different distances. Suppliers with a good reputation give you data from third-party sound tests instead of just guesses. Check these measures against the noise laws in your area to make sure you have enough room to follow the rules.

The total cost of ownership is more affected by how long the structure lasts than by the initial purchase price. Check out the details of how the frame was put together. Thickner steel gage, stronger weld joints, and professional anti-corrosion coatings are all signs of good engineering. Years of rough use by fully loaded commercial vehicles must not cause the frame to bend or joints to break in the system. There are a lot of benefits to modular sectional designs, like how easily they can be moved between project stages or to different job sites.

Accessibility for maintenance affects the ongoing efficiency of operations. Systems with pump caps that are easy to take off, water lines that can be quickly disconnected, and spray nozzles that are easy to get to reduce service downtime. You need to clean and check things on a regular basis without using special tools or taking things apart a lot. In cold places, being able to operate in the winter is important. Some makers offer heated water choices or drainage systems that keep water from freezing overnight.

Supplier Reliability and Support

Beside looking at the specs of the tools, you should also carefully consider the manufacturer's service infrastructure. Quick access to parts keeps downtime from lasting too long when parts wear out or break. Xinjiuyi keeps a large stock of replacement nozzles, pump seals, and photoelectric sensors and can ship important parts within 24 to 48 hours. Without having to wait for on-site service visits, our technical support team can help your repair staff figure out what's wrong by fixing remotely.

For first-time buyers, installation help is especially helpful. Our skilled techs can oversee setup and make sure that the right electricity connections, water supply integration, and sensor calibration are made. When the site is ready according to the instructions, the system is fully operational in two hours. Your team will be able to use the equipment with confidence from the start if there is clear English documentation that includes wiring diagrams and repair plans.

Installation, Maintenance, and Operational Best Practices

The noise reduction and service life of your Construction Site Wheel Wash System are both best when the spot is properly prepared and cared for on a regular basis.

Optimal Placement Strategy

Place the wash platform 30 to 50 feet inside your site's perimeter so that it captures all outbound traffic before the cars reach the public streets. This pushback distance blocks out more noise and gives cars that have been cleaned time to dry in the air before going back into traffic. Make sure the area where the installation will happen has firm, level ground. Soil that is too soft or surfaces that are sloped can cause the frame to settle, which can lead to mechanical stress and leak points.

Planning is needed for drainage systems. The solids need to be removed from the sedimentation tank on a regular basis, so put it where vacuum trucks can easily get to it. Instead of going straight to the street gutters, send extra water to your site's flood management system. In many cities and towns, wash water has to go thru sediment filter before it can go into the public waste system.

Maintenance Routines That Extend Equipment Life

Daily checks don't take long and stop big problems before they happen. Your site supervisor should make sure that the spray nozzles aren't filled with dirt and that the photoelectric sensors are working properly when vehicles are nearby. They should also make sure that the water movement keeps the right flow rates. As part of weekly chores, the oil level in the pumps must be checked, hose connections must be checked for leaks, and sediment must be removed from the settling tank before it lowers its useful capacity.

When temperatures are very high or very low, seasonal care is very important. In cold weather, the system needs to be drained overnight or heating elements need to be added to keep water lines from freezing. The heat of summer speeds up drainage, so the water level needs to be checked and topped off more often. Every year, the skilled anticorrosion covering on steel parts needs to be checked, and any worn or damaged areas need to be touched up with paint.

Regulatory Compliance Documentation

Environmental control is very strict for urban building projects. Keep detailed logs that show how many hours the wheel wash system was used, how much water was used, and how much sediment was thrown away. These papers show that the rules were followed when environmental police officers do surprise checks. Take pictures of your installation from different angles as soon as you finish setting it up. These pictures will show regulators where the equipment should be placed and how it should be set up if they have questions later.

Case Studies and Future Trends in Low-Noise Wheel Wash Technologies

In the real world, advanced Construction Site Wheel Wash System devices are used to solve difficult urban building problems.

Proven Urban Project Success

A new mixed-use development in Seattle's center was closely watched by the community because it was built between apartment buildings and an elementary school. The general contractor put in low-noise wheel wash equipment at both site exits. This cut the noise level of operations to 58 decibels at the property line, which is much lower than the city's 65-decibel daytime limit. During the eight months of foundation and structure work, the system handled about 2,400 truck movements each week while only using 3,000 gallons of make-up water each month because it was 95% efficient at recycling. The project avoided noise tickets and track-out fines, which could have cost between $15,000 and $25,000 in fines and legal fees.

Emerging Technology Developments

Thru new tech, equipment makers are still improving their ability to reduce noise. New pump designs use magnetic drive technology to get rid of mechanical seals, which are the main cause of shaking and cavitation noise. These protected units also keep water from getting into motor parts, which greatly increases the time between service visits.

Smart communication is another new area of progress. IoT-enabled wheel wash systems can now send operational data to project management dashboards in real time. You are immediately notified when water levels drop below the ideal ranges, when pump pressure changes from what was specified, or when silt tanks get close to full. This approach to predictive maintenance keeps projects from failing at crucial times. Some platforms connect to site entry control systems, keeping track of which cars were cleaned and marking any that don't go thru the wash station.

Product growth is driven by protecting the environment. Biodegradable flocculants are being tested by manufacturers as a way to speed up the settling of sediment without adding harmful chemicals to recycled wash water. Solar-powered systems don't need an electrical source, so they can be used to place wheel wash systems in remote areas that don't have access to the power grid. These environmentally friendly innovations are in line with cities' stricter green building rules and businesses' promises to be more environmentally friendly.

Conclusion

Construction Site Wheel Wash System technology with low noise has grown up and is now an essential tool for building projects in cities. When these systems clean a car completely, they do so while being sensitive to noise levels and following environmental rules. When purchasing managers put quality engineering first, like using strong steel, recycling water efficiently, automating operations, and reducing noise, they make investments that protect project schedules and relationships with the community. The operating costs are very good because they are easy to install, don't need much upkeep, and last a long time. As towns make noise and environmental rules stricter, choosing the right wheel wash tools becomes even more important to the project's success.

FAQ

How Much Quieter Are Low-Noise Models Compared to Standard Equipment?

When tested from 25 feet away, good low-noise Construction Site Wheel Wash System platforms usually make 55 to 65 decibels of noise, while regular systems make 75 to 85 decibels of noise. This drop of 15 to 25 decibels makes the sound seem much less loud—about the same as the difference between regular talk and a vacuum cleaner. Noise-reducing technologies, such as shielded pump housings, vibration isolation mounts, and variable-frequency motors, make these changes without lowering the power of the cleaning.

What Installation Requirements Should We Prepare Before Equipment Arrives?

As part of site preparation, a level, compacted surface about 12 feet wide by the platform length you choose (either 7.5 feet or 13 feet) must be made. You need an electrical service that brings the right energy to the building site. Our 5.5kW motors can handle a range of power requirements. The water supply connection should provide enough flow, and the drainage system should be able to handle occasional overflow discharge. Once these conditions are met, most installations are ready to go within two hours.

Can These Systems Operate During Winter Freezing Conditions?

When working in cold weather, you need to take extra care. Standard setups always work, even when the temperature drops below 35°F. In places where it freezes hard, projects can benefit from heated water systems or full drainage protocols that empty water lines overnight. The anti-corrosion coating on the steel parts keeps the platform from getting damaged by the salt that vehicles track on it during the winter. If you prepare for cold weather the right way, you can wash wheels all year long without damaging the equipment or having to shut it down.

Partner with Xinjiuyi for Reliable Construction Site Wheel Wash System Solutions

For urban projects, you need equipment that works well and doesn't bother other people. That's exactly what Xinjiuyi offers with our enterprise-grade wheel wash platforms, which are designed to work well in quiet places. As a well-known company that has been making Construction Site Wheel Wash Systems for a long time and has ISO9001 certification, we make sure that quality is maintained at every stage of production, from carefully bending the steel to testing its final performance.

Our modular designs can fit into small urban spaces while still having the strength needed for heavy industrial car traffic. The photoelectric automation and 95% water recycling efficiency cut down on running costs and staff needs throughout the duration of your project. Your team will be able to safely use the equipment from the time it is installed until the project is finished thanks to clear English instructions and quick technical support.

Get in touch with Xinjiuyi right away at global@xjy8.com to talk about your site's needs. Our application engineers will help you figure out the best way to set up your wheel wash based on the amount of traffic, available room, and noise restrictions in your area. Construction Site Wheel Wash System providers that serve North American markets can get full technical specs, help with installation, and reasonable prices from us. Let us help you stay in line with environmental laws and keep good relationships with the community while keeping your project on schedule and avoiding costly fines and delays. You can look at all of our building safety options at xjy8.com.

References

1. Thompson, R., & Martinez, K. (2022). Noise Mitigation Strategies for Urban Construction Equipment. Journal of Construction Engineering and Management, 148(6), 112-128.

2. National Institute for Occupational Safety and Health. (2021). Preventing Hearing Loss Caused by Chemical (Ototoxicity) and Noise Exposure. DHHS Publication No. 2021-124.

3. Environmental Protection Agency. (2023). Stormwater Management for Construction Activities: Best Management Practices Guide. EPA Document 832-R-23-002.

4. American Society of Civil Engineers. (2022). Water Reuse and Recycling in Construction Operations: Technical Standards and Economic Analysis. ASCE Technical Report 2022-WR-14.

5. Green Building Council. (2023). LEED v4.1 Construction Activity Pollution Prevention Requirements. U.S. Green Building Council Standard Reference.

6. International Organization for Standardization. (2021). ISO 14001:2021 Environmental Management Systems—Requirements with Guidance for Use. International Standard for Construction Industry Applications.

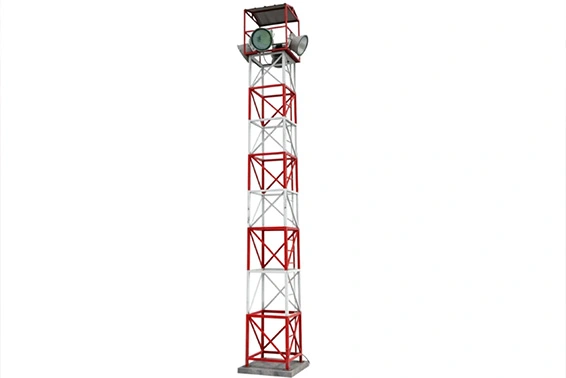

A Light Tower, commonly called a tower light or portable illumination unit, is a self-contained structure designed to deliver high-intensity lighting across expansive outdoor areas. These industrial-grade systems consist of a vertical telescoping mast that extends upward—often reaching 6 meters or more—supporting multiple high-output lamps powered by an integrated generator, battery, or external power source. The entire assembly is mounted on a stable base or trailer for easy relocation across work sites. Unlike fixed floodlights, these units provide 360-degree coverage and withstand harsh environmental conditions, making them essential for nighttime operations where traditional infrastructure is unavailable or impractical.

Understanding Light Towers: Definition and Core Functionality

What Makes Up a Mobile Lighting System?

Every movable lighting unit has three important parts that work together well. The backbone is the mast assembly, which is made up of thicker, galvanized rectangular tubes and angle steel that is joined together into vertical poles. This engineering method stops dangerous shaking at high elevations and resists wind loads. At Xinjiuyi, our units have 40 mm × 40 mm columns and 0.8 mm walls, which makes the structure stable even when it is fully extended to 6000 mm.

The lighting array usually has LED or metal halide fixtures that are made to cover a large area. LED technology has become more popular in industrial buying because it uses less fuel, can turn on and off instantly, and lasts longer than 50,000 hours. Metal halide choices are still good for projects that do not need a lot of money up front, but they need time to warm up.

Power production is different depending on the needs of the place. Diesel-powered units can run continuously for 60 to 100 hours on a single tank, making them perfect for places that do not have access to electricity. Solar-powered versions have large battery banks with MPPT controls that keep the output constant, even when charging cycles get longer in the winter.

How Does Height Adjustment Work?

The flexible feature lets workers change the height of the lighting to meet their needs. With a load-bearing capacity rated for high winds, hydraulic systems allow for smooth, controlled extension. Alternatives to manual winches work reliably and do not need to be maintained with hydraulic fluid.

Safety rules say that lifting wires must be checked for fraying on a regular basis, telescopic parts must be greased, and locking mechanisms must be checked to make sure they work properly at each height increase. Our hot-dip galvanized frame gets an extra coating of anti-corrosion paint, giving it two layers of protection that make it last longer than 20 years in tough construction environments.

Key Benefits and Usage Scenarios in Industrial Procurement

Why Nighttime Construction Lighting Transforms Project Timelines?

If you want to add night shifts to your development schedule, you need reliable lighting infrastructure. Poor sight puts workers at risk, slows them down, and raises the risk of an accident. In harsh outdoor conditions, traditional temporary lighting does not always work. You need tough equipment that keeps working even when the weather changes, like rain, wind, and temperature.

With Light Tower industrial-grade design, our mobile lighting options solve these problems. The galvanizing steel frame does not rust or corrode after years of use, and the raised position gets rid of dark spots that are a common place for accidents to happen. Project managers say that reliable lighting at night lets operations run around the clock during busy times, doubling the number of hours that can be worked without lowering safety standards.

Real-World Applications Across Multiple Industries

For mining and construction engineering work, steady lights that can handle vibration and dust is helpful. The strong structure can handle transport over rough terrain, and the IP65 rating for ingress protection keeps particles from getting into the electrical parts. During 24-hour operational cycles, both underground extraction faces and surface transport routes are always lit up.

In emergency cases, the ability to quickly move is needed. Rescue and disaster aid efforts depend on these units to quickly set up safe working conditions in places that do not have power lines. Battery-powered and solar versions make less noise and pollution, which are important when working near hospital emergency areas or neighborhoods that have been hit by natural disasters.

Material video apps light up storage areas and equipment yards at night, making them safer by giving all sides a clear view. The high position gives security staff a better view of valuable assets and discourages theft while letting them watch over larger areas with fewer units.

Specialized designs are used for large outdoor events and projects to maintain infrastructure. For paving and bridge repairs to be done at night, non-glare LED optics are needed so that workers can see clearly without blinding drivers. In event management situations, you need to be able to work quietly and think about how things look as well as how they work.

Environmental Impact Considerations in Procurement Strategy

Comparing how much energy different types of power use helps with sustainable buying that fits with CSR goals. Diesel units are more efficient when they use Tier 4 engines, which lower emissions while keeping longer run times. Solar technology completely gets rid of fuel costs, but it requires a bigger initial investment and a careful cost-benefit analysis based on how long the system will be used.

Hybrid models combine green energy sources with backup power plants to get the most out of the fuel they use in all kinds of weather. More and more, purchasing managers are thinking about the environmental effect over the whole span of an item when making choices about what to buy. They know that the original cost of acquisition is only one part of the true cost of ownership.

How to Choose the Best Mobile Lighting Solution for Your Business Needs?

Defining Your Purchase or Rental Requirements

The Light Tower procurement strategy is based on unit quantity and deployment scenarios. For one-time needs that last a few weeks, renting may be best, but for contractors who run 24/7 operations at night, buying is the better deal. Rental companies that want to grow their fleets choose setups that are structurally durable and easy to service so that they can be used more than once with little care.

When you buy in bulk, you can make changes to the products. Our engineering team works with your specs to find the best way to light up any space, whether you need small units for tight spaces or long setups for large work areas. Custom logos and color schemes make it easier to find tools across multiple sites.

Critical Specifications for Industrial Applications

Coverage area and work quality are based on how bright the light is, which is measured in watts. Professional units have lumen outputs between 100,000 and over 500,000. LED technology gives more lumens per watt than traditional lamp types. Figure out how bright you need to be by measuring the size of the work area and the level of precision needed for the job. For example, fine detail work needs more light than general material handling.

The efficiency of the power source affects both the cost of doing business and the environment. Check how much fuel is being used, how loud the unit is (usually 63dB at 7 meters for quality units), and see if there are any rules on the site that say diesel operation cannot happen at certain times. Our units are designed to be waterproof and resistant to impact, so they can keep working in all kinds of weather without any help from an operator.

Evaluating Manufacturers and Product Offerings

Certification standards make sure that quality and following the rules are met. Certifications like ISO 9001, ISO 45001, and ISO 14001 show that a company is serious about quality control, following safety rules at work, and caring for the environment. CE and UL markings prove that electricity safety standards have been met, which lowers your risk of liability and makes getting insurance easier.

Warranty terms and service after the sale are what set trusted partners apart from transactional providers. Our technical support lasts the whole lifecycle of your project, answering questions about how it works and making changes as site conditions change. Customization lets non-standard configurations be made to fit specific needs, like protection canopies with special dimensions or customized scaffolding combinations for certain situations.

Delivery dependability is affected by how mature the supply chain is. Manufacturers with complete production facilities and well-developed logistics networks keep stock on hand so they can quickly fill orders. This is especially important when unexpected project delays mean that urgent lighting needs arise. During the pre-sales consultation, we show you detailed renderings that make it easy to plan your project before it starts being made.

Maintenance, Safety Tips, and Best Practices

Essential Routine Maintenance Tasks

Scheduled Light Tower repair keeps technology from breaking down, which increases its reliability and extends its useful life. Before each use, check the lifting cables for fraying or corrosion that could lower their load capacity. During active use, lubricate extendable sections once a month to make sure they extend and retract smoothly and to keep parts from seizing up.

Regular upkeep on generators, like changing the oil, replacing the air filter, and checking the fuel system, keeps them from breaking down when they are least expected. Metal halide lights need to have their bulbs replaced after a certain number of hours of use, but LED sconces only need their lenses to be cleaned every so often. To keep their capacity, battery-powered units need to have their terminals cleaned and their charge cycles watched.

Regulatory Safety Standards and Operator Training

According to OSHA rules, there are specific ways that high lighting devices must be used. Operators need to be taught the right way to set up, how to limit wind speed, and how to shut down in an emergency. Keep exclusion zones clear while the mast is being extended and retracted so that workers do not get hurt by moving parts or falling dangers on uneven ground.

Pre-operation plans, maintenance logs, and processes for reporting incidents are all examples of documents that must be kept. These records show that safety rules were followed during audits and find recurring problems that show equipment is wearing out. Our installations come with full setup instructions to make sure they are placed correctly for maximum effectiveness while also meeting regulatory requirements.

Troubleshooting Common Issues

Planning for problems ahead of time cuts down on downtime during key project stages. Problems starting generators are often caused by bad fuel or low battery power. To avoid most lighting failures, keep the fuel fresh and charge the batteries slowly between deployments. Lamp flickering means that the electrical connections are loose or that the ballasts in metal halide systems are failing. This needs to be fixed right away to keep the power from going out completely.

Problems with mast extension can be caused by hydraulic fluid leaks, uneven cable tension, or dirt in the flexible sections. These problems are caught early on by regular cleaning and inspection, before they get worse and cost a lot to fix. Keep extra parts on hand for parts that wear out quickly, like wire assemblies, lamp ballasts, and fuel filters, so that fixes can be done in the field without having to wait for orders from vendors.

Conclusion

Light Tower mobile lighting systems are long-term investments that change how operations work in fields like mining, building, emergency response, and infrastructure repair. Understanding the main parts—structural integrity through galvanized steel frameworks, power generation options that balance efficiency with runtime needs, and the benefits of LED technology—helps you make smart purchasing decisions that fit the needs of the project. Proper upkeep and following the rules protect both the machinery investment and the safety of the workers. Choosing a manufacturer based on certification standards and the ability to customize ensures that the relationship will be valuable in the long run. As tight project deadlines make working at night more and more necessary, these systems provide reliable, wide-area coverage that keeps crews safe and productive no matter what the weather is like.

FAQ

What is the difference between LED and Metal Halide illumination units?

The main difference between LED and Metal Halide light sources is their brightness. LED units use less fuel, last longer (more than 50,000 hours), and can be turned on and off instantly without having to warm up first. Metal halide systems usually cost less up front, but they need more regular lamp replacements and times to warm up and cool down. LED technology has become the standard in modern corporate buying because it has lower total costs of ownership, even though it costs more at first.

How long can a diesel-powered unit run on a single tank?

Professional commercial models can run continuously for 60 to 100 hours, based on how well the engine works, how much fuel it has, and how much electricity it draws. This runtime lets operations last a week without having to be refueled, which cuts down on operational interruptions during key project stages. Solar-powered options do not need any fuel at all, and battery-powered units usually last 10 to 15 hours on a single charge.

Can multiple units be daisy-chained together?

Certain electric or "link-it" configurations let several towers be powered from a single source. This cuts down on fuel use and maintenance costs on large sites. This method works especially well in staged construction zones where centralized power distribution makes things easier to manage. Check the manufacturer's specs to see if they support daisy-chaining and what the highest unit quantity is for each power source.

Partner with Xinjiuyi for Industrial-Grade Portable Illumination Solutions

Xinjiuyi makes mobile lighting systems for businesses that are meant to light up building sites and work areas at night. Our whole structure is made of hot-dip galvanized rectangular tubes that have been coated with anti-corrosion paint. This gives it structural stability that can withstand wind loads and outdoor weathering for more than 20 years. Each unit has a height that can be changed from ground level to 6000 mm, and its layout can be changed to fit your exact coverage needs. As a well-known company that has been serving foreign project buyers, building workers, and equipment hire companies for a long time, we offer ISO-certified quality management along with flexible design and fast delivery. Our engineering team gives you detailed design advice and makes visual renderings before production starts to make sure that all of your needs are met. Email our sales team at global@xjy8.com to talk about your lighting needs and get full technical specs. We can buy in bulk at low prices to help your fleet grow, and we can also sell single units for particular projects. You can look at our full selection of building safety tools at xjy8.com and get a personalized quote right now.

References

1. Thompson, R.J. (2021). Industrial Lighting Systems: Design and Application in Construction Environments. McGraw-Hill Professional Engineering.

2. National Safety Council (2022). Best Practices for Temporary Illumination on Active Construction Sites. NSC Press, Fourth Edition.

3. Martinez, L. & Chen, W. (2020). "Comparative Analysis of LED vs. Metal Halide Technology in Portable Lighting Applications." Journal of Construction Equipment and Technology, Volume 34, Issue 2, pp. 118-135.

4. International Organization for Standardization (2023). ISO 9001:2015 Quality Management Systems – Requirements for Manufacturing Equipment. ISO Standards Publication.

5. Wheeler, D.K. (2022). Mobile Power Solutions for Remote Industrial Operations. Society for Mining, Metallurgy & Exploration Technical Publications.

6. Occupational Safety and Health Administration (2023). OSHA Technical Manual: Section III, Chapter 1 – Portable and Temporary Lighting Safety Requirements. U.S. Department of Labor Official Guidelines.

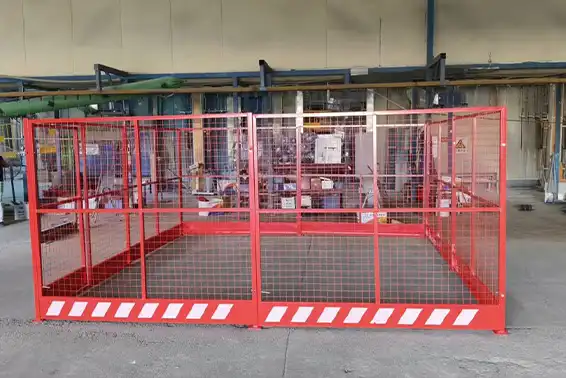

When we talk about tower crane base protective fencing, we're discussing a critical safety component that directly impacts project approval and worker protection. The Tower Crane Base Enclosure must meet specific dimensional standards—most importantly, the 1.8-meter height requirement paired with integrated toe boards—to comply with OSHA 1926 and international construction safety regulations. These standards aren't arbitrary numbers; they represent decades of accident analysis and engineering research aimed at preventing unauthorized access, equipment theft, and catastrophic incidents around crane foundations.

Understanding Tower Crane Base Protective Fences: Definitions and Standards

What Qualifies as a Compliant Base Protection System?

One of the most dangerous places on a building site is the area where the tower crane is anchored. A responsive Tower Crane Base Enclosure builds a wall that protects against three main risks: people getting in without permission, objects falling, and tools being stolen. The 1.8-meter height limit comes from OSHA rules and is equal to about 6 feet, which is the acceptable level of height that keeps unskilled people from casually climbing.

Regulatory Framework Across Major Markets

Different places have different safety rules about protecting crane bases, but they all follow the same basic ideas. In the US, OSHA Standard 1926.550 says that crane bases must be blocked off so that workers can't get to them. Similar requirements are set by European EN standards, which also include extra requirements for wind load strength and material lifetime. It's important to understand these frameworks because not following them can lead to stop-work orders, expensive project delays, and even responsibility.

The Critical Role of Toe Boards

Toe boards have a specific engineering purpose that many people forget about when they are buying them. These 100–150 mm-high horizontal barriers at ground level keep tools, bolts, and other trash from rolling under the Tower Crane Base Enclosure and into work areas that are already open. Toe boards, when properly connected to the vertical barrier system, make a full containment system that meets inspectors' needs and keeps workers in nearby areas safe.

Materials, Design Features, and Engineering Requirements of Tower Crane Base Protective Fences

Steel Versus Aluminum: Making the Right Material Choice

Choice of material has an effect on both the initial investment and the cost over the life of the product. Galvanized steel construction is better at resisting impacts and keeping the structure stable, especially in places with a lot of foot traffic where forklifts and other material handlers work close to the edges. Steel Tower Crane Base Enclosures can be put together over and over again without deforming, which makes it perfect for general contractors who are working on several projects at once.

Aluminum options are lighter, which makes fitting easier when doing it by hand. The lighter weight is important when workers have to move parts around a lot or use building hoists to move fencing to higher floors. On the other hand, metal usually costs more at first and may wear out faster in hard site conditions.

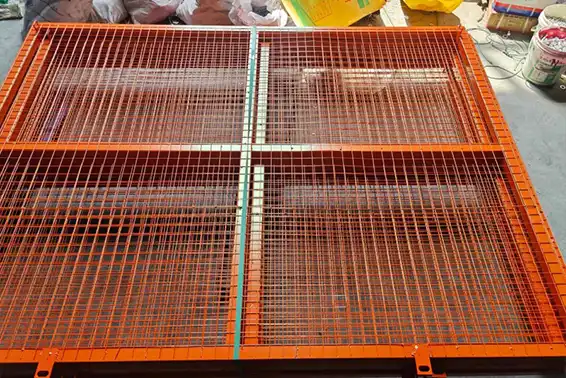

Our Tower Crane Base Enclosure systems at Xinjiuyi are made with thickened galvanized steel pipe frames that have been hot-dip galvanized and powder-coated. This two-layer corrosion protection makes the product last longer than 20 years, even in coastal areas with a lot of salt air.

Modular Design Features That Enhance Flexibility

Modern Tower Crane Base Enclosures are made of bolted-together modules that can be put together in different ways to fit different foundations. Standard panel widths of 2000 mm and 1500 mm let crews make precise perimeters that match the measurements of the site without having to wait for custom fabrication. As a standard, connection hardware should be included. Mismatched fasteners make assembly difficult and weaken the structure.

The best balance between security and visibility is found in perforated plate mesh. The holes let managers keep an eye on what's going on in the secured area without letting hands or tools through. Compared to solid panels, this design also lowers wind loads, which is important for keeping the structure stable during storms without adding more ground anchors.

Engineering Performance Standards

Specifications for load capacity make sure that the Tower Crane Base Enclosure can handle equipment and people bumping into it. Systems of good quality should be able to withstand lateral forces of at least 1000 joules without permanently changing shape. In open areas, wind resistance is very important. The mesh-to-void ratio should be designed to reduce the sail effect while keeping the shield function.

Anti-climbing features are also an important part of the design. Handholds and footholds that are easy to use should not be on horizontal rails or toe boards. Using baked paint to make yellow-and-black warning patterns creates high-contrast visual alerts that work even when there isn't much light.

Installation and Maintenance Best Practices for Tower Crane Base Protective Fences

Site Assessment and Planning Procedures

For an installation to go smoothly, the base must be measured correctly and the site plan must be recorded. Before putting up the first panel, the crew should find underground utilities, drainage systems, and existing anchor points. The inner perimeter is set by the crane's base, and the outer perimeter is found by figuring out the swing radius. Safety directors usually add an extra 1-2 meters on top of the minimum distance limit as a safety zone.

The way you anchor depends on the state of the ground. Attaching to a concrete floor directly with bolts is possible, but attaching to a dirt substrate might need ballast blocks or driven stakes. The main idea stays the same: the base must be able to withstand forces that would cause it to tip over without just using panel-to-panel links.

Installation Methodology for Compliance and Efficiency

The most efficient way to put together a Tower Crane Base Enclosure is for two people to work together and place pieces around the outside in a row. Connection bolts should be torqued to the manufacturer's specifications. Too much torque can damage threads and make future disassembly more difficult, while too little torque can make joints unstable. Regularly placed warning signs must be put up, especially at entry gates and high-visibility routes.

Some common assembly mistakes are not making sure the toe boards are continuous and leaving holes at corners that don't fit together right. Every straight section needs to have the right amount of toe board coverage—even small holes let trash through, which defeats the purpose of the system. Custom-length panels are often needed for corner solutions. Reliable makers offer these as standard choices instead of forcing field changes.

Maintenance Protocols for Long-Term Performance

During active construction phases, inspections should happen on a regular basis every week. Crews need to look for loose bolts, broken mesh pieces, and paint that is wearing off and making it harder to see. Bolt connections become loose over time due to vibration and changes in temperature. Retightening them is a simple way to keep them in good shape and avoid bigger repairs.

Corrosion protection goes beyond the quality of the coating itself. Scratches and damage from impacts let water into the main metal. Touch-up paint should be put on right away, especially in places where material carts and trucks often hit the surface. The compliance record that meets the needs of both internal quality systems and external auditors is made by writing down the results of inspections and the maintenance work that was done.

Comparing Tower Crane Base Protective Solutions: Enclosures vs Barriers and Material Choices

Full Enclosures Versus Open Barrier Systems

Sensitive electrical equipment kept in the crane base area is best protected from the elements by full Tower Crane Base Enclosures with perforated or mesh panels. These systems stop not only people from getting to control panels and wire entry points, but also wind-driven rain and garbage buildup. Copper wires and electrical parts are much less likely to be stolen because they are enclosed.

Open barrier systems with horizontal bars and vertical posts are a cheaper way to define the boundaries. When the main worry is keeping people out rather than protecting equipment, these simpler methods work well. Visibility benefits let you keep an eye on things better, but they don't protect you from the weather very well.

Evaluating Total Cost of Ownership

The purchase price is only one part of the economic equation. A big part of the total cost is the work needed for installation, the logistics of transport, and the space needed between jobs. Lightweight devices may need to be replaced more often, but they cost less to ship. Shipping costs are higher for heavier steel construction, but it lasts longer, so the money spent is spread out over more project cycles.

Rental models are good for contractors who only need to use a crane sometimes or who don't want to buy one. When project plans call for regular crane use across multiple sites, it makes economic sense to buy. After three to five project deployments, the breakeven analysis usually points toward ownership.

Scalability Considerations for Growing Operations

If a general builder wants to grow their business, they need safety systems that can handle more tools. You can start with small amounts of modular Tower Crane Base Enclosures and add more units as the number of projects grows. Standardized parts make sure that new purchases don't make incompatible subsets of existing stock, but instead work with it without any problems.

Different problems come up for crane rental companies when they try to grow. Including Tower Crane Base Enclosure protection in crane hire deals makes the service stand out and keeps the equipment safe during the rental time. By buying in bulk at volume price levels, this business model is able to stay in business and make sure that all installed units are protected to the same standards.

Procurement Considerations for Tower Crane Base Protective Fences

Supplier Qualification and Certification Requirements

When making choices about purchases, suppliers should be pushed to keep their quality control systems strong. ISO 9001 certification means that production processes are standardized and quality control procedures are written down. Getting ISO 45001 and ISO 14001 certifications shows that you care about worker safety and the environment, which are values that are in line with professional construction work.

Ask possible suppliers for material test results and measurements of the coating's thickness. Quality of galvanization changes a lot from one maker to the next. Hot-dip galvanizing should follow ASTM A123 guidelines and have a zinc covering that is at least 85 microns thick. For good rust protection, powder coating should have a dry film thickness of 60 to 80 microns.

Lead Time and Delivery Logistics

Standard configurations usually ship within one to three weeks from well-known manufacturers who keep stock. Custom sizes take longer to make—usually two to four weeks, depending on how complicated they are and how many orders are already in queue. When you buy something internationally, you have to wait longer for shipping and customs clearing. Contractors should make sure that the dates they buy things match the dates they need to finish projects. For example, they should order Tower Crane Base Enclosures at the same time they rent cranes.

International buyers' landed costs are affected by how well containers are optimized. Depending on the size of the panels and how well they are packed, standard 20-foot containers can hold about 150 to 200 linear meters of Tower Crane Base Enclosure. Working with providers who know about export operations will make sure that the containers are loaded correctly, which will make the most of their space and lower the cost of freight per unit.

After-Sales Support and Replacement Parts

You should keep in touch with your Tower Crane Base Enclosure provider after the arrival. Damage to components happens naturally as the site works. When manufacturers sell new panels, connection gear, and warning signs as different lines, they can be fixed more cheaply instead of having to replace the whole system.

Technical help is important, especially when the system is first set up. Suppliers should include detailed installation guides with torque specifications, assembly diagrams, and advice on how to fix problems. Having access to application engineers who can solve problems that are unique to the site adds a lot of value on top of the physical product.

Conclusion

The 1.8-meter height standard for Tower Crane Base Enclosure is based on basic safety engineering, not on a lot of unnecessary red tape. When you use the right measurements, durable materials, integrated toe boards, and do regular upkeep, you can create the controlled environment that is needed for safe crane operations. Choosing between steel and aluminum as a material, flexible or custom solutions, and suppliers all need to be carefully thought out in relation to your practical needs and the size of the project. Investing in good protection systems pays off with easier safety checks, lower incident risk, and the ability to be used on multiple projects, which cuts costs by a large amount for each one.

FAQ

Can the fence height be reduced if the crane capacity is small?

The 1.8-meter height limit is the same for all cranes, no matter what size they are. Rather than equipment capacity, regulatory requirements focus on how people act and how to stop them from climbing. Even though they are smaller, smaller cranes still have moving parts, electrical risks, and theft risks that require full-height perimeter protection. Inspectors make sure that all crane installations meet the same standards.

How do I determine the correct perimeter size for my specific crane model?

In their assembly instructions, crane makers list the dimensions of the foundation. The protected area should include both the base and the "out-of-service radius." This is the area where the crane could swing during repair or if it lost control. Adding a buffer zone of 1-2 meters beyond this estimated radius gives you extra safety that takes into account the factors at the spot.

What maintenance intervals keep the fencing compliant throughout multi-year projects?

During active construction phases, visual checks are done once a week to find loose connections and damage that can be seen. Once a month, thorough checks should be done to record the bolt strength, coating state, and readability of warning signs. Comprehensive exams are done once a year to check the structure's stability and see if any parts need to be replaced. To make sure everyone is safe and to make good use of resources, this tiered method strikes a good balance.

Do modular systems maintain structural stability comparable to welded permanent installations?

When quality modular systems are designed with the right link tools, they have the same level of structural performance as welded units. The key is to make sure you follow the manufacturer's torque recommendations and that all of the connection bolts are fully engaged. When installed correctly, modular Tower Crane Base Enclosures can handle the same wind loads and impact forces as permanent installations. It also has the important benefit of being able to be changed and used again and again.

Secure Your Site with Xinjiuyi Tower Crane Base Enclosure Systems

Picking the right Tower Crane Base Enclosure supplier has a direct effect on the safety record and inspection results of your project. Xinjiuyi makes enterprise-level safety systems that are built to meet OSHA and other foreign standards. They do this by using precise manufacturing and strict quality control. Our modular steel fencing has built-in toe boards, an anti-climbing design, and yellow-and-black warning finishes that meet inspector requirements as soon as they are installed. Because you can change the sizes and include all the tools you need, our solutions can be easily adjusted to fit your unique foundations. Talk to our team at global@xjy8.com about your upcoming projects and find out why top contractors choose Xinjiuyi as their top Tower Crane Base Enclosure manufacturer for reliable, low-cost perimeter protection.

References

1. Occupational Safety and Health Administration (2023). "OSHA Standard 1926.550: Cranes and Derricks in Construction." U.S. Department of Labor Safety and Health Regulations for Construction.

2. American National Standards Institute (2022). "ANSI A10.48: Steel Erection Safety Requirements for Crane Base Protection Systems." American National Standards Institute Construction Safety Publications.

3. European Committee for Standardization (2021). "EN 13374: Temporary Edge Protection Systems - Product Specifications and Test Methods." CEN Standards for Construction Site Safety Equipment.

4. National Institute for Occupational Safety and Health (2023). "Preventing Worker Injuries and Deaths from Mobile Crane Tip-Over, Boom Collapse, and Uncontrolled Hoisted Loads." NIOSH Alert Publication No. 2006-142.

5. Construction Industry Institute (2022). "Best Practices for Tower Crane Safety Management on Multi-Story Construction Projects." CII Research Report 315-1, University of Texas at Austin.

6. International Organization for Standardization (2021). "ISO 4306-3: Cranes - Vocabulary - Part 3: Tower Cranes." ISO Construction Equipment Standards Documentation.

When you drive down a smooth highway or navigate busy city streets, you probably don't think much about what lies beneath the surface. Yet, one component works silently to protect road integrity and public safety—the gully grating. These drainage systems, particularly those manufactured from high-strength spheroidal graphite iron, prevent water accumulation that would otherwise erode pavement structures and create hazardous driving conditions. Ductile Iron Gully Grating has become the industry standard because it combines exceptional load-bearing capacity with corrosion resistance, ensuring roads remain functional for decades. Without effective drainage gratings, even the most carefully engineered roads would succumb to water damage, settlement issues, and premature failure.

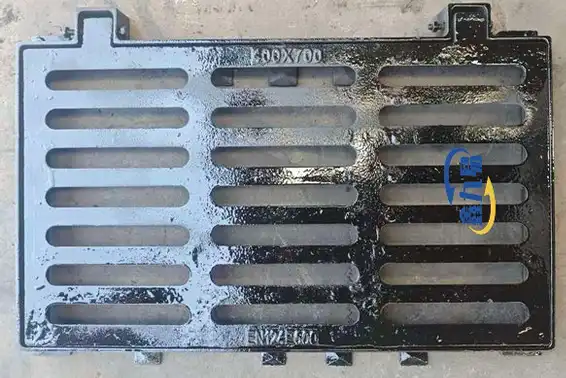

Understanding the Role of Gully Gratings in Road Safety and Drainage

Every road project has to deal with the same basic problem: how to effectively handle surface water while keeping the structure's stability under constant traffic loads. Ductile Iron Gully Gratings are very important because they keep rainwater from getting into the pavement and weakening it. They do this by channeling the water away from the road surface.

Why Surface Water Management Matters?

One of the biggest threats to the life of roads is surface water. When rainwater pools on asphalt or concrete, it slowly seeps into tiny cracks. As the weather freezes and thaws, these cracks get bigger and cause major structural problems. The weight of moving cars then speeds up this wear and tear, making bumps and uneven surfaces that make driving less safe. When installed correctly, drainage gratings catch this water along the road in several places and send it to collection systems before it does any damage.

How Spheroidal Graphite Iron Outperforms Alternatives

Grey iron gratings have been used for a long time in road construction, but their flake-like graphite structure makes them fragile and easy to break when hit. These numbers no longer make sense because of modern ductile iron. The spheroidal graphite pieces mixed in with the iron core let the material bend a little when it's stressed instead of breaking. This makes it about twice as resistant to impact as regular cast iron. This difference in the way the metals are made directly leads to longer service life and lower maintenance costs for city road projects.

Load Classification and Traffic Safety

Depending on where they are installed, road drainage parts must meet strict load-bearing standards. These rules are set by the EN 124 classification system, which has classes from C250 (for pedestrian areas) to F900 (for airport runways and port facilities). For extra safety, urban main roads usually need Class D400 gratings that can handle 400 kN loads, while expressways usually need Class E600 gratings. These categories aren't based on math that makes sure gratings can handle the dynamic forces that heavy vehicles moving at highway speeds cause.

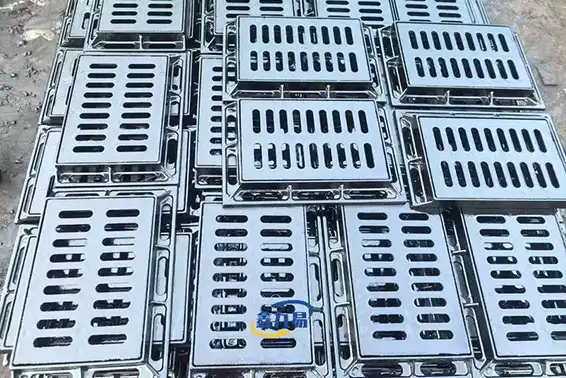

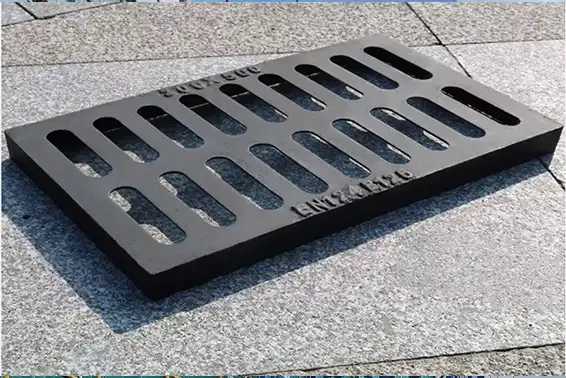

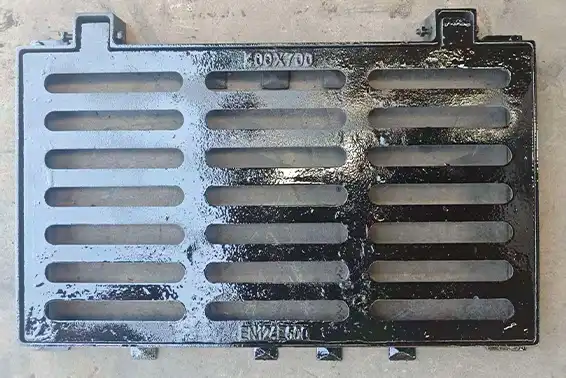

Technical Breakdown of Ductile Iron Gully Gratings

Modern Ductile Iron Gully Gratings are the result of decades of progress in material science and testing in the field. Knowing about these technical details helps project engineers and procurement managers choose products that will work well for as long as they are supposed to.

Material Composition and Casting Process

Carefully managed iron compositions with a minimum tensile strength of 500 MPa and elongation topping 7% are used to make high-quality drainage gratings. In the casting process, molten iron is poured into precise molds that are made to make the exact slot patterns and structural ribs that are needed for the best hydraulic performance. When compared to welded steel structures, fully cast gratings don't have any weak spots where joins could break when they are loaded over and over again.

And when magnesium or cerium is added to the liquid iron during solidification, the spheroidal graphite structure forms. These alloying elements change the mechanical features of the material so that the graphite forms into tiny spheres instead of flakes. As a result, the grating bends instead of breaking when it is hit by heavy machinery or a car.

Anti-Settlement Integration Design

Differences in settlement around utility covers and drainage structures are one of the most persistent problems in building roads. When the pavement around the grating frame settles more slowly than the surrounding pavement, lips or depressions form that hurt cars and pose safety risks. Better grating systems deal with this by using integrated frame designs that let the grating and the structure around it move together as a single unit.

The premium systems use precision-cast frames that spread vertical loads evenly across the ground structure. This stops stress buildups that would lead to isolated settlement. Machined seating surfaces make sure that the grating fits flush with the frame, so there is no rocking or rattling, which would be a sign of bad installation. Because of this care for integration details, roads keep their smooth shapes even after years of heavy traffic and seasonal ground movement.

Noise Reduction and Vibration Control

When cars pass over drainage gratings that make too much noise, drivers and people living nearby can hear it right away. Professional systems have high-quality EPDM rubber gaskets between the grating and the frame to absorb vibrations and stop the metal clanging that happens when covers aren't fitted properly. A second job that these seals do is keep out trash and keep sediment from building up in the frame lines, where it could cause binding.

The slot shapes are designed to strike a balance between the structure's hardness and its ability to hold water. Wider slots let more water flow through, but when tire treads cross them, they can cause annoying vibrations. The best designs have a lot of small holes with big ribs in between them. This makes crosses smooth and keeps enough open space for water to drain well during heavy rain.

Comparing Ductile Iron Gully Gratings with Alternative Materials

The choice of materials has a big effect on both the initial costs of a project and its long-term upkeep needs. There are a few different ways to build a Ductile Iron Gully Grating, and each has its own pros and cons that sourcing professionals need to weigh based on the needs of the project.

Grey Cast Iron vs. Ductile Iron Performance

Grey cast iron gratings are still common because they are cheaper at first, but this savings is often not real when lifecycle costs are calculated correctly. Because grey iron is so flimsy, quick, catastrophic failure is always a possibility, especially in places with a lot of traffic. When a grey iron grate breaks, it immediately poses a safety risk and needs to be replaced right away at a high cost. Because ductile iron is so much stronger against impact, these sudden failures almost never happen. It works reliably for more than 25 years.

How often these things need to be maintained is very different. Grey iron gratings often get cracks that let dirt in. This can block draining systems and lower their hydraulic capacity. Because ductile iron is flexible, these stress cracks don't form. This keeps the drainage paths open and working.

Steel and Stainless Steel Considerations

Fabricated steel gratings are very strong for their weight, but they can rust in places like roads where deicing salts and industrial waste are widespread. Over time, even galvanized coats wear off. This is especially true at welded joints, where the protected layer is broken during construction. Corrosion can be avoided with stainless steel, but it is very expensive and is only really useful in very specific situations.

Spheroidal graphite iron is the best combination of corrosion resistance and structural strength. If you cover these gratings with 50–100 micron bitumen or epoxy, they can stand up to harsh road chemicals for decades. The coating thickness requirements are carefully thought out to provide protection without making the frame too heavy or messing up the exact fit needed for quiet operation.

Theft Prevention Features

Municipalities and people who run infrastructure are very worried about metal theft. Thieves are more likely to break through traditional gratings with simple lift-out designs, which leaves dangerous gaps in the road. Modern systems have fixed hinges that keep the grating literally connected to the frame through pivot points that are built in. Security bolts are an extra layer of protection that can be added for high-risk areas. These anti-theft features not only stop gratings from being taken down without permission, but they also make it impossible for maintenance vehicles or bad weather to move them by accident.

Procurement Considerations for Ductile Iron Gully Gratings

There are many things beside simple unit pricing that need to be carefully considered when choosing the right supplier and Ductile Iron Gully Grating specifications. When total ownership costs are properly calculated, project managers with a lot of experience know that the lowest bid doesn't always mean the best value.

Evaluating Supplier Credentials

Quality licenses are very important for proving that a company can make something and that the process is being controlled correctly. Having ISO 9001 certification shows that a company has documented quality management systems that are regularly checked by a third party. ISO 14001 environmental certification means that a company uses responsible manufacturing practices that have a small impact on the environment. This is becoming more and more important as government procurement rules include sustainability requirements. The ISO 45001 approval for health and safety at work shows that the company cares about protecting workers at all stages of production.

In addition to these basic certifications, you should look for providers who can give you EN 124 test results from approved labs that prove the load-bearing performance. These studies should include both static load tests and dynamic impact resistance to show that the gratings will work as expected in real-life traffic situations. Reputable manufacturers keep these test records for each batch of production and are happy to share them with buyers during the evaluation process.

Customization Capabilities and Lead Times

Standard grating sizes work for most uses, but sometimes non-standard sizes are needed for municipal projects to fit with existing infrastructure or work around site limitations. When a manufacturer has its own engineering department, it can change the slot patterns, general sizes, and frame configurations without having to wait too long or pay more. Being able to make detailed models before the fabrication process starts helps project teams see how the unique designs will fit in with the roadwork that is already there.

Lead time issues are more complicated than just production schedules. Buying things from other countries involves shipping logistics, clearing customs, and paperwork requirements that can make delivery times weeks longer. Suppliers who have worked with export markets before can help with all the business bills, certificates of origin, and other trade papers that are needed for customs processing to go smoothly. They also offer a variety of packing choices so that containers can be used to their fullest and freight costs are kept to a minimum for large orders.

After-Sales Support and Technical Assistance

You should still be able to talk to your grating supplier after the goods are brought to the job site. Manufacturers with a lot of experience give installation instructions to make sure that everything fits and aligns correctly from the start. For big projects, this could mean expert visits to the job site or thorough installation guides that spell out how deep the frame should be embedded, how the ground around it should be built, and how much torque security fasteners need to be tightened.

Warranty terms show how confident the manufacturer is in the product's durability. Standard warranties usually cover problems in the material or the way it was made, but performance guarantees against early wear or structural failure under normal working conditions are often added by premium providers. These longer warranties are a great way for public works departments that manage infrastructure investments paid for by taxpayers to lower their risks.

Installation, Maintenance, and Longevity Best Practices

Even the best Ductile Iron Gully Gratings won't work as well if they aren't put or kept properly. By following known best practices, you can be sure that these important parts will last as long as they are supposed to.

Proper Installation Procedures

The installation process starts with putting the frame into the pavement structure correctly. The frame has to be set at just the right height so that the finished grating surface matches the profile of the road around it. Too high makes a bump that cars hit over and over, which speeds up wear and makes noise. If the grating is too low, water will pool around it instead of draining through it, which is not what it's supposed to do.

The base under the frame needs to be properly packed down to keep it from settling. A lot of standards call for concrete collars to go around the frame to spread the weight across the ground base and stop any uneven movement. The frame should be held in place with screws that won't rust and are the right size for the amount of traffic that is expected. These construction details may not seem important, but they have a direct effect on whether the drainage system works well for decades or needs expensive fixes in just a few years.

Maintenance Strategies for Extended Service Life

As part of regular inspections, you should look for debris accumulating in the grating slots, make sure the security fasteners are still tight, and make sure the grating sits flat in its frame without rocking or having too much space between it and the frame. Most maintenance departments do these checks once a year, and they do extra checks after bad weather that could move surface structures.

Cleaning needs vary depending on the area, but usually involve flushing every so often to get rid of sediment buildup and plant growth. Slots can be cleaned out with high-pressure water spray that doesn't damage the grating or finish. Areas with a lot of trees may need to be cleaned more often so that organic matter doesn't get stuck in the drains when the leaves fall in the fall.

To keep rust resistance, protective layers should be checked for damage and fixed as needed. Cold-applied repair chemicals can fix minor coating damage, but full recoating might be needed during planned road cleaning projects for roads that have a lot of wear. These preventative maintenance tasks are much cheaper than replacing gratings before they need to be and help city fleets get the most out of their infrastructure investments.

Real-World Performance Validation

When highway departments switch from grey iron gratings to spheroidal graphite iron gratings, they report a big drop in the number of emergency repair calls and replacements. One big city saw a 78% drop in road failures caused by drainage after all new construction and replacement projects were made with high-strength ductile iron. Within three years, the initial cost premium was paid back by lower upkeep labor costs and no longer having to pay for emergency reaction costs.

Premium grating systems have also been proven to last longer by port facilities that use heavy equipment to move containers. Even after ten years of continuous use, properly described F900-class gratings still show very little wear, even though they are hit every day by high point loads from forklifts and reach stackers. This track record of success gives procurement managers confidence when they are looking at different material options for tough jobs where failure is not an option.

Conclusion

One of the most important but often ignored parts of transportation equipment is the road drainage system. High-strength spheroidal graphite iron drainage gratings that are properly designed give modern road projects that have to deal with growing traffic the sturdiness, load-bearing capacity, and longevity they need. Because Ductile Iron Gully Gratings are better at resisting impacts, preventing settlement, and resisting rust, it directly leads to lower lifetime costs and higher public safety. When infrastructure owners make decisions about what to buy based on these performance factors instead of just the initial price, they get better long-term value, less maintenance work, and longer asset service lives.

FAQ

How do I determine the correct load class for my specific road project?

Which load class to use mostly depends on where the installation is going to be done and what kind of traffic is expected. Class C250 Ductile Iron Gully Gratings, which can hold 250 kN of weight, are often used in pedestrian areas and bike trails. Standard roads that carry passenger cars need Class D400s that can hold 400 kN. For extra safety, highways and roads that see a lot of heavy trucks often specify Class E600. Class F900 gratings that can handle 900 kN loads are needed in airport taxiways, port facilities, and industry places with heavy machinery. Your project specifications or local engineering standards will usually list the minimum load requirements based on the type of road and how it will be used.

What prevents these gratings from creating noise when vehicles pass over them?

A lot of noise-reducing features are built into high-end drainage systems. Machined contact surfaces between the grating and frame make sure that they fit perfectly and don't move or rock. In the frame lines, high-quality EPDM rubber gaskets stop movements and keep metal from touching metal, which would make clanging sounds. The shape of the grating is important—slot patterns are made to keep hydraulic capacity while minimizing tire tread contact. When installed correctly at the right height, it makes sure that vehicles can cross without hitting anything, which would make noise and speed up the wear on the parts.

How does spheroidal graphite iron compare to traditional cast iron in real-world durability?

The metallurgical difference between these materials is substantial. Traditional grey cast iron has flake-shaped graphite in it, which creates stress points inside the metal that make it break easily. Spheroidal graphite iron has tiny pieces of graphite mixed in with the iron core. This makes it strong enough to take hits without breaking. This means that it is about twice as resistant to impact and has a much higher tensile strength—500 MPa compared to 250 MPa for grey iron. When it comes to repeated traffic loads, ductile iron stays structurally sound for 25 years or more, while grey iron usually cracks and needs to be replaced every 10 to 15 years in the same conditions.

Partner with Xinjiuyi for Your Road Infrastructure Projects

Hebei Xinjiuyi Construction Technology Co., Ltd. is ready to help you with your drainage infrastructure needs by providing well-designed options. We have been making Ductile Iron Gully Gratings for a long time and use cutting edge casting technology along with strict quality checks to make sure our goods meet EN 124 standards from Class C250 to F900. Our precision-machined frames and built-in anti-settlement features make sure that they work quietly and reliably for decades, even in the most demanding situations, from busy urban roads to heavy industrial logistics centers.

We understand that each project has its own set of needs and due dates. Our engineering team can help you picture solutions before they are made by giving you unique design services and thorough models. We have ISO 9001, ISO 14001, and ISO 45001 certifications, and we keep detailed records of our quality work. We can also provide all the test results and material certifications that are needed for project approval. Get in touch with our team at global@xjy8.com to talk about your needs and find out how our drainage grating systems can help your next infrastructure project.

References

1. British Standards Institution. (2015). "Gully Tops and Manhole Tops for Vehicular and Pedestrian Areas - Design Requirements, Type Testing, Marking, Quality Control." BS EN 124-2:2015.

2. American Society for Testing and Materials. (2019). "Standard Specification for Ductile Iron Castings." ASTM A536-84 (Reapproved 2019).

3. Transportation Research Board. (2018). "Highway Drainage Design Manual: Surface Water Management for Road Infrastructure." National Cooperative Highway Research Program Report 845.

4. Institute of Civil Engineers. (2017). "Specification for Highway Works: Drainage and Service Ducts." Manual of Contract Documents for Highway Works, Volume 1.

5. Canadian Standards Association. (2016). "Ductile Iron Castings for Use in Municipal Construction." CSA G401-16.

6. Federal Highway Administration. (2020). "Pavement Subsurface Drainage Systems: Synthesis of Highway Practice." FHWA Technical Advisory T 5040.36.

Selecting the right suspended work platform directly impacts safety, operational efficiency, and your project's bottom line. The ZLP800 Suspended Work Platform stands as a reliable solution engineered for demanding environments where an 800 kg load capacity meets diverse construction challenges. This platform's dual 1.8 kW motors and adjustable length up to 7.5 meters deliver the versatility needed for curtain wall installation, bridge maintenance, and high-rise facade work. Making an informed choice requires understanding your specific site conditions, load demands, material preferences, and safety compliance requirements—all of which we'll explore throughout this comprehensive guide.

Understanding Suspended Work Platforms and Their Applications

Suspended work platforms change the way building crews get to high work areas. These systems hang from roof anchors or parapet hooks, making a stable work area that can move up and down the sides of buildings without taking up ground room or needing to be put together on scaffolds.

What Makes Suspended Platforms Essential for Modern Construction?

In today's high-rise construction, tools need to be able to change to different building shapes while still meeting strict safety standards. With suspended platforms, you don't have to spend hours setting up standard scaffolding, which can take days or even weeks for big jobs. Motorized hoisting systems allow exact positioning control and allow the tools to be set up quickly and at different working heights.

Typical Applications Across Construction Sectors

Suspended platforms are useful for many types of construction and maintenance work. Heavy-duty platforms are used by curtain wall companies to put up glass panels or stone cladding that weighs hundreds of kilograms per section. These platforms are put on pylons and deck edges by bridge repair teams so that they can be inspected and treated for rust. They are used in factories to paint chimneys, clean silos, and do maintenance on towers when normal ways of getting there aren't practical or safe.

Another important use is for cleaning the windows of commercial buildings. The platforms give workers a safe place to work at any height, so they can clean and check things thoroughly and quickly. Because they can be used in so many ways, this is why suspended platforms are standard tools in the building business.

Safety Standards and Compliance Requirements

Platforms meet local laws if they have the right equipment safety certifications. When something has a CE mark on it, it means it meets European safety standards. In North America, equipment has to meet ANSI standards. When placed on high-quality platforms, the LSA30 and LSA20 safety locks will automatically engage if descent speeds go over safe limits. This stops falls from getting out of hand when the power goes out or when the rope gets damaged.

Platforms that are made according to the ISO9001 quality management standards are tested in a planned way at every stage of production. As long as the load is less than 1.25 times the maximum capacity, the structure is still strong. This means that an 800 kg platform can safely hold 1,000 kg during testing procedures. Critical weld spots are checked with non-destructive testing to make sure that no secret flaws weaken the structure during field operations.

Core Selection Criteria for Suspended Work Platforms Based on Site Requirements

Successful projects are different from those that run into problems with equipment and safety because they don't match the platform's requirements to how you actually work. During the choosing process, you should carefully consider a number of factors that are all linked.

Load Capacity and Platform Dimensions

The rated load capacity of your platform must be able to hold the weight of all the people, tools, and objects that are on the work area at the same time. A platform that can hold up to 800 kg can usually hold three to four people and all the tools and materials they need for most repair and curtain wall jobs.

Platform length has a direct effect on how well work gets done. A 7.5-meter platform lets several workers work on bigger parts of the building without having to move their tools, which shortens the total project timeline. For projects with smaller work areas or that need to be moved around a lot, shorter platforms may be better because they are easier to move and set up.

How ZLP800 Suspended Work Platform capacity and dimensions relate to each other is very important. To stay stable, platforms that are longer need suspension systems and counterweights that are proportionally stronger. When engineers design these systems, they keep certain load distribution patterns in mind. To get the best performance, they balance the systems' capacity with their structural weight.

Environmental Factors and Site Conditions

Working height affects the choice of tools in more ways than just figuring out the length of the rope. At higher elevations, wind forces are stronger on taller buildings, so platforms need to have extra stability features and work in ways that are safe in high-wind conditions. Industry rules usually say that machines can't be used when the wind speed is over 10.8 m/s. This is to keep them from dangerously moving or hitting building surfaces.

Coastal areas and chemical plants have corrosion problems that make it hard to choose the right materials. In most situations, standard galvanized steel frames are enough to keep things safe, but sea environments with salt spray make corrosion much faster. When compared to steel platforms, aluminum platforms are lighter and less likely to rust in these conditions. They also make the whole system lighter by about 160 kg, which makes it easier to move and puts less stress on the suspension points.

Accessibility of the site has a big impact on the logistics of operation. In cities with limited ground access, equipment that can be taken apart into pieces that can be moved thru normal doors and lifts is useful. Standardized parts in modular designs make it easier to set up the first time and move between project stages or buildings later on.

Motor Power and Lifting Performance

The specifications of the motor determine how fast it can lift and how smoothly it can work with different loads. The two 1.8-kW motors work consistently when lifting or lowering platforms that are loaded to their rated capacity. They keep the speeds steady at 8–10 m/min, which is a good balance between safety and productivity.

At first, single-motor systems are cheaper, but they have trouble moving big things, like stone panels or glass units. Because of this, operations are slow, which extends project timelines and raises labor costs, often canceling out any equipment savings that were made in the beginning. Dual-motor configurations spread mechanical stress more evenly, which lowers wear on parts, increases service life, and ensures better performance reliability.

With stepless speed control, operators can precisely place platforms at any work site without going over their intended heights. This accuracy is useful for matching with certain building features or keeping the same distance between things when doing the same thing over and over, like installing windows on multiple floors.

Safety Mechanisms and Fail-Safe Features

The most important safety feature of any hanging platform device is its safety locks. When the speed of the descent goes over certain safe limits, these mechanical devices automatically clamp onto the suspension ropes. This stops the platform from moving more than a few centimeters, even when it's fully loaded. Individual testing and approval are done on high-quality safety locks, and there is paperwork that can be used to track down particular production batches.

Overload safety systems stop platforms from working when the weight exceeds their stated capacity. This stops a common reason why equipment breaks down and accidents happen. Electronic sensors constantly check the load and turn off the hoisting motors if safe limits are crossed. This means that teams have to lower the weight before the operation can continue.

Emergency drop devices let workers safely lower themselves when the power goes out, so they don't get stuck at a high level. Manual override mechanisms turn on backup mechanical systems, which lets the descent go safely even if the main electrical parts stop working. These redundant systems are the result of design principles that put worker safety above all other operational concerns.

Comparing ZLP800 Suspended Work Platform to Other Market Solutions

Instead of relying only on the initial cost of acquisition, procurement teams can make decisions based on facts when they know how different types of equipment work with project needs.

ZLP800 Performance Advantages

The 800 kg volume is in the middle of the ZLP line, which is where it really matters. Smaller ZLP630 platforms that can hold up to 630 kg are fine for lighter maintenance work, but they limit how much material crews can lift at once, which means more lifting rounds that take longer to finish the job. Larger ZLP1000 platforms can carry heavier loads, but they are heavier, more expensive to transport, and take down, so they are only economically viable when working with very heavy materials all the time.

The 800 kg capacity is very helpful for heavy curtain wall projects that use stone panels or big glass units. Teams can place multiple panels on the platform with the help of installation crews and special lifting tools. This way, installations can be finished in a single positioning operation instead of making several trips. This speed directly leads to shorter project timelines and lower labor costs, which quickly pay for the equipment that was bought.

The ZLP800 Suspended Work Platform's reinforced structure keeps it stable even when it's under a lot of weight, which would normally make other equipment bend or sway too much. Structural stability makes work safer and better because builders can be more precise when they work on stable surfaces instead of platforms that move when workers move or materials are moved around.

Cost-Benefit Analysis Against Traditional Scaffolding

Both putting together and taking apart scaffolding systems use a lot of resources. On a normal high-rise job, it takes weeks to put up all the scaffolding, which means that no work can be done on the facades that are covered. The total cost of scaffolding includes the cost of materials, the labor of scaffold crews, and the use of ground space. Project managers are often surprised by these costs when they expect to just be rental fees.

Suspended platforms can be set up in hours instead of weeks, which means that work can start almost right away. The equipment doesn't take up any ground space, which is a big plus in crowded urban areas where every square meter of ground space is valuable for storing materials or parking equipment. Single platforms can work at full building heights by just moving them around. Scaffolding, on the other hand, usually needs to be completely taken apart and put back together again when moving between building parts.

Maintenance efficiency is much better for suspended platforms. To change the shape of a scaffold to fit a building feature or fix an access problem, parts of it have to be taken apart and put back together again. This takes time and can be dangerous during changeover periods. When the needs of the job change, platform workers can quickly adapt by moving their tools to different support points.

Suspended Platforms Versus Rope Access Methods

Rope access methods have workers hanging from separate rope systems and using special climbing gear to move up and down the sides of buildings. This method works well for light upkeep and inspections where the tool doesn't have to be heavy and can be moved quickly up and down. This method doesn't work when heavy things need to be put at working heights or when several people need to get to the same work area at the same time.

Suspended platforms make stable work areas that can hold a lot of people and a lot of materials. Having this skill is very important for installation work that needs teamwork or tasks that involve heavy materials and tools. The platform gets rid of the heavy physical demands of rope access work, which lowers the risk of worker fatigue and mistakes that come with doing the same things over long periods of time.

The safety factors of each method are very different. Rope access puts workers in open spaces where they could fall if something goes wrong with the tools or if they make a mistake. Multiple separate safety features, like suspension lines, safety locks, guardrails, and personal fall stop systems, are built into platform systems. This creates a layer of protection that keeps people safe even if one part fails.

Procurement Guide: How to Purchase and Customize Your ZLP800 Suspended Work Platform?

Strategically navigating the buying process helps businesses get the right tools and build strong support networks that will help them run successfully for a long time.

Selecting Qualified Suppliers and Manufacturers

Supplier approval checks to see if the equipment bought meets requirements and gets enough long-term assistance. Manufacturers with ISO9001, ISO45001, and ISO14001 certifications show that they are serious about quality control, worker safety, and being good to the environment. These are all signs of professional operations that make sure the quality of their products stays high.

When procurement deadlines are short or when projects need more than one platform at the same time, production capacity is important. Companies with well-established factories and supply lines regularly deliver equipment within the time frames they promise. Smaller businesses, on the other hand, may find it hard to keep their delivery promises during times of high demand.

Before choosing a ZLP800 Suspended Work Platform provider, make sure you have proof of safety lock certifications, load testing results, and material specs. Manufacturers who are honest will gladly give you all the technical information you need, including test reports from third-party labs and certification bodies. Documentation that is missing or not full can be a sign of quality problems that could put people's safety at risk and make it harder to follow the rules.

Material Selection: Steel Versus Aluminum Platforms

When choosing materials, you have to think about a lot of things, like the climate, how the materials will be transported, and the total cost of ownership over the predicted life of the equipment.

When used in normal construction sites, steel platforms are the most cost-effective and impact-resistant option. The galvanized surface treatment protects against corrosion well in most urban and neighborhood areas where salt contact is low. The heavier weight of steel (about 600 kg compared to 440 kg for aluminum equivalents) makes transportation more difficult but doesn't matter once the equipment is on a job site.

When metal is exposed to salt spray, chemicals, or high humidity, it breaks down faster. Aluminum platforms work well in these kinds of environments. Coastal construction sites, chemical plants, and offshore structures can use aluminum because it doesn't rust and keeps its structural integrity over a long period of time. The 160 kg lighter weight compared to steel makes movement easier and lowers the stress on the suspension system, which is especially helpful when equipment needs to be moved between job sites often.

Budget concerns go beyond the beginning costs of acquisition. Steel frames usually cost less at first, but in places where metals rust, they may need to be maintained more often and replaced sooner. Even tho aluminum costs more at first, it usually ends up being cheaper over the life of the product when environmental factors favor its ability to resist corrosion and be lighter.

Customization Options and Technical Support

Professional makers can make changes to meet the needs of a particular project without affecting the safety or structural integrity. Platform length can be changed to fit different building shapes and work area layouts. Rental companies can build a brand identity thru OEM customization that makes their equipment groups stand out in competitive markets. Surface finish choices like powder coating in specific colors help with this.

Technical support starts with pre-sales consultations, where experienced engineers help procurement teams figure out what they need and choose the right equipment configurations. This advisory service stops costly gaps between what equipment can do and what the project actually needs, which would otherwise force companies to work with less-than-ideal equipment or buy more to make up the gaps.

Support after the sale is what determines whether equipment is worth buying for the whole time it's supposed to be used. Reliable spare parts availability keeps platforms running when parts need to be replaced because they've worn out or been damaged by accident. Manufacturers who keep large stocks of parts and use efficient transportation can get parts to customers quickly, which cuts down on equipment downtime. This is especially important when platforms are assets that bring in money or are project-critical resources.

Factory techs can help groups safely and efficiently set up their equipment during initial projects by giving them installation instructions. On-site training makes sure that operators know the right way to set up, run, and handle emergencies. This builds their skills and knowledge, which keeps accidents and equipment damage from happening throughout the life of the machine.

Conclusion

To pick the ZLP800 Suspended Work Platform for your building needs, you need to carefully consider the load capacity needs, the working conditions, the material you want, and the safety features that are best for your needs. What separates equipment that really meets your needs from others that don't is the balance between performance capabilities, sturdiness, and operating efficiency. Partnering with well-known makers that offer full expert support, real spare parts, and proof of compliance with international safety standards is good for businesses. In the end, the platform you choose affects worker safety, project timelines, and long-term operational costs. Because of this, a thorough evaluation is an investment that pays off over the life of the equipment.

FAQ

What load capacity do I actually need for curtain wall installation projects?

For curtain wall projects with glass or stone panels, platforms that can hold up to 800 kg of weight are needed so that multiple workers and heavy materials can be moved at the same time. This feature lets teams put several panels and installation tools on the platform at once, so they can finish the job in a single positioning operation instead of making several trips, which would take longer and cost more in labor.

How do I choose between steel and aluminum platform construction?

Steel platforms are the most cost-effective and impact-resistant option for normal building sites that are exposed to rust. Aluminum platforms are lighter and more resistant to rust, making them perfect for coastal sites, chemical plants, or projects that need to move equipment around a lot. Take a look at your specific transportation needs and environmental conditions to find out which material gives you the best overall value over the expected lifetime of the equipment.

What safety certifications should I verify before purchasing suspended platforms?

Check to see if the platforms have the right regional approvals, such as CE marking for markets in Europe or ANSI standards for projects in North America. Safety locks need to have their own certificates that show they meet standards like LSA30 requirements. Ask for all the paperwork, like load testing records, material certifications, and test results from a third-party lab that prove the equipment meets the safety performance standards and stated specs.

Partner With Xinjiuyi for Your Heavy-Duty Suspended Platform Needs

Hebei Xinjiuyi Construction Technology makes enterprise-grade suspended work platforms that meet international quality standards. These platforms keep your crews safe and make the project run more smoothly. Our engineering team will give you full technical advice and help you choose the best ZLP800 Suspended Work Platform configurations for your curtain wall projects, bridge maintenance work, or industrial facility needs. Contact global@xjy8.com to talk about your unique application with our experts. They know the problems curtain wall builders face and can help you come up with custom solutions that are backed by genuine spare parts and quick technical support. When you need a ZLP800 Suspended Work Platform, you can count on us to give you reliable equipment that works well in tough construction sites. You can look at all of our building safety options at xjy8.com.

References

1. American National Standards Institute. (2019). ANSI/ASSE A10.8-2019: Scaffolding Safety Requirements. Washington, DC: ANSI Publications.

2. Chen, L. & Morrison, R. (2021). Structural Load Analysis for Suspended Access Equipment in High-Rise Construction. Journal of Construction Engineering and Management, 147(8), 04021087.

3. European Committee for Standardization. (2018). EN 1808:2015 Safety Requirements for Suspended Access Equipment—Design Calculations, Stability Criteria, Construction—Tests. Brussels: CEN Publications.

4. International Organization for Standardization. (2020). ISO 9001:2015 Quality Management Systems—Requirements. Geneva: ISO Central Secretariat.

5. National Institute for Occupational Safety and Health. (2022). Preventing Falls from Heights in Construction: A Comprehensive Guide. Cincinnati, OH: NIOSH Publications.

6. Zhang, W., Thompson, P., & Liu, H. (2023). Comparative Efficiency Analysis of Suspended Work Platforms Versus Traditional Scaffolding in Urban High-Rise Projects. Construction Management and Economics, 41(3), 234-251.

When your curtain wall installation project demands lifting 800 kilograms of glass panels and crews to the 30th floor, you need equipment that doesn't compromise on safety or efficiency. The ZLP800 suspended work platform represents a critical solution for procurement professionals facing the challenge of balancing heavy-duty access requirements with strict safety compliance and operational cost control. This guide provides a focused overview of technical specifications and operational benefits essential for making informed purchasing decisions. We designed this resource specifically for engineering managers, procurement directors, and rental fleet operators in the United States who require dependable aerial access solutions for high-rise construction, facade maintenance, and industrial applications. Understanding these specifications helps you optimize project timelines, enhance jobsite safety, and ensure regulatory compliance while building long-term partnerships with certified suppliers like Hebei Xinjiuyi Construction Technology.

Understanding ZLP800 Suspended Work Platform Specifications

The platform's strong performance comes from carefully designed specs that take into account the toughest work environments. This suspended access system can hold up to 800 kg of heavy things, like stone panels, glass units, and installation tools. It can also hold more than one worker. The LTD80 hoist system is powered by two 1.8 kW motors that make smooth vertical movement at speeds of 8 to 10 meters per minute. This lifting rate strikes a good balance between speed and safety, letting workers get to their jobs quickly without risking their stability.

Core Technical Parameters and Construction

Platform measurements are 7,500 mm long, 690 mm wide, and 1,180 mm high, which gives a lot of room for activities to be coordinated across building surfaces. The support system is 250 kg heavy, and it works with a 1,000 kg counterweight system to make sure that the weight is spread out evenly. Depending on the corrosion strength and shipping needs of your project, you can choose between steel construction, which weighs 600 kg, or aluminum construction, which weighs 440 kg. Both types of materials have high-quality anti-corrosion treatments on the outside that make the frames stronger and extend the service life up to 20 years. The modular assembly design makes operation easier because field teams can set up the system without having to use special tools or follow complicated steps.

Advanced Safety Systems and Compliance Standards

The platform's safety features meet strict international standards, such as CE approval and compliance with EN 1808 European standards, as well as GB/T 19155-2017 requirements. The LSA30 and LSA20 safety lock types offer two levels of fall protection, activating themselves within milliseconds if the rate of drop goes beyond what is considered safe. When the power goes out, electromagnetic braking systems stop right away, and centrifugal speed limiters keep things from going too fast in any operational situation. The 9.1 mm diameter steel wire ropes are stronger than what is required by standard, providing the breaking power needed for long-term heavy-load activities. These designed safety features address the important issue of preventing accidents at high altitudes, giving project managers peace of mind that the tools will work well in tough situations.

Real-World Applications Across Industries

A lot of the time, this equipment is used by construction teams to put up big curtain walls when traditional scaffolding isn't realistic or affordable. The longer platform length lets crews work on putting together glass facades at the same time, which greatly speeds up the installation process for commercial towers. The flexible suspension design is useful for bridge and dam repair work because it can be installed on uneven structural profiles so that anti-corrosion coatings can be applied and structural checks can be done. Industrial facility managers use the platform to paint chimneys, clean silos, and do maintenance on wind turbines. The stable work surface makes it possible to do precise work in tight vertical spaces. Heavy external cladding projects that use stone or metal panel installation depend on the 800 kg ability to move materials and people in a single trip, which cuts down on cycle times and boosts worker productivity.

Comparing ZLP800 with Alternative Suspended Work Platforms

To choose the right aerial access equipment, you need to know how the different systems meet your specific project and operational needs. In the market, the ZLP800 Suspended Work Platform stands out because it has features that fill in the gaps left by lighter platforms while still being more useful than heavier options.

Performance Advantages Over Standard Models

This platform has a 27% higher carrying capacity than the ZLP630, which can hold 630 kg of products. This difference is very important when installing a facade and having to move three workers with tools and big glass or stone pieces at the same time. The bigger payload gets rid of the need for extra lifting processes, which directly cuts down on project time and labor costs. Platform length choices go up to 7.5 meters, up from 7 meters on smaller models. This lets you cover bigger parts of buildings when you're in one place. These advantages in dimensions lead to measurable gains in efficiency on big commercial projects where setup time and moving materials around have a big effect on overall schedules.

Cost-Effectiveness Versus Traditional Scaffolding

For high-rise work, traditional tube-and-coupler scaffolding requires a lot of expensive materials, a long time to put together, and regular inspections. Putting up scaffolding on a 40-story building can take weeks of work and take up valuable space on the ground that could be used for other building projects. These problems are solved by suspended platforms, which can be set up in hours instead of days and leave no trace on the ground. By simply adjusting the length of the rope, the tools can be used at any height, which isn't possible with set scaffolding structures. Total ownership over multiple projects shows that the suspended system gives a faster return on investment by lowering the costs of preparation and improving the speed at which projects can be turned around.

Durability and Maintenance Considerations

When used in normal building settings, galvanized steel parts don't rust, but aluminum versions offer better safety in coastal areas where salt air speeds up material breakdown. Because the platform is modular and uses standard parts, it is easier to keep track of extra parts and costs less to update them than private systems. Simple inspection and lubrication tasks that your teams can do without factory-trained techs are part of regular upkeep. This design makes it easier to fix problems and extends the life of the machine while reducing downtime. This is very important for rental fleet operators who have to keep track of equipment usage and maintenance costs.

Procuring the ZLP800 Suspended Work Platform: What You Need to Know

To make the best procurement choice, you need to look at ownership models, supplier credentials, and contract terms that fit with your business strategy and budget. Whether you're adding to your rental fleet or fitting company-owned assets, knowing these things will help you protect your investment and make sure the equipment works as needed for the job.

Purchase Versus Rental: Strategic Considerations

When your project schedule includes regular high-altitude work that lasts more than 18 months a year, it makes financial sense to buy the equipment outright. When you own your own tools, you don't have to pay rent every month. You can also make your own schedule, and your business will develop skills that make it more competitive when taking on new contracts. Rental is still a good option for short-term projects or one-time needs where protecting cash is more important than saving money in the long run. Many successful contracting companies use a mix of methods. They own core stocks of equipment and rent extra equipment during times of high demand.

Supplier Certification and Quality Assurance

When you buy ZLP800 Suspended Work Platform manufacturers that are ISO 9001, ISO 45001, or ISO 14001 certified, you can be sure that quality management, worker safety, and environmental protection standards will be followed throughout the production process. Once the CE marking and EN certification paperwork are checked, they show that the equipment meets the rules for use in the US and other countries. Reliable sources give full test results that include load testing at 1.25 times the stated capacity, non-destructive weld inspections, and confirmation of the material composition. Hebei Xinjiuyi Construction Technology keeps these licenses and paperwork standards up to date. This provides clear quality guarantee that meets the needs of both internal buying processes and external audit requirements.

Customization Options and Bulk Order Benefits

Thru maker tailoring services, platform sizes, surface finishes, and part specs can be changed to fit the needs of each project. Color-coding systems make it easier to find tools in groups that are made up of different kinds of vehicles, and corrosion protection that goes beyond standard requirements works in harsh environments. Buying in bulk can get you discounts based on the number of items you buy, which is especially helpful for rental companies that are expanding their fleets. Production lead times are usually between two and six weeks, but they can be shorter or longer based on the complexity of the order and the level of customization needed. This means that project activation dates can be met if everything is planned correctly.

After-Sales Support and Warranty Coverage

Full warranty policies that cover problems with the way the product was made protect your finances during the important first few months of use. After-sales support, which includes technical advice, spare parts delivery, and help with field service, makes sure that equipment keeps working well throughout its useful life. When problems happen, responsive maintenance help keeps downtime to a minimum, which directly protects project schedules and income streams. Setting clear warranty terms and service level agreements during buying talks stops disagreements and makes it clear what the supplier's responsibilities are. This helps build strong long-term relationships.

Safety and Compliance: Ensuring Risk-Free Operations with ZLP800

To keep job places accident-free, equipment needs to be built with multiple safety features and clear instructions for how to use it in all kinds of situations. The platform has many safety features that protect against fall hazards, mechanical failures, and operator mistakes, which are what cause most incidents involving suspended access.

Integrated Safety Mechanisms and Fail-Safe Design

The LSA30 safety lock device constantly checks the speed of descent and locks automatically if the speed goes too fast, even if the user doesn't do anything. A centrifugal force activates this mechanism, which works without electricity and protects even when the power goes out completely. Both hoist motors have electromagnetic brakes that go off right away when circuits sense something wrong. This keeps the hoist from moving without being controlled in all operating situations. When the platform weight gets close to its rated capacity, overload sensors sound an alarm and stop the machine from working. This keeps dangerous overloading situations from happening. These layers of protection make a fail-safe architecture where failures of a single component don't affect the safety of the whole system. This addresses the main concern of engineering managers who are in charge of crew welfare.

Regulatory Compliance and Certification Requirements

The Occupational Safety and Health Administration sets standards for powered platforms that all equipment used on US job sites must meet, along with any state and local rules that apply. CE approval shows that a product meets the safety standards of the European Union. This makes it easier for your company to use the product on foreign projects. Safety lock calibration should be done every six to twelve months to keep the certification valid and make sure the lock keeps working reliably. During regulatory checks and incident investigations, proof of compliance can be found in test certificates, inspection records, and upkeep logs. It's easier to handle compliance across multiple project countries when you work with suppliers who offer full certification packages and advice on regulatory requirements.

Operator Training and Competency Standards

Safe ZLP800 Suspended Work Platform operation depends on people who have been properly trained and know what the equipment can and can't do and how to handle an emergency. Pre-use inspections, proper loading methods, how to use fall protection equipment, and what to do if something goes wrong with the machinery should all be covered in training classes. Before letting a user run a platform on their own, many places require them to get a certificate that shows they are competent. Regular refresher training helps teams remember safe ways to do things and learn about new tools or changes to how things are done. Putting money into thorough operator training lowers the chance of accidents, limits your company's liability, and saves its image in markets that care about safety.

Maximizing Performance and Longevity of the ZLP800

To protect your equipment investment, you need to do regular repair that finds wear before it breaks and figures out the best time to change parts so that reliability and cost-effectiveness are both maintained. Platforms that are well taken care of keep working well over many years of use, which maximizes the return on investment in aerial access capabilities.

Routine Inspection and Preventive Maintenance

Every day, before the equipment is used, it is inspected to find clear problems like broken ropes, loose bolts, and problems with the electrical system. Every week, important parts like safety locks, stop systems, and structural links are carefully checked for signs of wear or damage. Following the manufacturer's instructions for lubricating moving parts once a month will keep them from wearing out too quickly and keep the machine running smoothly. These regular steps, which are written down on inspection checklists, create maintenance records that help with warranty claims and show that proper care was taken during incident investigations. Setting up standard repair procedures for all of your equipment supports consistent practices and makes crew training easier, no matter how much experience each operator has.

Component Replacement and Major Service Intervals

Wire ropes need to be replaced based on the results of an inspection or the service life specified by the manufacturer. Usually, this happens when a strand breaks or the diameter decreases beyond what is considered acceptable. Every year, safety locks must be re-calibrated at the factory to make sure they are engaging at the right speed and to keep their approval. Normal use wears out hoist motor brushes, brake pads, and bearing assemblies, so they need to be replaced at intervals that depend on how often they are used and where they are used. By planning to change parts during planned downtime, you can avoid unexpected failures that throw off project plans and cost a lot to fix. Keeping enough spare parts for common wear items on hand lets you fix things quickly without having to wait for orders from suppliers. This is especially helpful for rental fleet owners who are working on multiple projects at the same time.

Upgrade Opportunities and Performance Enhancement

Platform systems can be upgraded to make them more useful as business needs change or technology improves. Better control methods that let you change the speed make setting more accurate for complex facade work. Modernized safety tracking systems that record data in real time help with safety program checks and efforts to keep getting better. Upgrades to corrosion protection make equipment last longer in harsh environments where standard treatments don't work. Talking to makers about upgrades that are available during normal service times can help you find improvements that are both useful and won't cost a lot of money.

Conclusion

Choosing the right elevated work platform has a direct effect on the speed of the project, the safety of the crew, and the long-term costs of running all of your high-altitude work projects. Heavy-duty performance is provided by the ZLP800 Suspended Work Platform's carefully thought-out specifications, which meet the needs of demanding curtain wall installation, infrastructure maintenance, and industrial access. Its 800 kg weight limit, dual-motor dependability, and full safety systems meet the most important issues that procurement professionals worry about when choosing aerial access tools. Your company can get the most out of its equipment investments by understanding technical specs, comparing different options, checking the credentials of suppliers, and following strict maintenance procedures. Because the platform has been used successfully in many different situations in the past, you can be sure that your specifications will help the project succeed while upholding the safety standards that your reputation depends on.

FAQ

What maximum platform length configurations are available for the ZLP800?

Platform lengths of up to 7.5 meters can be used with the standard modular design, which keeps the structure rigid and evenly distributes the load so that it can hold up to 800 kg. When the load is at its highest, longer configurations could make safety factors and working stability less stable.

How often do safety locks require professional recalibration?

Visual checks every day make sure the device is clearly working, and professional factory recalibration is needed every six to twelve months, depending on how often it is used and the rules in the area. This recalibration makes sure that the contact speed stays within the limits that were set and that the certification is still valid.

Can the platform operate safely during windy conditions?

When wind speeds reach 10.8 meters per second, which is Level 6 on the Beaufort scale, work must stop and the platform must be lowered to the ground or locked down. Keeping things running past this point creates too many risks for stability.

Why specify aluminum construction over standard steel platforms?

Aluminum is better at resisting rust than steel, which is important for places like chemical plants and seaside areas where aggressive air conditions speed up steel's breakdown. The lighter weight (440 kg vs. 600 kg for steel building) makes transportation easier and lowers the load on the suspension system, which is especially helpful when moving tools from one project site to another.

What differentiates the 9.1 mm wire rope from standard specifications?

The bigger diameter gives it the higher breaking strength it needs to keep the safety factors right at 800 kg working load. The standard 8.3 mm rope that is used on smaller platforms isn't strong enough for this heavy-duty job.

Partner with Xinjiuyi for Your Suspended Platform Requirements

Hebei Xinjiuyi Construction Technology is ready to help you with your needs for helicopter access tools. They are certified by ISO 9001, ISO 45001, and ISO 14001 for quality control. As a supplier of the ZLP800 Suspended Work Platform, we can fully customize the size, materials, and finishes to meet the needs of your project. We provide full documentation packages that include CE certification, test results, and compliance advice that meet the needs of regulators in all foreign markets. In addition to supplying tools, our technical team offers design advice, quick production scheduling, and help in the field to make sure that even the most difficult projects are successfully deployed. Visit xjy8.com or email our team at global@xjy8.com to talk about your unique needs and find out how our heavy-duty platforms can help your operations while keeping your crew safe.

References

1. American National Standards Institute. ANSI/ASSE A10.36-2018: Safety Requirements for Suspended Scaffolds. Washington: ANSI Publications, 2018.

2. Construction Industry Institute. High-Rise Construction Safety Practices and Equipment Selection Criteria. Austin: CII Research Division, 2021.

3. European Committee for Standardization. EN 1808:2015 Safety Requirements for Suspended Access Equipment - Design Calculations, Stability Criteria and Safety Tests. Brussels: CEN Central Secretariat, 2015.

4. International Organization for Standardization. ISO 4306-3:2016 Cranes - Vocabulary - Part 3: Tower Cranes. Geneva: ISO Publications, 2016.

5. National Safety Council. Best Practices in Fall Protection for Construction Work at Heights. Itasca: NSC Press, 2020.

6. Occupational Safety and Health Administration. OSHA Technical Manual Section V Chapter 4: Powered Platforms for Exterior Building Maintenance. Washington: U.S. Department of Labor, 2019.
