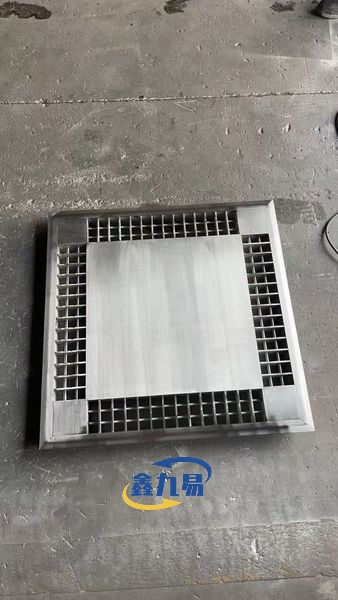

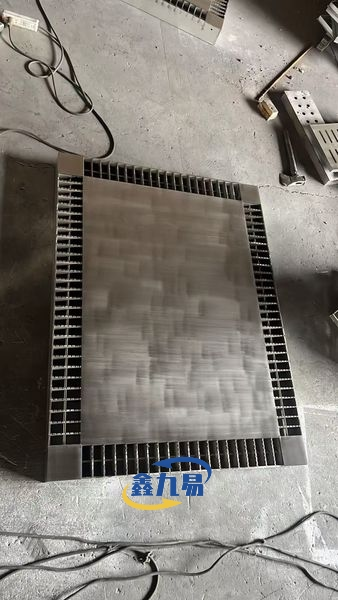

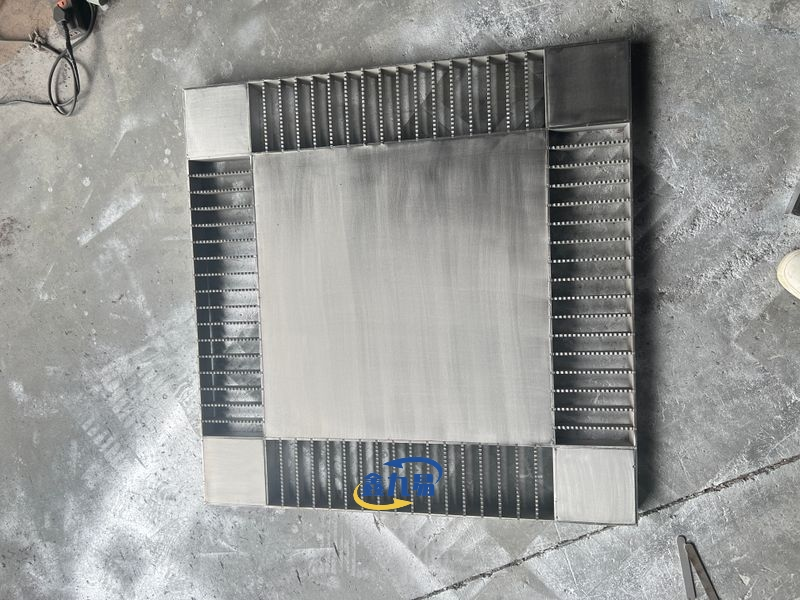

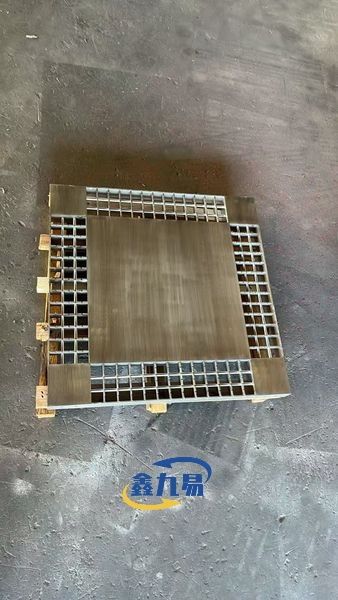

Stainless Steel Sump Pit Cover
Safe protection with anti-fall and anti-slip dual guarantees.
High load-bearing capacity adapts to vehicle traffic demands.
Dual-purpose design facilitates inspection and maintenance.
Corrosion-resistant and durable for humid underground environments.
Exquisite appearance improves overall project quality.
Application Scenario: Underground parking garage.
Material & Craftsmanship: Integrally formed from high-quality stainless steel and galvanized steel, featuring high structural strength and stable load-bearing performance.
Stainless Steel Sump Pit Cover – Premium Underground Garage Drainage Solution
Hebei Xinjiuyi Construction Technology Co., Ltd. specializes in manufacturing enterprise-grade Stainless Steel Sump Pit Cover frameworks outlined particularly for underground carport situations. Our item coordinating high-quality 201, 304, or 316 stainless steel development with precision-engineered waste grilles. Each cover highlights plate thicknesses extending from 2 mm to 8 mm and customizable measurements from 600 mm to 1200 mm in both length and width.
The zero-gap completely secured plan avoids falls whereas the encompassing grille structure empowers moment water clearing. Your office benefits from prevalent load-bearing capacity, erosion resistance, and maintenance-free strength that distant surpasses conventional cast press choices. With discretionary Symbol customization administrations, you can change utilitarian framework into branded building components that hoist your project's premium positioning.
Why Underground Garages Need Advanced Pit Cover Solutions
Water amassing in underground stopping offices makes genuine security dangers and operational challenges. Conventional cast press covers erode quickly in sticky situations, creating rust stains and auxiliary weaknesses.
Your support groups confront consistent repainting cycles and substitution costs. Vehicles create diligent clanging clamors when crossing unsteady metal covers. Dangerous surfaces from destitute seepage increment mischance risk risks.
Our Stainless Steel Sump Pit Cover dispenses with these issues through corrosion-resistant materials and brilliantly waste plan. The grille setup permits water to stream instantly into collection frameworks. You pick up a maintenance-free arrangement that keeps up appearance and execution for 25+ a long time in requesting storm cellar conditions.
Technical Specifications
| Parameter | Options |
|---|---|
| Material Grade | 201 / 304 / 316 / 430 / Galvanized Steel |
| Length | 600 mm / 700 mm / 800 mm / 900 mm / 1000 mm / 1200 mm (Customizable) |
| Width | 600 mm / 700 mm / 800 mm / 900 mm / 1000 mm / 1200 mm (Customizable) |
| Height | 40 mm / 50 mm / 60 mm / 70 mm (Customizable) |
| Plate Thickness | 2 mm / 3 mm / 4 mm / 5 mm / 6 mm / 7 mm / 8 mm |
| Surface Finish | Mill Finish / Brushed Satin / Anti-slip Checkered |
| Load Capacity | Suitable for frequent vehicle traffic (customizable to application) |
Core Functional Advantages
Instant Drainage Performance
The fringe grille plan channels collected water straightforwardly into the pit framework. You dispense with standing water dangers that cause vehicle slipping and person on foot slips. High-frequency cleaning with weight washers gets to be easy much appreciated to the smooth stainless steel surface.
Dual Safety Protection
Our zero-gap structural design prevents accidental falls of personnel, vehicles, or heavy equipment into the pit. The anti-slip surface texture maintains traction even when wet. Your facility reduces liability exposure while meeting stringent safety compliance requirements.
Superior Load-Bearing Capacity
Integrally formed stainless steel and galvanized steel construction delivers exceptional structural strength. The reinforced frame system handles continuous vehicle traffic without deformation or noise generation. You avoid the rattling sounds common with loose cast iron covers.
Corrosion-Resistant Durability
Grade 304 and 316 stainless steel provide outstanding resistance to moisture, salt, and chemical exposure. Unlike painted surfaces that require periodic maintenance, our covers maintain their appearance without additional treatment. Your long-term operational costs drop significantly.
Maintenance Access Convenience
The dual-purpose design allows easy cover removal for pit inspection and cleaning operations. Standardized dimensions and lifting mechanisms simplify routine maintenance tasks. Your facility management teams save time and labor expenses.
Premium Aesthetic Customization
Surface LOGO engraving or embossing transforms utilitarian infrastructure into branded architectural features. You create visual consistency across your property while communicating quality standards to tenants and visitors.
Material Engineering Excellence
We manufacture covers from carefully selected stainless steel grades matched to your specific environmental conditions. Grade 201 provides cost-effective performance for standard applications. Grade 304 serves general underground garage environments with balanced corrosion resistance.
For facilities in coastal regions or areas with de-icing salt exposure, Grade 316 delivers superior protection against chloride-induced pitting corrosion. The higher nickel and molybdenum content ensures decades of reliable service.
Our galvanized steel options offer economical solutions where budget constraints exist. However, we recommend stainless steel construction for premium projects prioritizing longevity and minimal maintenance.
The smooth non-porous surface inhibits bacterial growth and simplifies sanitation protocols. You maintain hygienic conditions that meet modern property management standards. High-pressure washing removes dirt and debris without damaging the cover surface or finish.
Installation and Integration
Our Stainless Steel Sump Pit Cover systems integrate seamlessly with standard pit dimensions used in underground garage construction. Customization services accommodate non-standard openings and special architectural requirements.
The frame design provides precise positioning and secure seating. Installation teams complete fitting quickly using standard tools and procedures. You minimize construction delays and labor costs.
For projects requiring gas-tight sealing, we incorporate specialized gasket systems that prevent odor migration into occupied spaces. Optional locking mechanisms provide security against unauthorized access while maintaining emergency accessibility.
Surface finishes can be specified to match surrounding flooring materials. Recessed frame designs accept tile or stone infills for complete visual integration. Your architectural vision remains uncompromised by functional infrastructure.
Frequently Asked Questions
Q:What load capacity should I specify for my parking garage?
A:Standard vehicle traffic requires covers rated for frequent passenger car and light commercial vehicle loads. For facilities accommodating delivery trucks or maintenance vehicles, specify reinforced configurations with increased plate thickness and structural ribbing.
Q:How do I choose the appropriate stainless steel grade?
A:Grade 304 suits most enclosed underground environments. Coastal properties or facilities using de-icing chemicals should specify Grade 316 for enhanced chloride resistance. Our technical team provides material recommendations based on your specific conditions.
Q:Can covers be customized to match existing pit dimensions?
A:Yes, we manufacture covers to your exact specifications. Provide pit opening measurements, depth requirements, and load specifications. Our engineering team produces CAD drawings for approval before fabrication begins.
Q:What maintenance does stainless steel require?
A:Periodic cleaning with standard detergents maintains appearance. No painting, coating, or rust treatment is needed. The material's inherent corrosion resistance eliminates ongoing maintenance expenses associated with cast iron alternatives.
Q:How does drainage performance compare to traditional covers?
A:Our grille design provides significantly greater open area for water flow than solid covers with perimeter slots. You achieve faster drainage and reduced surface water accumulation during heavy rain or cleaning operations.
Q:What lead time should I expect for custom orders?
A:Standard configurations ship within our normal production schedule. Custom sizes and specifications require engineering review and fabrication scheduling. Contact our team with project timelines for accurate delivery commitments.
Quality Assurance Process
Xinjiuyi implements rigorous quality control protocols throughout manufacturing. Material verification confirms stainless steel grade composition meets specification requirements. Dimensional inspections ensure precise fit with minimal installation adjustment.
Our fabrication processes include precision cutting, forming, and welding using advanced equipment. Weld quality receives particular attention to maintain structural integrity and surface finish consistency. Load testing validates performance under simulated traffic conditions.
Surface finishing operations create uniform appearance and specified texture. Final inspection verifies all dimensional tolerances, structural requirements, and aesthetic standards before packaging. You receive products that meet professional installation and performance expectations.
