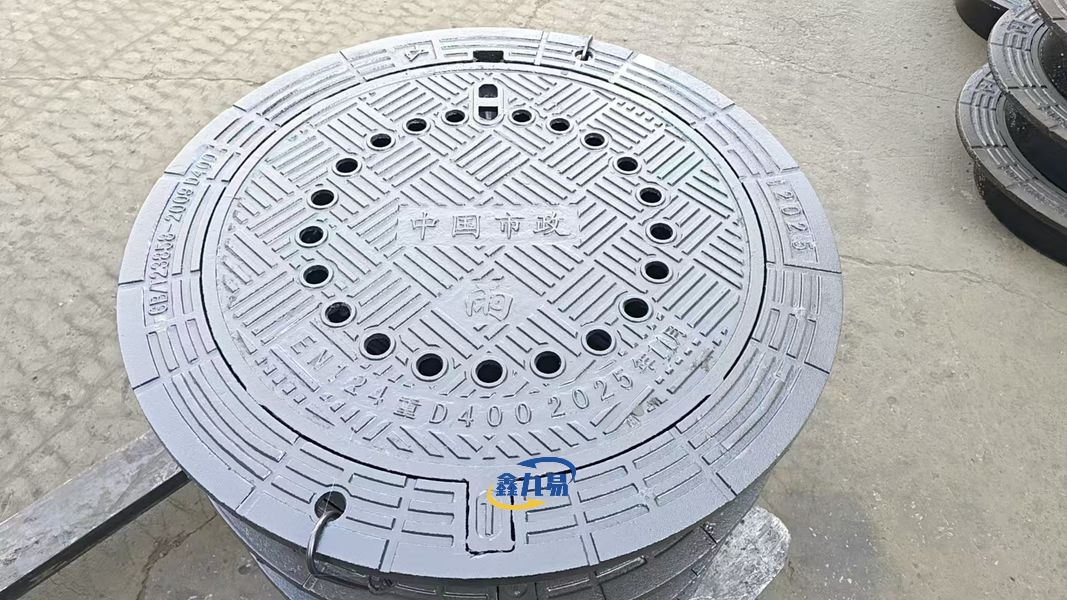

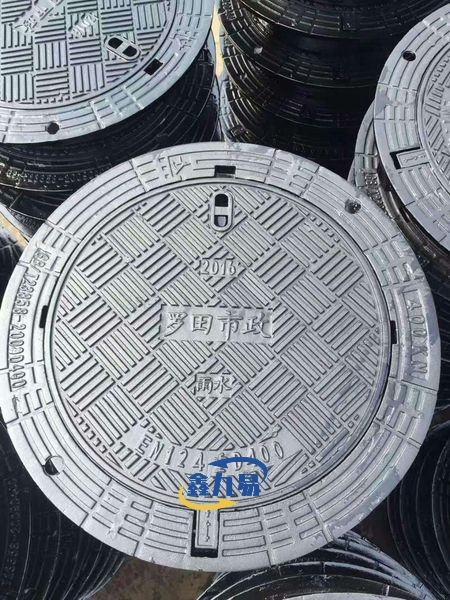

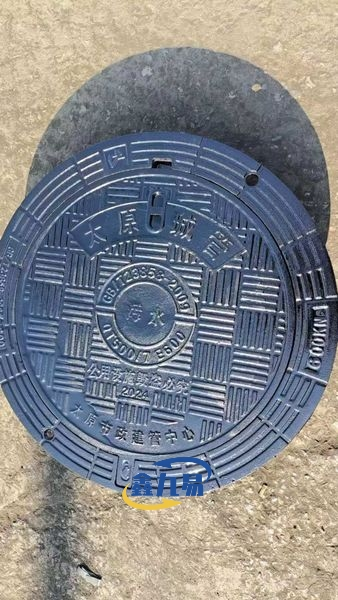

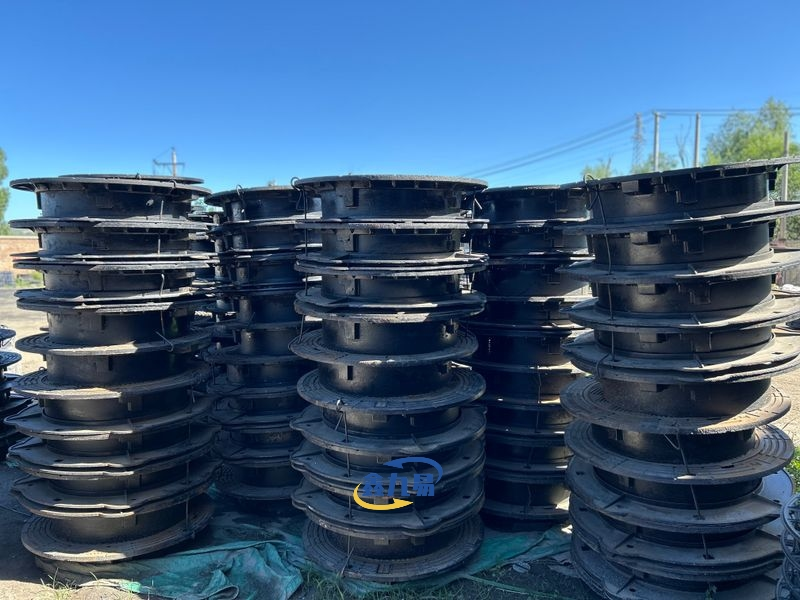

Ductile Iron Anti-settlement Manhole Cover
Application Scenarios: Municipal arterial and secondary roads, urban sidewalks and non-motor vehicle lanes, residential communities, commercial streets, squares and scenic parks, factories, industrial parks and logistics parks, bridges, tunnels and elevated roads, campuses, hospitals and government compounds.
Material & Craftsmanship: Made of high-strength ductile iron and stainless steel. It features high structural strength, long service life, and is not easy to rust and clog.
Ductile Iron Anti-settlement Manhole Cover
Hebei Xinjiuyi Construction Technology Co., Ltd. brings you the Ductile Iron Anti-settlement Manhole Cover, designed to unravel one of the most tireless challenges in urban foundation: sewer vent subsidence. Made from high-quality spheroidal graphite cast press with pliable quality ≥500 MPa and stretching ≥7%, our covers include a pressure-dispersing spine plan that exchanges vehicle loads specifically to the street base layer. This anticipates the common "dark gap" impact caused by sinking covers on civil roads.
With breadths over 700 mm, each unit coordinating anti-theft components, noise-dampening elastic gaskets, and proficient anti-slip surfaces. The wide-flange structure increments contact region with the roadbed, keeping up a flush surface for 20+ a long time indeed beneath overwhelming activity conditions.
Core Applications
Where Your Infrastructure Needs Our Solutions
Your metropolitan and commercial ventures request strength that conventional covers cannot give. Our anti-settlement covers are particularly outlined for high-stress environments.
Urban Foundation Ventures: Fundamental and auxiliary civil streets advantage from the load-dispersing instrument. The Ductile Iron Anti-settlement Manhole Cover remains level with the asphalt surface, anticipating street breaks and lessening upkeep recurrence. Urban sidewalks and non-motorized vehicle paths pick up improved security through anti-slip surface textures.
Commercial and Private Zones: Commercial lanes, squares, and private communities require calm operation. Our precision-machined contact surfaces with EPDM versatile gaskets dispose of commotion and vibration when vehicles pass over. Parks and picturesque regions keep up tasteful request whereas guaranteeing guest safety.
Industrial and Coordinations Offices: Plant zones, mechanical parks, and coordinations centers confront extraordinary point-loading from forklifts and multi-axle cargo trucks. The GGG50 bendable press development withstands these requests without misshapening, keeping up operational security over your facility.
Critical Framework: Bridges, burrows, hoisted streets, and regulation campuses counting schools and clinics require long-term unwavering quality. The corrosion-resistant coating guarantees 30-50 a long time of benefit life, altogether diminishing your add up to fetched of ownership.
Technical Specifications
Precision Engineering for Maximum Performance
| Parameter | Specification |
|---|---|
| Material | High-strength ductile iron (GGG50) |
| Tensile Strength | ≥500 MPa |
| Elongation | ≥7% |
| Nodularity Rate | >80% |
| Diameter Range | Above 700 mm |
| Load Class Options | C250 to F900 (EN 124-2:2015) |
| Gasket Material | EPDM or NBR rubber |
| Coating | Bitumen or epoxy resin |
| Service Life | 30-50 years |
| Anti-theft Feature | Integrated hinge mechanism |
| Surface Treatment | Professional anti-slip texture |
Superior Material Properties
Why Ductile Iron Outperforms Alternatives
Your ventures merit materials that perform beneath weight. The spheroidal graphite structure of our pliable press gives extraordinary sturdiness compared to gray press or composite alternatives.
Unmatched Quality: The nodularity rate surpassing 80% guarantees the fabric stands up to delicate break. Beneath overwhelming vehicle affect, the cover flexes somewhat or maybe than breaking, keeping up basic astuteness all through its benefit life.
Corrosion Resistance: Our bitumen or epoxy gum coating ensures against acids, antacids, and natural presentation. Whether your establishment faces freeze-thaw cycles, coastal salt splash, or mechanical chemicals, the coating keeps up its defensive boundary. This resistance disposes of the rust and corruption common in standard cast press products.
Load-Bearing Greatness: The wide-flange plan disseminates weight over a bigger surface region. When a 40-ton truck passes over, the pressure-dispersing instrument exchanges the stack to the steady street base or maybe than the sewer vent shaft. This avoids the dynamic settlement that makes perilous street conditions.
Weather Solidness: From -40°C winters to +60°C summer surface temperatures, the fabric properties stay steady. No breaking, no distorting, no execution degradation.
Anti-settlement Innovation
Engineering That Keeps Your Roads Level
Traditional manhole covers rely on surrounding asphalt for support, which compacts over time and causes subsidence. Our Ductile Iron Anti-settlement Manhole Cover eliminates this problem through advanced structural engineering.
Pressure-Dispersing Flange: The specialized flange creates a mechanical connection with the road base layer. Vehicle loads bypass the compactable materials and transfer directly to the stable foundation below. Your road surface remains flush and even for decades.
Multi-Layer Installation: We provide detailed installation guidance for the specific compaction process required. The frame seats correctly within the road structure, ensuring the anti-settlement mechanism functions as designed. Proper installation is crucial, and our technical team supports your construction crew throughout the process.
Noise Elimination: Precision-machined contact surfaces mate perfectly with high-durability rubber gaskets. When vehicles pass overhead, there is zero rocking, zero displacement, and zero noise. This feature is particularly valuable in residential areas where noise complaints impact project approval.
Anti-Theft Security: Integrated hinge mechanisms and optional anti-theft clips prevent unauthorized removal. The limit structures ensure the cover cannot bounce or shift under traffic, maintaining both safety and security.
Comprehensive Service Support
From Design to Long-Term Performance
You need more than a product—you need a complete solution. Xinjiuyi provides full-spectrum support for your infrastructure projects.
Customization Capabilities: Our manufacturing facility in Cangzhou accommodates non-standard requirements. Whether you need specific dimensions, special load ratings, or custom frame configurations for unique installation scenarios, we produce according to your drawings and specifications.
Quality Assurance: Every cover undergoes rigorous testing including load bearing verification, metallographic analysis, dimensional accuracy checks, and coating thickness validation. We conduct settlement simulation bench-testing to confirm the pressure-dispersal mechanism performs as specified.
Installation Guidance: Our technical team provides on-site support to ensure proper installation techniques. The anti-settlement feature only delivers its full benefit when correctly integrated with your road structure. We help your crew achieve optimal results.
Long-Term Reliability: With proper installation, you can expect 30-50 years of maintenance-free operation. This dramatically reduces your lifecycle costs compared to covers requiring frequent adjustment or replacement.
Frequently Asked Questions
Q1: Why is the anti-settlement feature better than a standard cover?
A1: Traditional covers sink as the surrounding asphalt compacts over time. Our anti-settlement design uses a pressure-dispersing flange that anchors to the stable road base layer, keeping it flush with the surface. This prevents the "black hole" effect that damages vehicles and creates safety hazards.
Q2: Does installation require special techniques?
A2: Yes, proper installation is critical for performance. The process involves multi-layer compaction to ensure the pressure-dispersing flange seats correctly within the road structure. We provide detailed guidance and on-site technical support to your installation team.
Q3: How do you prevent noise when vehicles pass over?
A3: We integrate precision-machined contact surfaces with high-durability EPDM or NBR rubber gaskets. These components dampen vibrations and eliminate the rocking motion that causes noise. The result is completely silent operation even under heavy traffic.
Q4: Can these covers handle extreme load environments like airports or ports?
A4: Absolutely. Our covers are available up to F900 load rating (900 kN), which meets the highest industry standard for extreme load environments. They regularly perform in logistics parks with multi-axle freight trucks and can be specified for airport or port applications.
Q5: What is the expected service life?
A5: With GGG50 ductile iron construction, corrosion-resistant coating, and proper anti-settlement installation, the typical service life exceeds 30-50 years. This significantly outperforms gray iron or composite alternatives that may require replacement within 10-15 years.
Q6: How does corrosion resistance compare to stainless steel?
A6: While stainless steel resists corrosion, it lacks the load-bearing strength and impact resistance of ductile iron at comparable costs. Our bitumen or epoxy coating provides excellent corrosion protection while maintaining the superior mechanical properties your high-traffic applications demand.
Q7: Are your covers compatible with existing infrastructure?
A7: Yes, we manufacture covers compatible with concrete well frames, open ditches, and covered trenches. Our customization capabilities ensure proper fit with your existing installations, and we can produce according to your specific dimensional requirements.
Contact Us
Contact our team at global@xjy8.com for technical specifications, custom quotes, and project consultation for Ductile Iron Anti-settlement Manhole Cover.
